4. REMOVAL AND INSTALLATION OF A/C REFRIGERANT PRESSURE

SENSOR (RECEIVER DRIER)

Receiver Drier

Ú

Ú

Ú

Ú

Ú Preceding Works: 1. Remove the RH headlamp (refer to “LAMP” section).

2. Drain the A/C gas and refrigerant to the designated container.

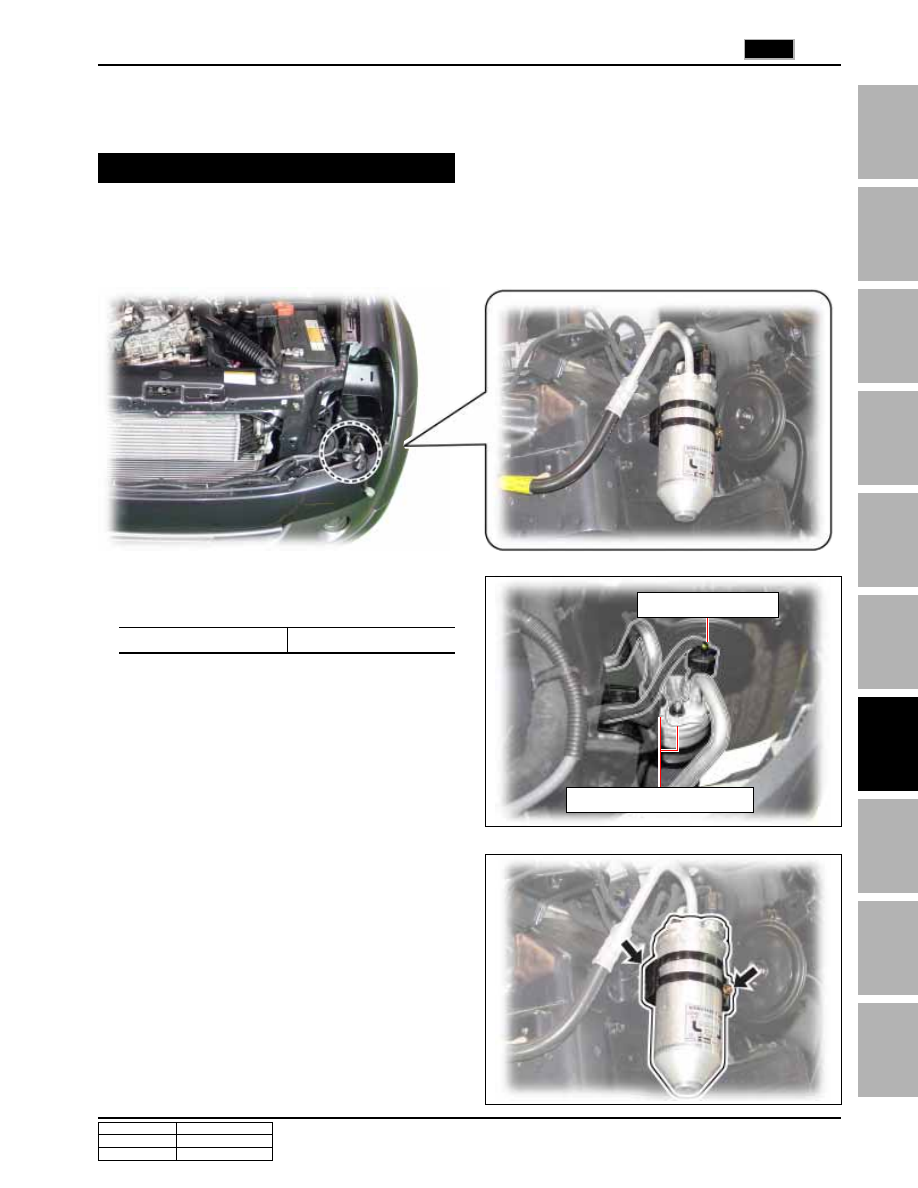

1. Disconnect the receiver drier sensor connector (1)

and HIGH/LOW pressure pipe (2).

2. Unscrew the mounting bracket bolts and remove the

receiver drier.

20 ~ 30 Nm

Tightening torque

2. High/Low pressure pipe

1. Sensor connector

MEMO

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.................................................................................................................................................................................................................................................................................................................................................................................................................................................................

SWITCHABLE ENGINE MOUNT

1990

TABLE OF CONTENTS

SWITCHABLE ENGINE MOUNT
(ELECTRONIC CONTROL TYPE) ........................ 2

1. Overview and system layout .............................................. 2

2. Functions ........................................................................... 3

3. Characteristics and performance ...................................... 3

4. Operating condition ........................................................... 3

5. Removal and installation of switchable engine mount ...... 5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

2

1990

SWITCHABLE ENGINE MOUNT

D27DTP/D27DT (EU4)  SM - 2006.08

D27DTP/D27DT (EU4)

1. OVERVIEW AND SYSTEM LAYOUT

For the vehicle equipped with D27DTP (POWER UP) engine, the switchable engine mount system lets the engine
ECU electronically control the shock absorber’s characteristics in the engine mount.

This system can control the vacuum in two modes (soft and hard) through the engine ECU to minimize the noise and
vibration and improve driving comfort and stability.

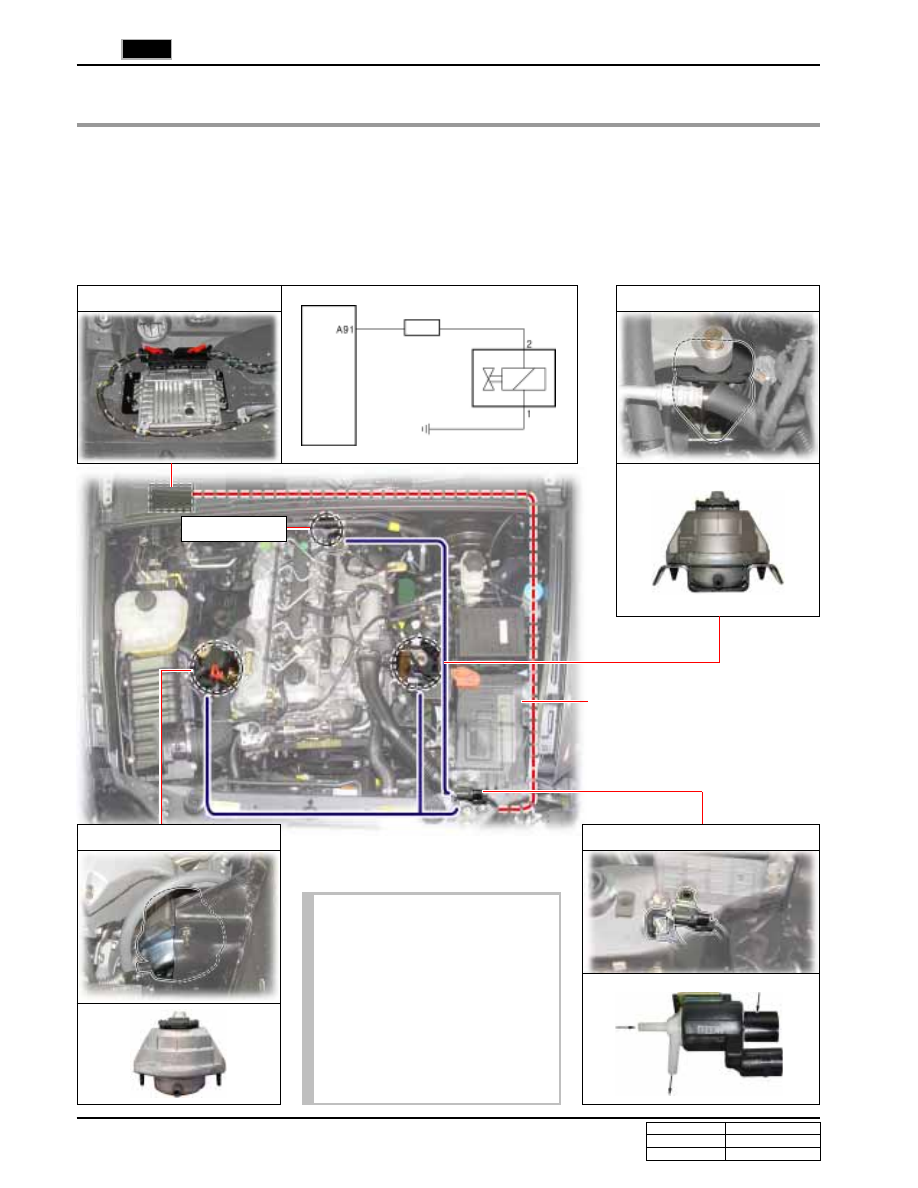

SWITCHABLE ENGINE MOUNT (ELECTRONIC CONTROL TYPE)

Engine ECU

LH Switchable Engine Mount

Vacuum Solenoid Valve

L/R Switch-

able engine

mount

Vacuum pump

Connector

RH Switchable Engine Mount

Vacuum pump

Battery

* Mounted on the battery’s lower

bracket

Engine

ECU

RLY

Vacuum

solenoid

• The components of vacuum sole-

noid valves are the same in vari-
ous types of engines. However,
their functions are different from
each other. The vacuum solenoid
valve for D27DTP (POWER UP) en-
gine controls the vacuum in the en-
gine mount. The vacuum solenoid
valve for D27DT engine controls
the vacuum in IWE (Integrated
Wheel End) of 4WD system.

NOTE
