4. REMOVAL AND INSTALLATION

Preceding Work: Removal of head lining

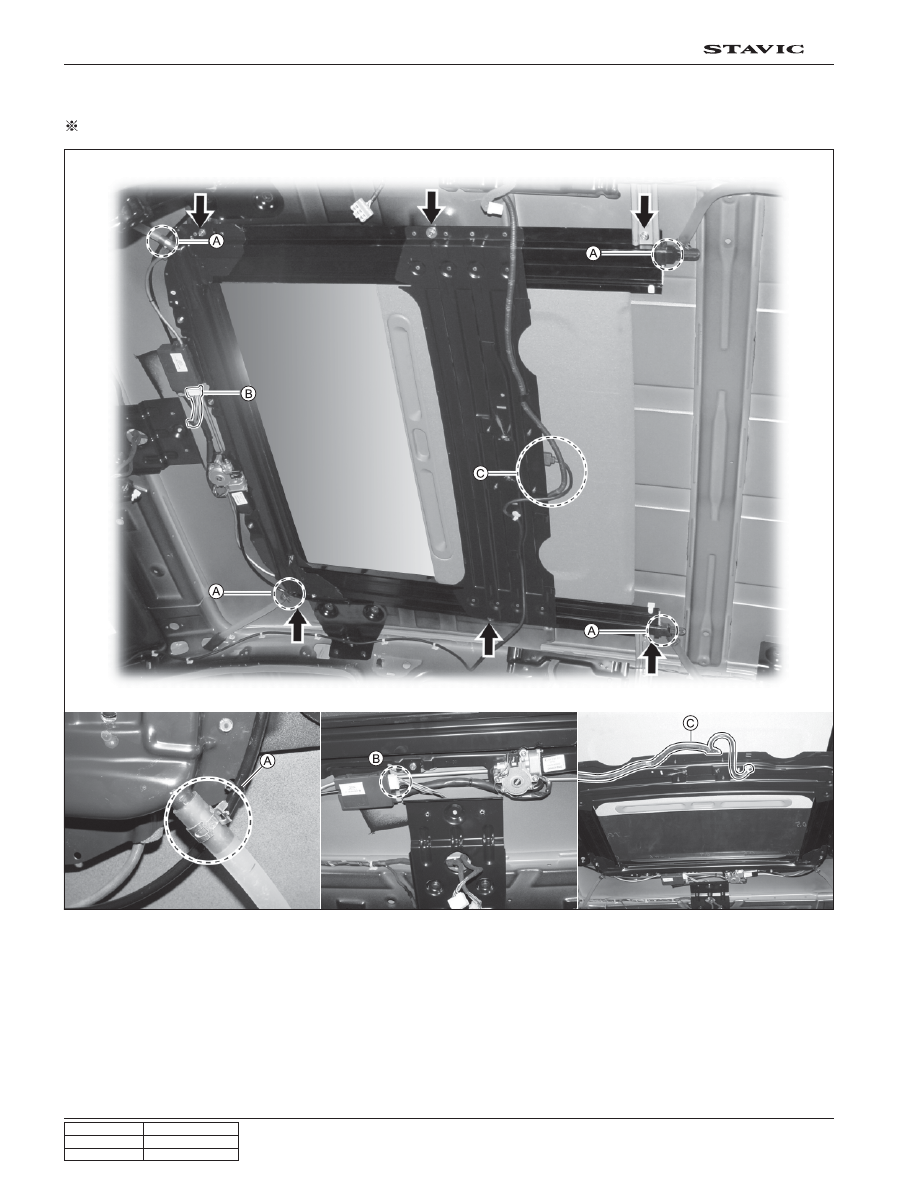

1. Disassemble four sun roof drain hose (A).

2. Disconnect sun roof control unit connector (B).

3. Remove sun roof mounting bolts (Refer to arrow mark).

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

Replacement of Sun Roof Glass

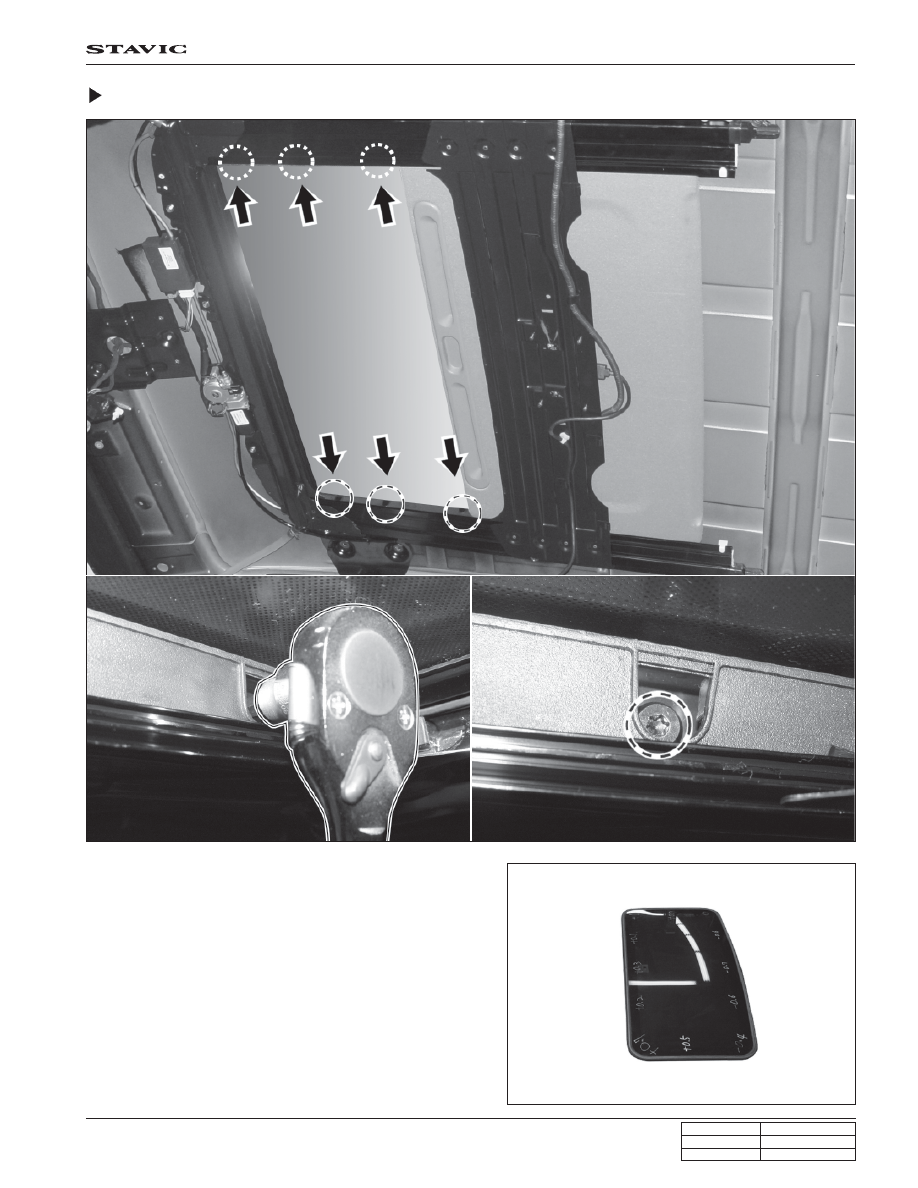

- Remove 6 screws to disassemble sun roof glass.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

ACESSORIES

1. ROOF RACK

Removal and Installation

Preceding Work: Removal of head lining

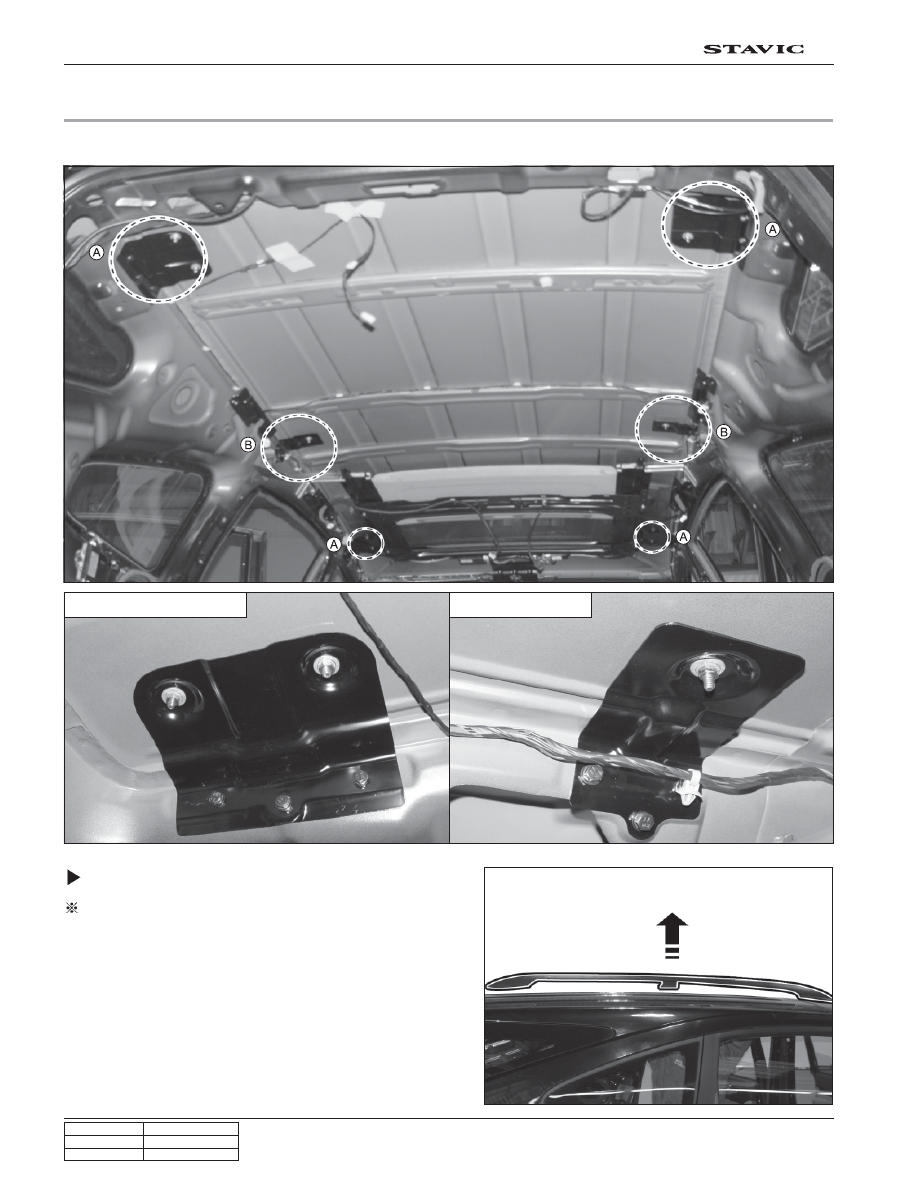

1. Remove 10 bolts (left / right 5 each), and disassemble

roof rack assembly.

2. Installations reverse order of removal.

Front / Rear mounting

Center mounting

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

2. FUEL FILLER CAP CABLE

Removal and installation

Preceding Work: Removal of front seat / 2nd, 3rd raw seat / scuff trim / lower trim - B pillar /

lower trim - quarter

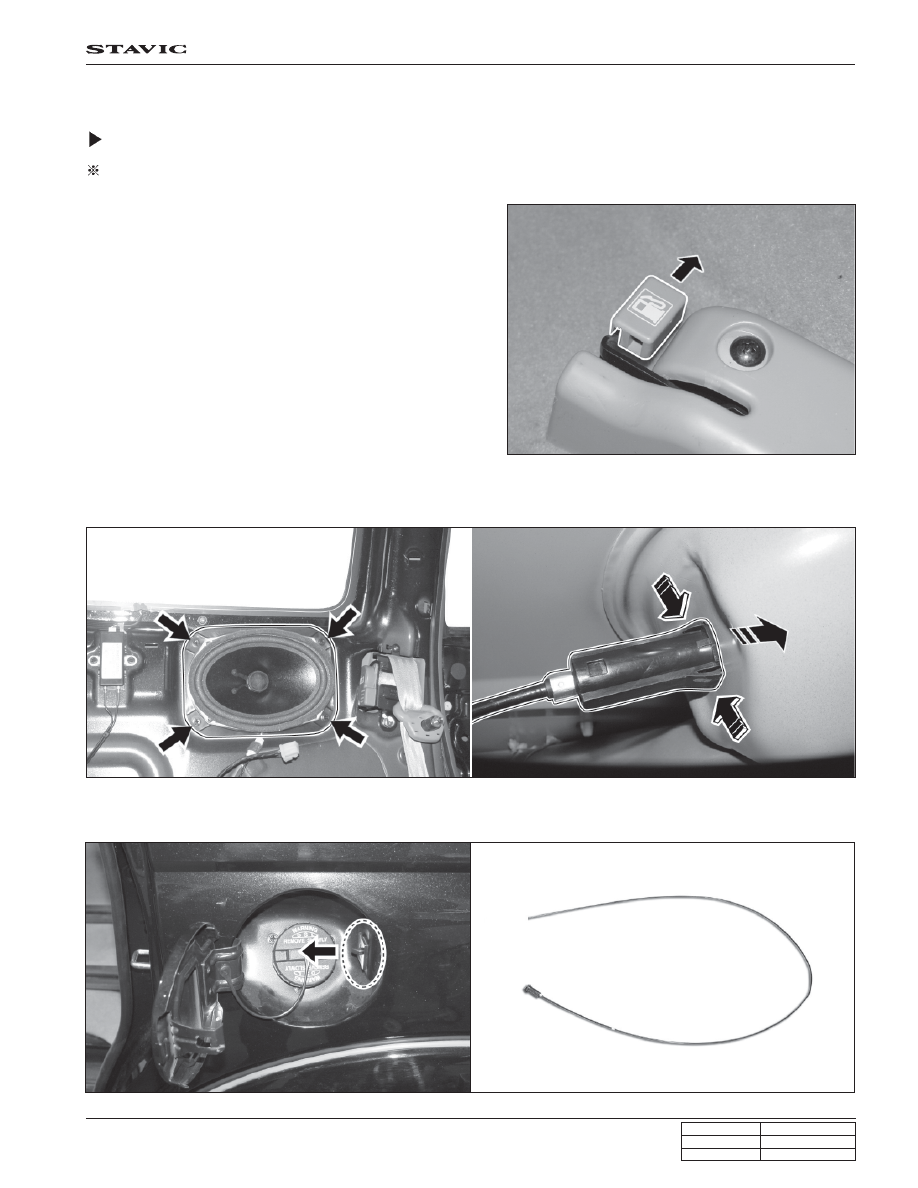

1. Remove lever mounting screw and cover.

2. Disassemble rear speaker - LH.

3. Press the cable holder by both side key (Refer to arrow mark) and push.

4. Disconnect the cable from cable mounting bracket.
