SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 453

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

46

5B

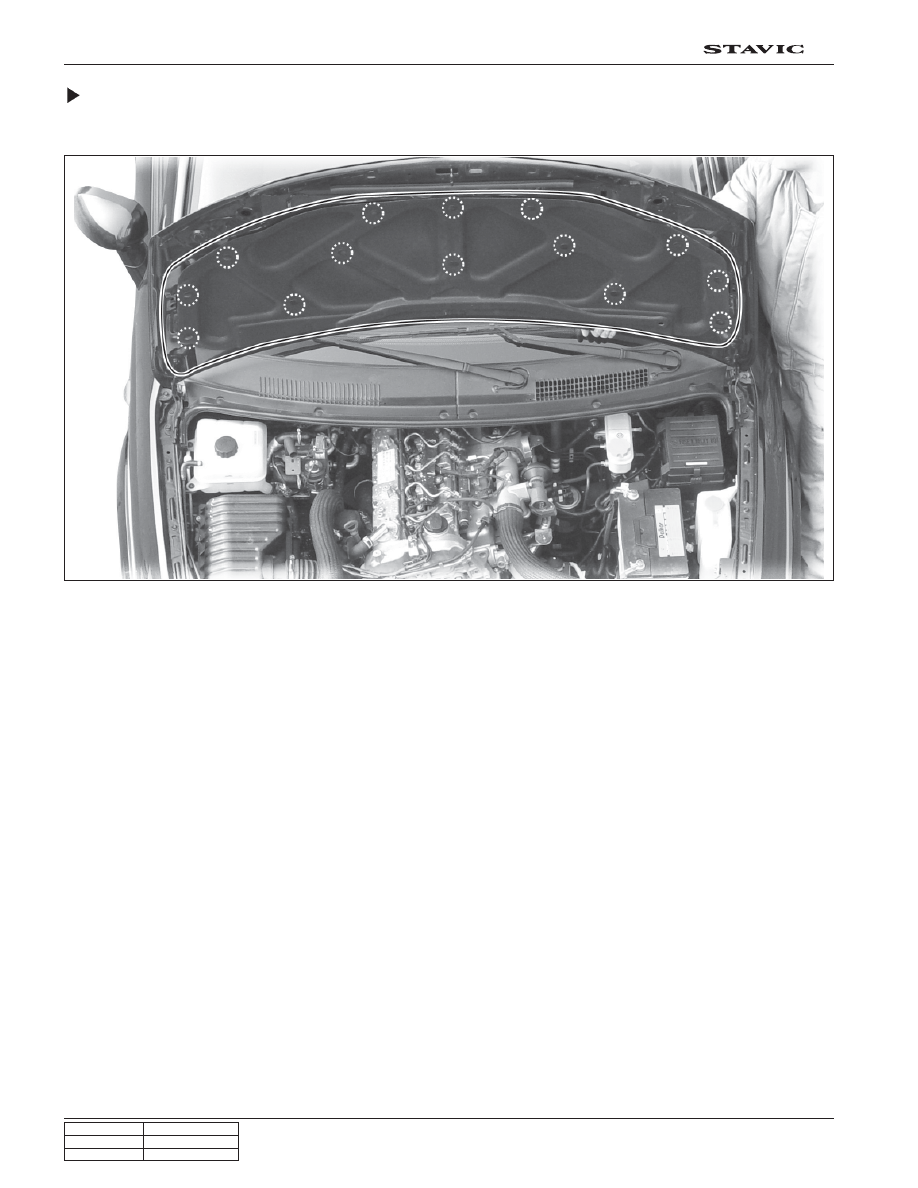

Replacement of Hood Insulation Pad

1. Disconnet the insulation pad with 14 screws.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

47

5B

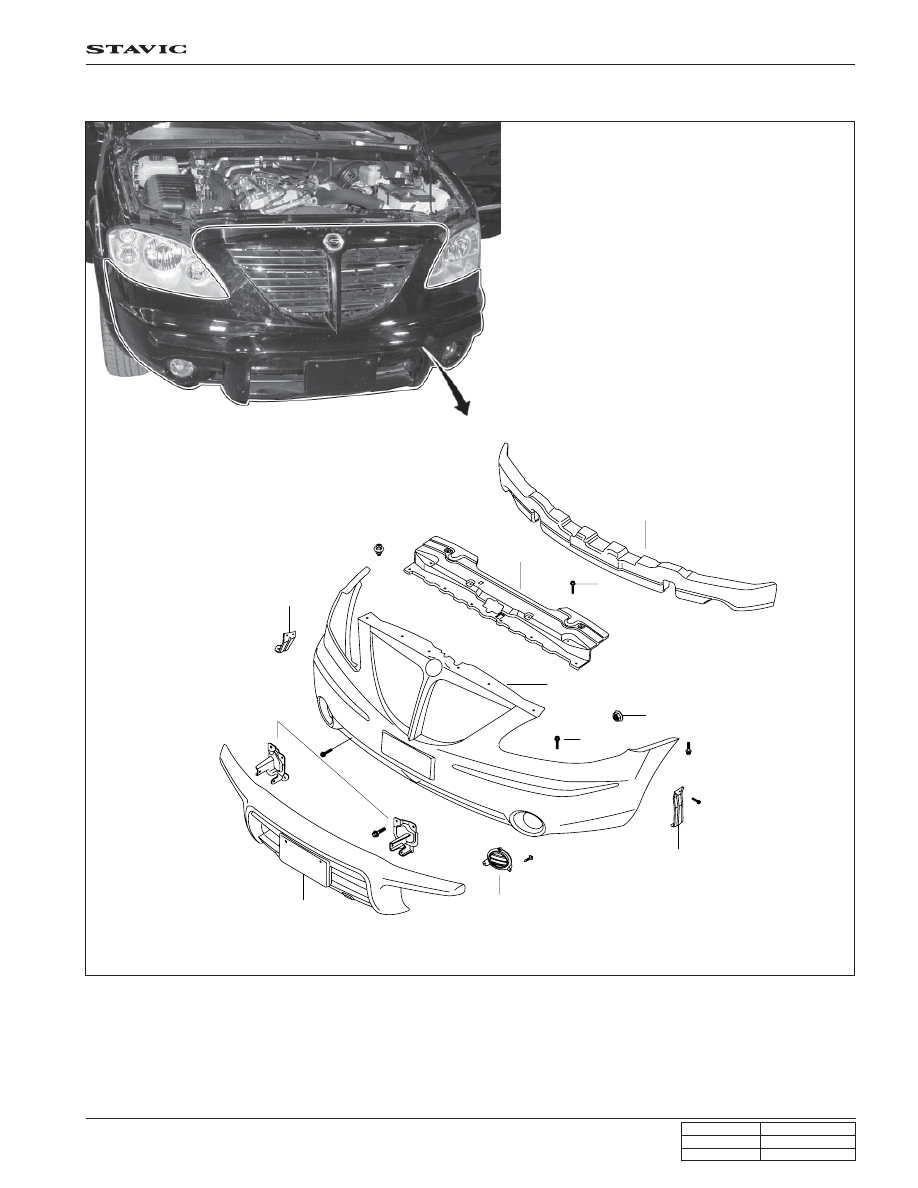

Shock absorber - Energy

Bolt

Upper cover

Bracket - side

Bracket - front guide bar

Front guide

Fog lamp cover

Bracket - side

Bolt

Nut

Bumper facia assembly

4. LAYOUT - FRONT BUMPER

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

48

5B

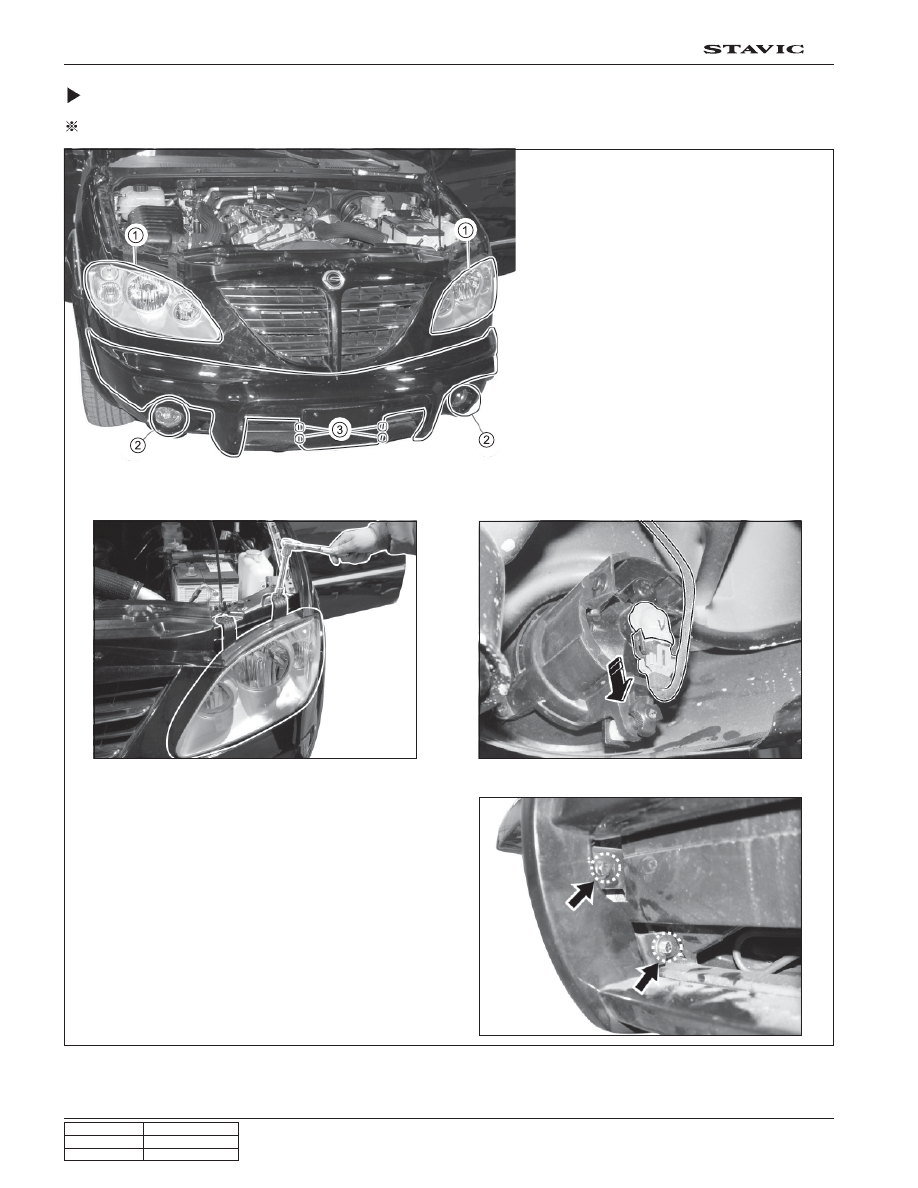

Removal and Installation

Preceding Work: Disconnect the battery negative cable

(1) Disassemble head lamp

(2) Disconnect fog lamp connectors

(3) Remove guide bumper with mounting bolts

(8mm x 4ea)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

49

5B

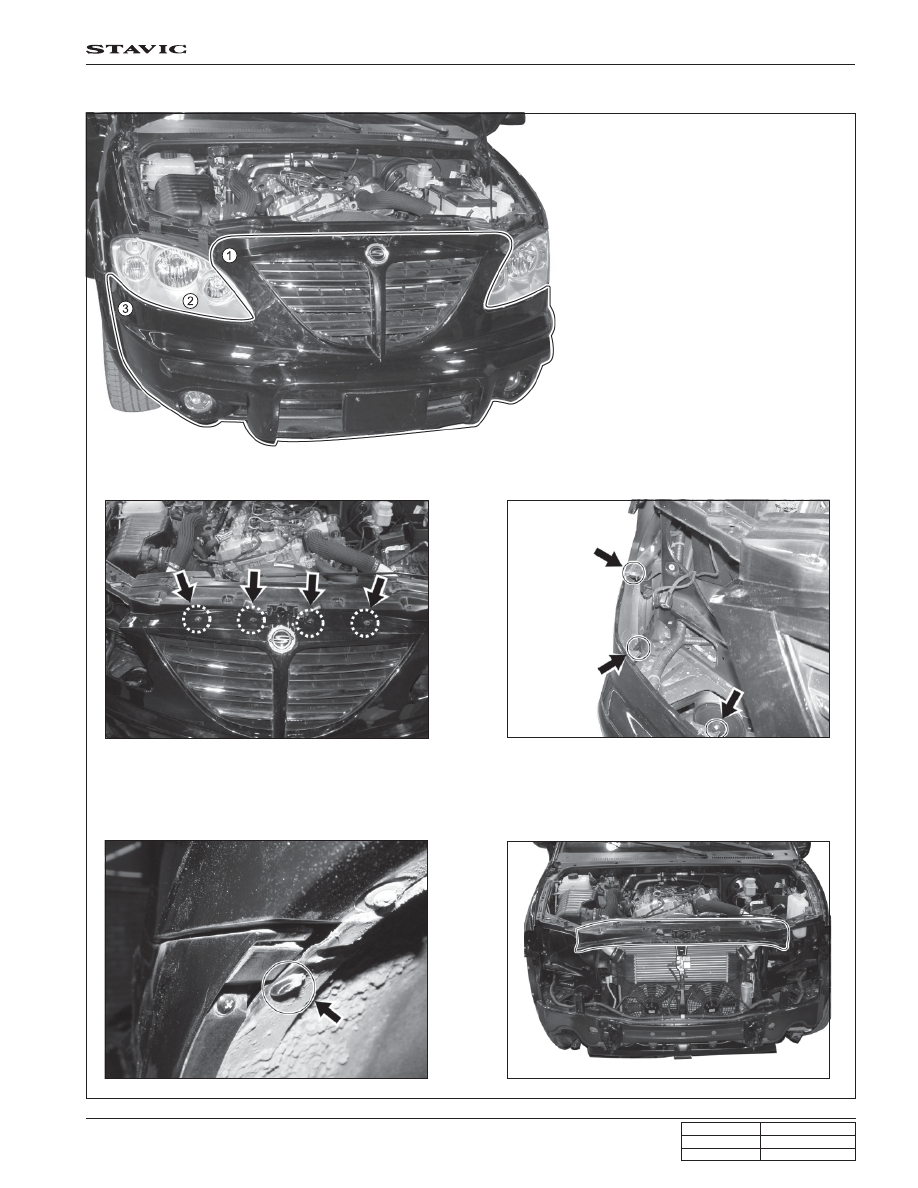

2. Uninstall the bumper assembly

(4) Upper cover grommet screws.

(1) Bumper mounting bolts (Upper cover side - 4EA)

(3) Bumper mounting bolts (Wheel arch side)

(2) Bumper mounting bolts (Head lamp side)
