BODY EXTERIOR

STAVIC - 2004.09

26

5B

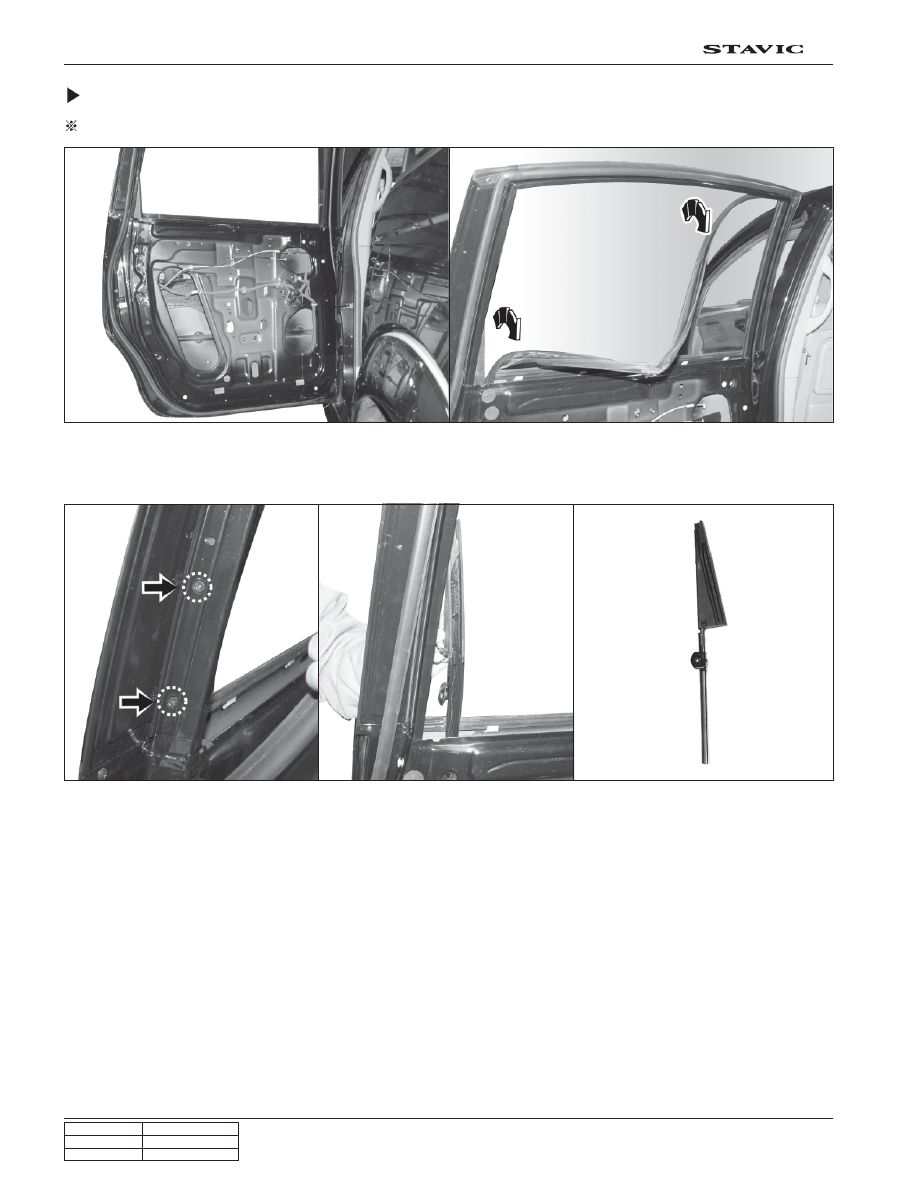

Rear Window Regulator / Glass Run

Preceding Work: Removal of door trim

1. Remove upper guide channel with two bolts, as weather strip is pulled.

2. Remove two screws in carrier plate and disassemble the window glass.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

27

5B

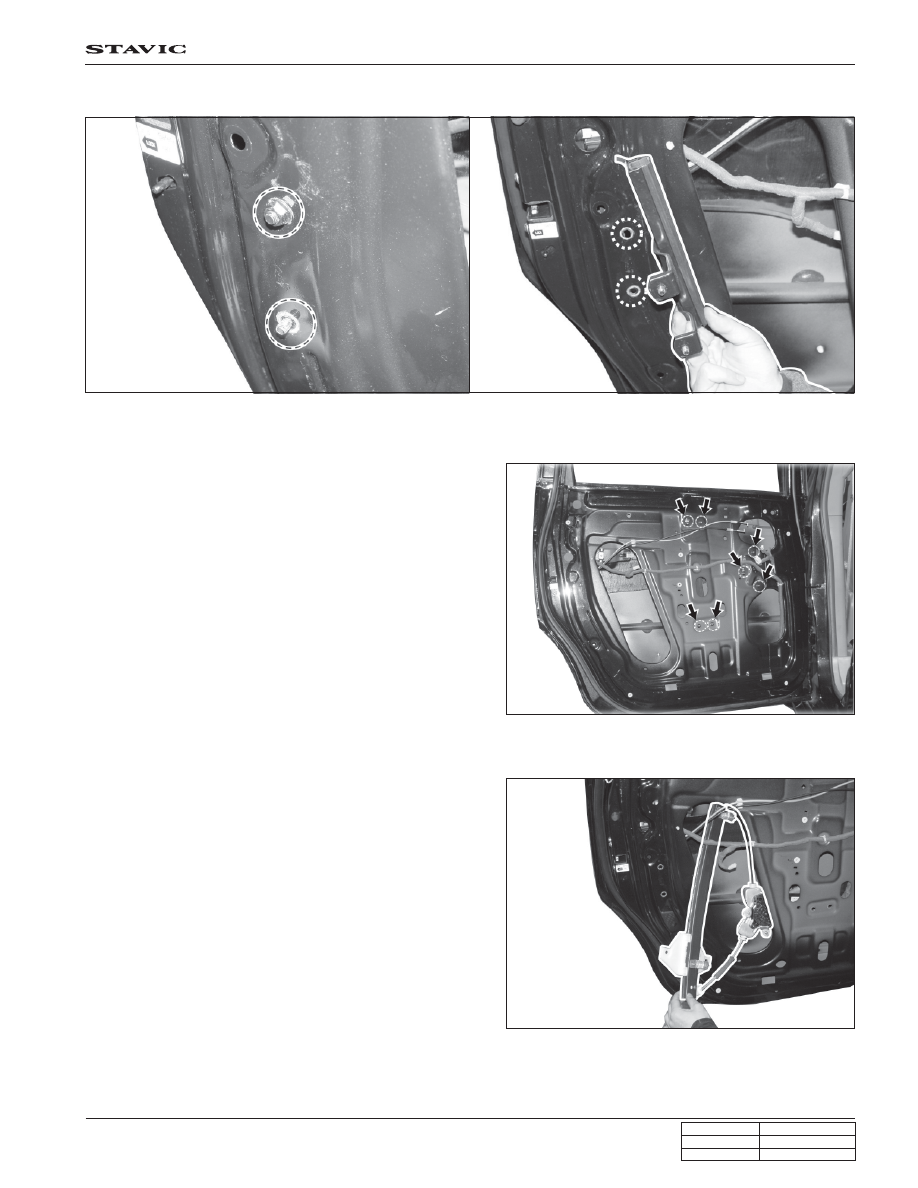

4. Remove window regulator & motor mounting nuts (6 mm

- 7 EA)

5. Disconnect power window motor connector.

3. Disassemble lower guide channel (two nuts).

6. Disassemble power window regulator & window motor

assemble.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

28

5B

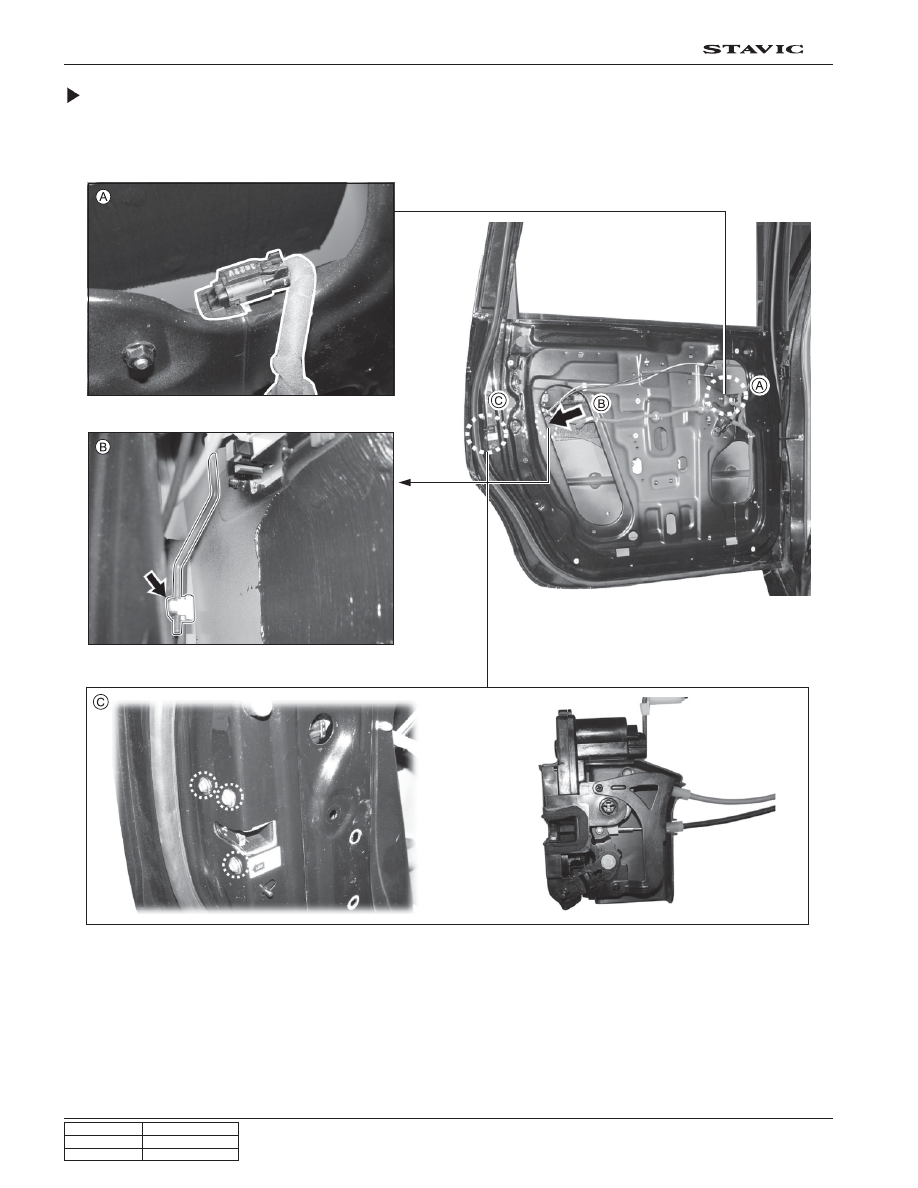

Door Latch & Crank Assembly - Rear

1. Disconnect handle rod - outside door (B) and power window unit connector (A)

2. Remove three nuts (C) to disassemble latch & crank assembly.

○○○○○○○

○○○○○○○○○○○○

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

29

5B

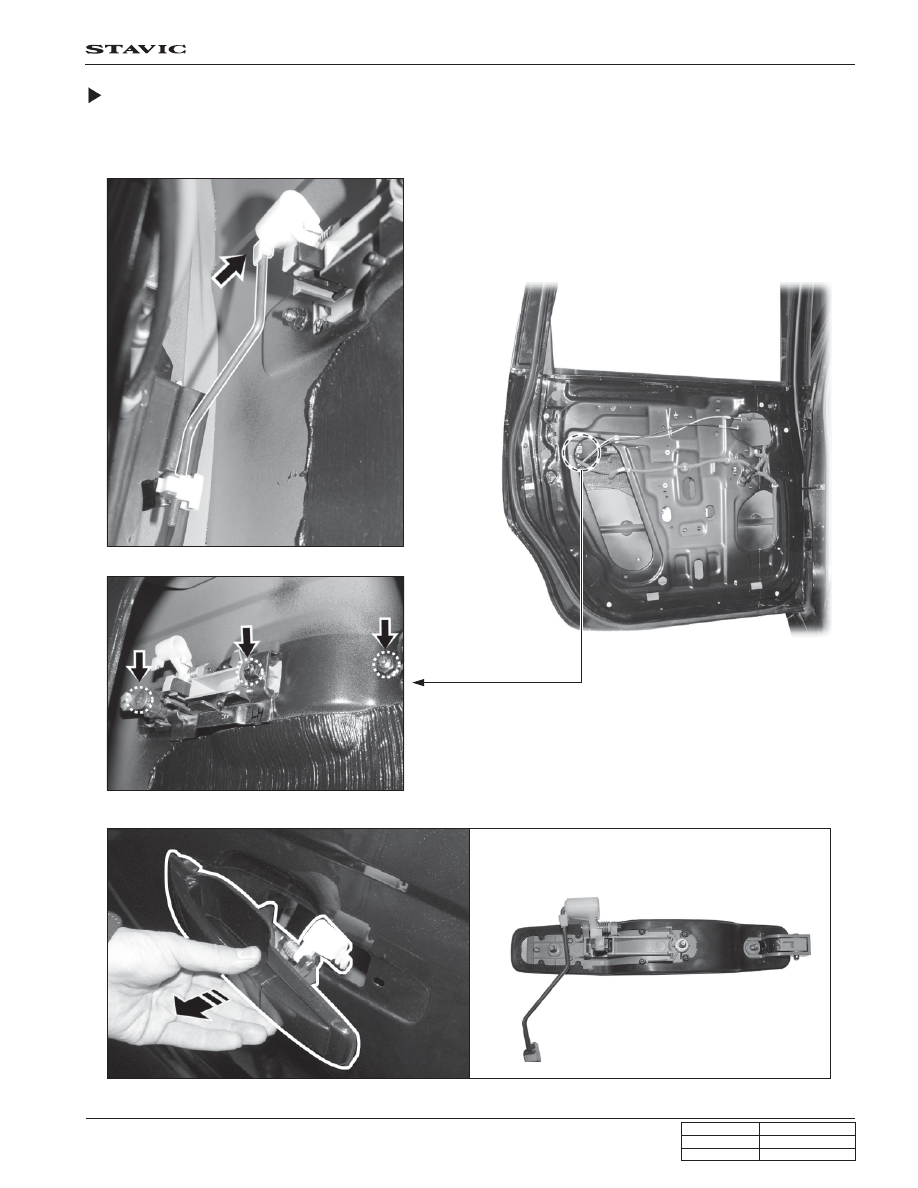

Outside Door Handle - Rear

1. Disconnect handle rod - outside handle.

2. Remove three nuts (6 mm - 3 EA).
