BODY INTERIOR

STAVIC - 2004.09

74

5A

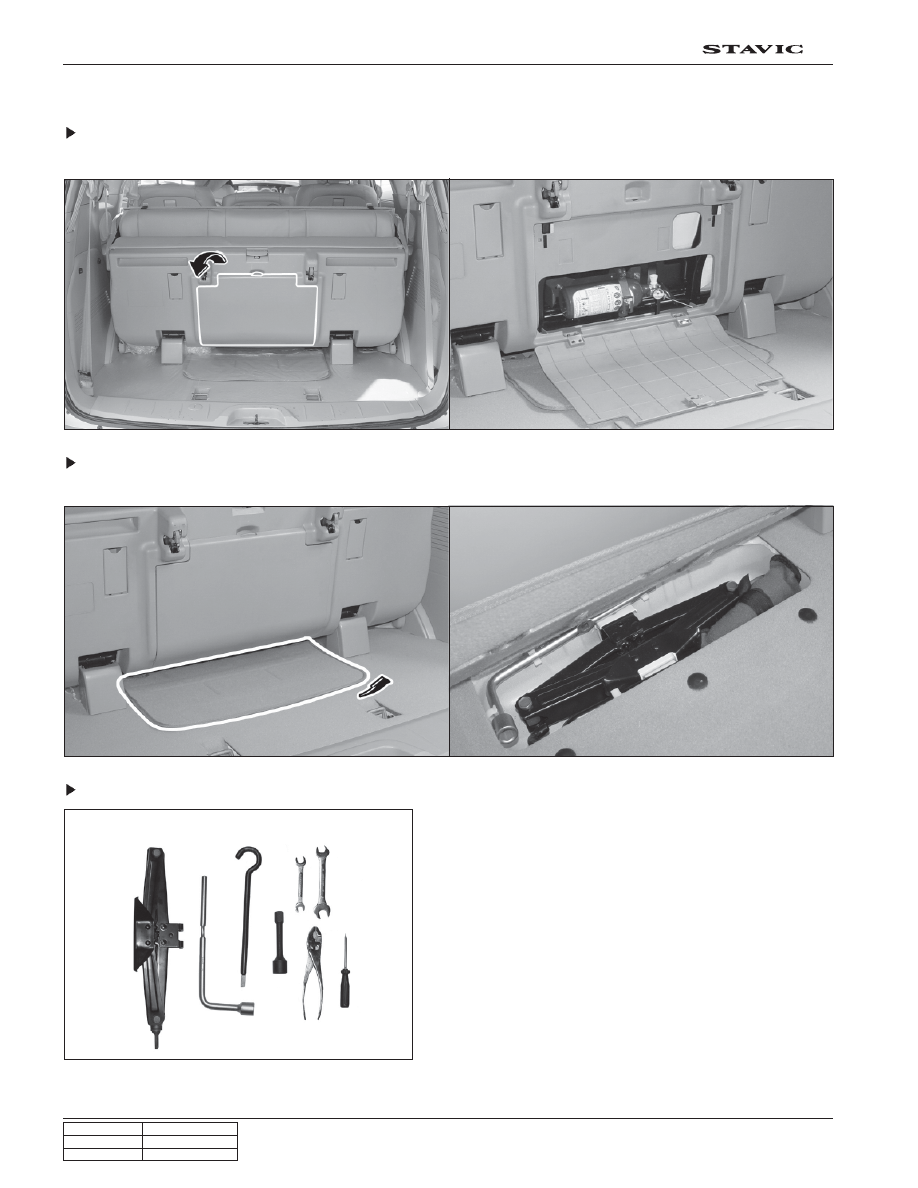

4)  Fire Extinguisher & OVM Tool

Fire Extinguisher

- Under rear 3rd seat

OVM Tool

- Under rear 3rd seat floor cover.

Components

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

75

5A

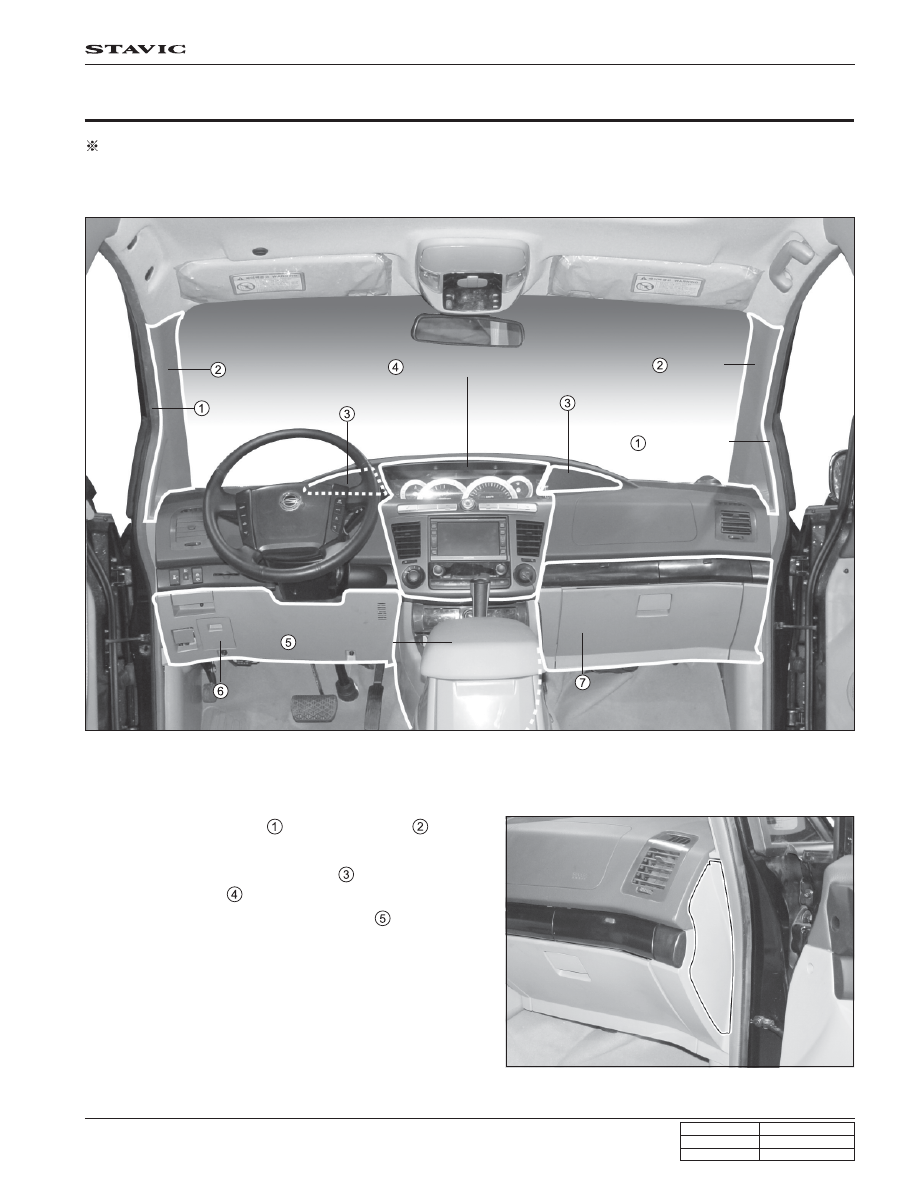

INSTRUMENT PANEL ASSEMBLY

3. Remove door molding

 and “A” pillar cover

.

4. Remove the I/P panel side cover (LH/RH).

5. Remove the front center speaker

, cluster and center

cover assembly

.

6. Remove the center console assembly

 and AV head

unit.

 Door molding

 “A” pillar

 Center speaker

 Cluster and center cover

 Center speaker

 “P” pillar

 Door molding

 Center console

assembly

 Lower panel - Driver

 Lower panel - passenger

Preceding Work:

1. Disconnect the battery negative cable.

2. Remove all the parts shown on the picture below.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

76

5A

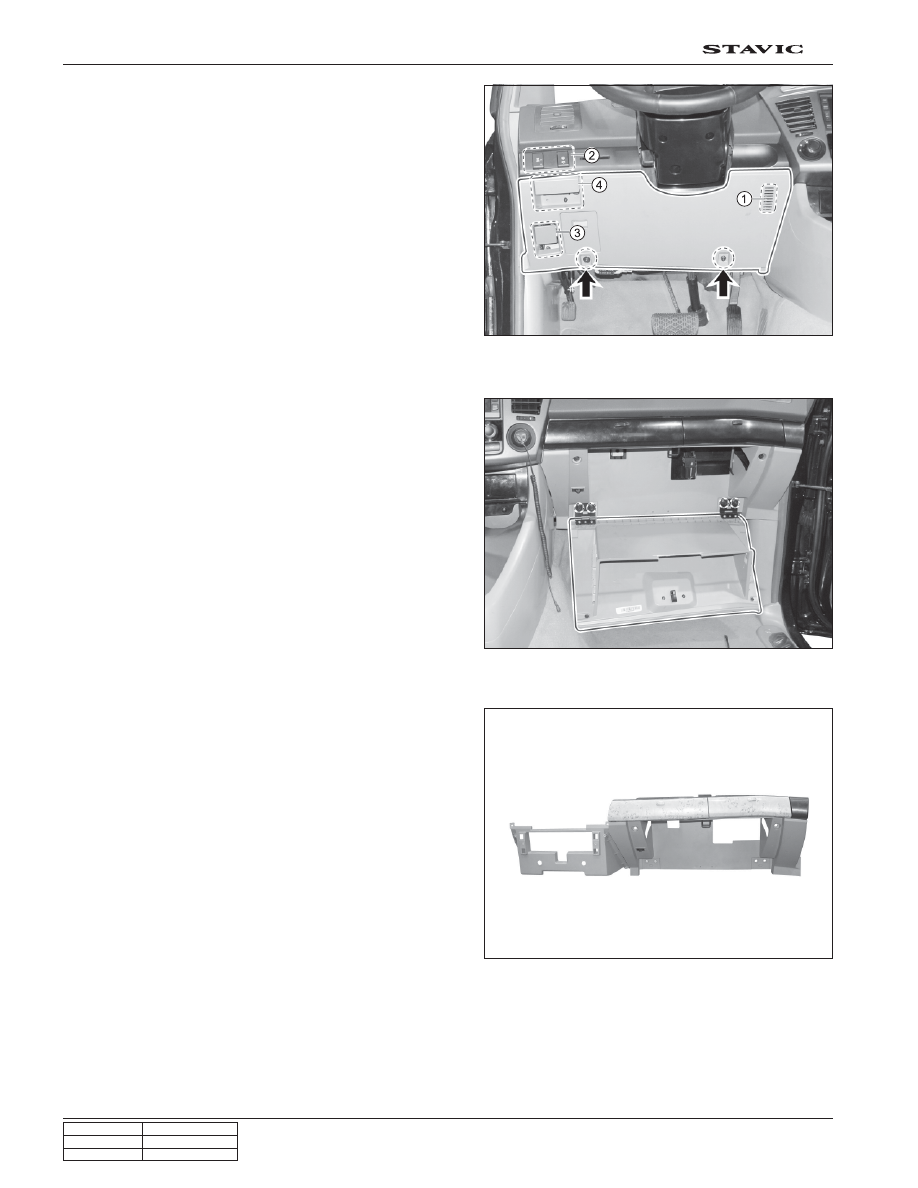

7. Remove the lower panel assembly.

1) Disconnect incar / humidity sensor, 4WD operation

switch, rear wiper switch (2).

8. Remove instrument lower panel assembly (passenger

side).

1) Remove the glove box.

2) Remove the lower inner panel.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

77

5A

10. SDM connector

3. LH floor connector

12. Brake connector

11. Parking connector

14. Sensor cluster

4. T/M controller & Earth

13. Accelator connector

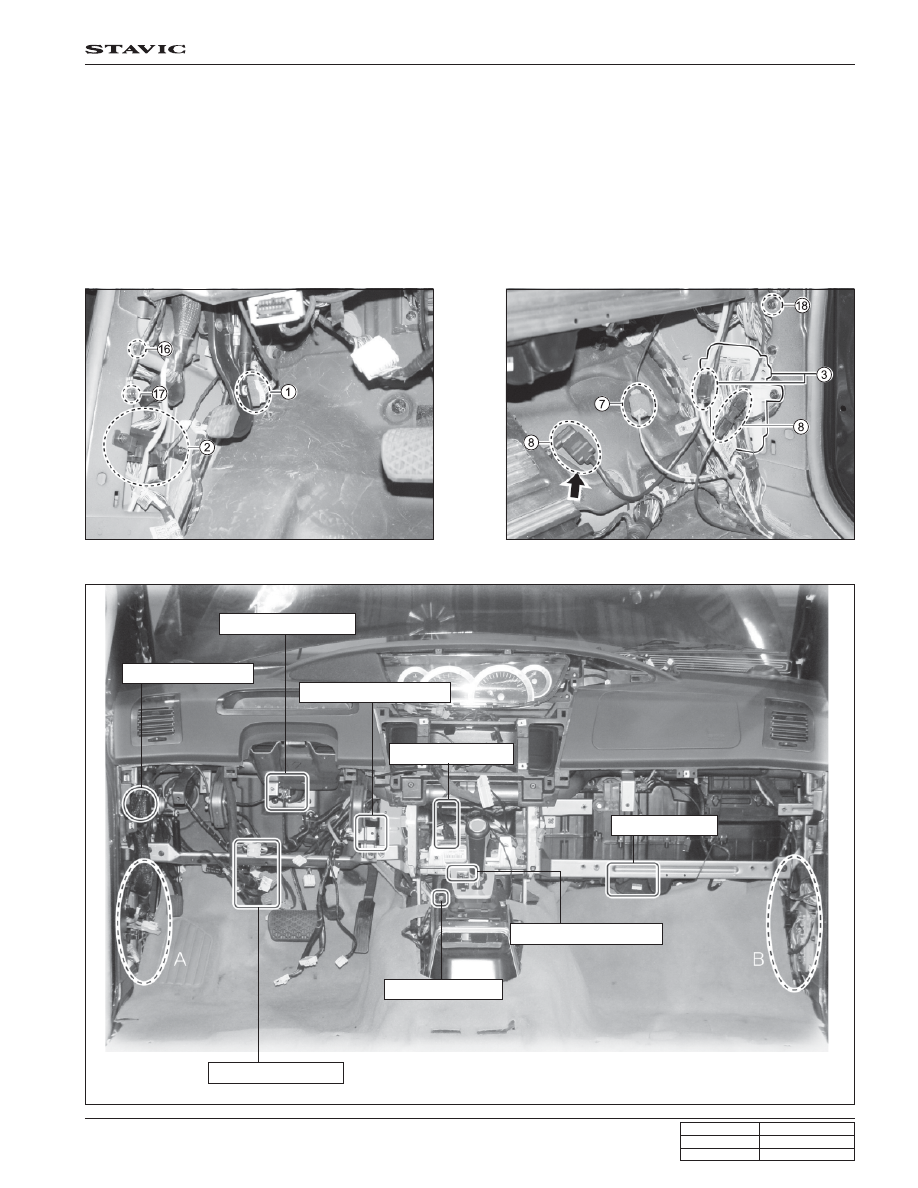

1. REMOVAL AND INSTALLATION

1. Disconnect all the connector at the I/P panel.

1) Driver

1. Sun roof

2. Door connector, floor, seat belt pretensioner

16. Earth

17. Earth

2) Passenger

3. Door connector, floor, seat belt pretensioner

7. GPS

8. Audio optic cable connector

9. Rear monitor

18. Earth

9. Rear monitor
