SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 429

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

30

5A

Buckle

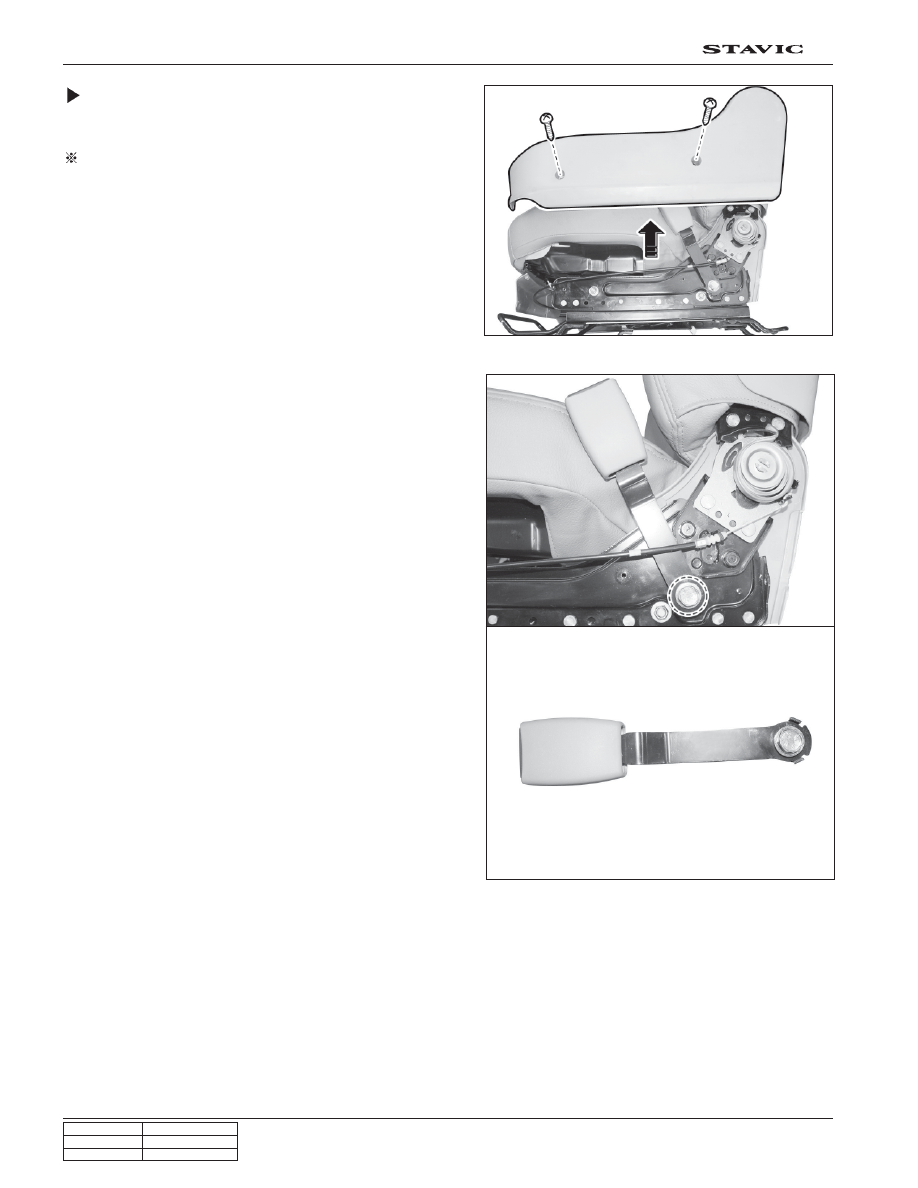

1. Fixed type buckle

Preceding Work: Removal of the seat assembly

1. Remove seat cover.

2. Unscrew the mounting bolt and remove the buckle.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

31

5A

2. Belt type buckle

Preceding Work: Removal of the seat assembly

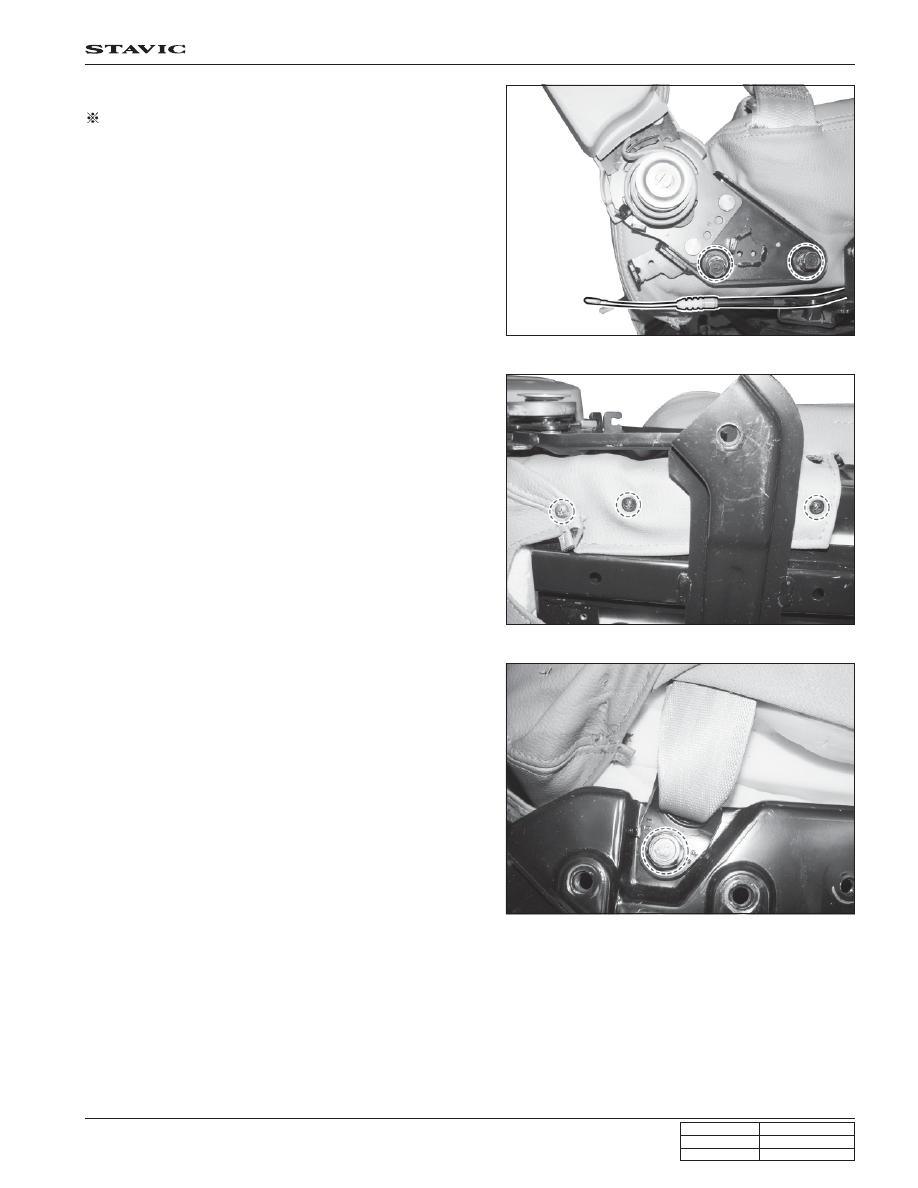

1. Disconnect the seat connecting cable and unscrew the

seat back mounting bolt to remove it.

2. Remove screws on the seat and pull away the seat cloth.

3. Unscrew the buckle mounting bolt and remove the buckle.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

32

5A

SEAT

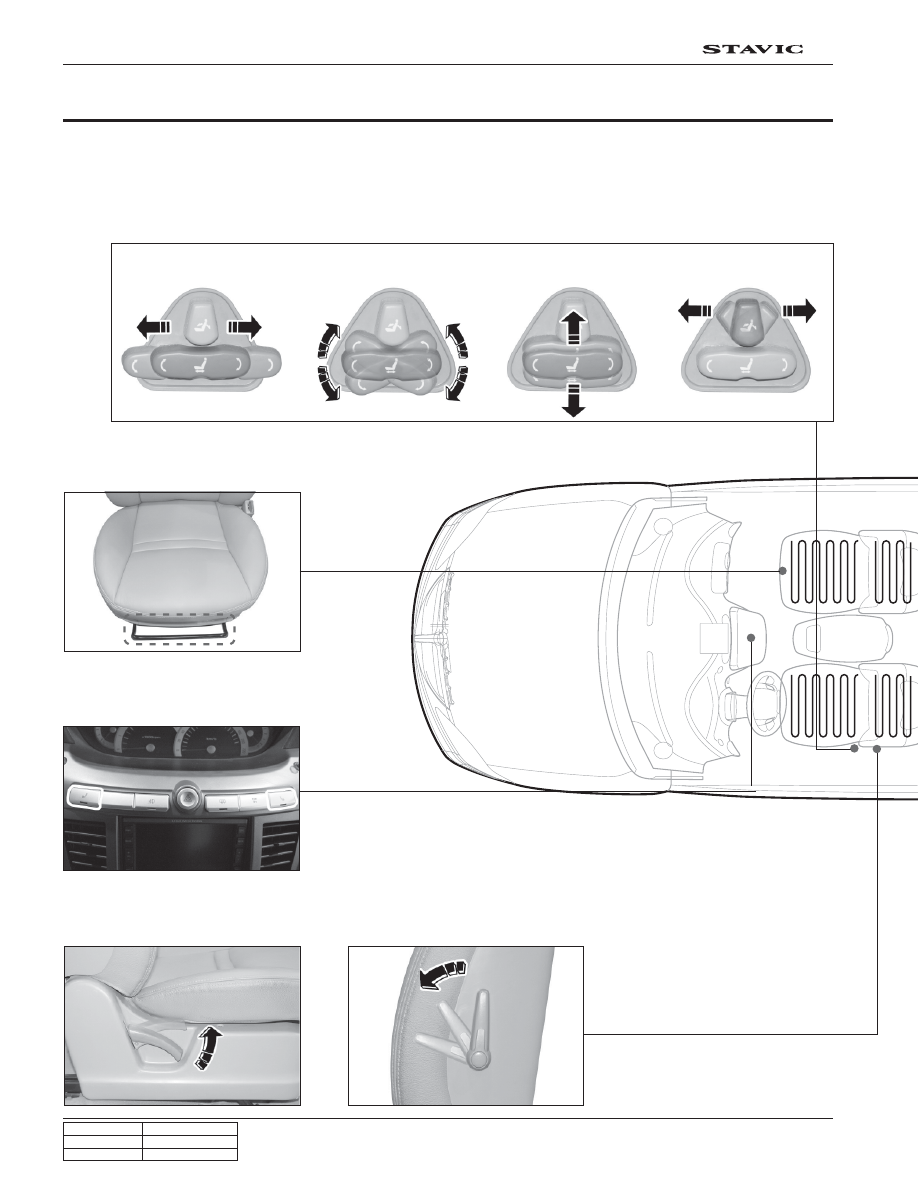

1. COMPONENTS

○○○○○○

○○○○○

○○○○○○

○○○○○

○○○○○○

○○○○○

Sliding control

Seat position control

Seat height control

Reclining control

Seat warmer switch

Sliding adjust lever

Back supporter (Driver’s seat)

Back flat adjust lever

Seat control switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY INTERIOR

STAVIC - 2004.09

33

5A

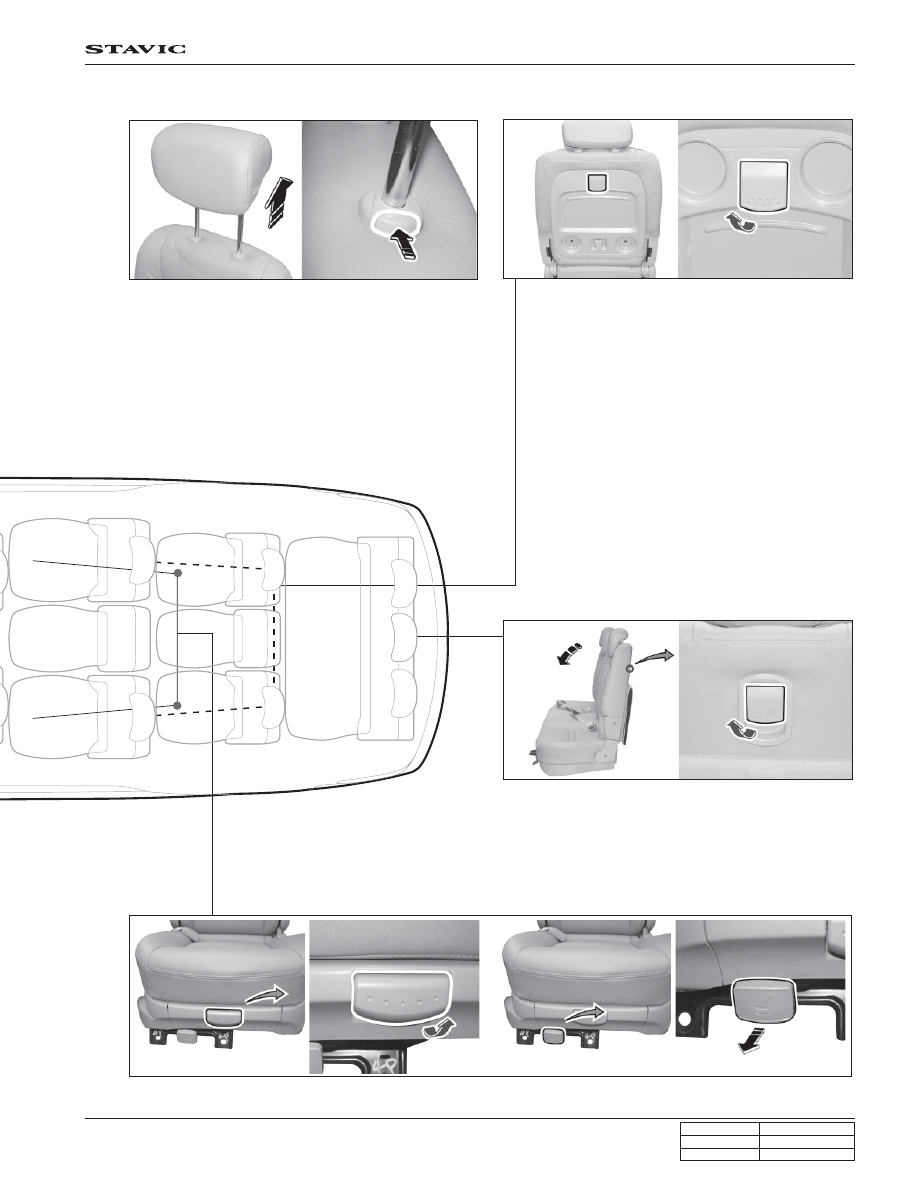

Back folding adjust lever

○○○○

○○○○○○○○○

Seat sliding adjust lever

Seat swivel control lever

Rear 3rd seat back folding adjust lever

Head rest
