SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 381

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

35

REAR SUSP & AXLE

STAVIC - 2004.09

4F

Lock nut

Inner flange

Radial sealing

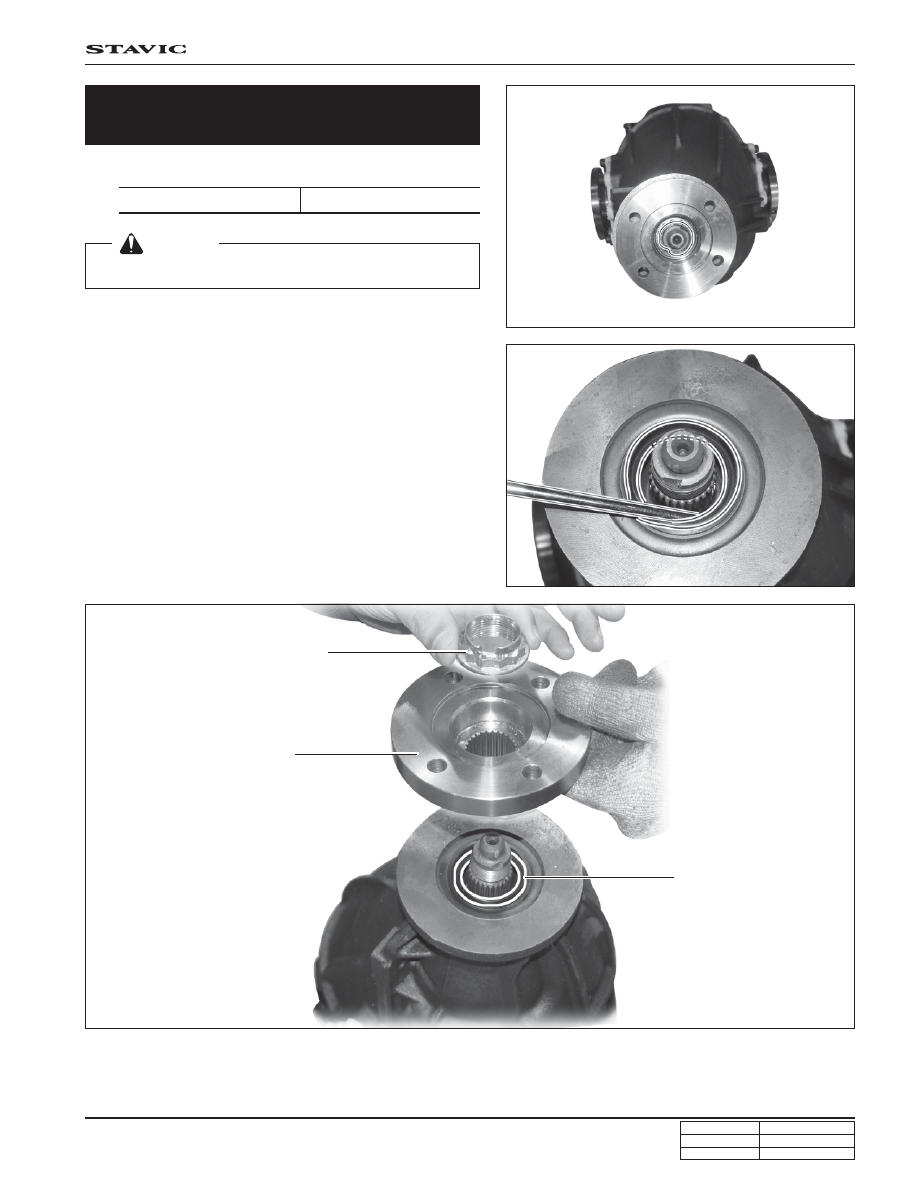

Replacement of Radial Sealing and
O-ring on Propeller Shaft Flange

1. Unscrew the lock nut with socket wrench (30 mm).

2. Remove the radial sealing with a tool.

 [Notice]

Replace the lock nut to new one by every disassembly.

Tightening torque

120 Nm

MEMO

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

3

4G

GENERAL INFORMATION

1. OVERVIEW

The power steering system consists of pump, oil reservoir, rack and pinion gear. The power steering pump is a vane type
and delivers hydraulic pressure to operate the power steering system. The pressure relief valve in pump controls the
discharging pressure.

The rotary valve in rack and pinion gear directs the oil from the power steering pump to one side of rack piston.

The integrated rack piston converts the hydraulic pressure to linear movement.

The operating force of rack moves the wheels through tie rod, tie rod end and steering knuckle.

Even though the hydraulic pressure cannot be generated, a driver can steer the vehicle without power assist but it needs
very high steering force.

In this case, the operating force of steering wheel is conveyed to pinion, and the movement of pinion moves the rack
through pinion gear combined to rack gear.

Specification

Item

Steering wheel

Number of spoke

Outer diameter

Rotation

Type

Gear ratio

Inner

Outer

Tilting angle

Minimum turning radius

Steering
angle

2. SPECIFICATION

Gear box

Oil pump

Oil

Type

Displacement

Max. pressure

Specified oil

Capacity

4 spokes

390 mm

3.6 rotations

Rack & Pinion

∞

37

° 42

′

32

° 56

′

± 2

5.882 m

Clustered in reservoir tank

11.3 cc/rev

90 bar

ATF Dexron II, III

Approx. 1 liter

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

POWER STEERING

STAVIC - 2004.09

3

4G

GENERAL INFORMATION

1. OVERVIEW

The power steering system consists of pump, oil reservoir, rack and pinion gear. The power steering pump is a vane type
and delivers hydraulic pressure to operate the power steering system. The pressure relief valve in pump controls the
discharging pressure.

The rotary valve in rack and pinion gear directs the oil from the power steering pump to one side of rack piston.

The integrated rack piston converts the hydraulic pressure to linear movement.

The operating force of rack moves the wheels through tie rod, tie rod end and steering knuckle.

Even though the hydraulic pressure cannot be generated, a driver can steer the vehicle without power assist but it needs
very high steering force.

In this case, the operating force of steering wheel is conveyed to pinion, and the movement of pinion moves the rack
through pinion gear combined to rack gear.

Specification

Item

Steering wheel

Number of spoke

Outer diameter

Rotation

Type

Gear ratio

Inner

Outer

Tilting angle

Minimum turning radius

Steering
angle

2. SPECIFICATION

Gear box

Oil pump

Oil

Type

Displacement

Max. pressure

Specified oil

Capacity

4 spokes

390 mm

3.6 rotations

Rack & Pinion

∞

37

° 42

′

32

° 56

′

± 2

5.882 m

Clustered in reservoir tank

11.3 cc/rev

90 bar

ATF Dexron II, III

Approx. 1 liter
