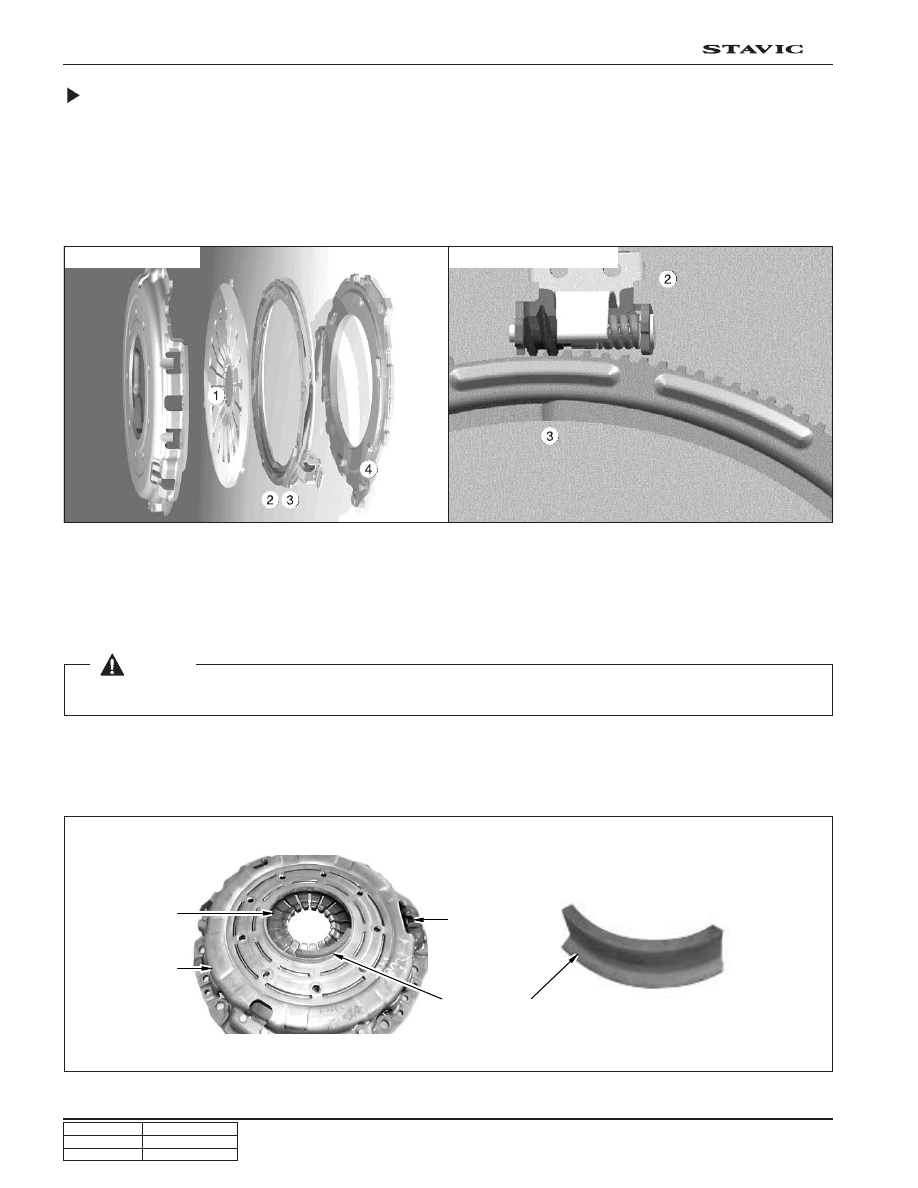

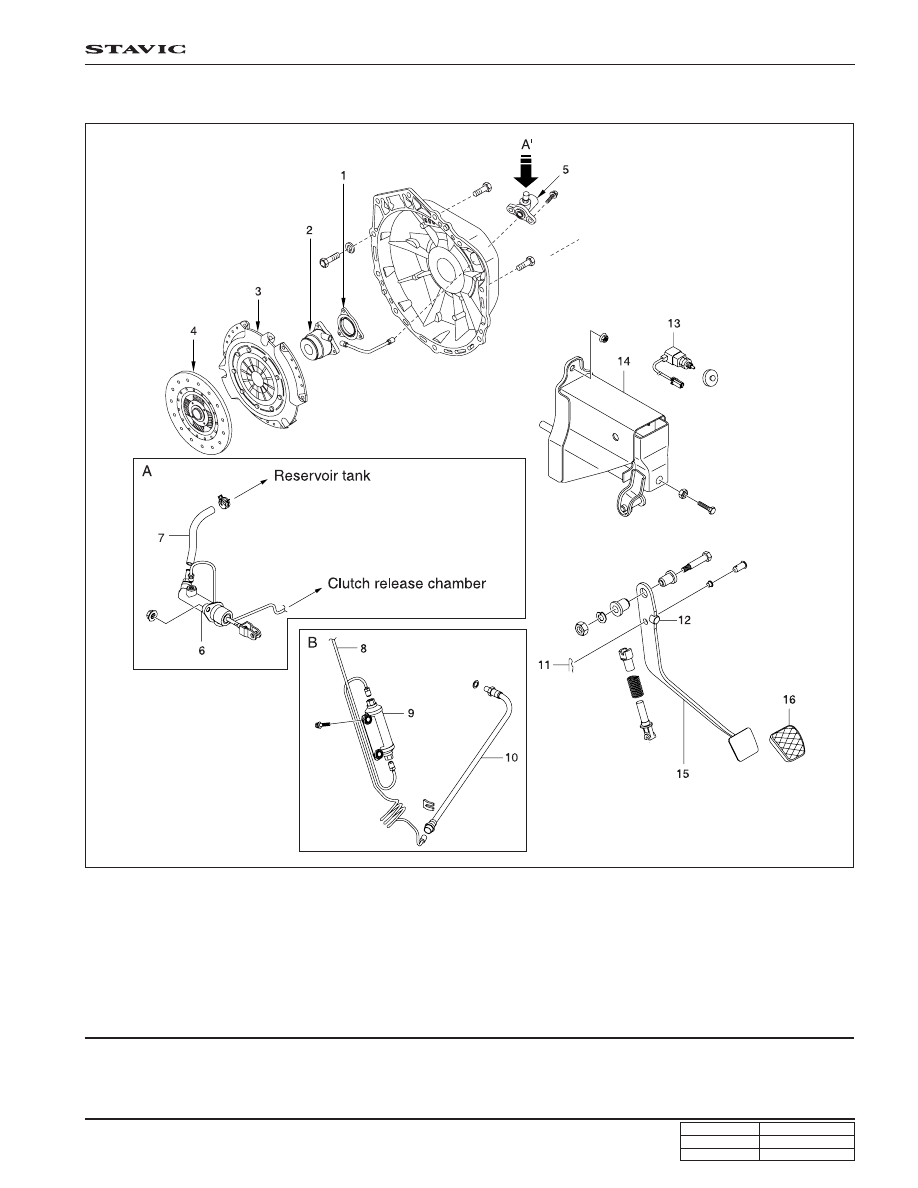

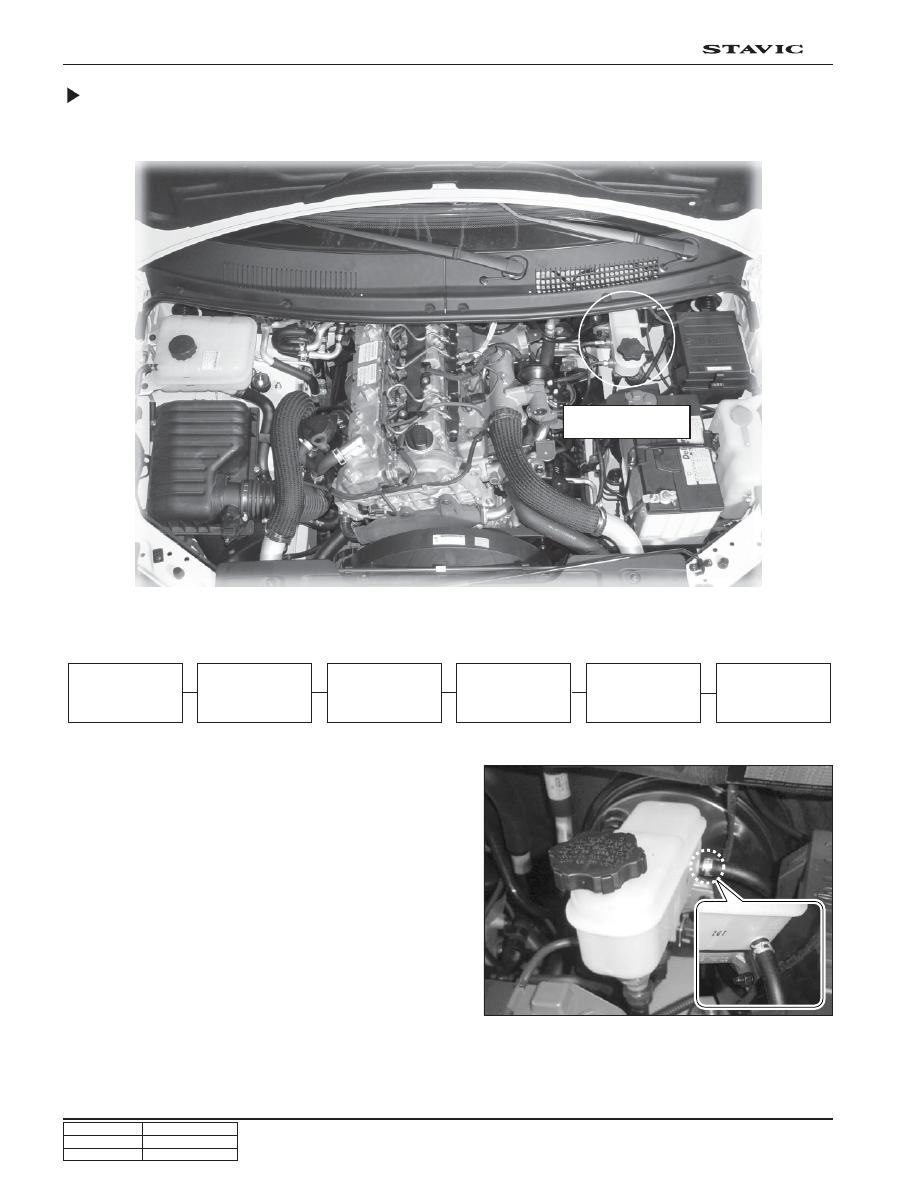

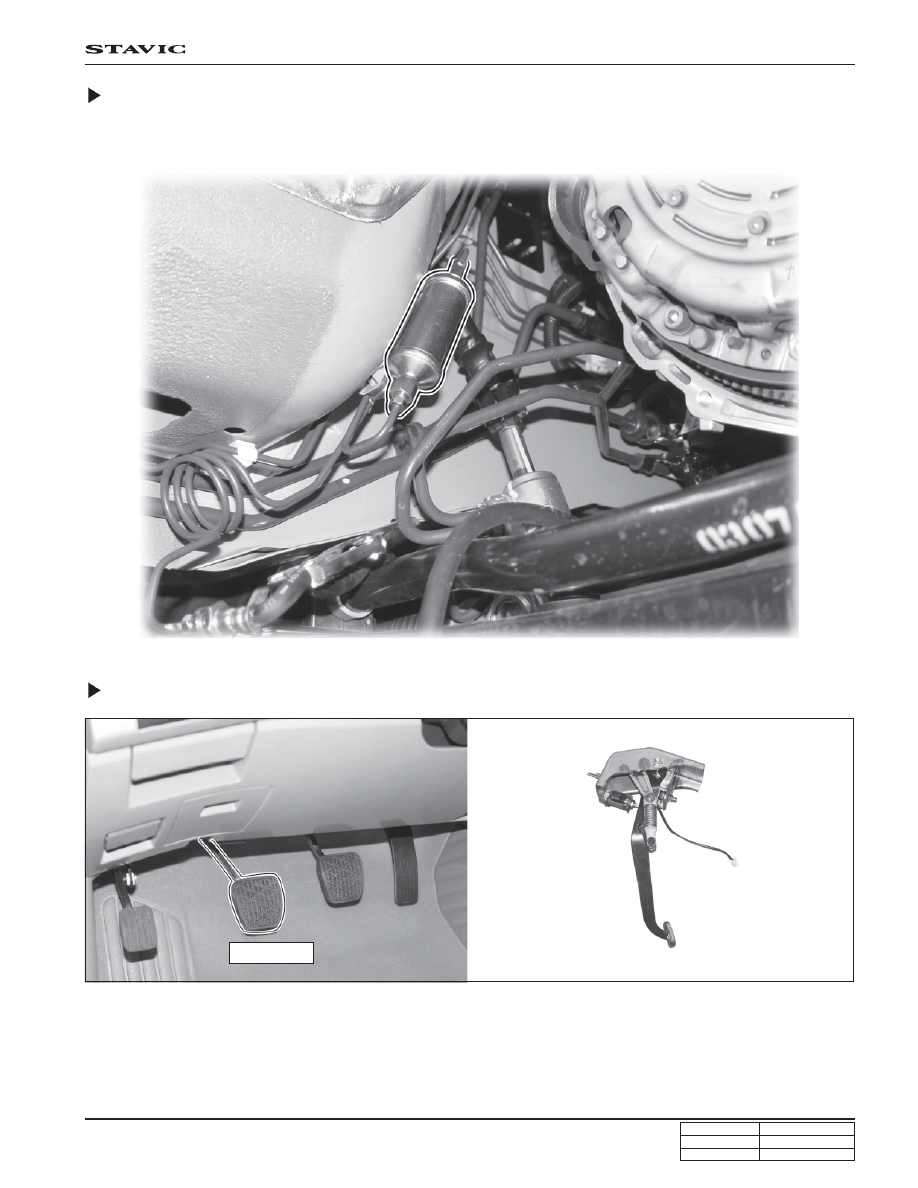

CHANGED BY EFFECTIVE DATE AFFECTED VIN 4 CLUTCH ASSEMBLY STAVIC - 2004.09 4C Adjusting equipment SAT (Self Adjusting Technology) : SAT is new clutch which adjusts the clutch free play according to the wearness of clutch disc. Operation description Diaphram spring rotates the adjusting equipment as clutch disc is wearing and so, pressure plate is pushed to clutch * Disc wear (Free play) → Diaphram spring (1) → Adjusting equipment (2, 3) → Pressure plate (4) Clutch assembly Clutch replacement 1) Replacement of cluch disc → Replace the clutch cover assembly together. 2) Reinstallation of clutch disc & cover → Apply the zig set (SST) on the clutch cover set. (Engine removal and reinstallation, Flywheel related job, Checking the clutch assy) [Notice] When reinstall the clutch assembly without the special zig, Disc can be slip and worn easily. Installation of special zig 1) Identify the SAT clutch with adjusting equipment around the clutch cover. 2) Adapt the zig set(4 pieces) between the clutch cover and diaphram spring around (Refer to the picture). Diaphram Cover Adjusting Zig for clutch removal and installation |
