SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 332

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

26

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

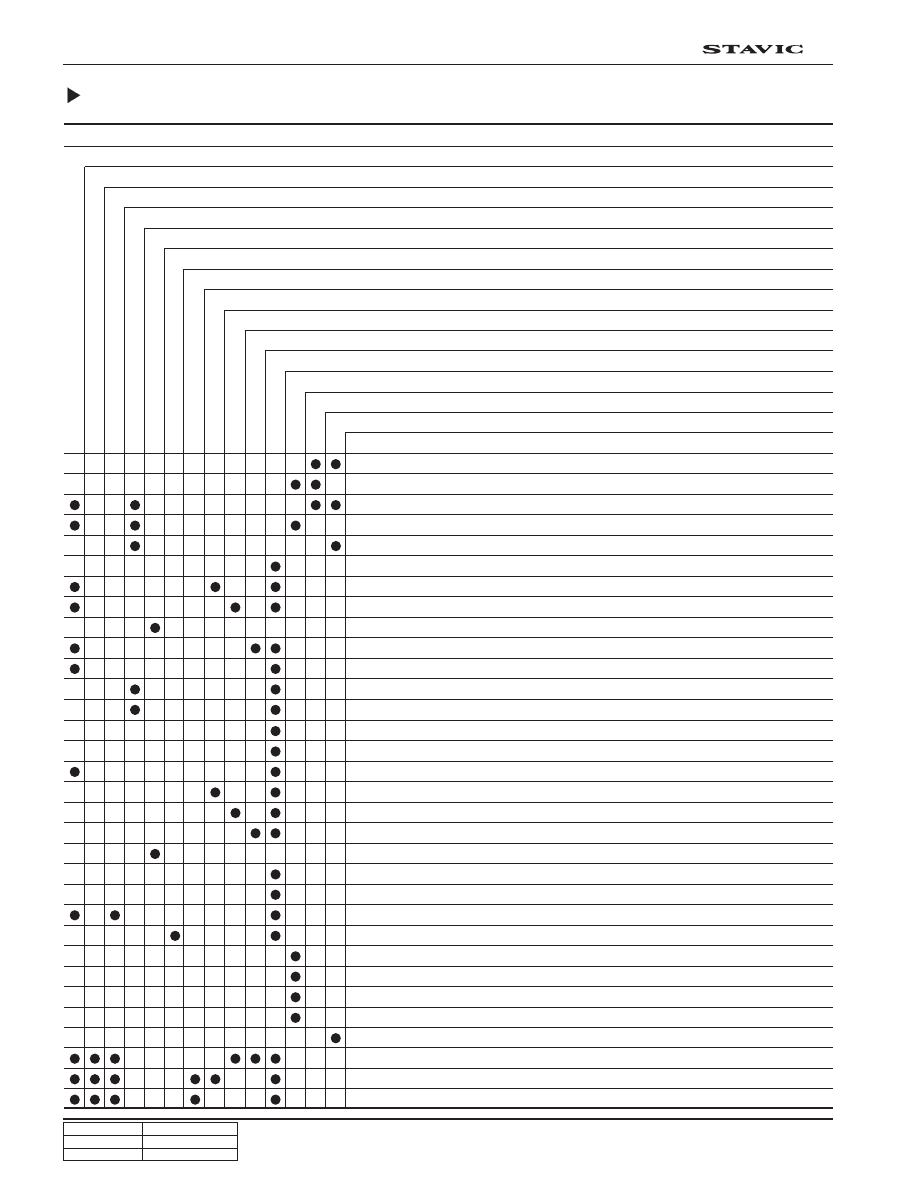

Diagnosis Table

Transmission Case
Extension Housing
Shift Cover / Shift Shaft
Shift Control Lever
Input Bearing Retainer
Input Gear Set
3rd Speed Gear Set
2nd Speed Gear Set
Reverse Speed Gear Set
1st Speed Gear Set

5th Speed Gear Set
Clutch Housing and Release Derive
Crankshaft Pilot Bushing and Release Bearing
Input Bearing
Main Shaft Input Bearing
Main Shaft Thrust Bearing
3rd Speed Gear Bearing
2nd Speed Gear Bearing
1st Speed Gear Bearing
Reverse Idler Gear Bushing
Counter Shaft Front Bearing
Counter Shaft Rear Bearing
Counter Shaft Thrust Bearing
5th Speed Drive Gear Bearing
Slip Yoke Bushing
Slip Yoke Seal
Speedometer Drive / Driven Gears
Speedometer Driven Gear Housing
Input Shaft Seal
1 - 2 Synchronizer Assembly
3 - 4 Synchronizer Assembly
5th Synchronizer Assembly

Applicatio

1 Shift Hop-out

2 Shift Gear Crash

3 Shift Block-out

4 Hard Shift

5 Noise in Reverse Gear

6 Noise in 5th Gear

7 Noise in 4th Gear

8 Noise in 3rd Gear

9 Noise in 2nd Gear

10 Noise in 1st Gear

11 Noise in All Speeds

12 Leak at Transmission Rear Part

13 Leak at Transmission Center Part

14 Leak at Transmission Front

Possible Faulty Part

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

27

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

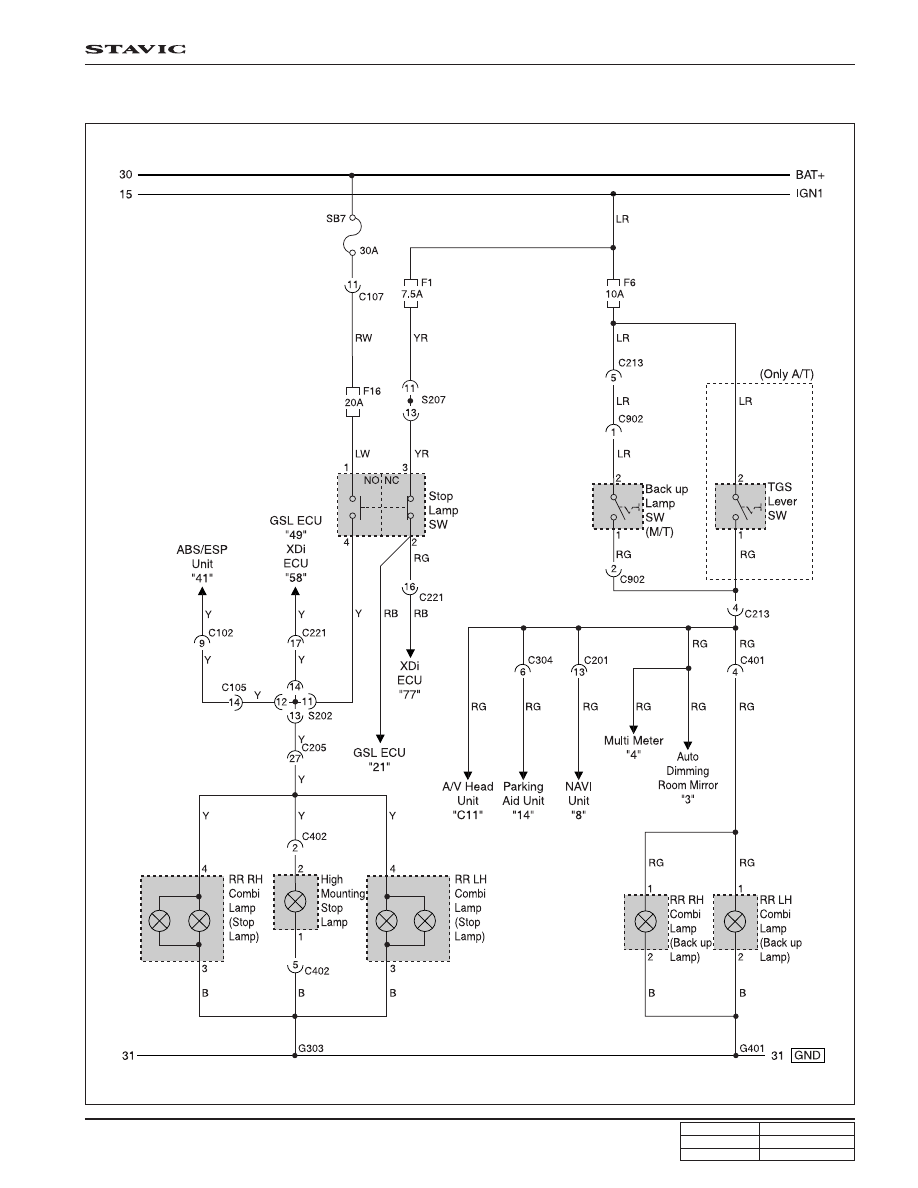

6. CIRCUIT DIAGRAM (BACKUP LAMP)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

28

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

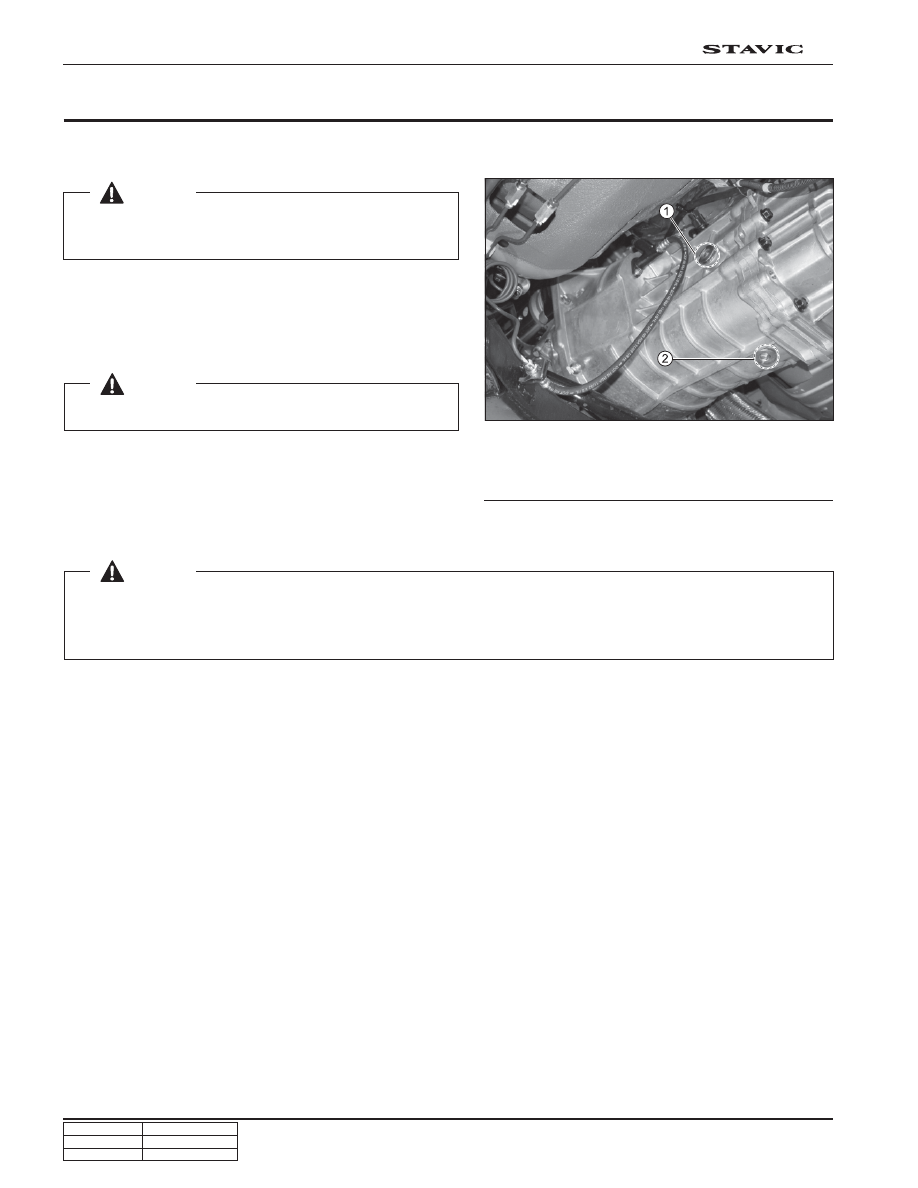

1. Oil level check plug

2. Oil drain plug

Place the vehicle on the flat and even ground and stop the
engine. After 5 minutes, check the oil level.

1. Remove the oil level plug (1) and check the oil level.

2. If needed, add the oil through the oil level plug hole (1).

3. Fully tighten the plug and check the oil leaks.

4. If the oil level is up to the bottom line of plug hole, it is

OK.

ON-VEHICLE SERVICE

1. OIL CHECK/CHANGE

 [Notice]

If the oil level is up to the bottom line of plug hole, it is OK.

 [Notice]

•

The oil in manual transmission is major element for mechanical durability of transmission. Check the oil level with a
specific interval and add if needed.

•

The oil replacement should be done at the qualified and authorized service station.

 [Notice]

Do not check or change the oil Immediately after driving off.
It may cause serious hurt.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

29

TSM54/52 MANUAL TRANSMISSION

STAVIC - 2004.09

4B

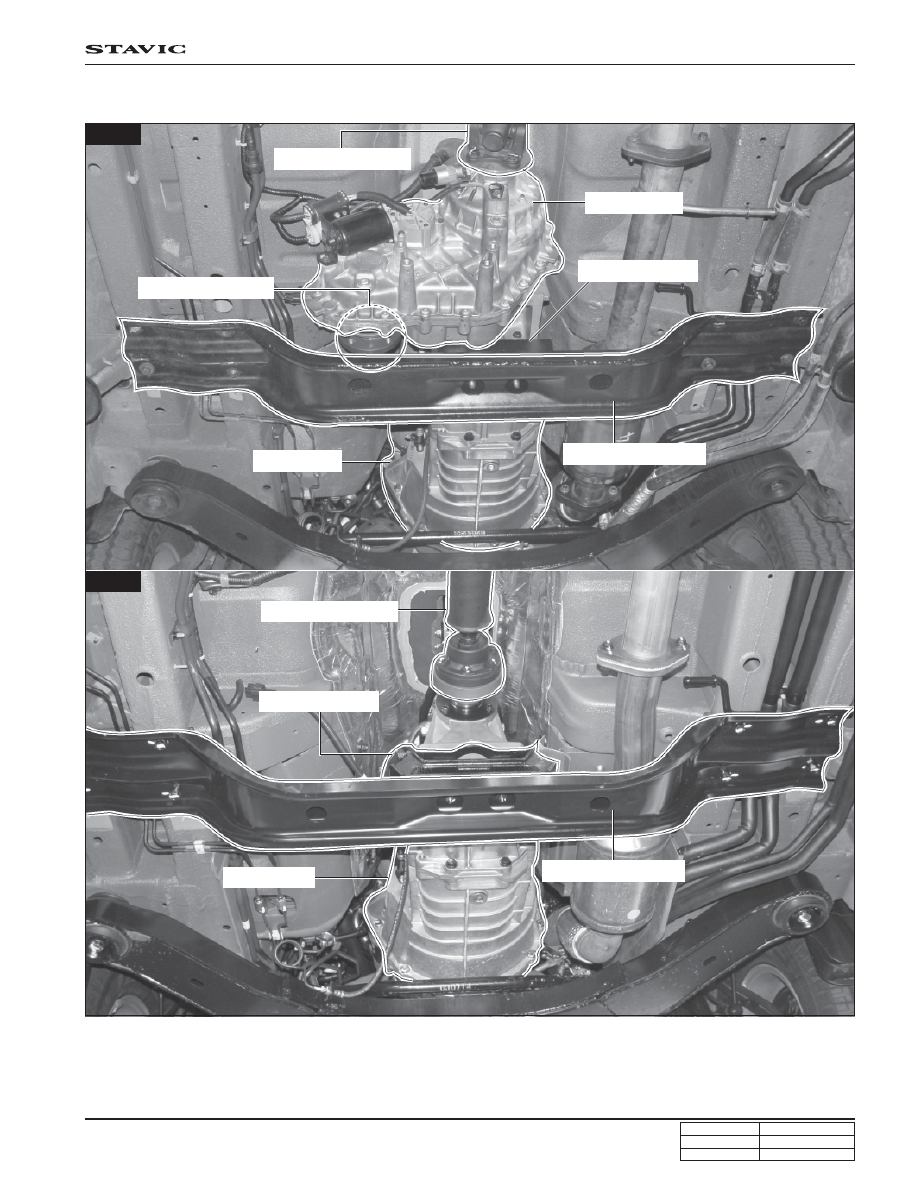

2. REMOVAL AND INSTALLATION

Propeller shaft - Rear

Propeller shaft - Front

Propeller shaft - Rear

Cross member -Center

Mounting insulator

Transfer case

T/M assembly

Cross member -Center

Mounting insulator

T/M assembly

4WD

2WD
