2. COMPONENTS AND LOCATIONS

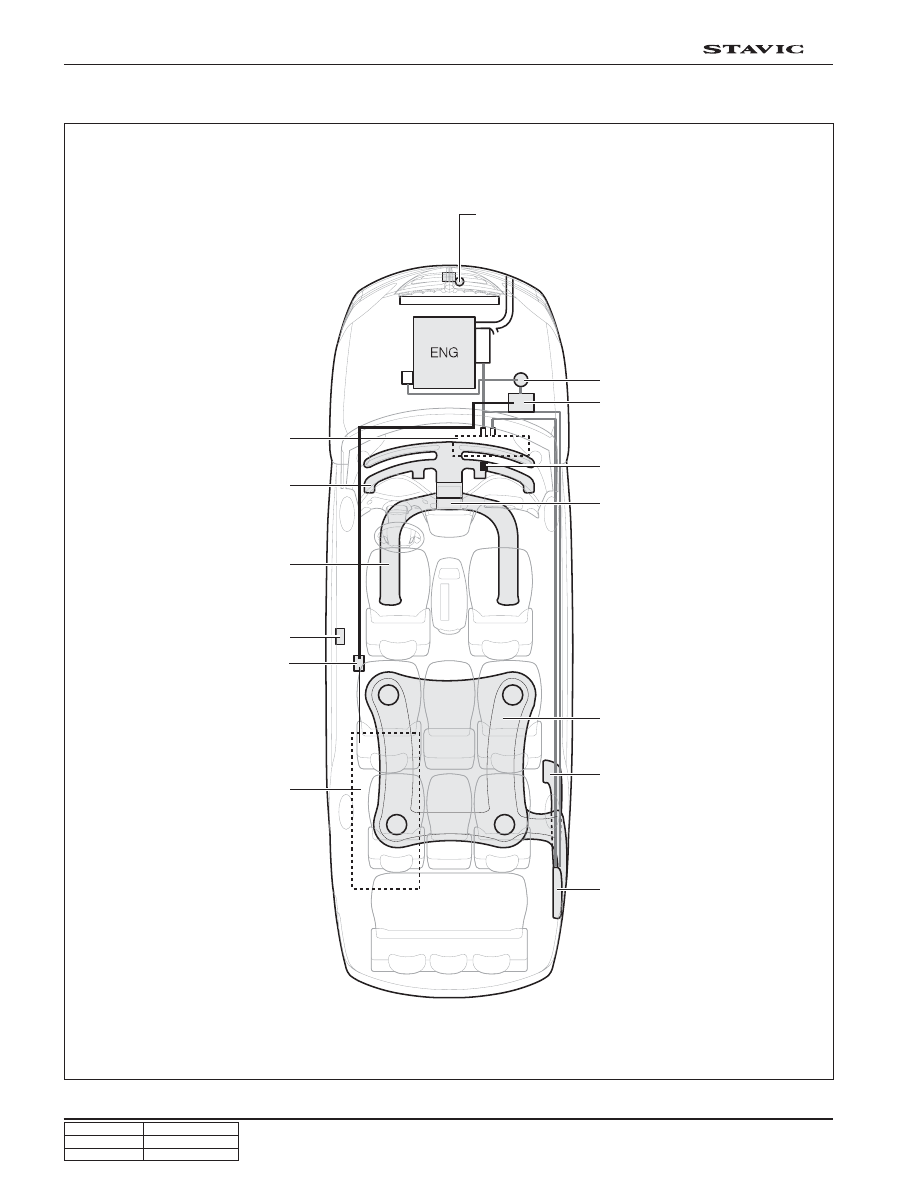

Heater / A/con module (front)

Front duct

Rear floor duct

Rear fan speed control switch

FFH fuel pump

Fuel tank

FFH coolant pump

FFH assembly

Air conditioner control panel

Roof duct (A/con)

PTC (If applied)

Rear duct (heater)

Heater / A/con module (rear)

Ambient temperature switch

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

5

FFH & PTC

STAVIC - 2004.09

3B

1. FFH assembly

2. Water pump & bracket

3. FFH NO.1 bracket assembly

4. FFH NO.2 bracket assembly

5. Silencer & pipe assembly

6. Fuel pump assembly

7. Fuel pump bracket assembly

3. SYSTEM LAYOUT

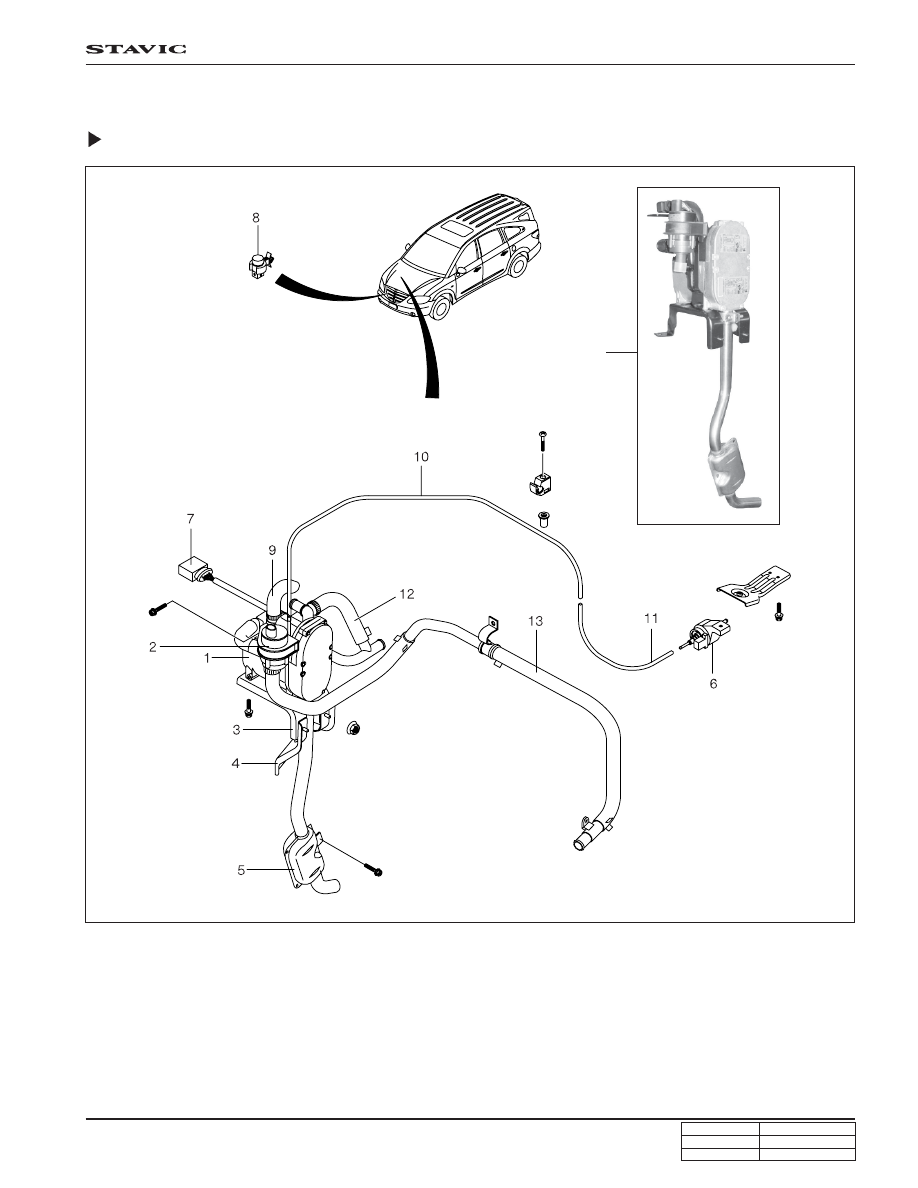

FFH Overview

A

8. Ambient temperature switch

9. Suction hose

10. Fuel pipe NO.1

11. Fuel pipe NO.2

12. Pump outlet hose assembly

13. FFH inlet hose assembly

A. FFH assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

6

FFH & PTC

STAVIC - 2004.09

3B

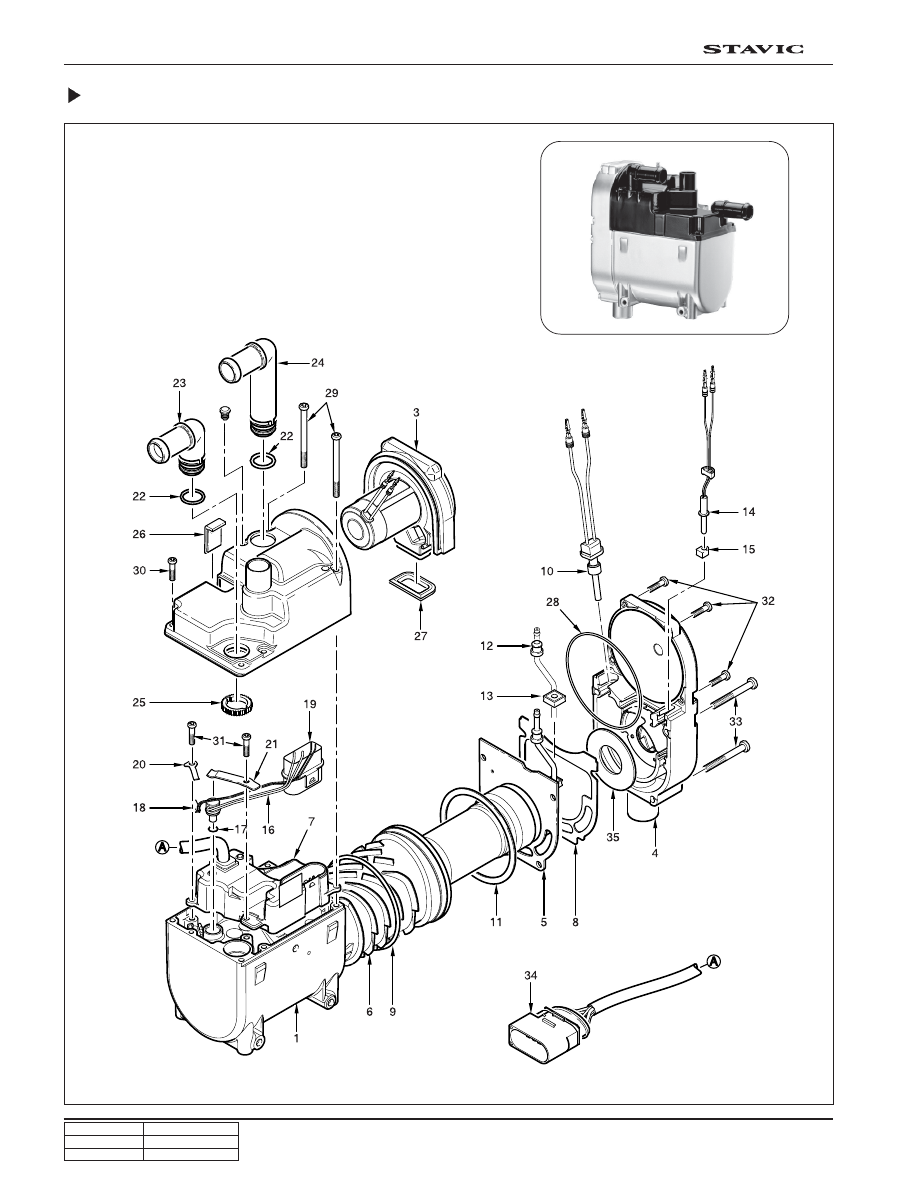

FFH Heater Disassembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

7

FFH & PTC

STAVIC - 2004.09

3B

1. Jacket

2. Jacket cover

3. Combustion air fan

4. Combustion chamber

5. Combustion chamber with flame tube

6. Heat exchanger

7. Controller

8. Seal (between combustion chamber and

combustion air fan)

9. O-ring

10. Glow plug with cable

11. Seal (between combustion chamber and heat

exchanger)

12. Upper bush for fuel pipe

13. Lower bush for fuel pipe

14. Flame sensor

15. Bush for flame sensor (graphite)

16. Control and overheating sensor with cable

17. O-ring

18. Surface sensor with cable

19. Controller connector -14-pin connector (waterproof)

20. Pressure spring for surface sensor

21. Pressure spring for control and overheating sensor

22. O-ring

23. Coolant hose (inlet)

24. Coolant hose (outlet)

25. Tooth ring (2x)

26. Cable harness cover

27. Rubber seal

28. O-ring

29. Screw (M4 x 55 TORX/2x)

30. Screw (M4 x 16 TORX/2x)

31. Screw (M4 x 12 TORX/2x)

32. Screw (M4 x 16 TORX/4x)

33. Screw (M4 x 44 TORX/4x)

34. Controller cable harness

35. Insulation washer
