AIR CONDITIONING SYSTEM

STAVIC - 2004.09

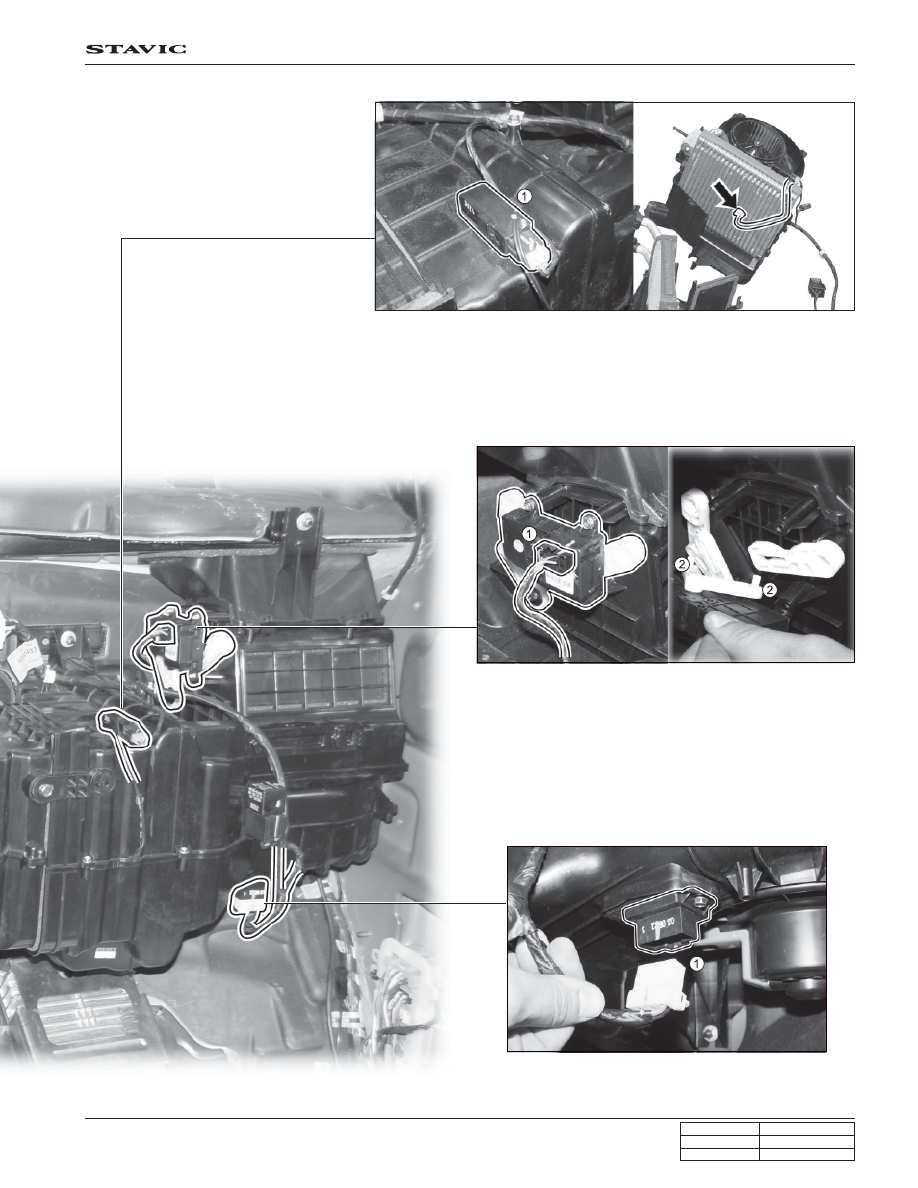

Thermo AMP

The thermo AMP is installed on the
heater core inside of air conditioner
module.

Make sure that the parts (2) of air door actuator is securely
seated when installing it.

Air door actuator

Power transistor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

12. REMOVAL AND INSTALLATION OF THE RELATED COMPONENTS

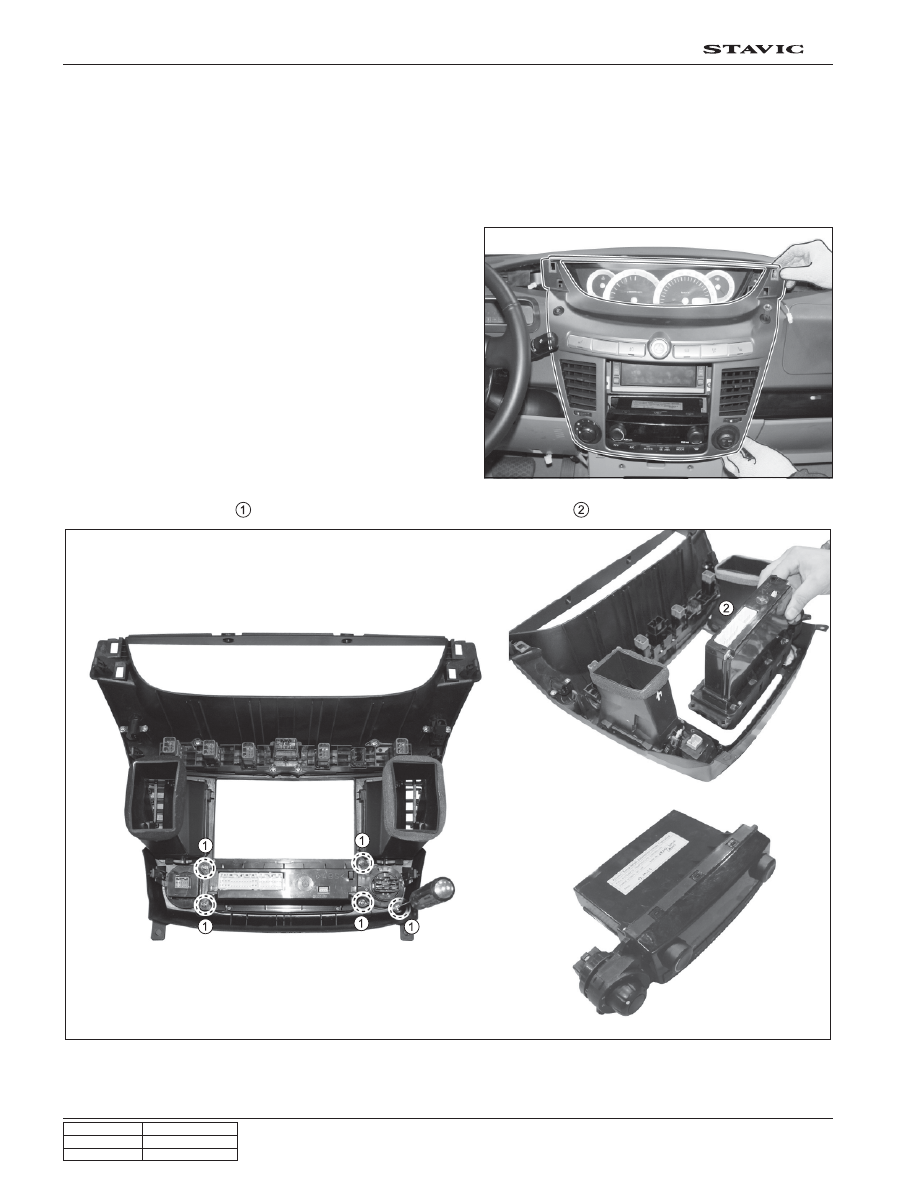

1) Control Switch Assembly

* Preceding works: Disconnection of negative battery cable

Removal of cup holder assembly and gear selector lever cover

1. Remove the center instrument panel.

2. Unscrew the screws

and remove the air conditioner switch assembly

3. Install in the reverse order of removal.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

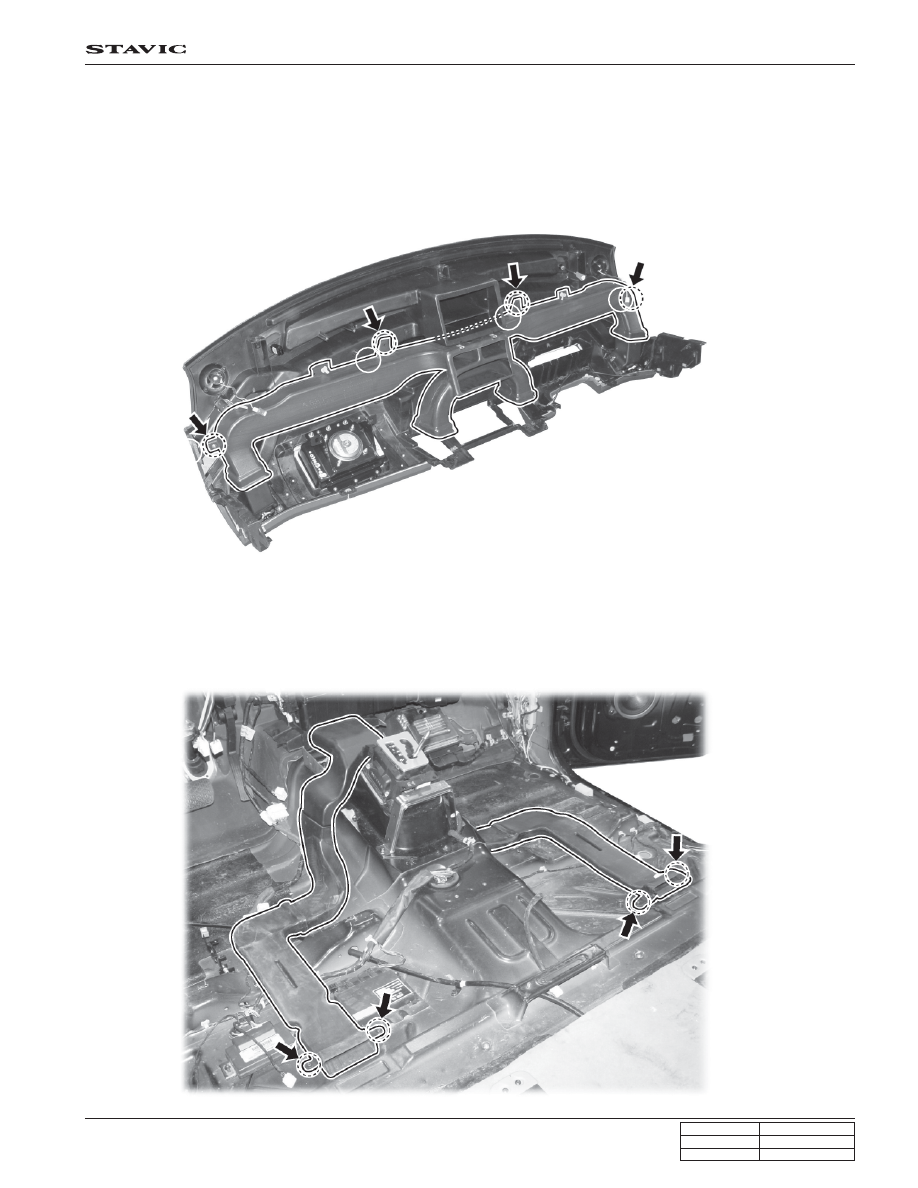

2) Air Duct Assembly

1. Instrument panel assembly

1) Remove the instrument panel.

2) Unscrew the screws and remove the air duct assembly.

2. Lower air duct assembly

1) Unscrew the screws and remove the lower air duct.

2) Unscrew the screws and remove the air duct assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

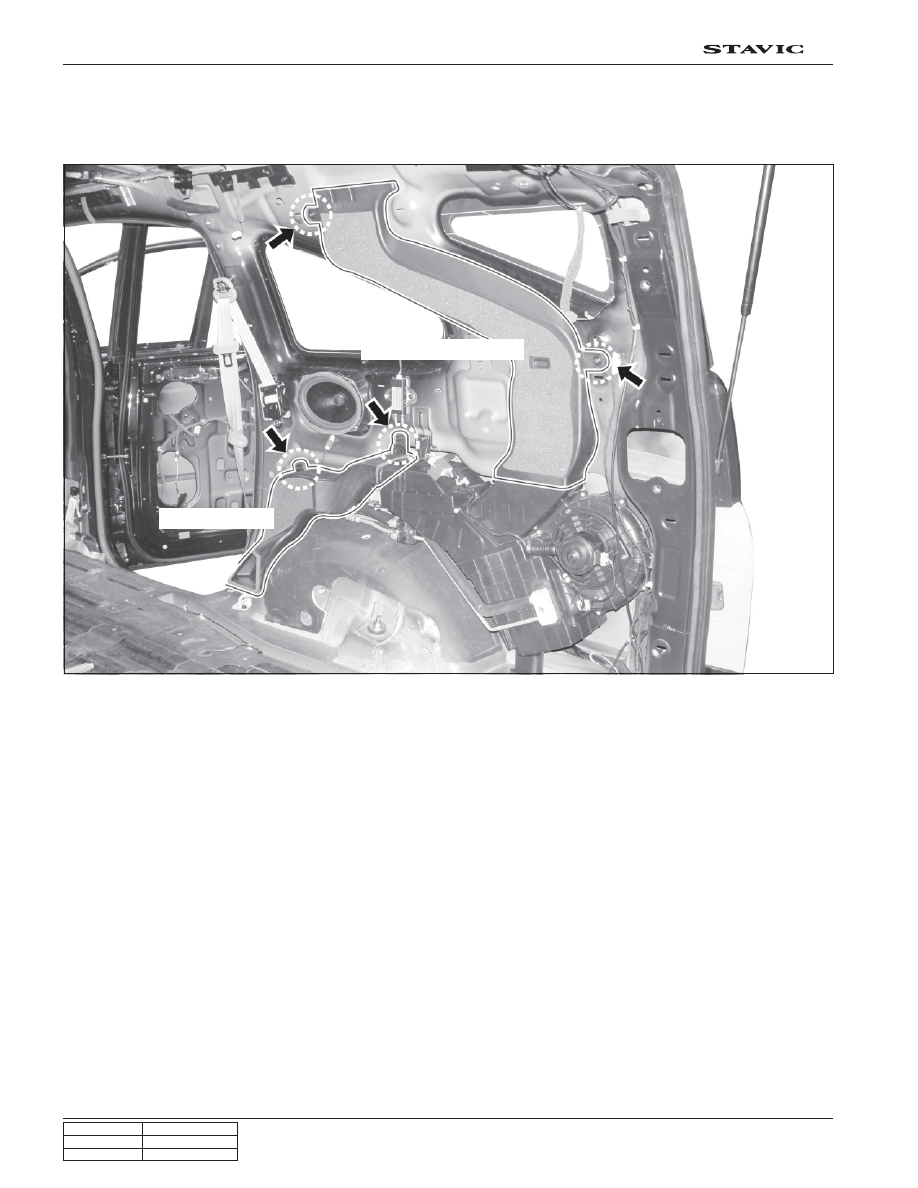

3. Rear air duct assembly

1) Remove the rear quarter panel.

2) Unscrew the mounting screw from the rear cooler duct and heater duct and remove the air duct assemblies.

Rear air conditioner duct

Rear heater duct
