AIR CONDITIONING SYSTEM

STAVIC - 2004.09

9

3A

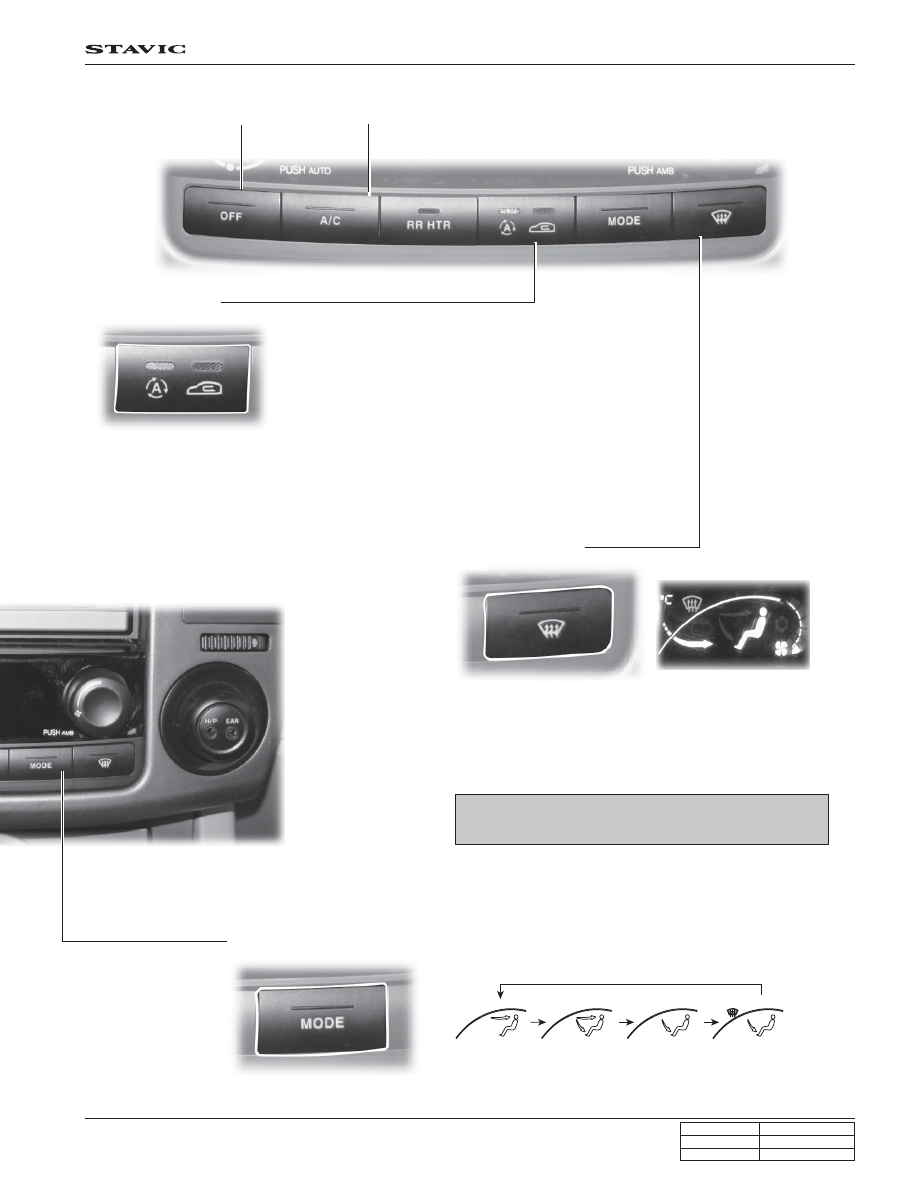

Air conditioner OFF switch

A/C switch:

When pressing this switch, the air conditioner oper-
ates in manual mode and A/C ON indicator comes
on.

AQS system

Defroster switch

When pressing this switch, the airflow direction will be changed
to windshield and door glasses, the air conditioner operates auto-
matically and outside air comes in. At this moment, the defroster
indicator, air conditioner indicator and fresh air mode indicator
come on. When pressing the switch again, the air conditioner re-
turns back to normal operations.

MODE switch

- By depressing this switch, the airflow mode is changed.

- Air Quality System (AQS) changes the air source selection to

recirculation mode when polluted air is detected through AQS
sensor. The air source selection returns back to fresh air intake
mode after a specified period or the polluted air is disappeared
(refer to AQS and ambient temperature sensor).

When pressing the AUTO switch, the defroster mode appears
on the VFD until the coolant temperature reaches at a certain
level.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

10

3A

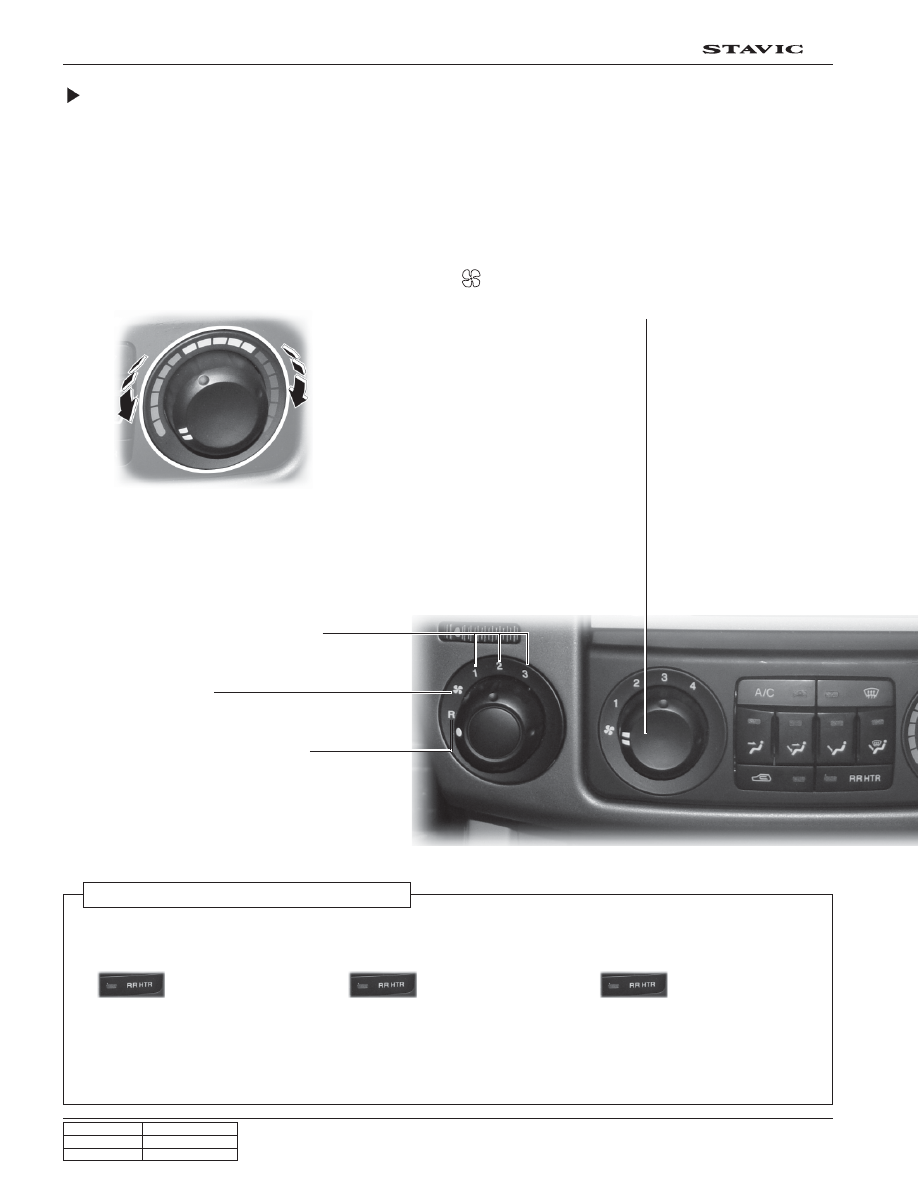

Manual Air Conditioner Controller

Manual air conditioner controller controls the fan speed, air distribution direction, air source selection and temperature
control with motor actuators according to soft button and dial switch operations.

: Turns off the blower motor and compressor.

1~4: Controls the fan speed 1 to 4 stage.

Fan switch

Temperature control switch

- Controls the airflow temperature.

18

°

32

°

1. Front: Air conditioner operation

Rear: Heater operation

Front air conditioner: ON

Rear fan control switch: 1, 2, or 3 position

Rear heater switch: ON

2. Front: No air conditioner operation

Rear: Heater operation

Front air conditioner: OFF

Rear fan control switch: 1, 2, or 3 position

Rear heater switch: ON

3. Rear: Heater operation and control

Rear air conditioner switch: R position

Rear heater switch: ON

Fan control switch in rear seats: can
control the rear fan speed

Rear fan speed control switch

The positions that can control in
3 stages in front seat.

(cannot control the rear fan speed in rear seats)

Rear air conditioner switch: ON
(can control the rear fan speed
in rear seats)

Front/rear independent cooling/heating

Rear blower OFF

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

11

3A

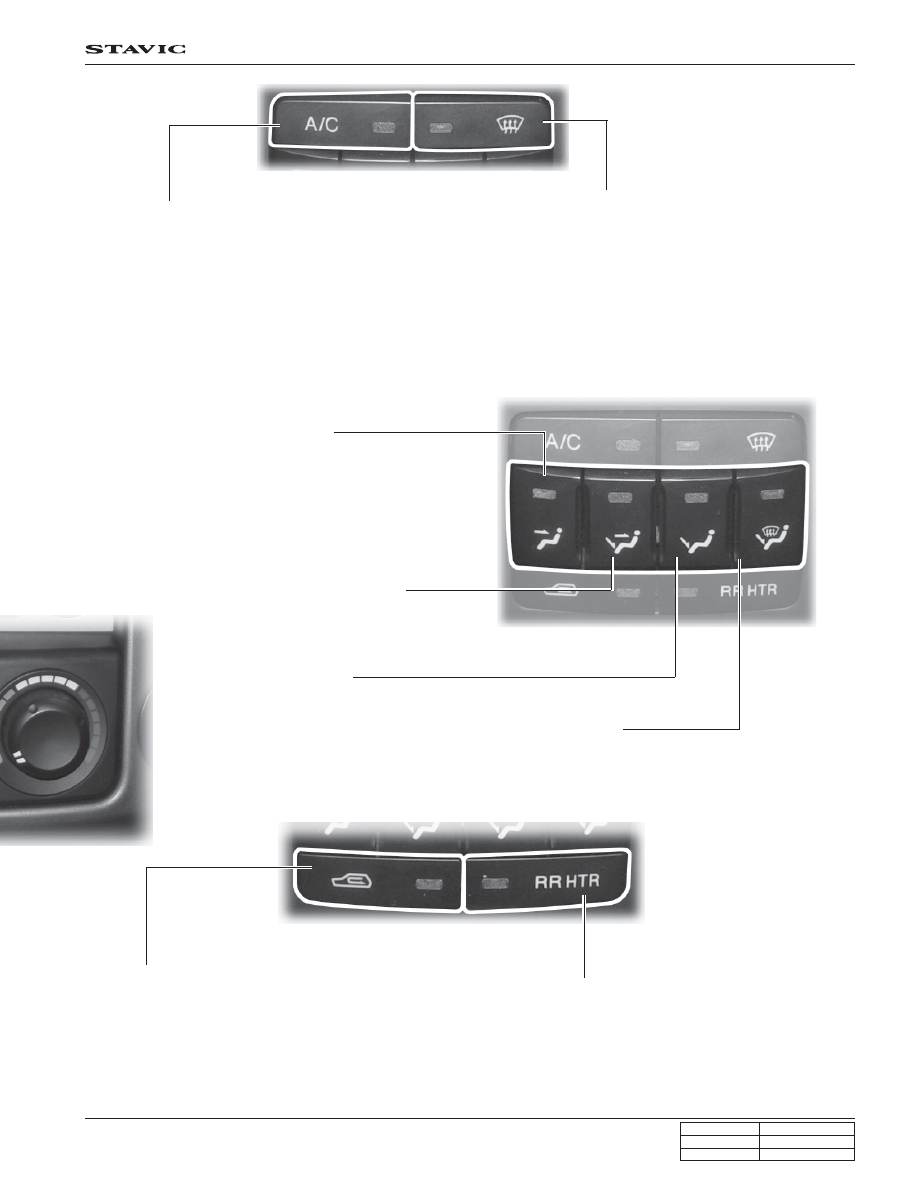

A/C switch

Operates air conditioner by turning on blower mo-
tor and compressor.

Defroster switch

When pressing this switch, the airflow direction will be
changed to windshield and door glasses, the air condi-
tioner operates automatically and outside air comes in. At
this moment, the air source selection indicator goes off.

Air source selection switch

When pressing this switch, the air recirculates in the vehicle in-
side and indicator comes on. When pressing it again, the indicator
goes off and the fresh air comes in.

(However, under defroster mode or defroster/floor mode, it stays
in the fresh air mode.)

Mode switch

Vent mode

The air flows towards face and
the indicator comes on.

Defroster and floor mode

The air flows towards front windshield
and floor and the indicator comes on.

Floor mode

The air flows towards floor and
the indicator comes on.

Bi-level mode

The air flows towards face and
floor and the indicator comes on.

Rear heater switch

When pressing this switch, the rear heater op-
erates and the indicator comes on.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

AIR CONDITIONING SYSTEM

STAVIC - 2004.09

12

3A

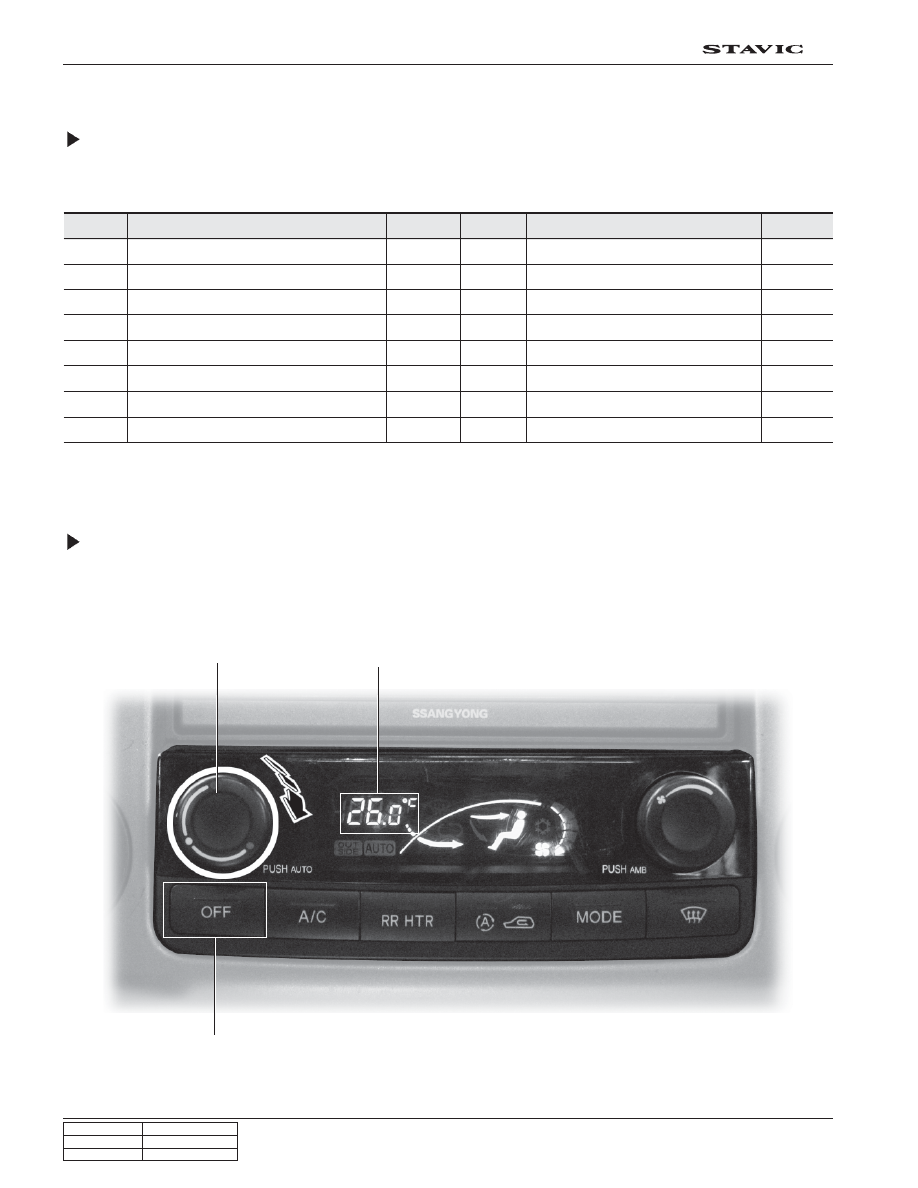

5. SELF DIAGNOSIS (ONLY FOR FATC AIR CONDITIONER)

Self Diagnosis Code

The FATC controller has self diagnosis function that can diagnose the system by itself. Before checking each component,
be sure to check the default code by using self diagnosis function.

Self Diagnosis

1. Set the temperature to 26

°C with the temperature control switch (AUTO), and press the OFF switch 3 times within

3 seconds after temperature setting while the AUTO switch is pressed.

Code

0

1

2

3

4

5

6

7

Malfunction

Normal

Defective interior temperature sensor

Defective ambient temperature sensor

Defective duct sensor

Defective air mix door motor

Defective sun sensor

Defective power transistor

Defective blower high relay

Remark

1

25

25

-

-

-

-

-

Code

8

9

10

11

12

13

14

15

Malfunction

-

Defective AQS

Defective humidity sensor

-

Defective intake door

-

-

-

Remark

-

-

-

-

-

-

-

-

Press OFF switch 3 times.

Self diagnosis display

AUTO switch
