1) Door Courtesy Lamp Assembly

Preceding work: Disconnection of negative battery cable

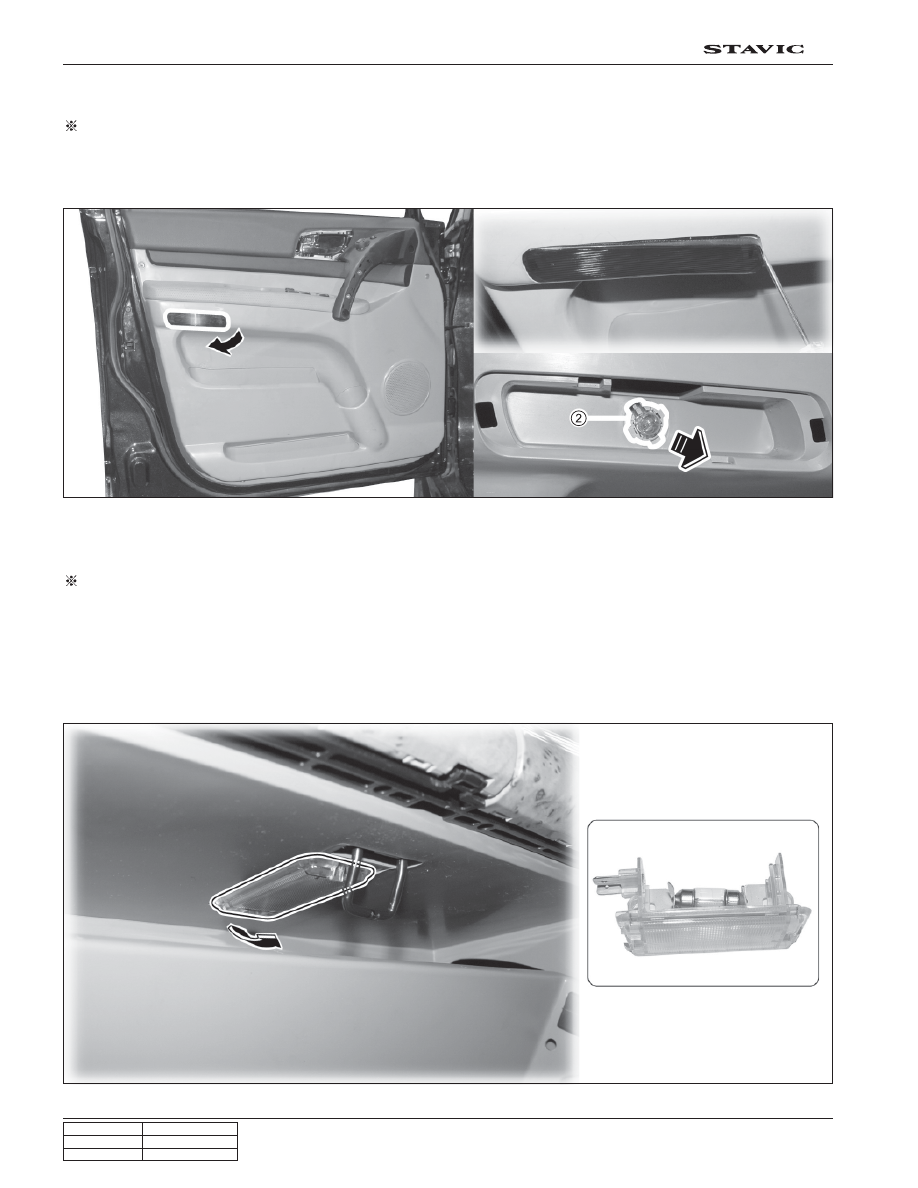

1. Remove the door courtesy lamp cover (1) from the door panel and pull out the bulb (2) with new one with same

specifications.

2) Glove Box Lamp Assembly

Preceding work: Disconnection of negative battery cable

1. Open the glove box cover and push down the front portion of the lamp. Disconnect the connect and remove the

lamp assembly.

2. Disconnect the lamp connector and remove the lamp. However, it is not necessary to disconnect the connector

when removing only the bulb.

3. Install in the reverse order of removal. Replace the bulb with new one with same specifications.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

23

2I

3. Luggage Room Lamp Assembly

Preceding work: Disconnection of negative battery cable

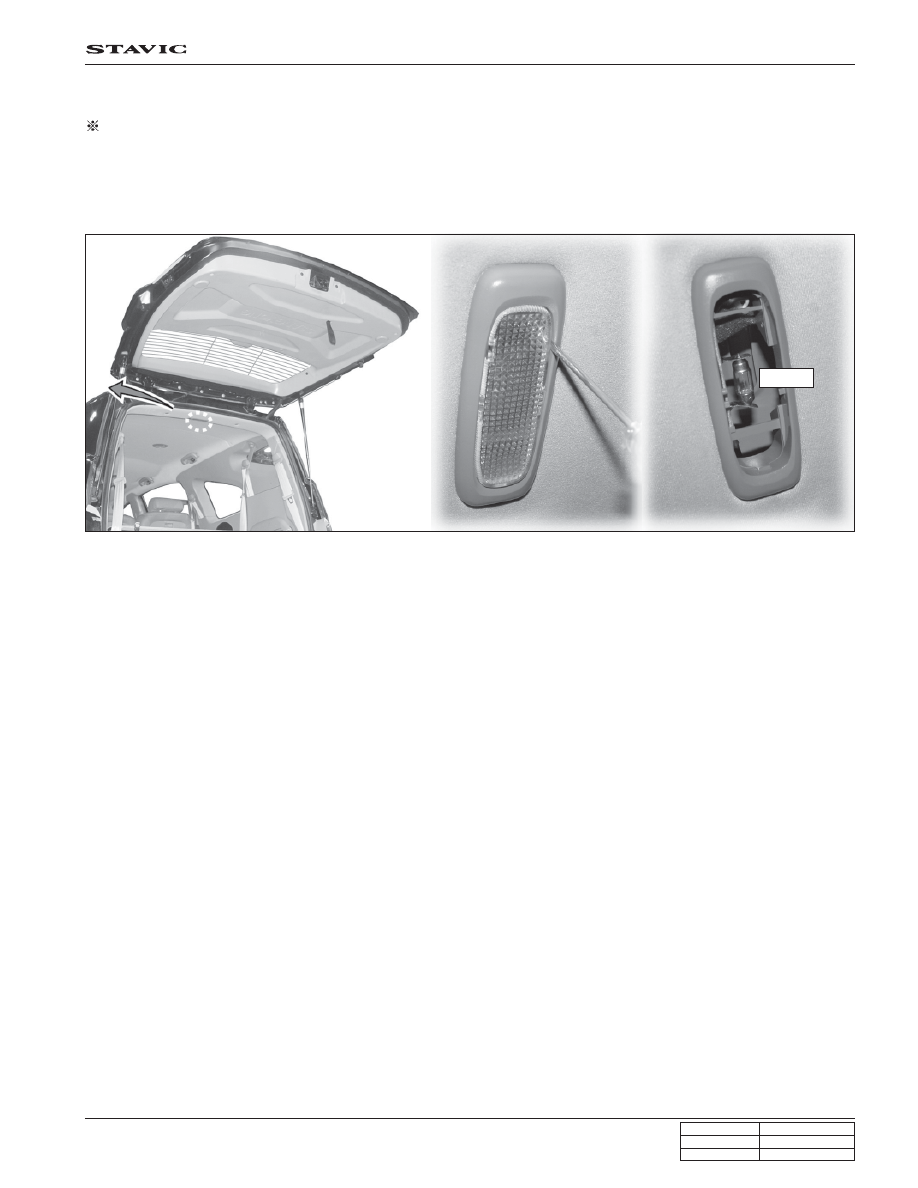

1. Open the tailgate and remove the luggage room lamp cover with a flat blade screwdriver. At this time, be careful not

to damage the surroundings.

2. Remove the bulb from the luggage room lamp with new one with same specifications.

Bulb

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

24

2I

4) Side Room Lamp Assembly

Preceding work: Disconnection of negative battery cable

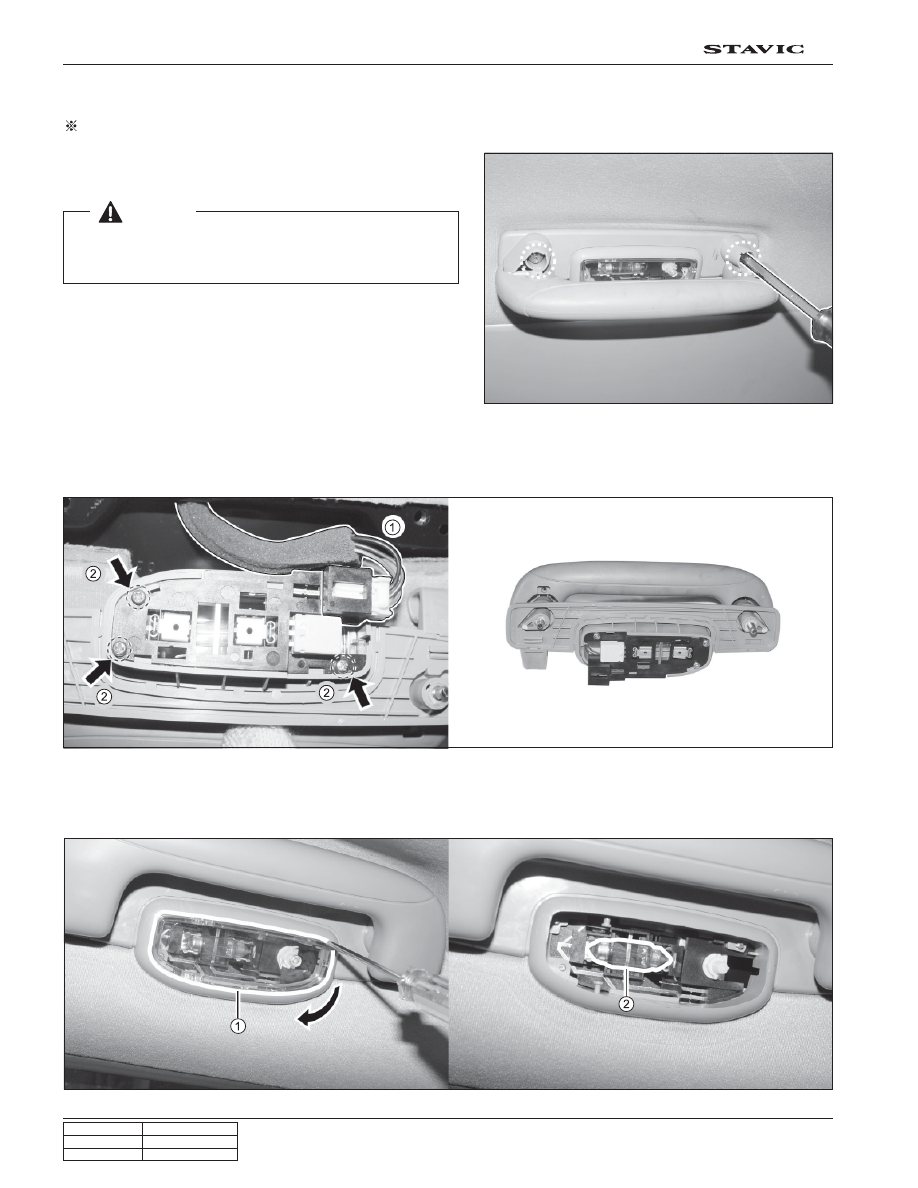

1. Unscrew the screws and remove the side room lamp

assembly.

2. Disconnect the lamp connector (1), unscrew the screws from the removed room lamp assembly, and remove the

lamp.

* when removing the bulb

Remove the lamp cover (1) and pull out the bulb (2). Be careful not to damage the lamp cover when removing it.

 [Notice]

1. Be careful not to damage the lamp cover when removing it.

2. Replace the bulb with new one with same specifications.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

25

2I

4. Remove the bulb from the removed front room lamp. Install in the reverse order of removal.

5. Front Room Lamp Assembly

Preceding work: Disconnection of negative battery cable

Removal and Installation of Front
Room Lamp

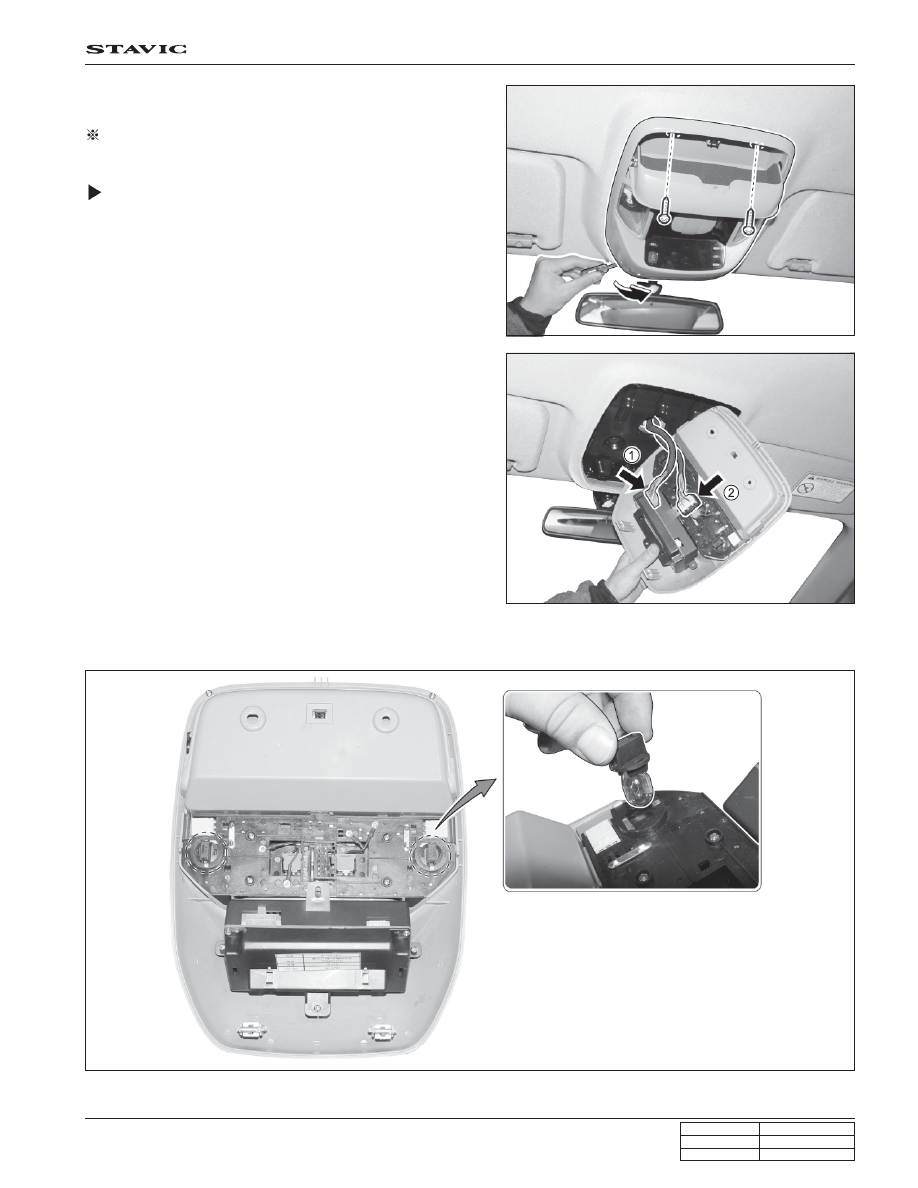

1. Open the sunglasses box and remove two screws.

2. Remove the front room lamp assembly.

3. Disconnect the multi-meter connector (1) and bulb

connector (2).
