LAMP

STAVIC - 2004.09

6

2I

(Unit: mm)

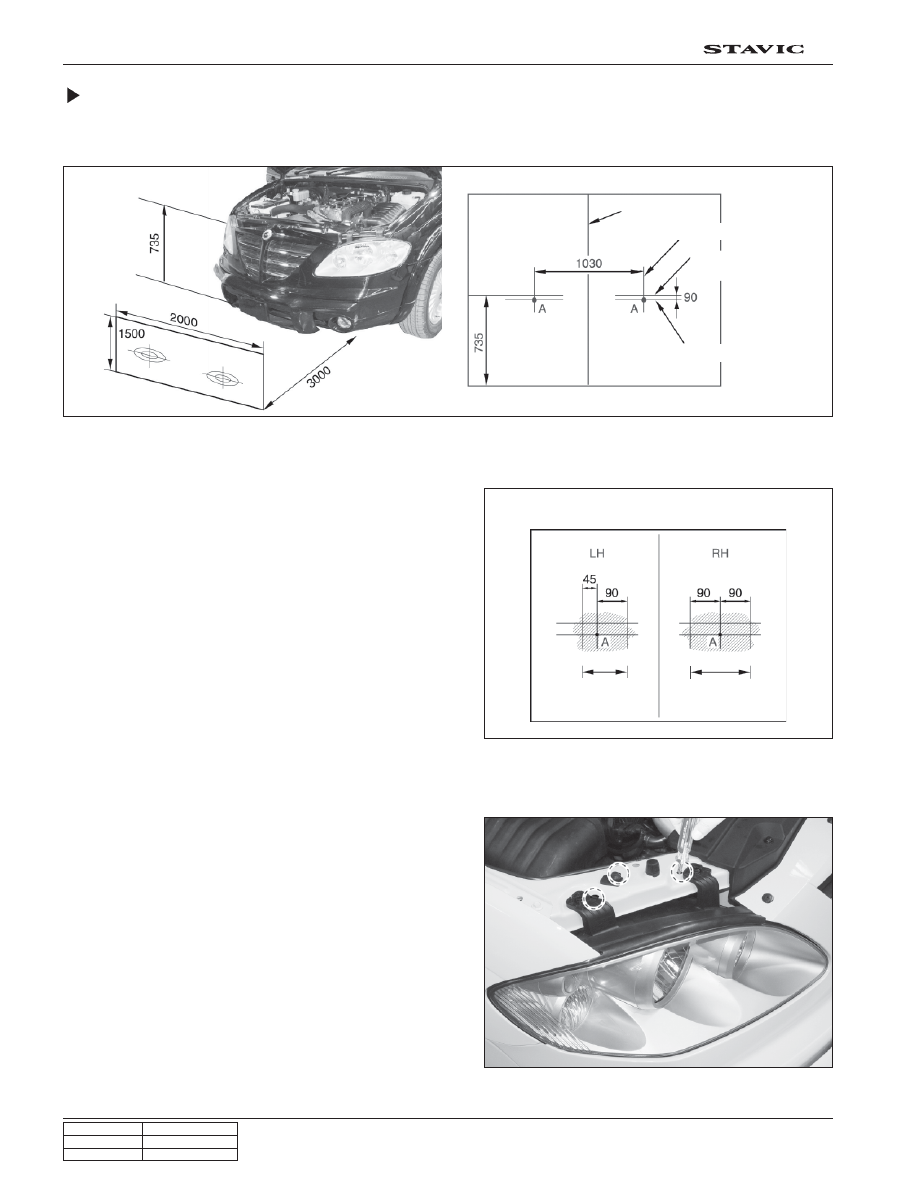

When Using a Screen

1. Install a screen (2m X 1.5m) in front of the headlamps in vertical by 3m away and align the center lines of the vehicle

and the screen.

2. Run the engine with approx. 2,000 rpm and turn on the

headlamp. At this moment, the focus of the headlamp
should aim the “A” point.

3. If the focus deviates the “A” point, adjust the headlamp

aiming by rotating control levers (Up, Down, Left, Right)
in turn with a screwdriver.

(Unit: mm)

Center line of
vehicle

Vertical line of headlamp bulb

Horizontal line of
headlamp bulb

Horizontal line of headlamp
focus

Allowable focusing

area

Allowable focusing

area

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

7

2I

1

2

Fog lamp

Fog lamp

1 - Clockwise

Knob

Knob

2 - Counterclockwise

Knob

Up

Down

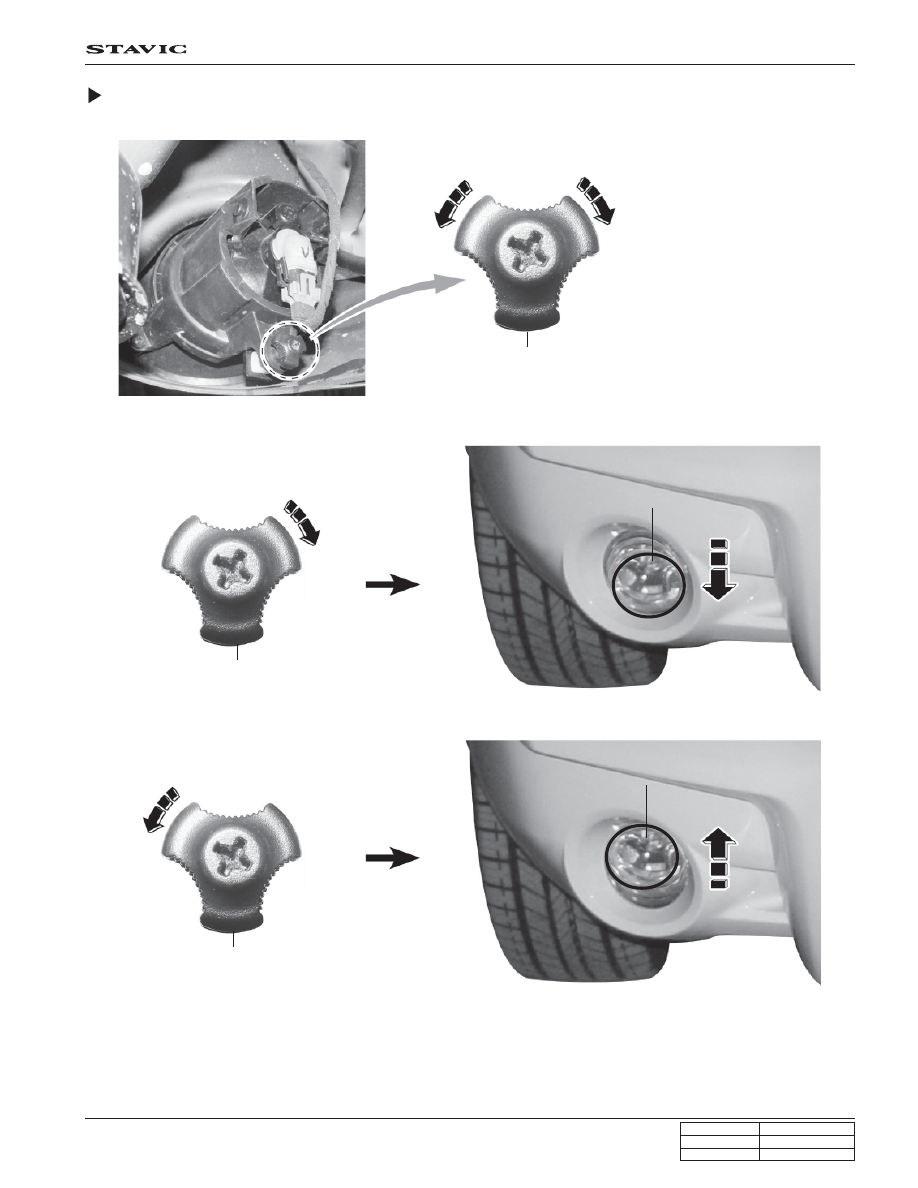

Fog Lamp Aiming Adjustment

1. Down

T h e   l a m p   a i m i n g   m o v e s   d o w n
when the knob is turned to direc-
tion 1 (clockwise).

2. Up

The lamp aiming moves up when
the knob is turned to direction 2
(counterclockwise).

To adjust the fog lamp downwards

To adjust the fog lamp upwards

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

8

2I

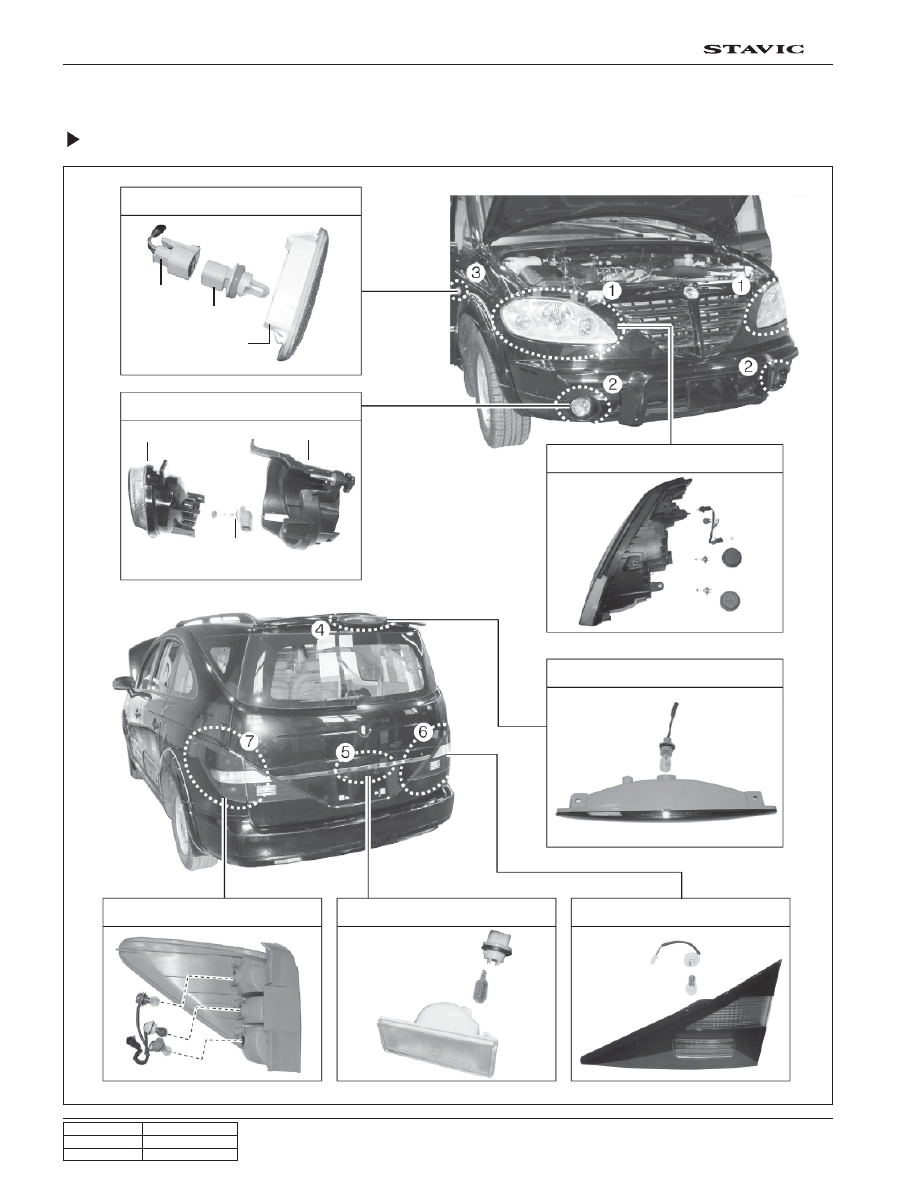

3. REMOVAL AND INSTALLATION OF EXTERIOR LAMPS

Locations of Exterior Lamps

3. Side turn signal lamp

Connector

Bulb

Lamp cover

2. Fog lamp assembly

Lamp cover

Bulb

Lamp cover

1. Headlamp assembly

4. High mounted stop lamp

7. Rear tail lamp assembly

5. License plate lamp

6. Tail lamp (back-up lamp)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LAMP

STAVIC - 2004.09

9

2I

2. Remove one bolt in engine compartment, disconnect two connectors, and remove the lamp assembly.

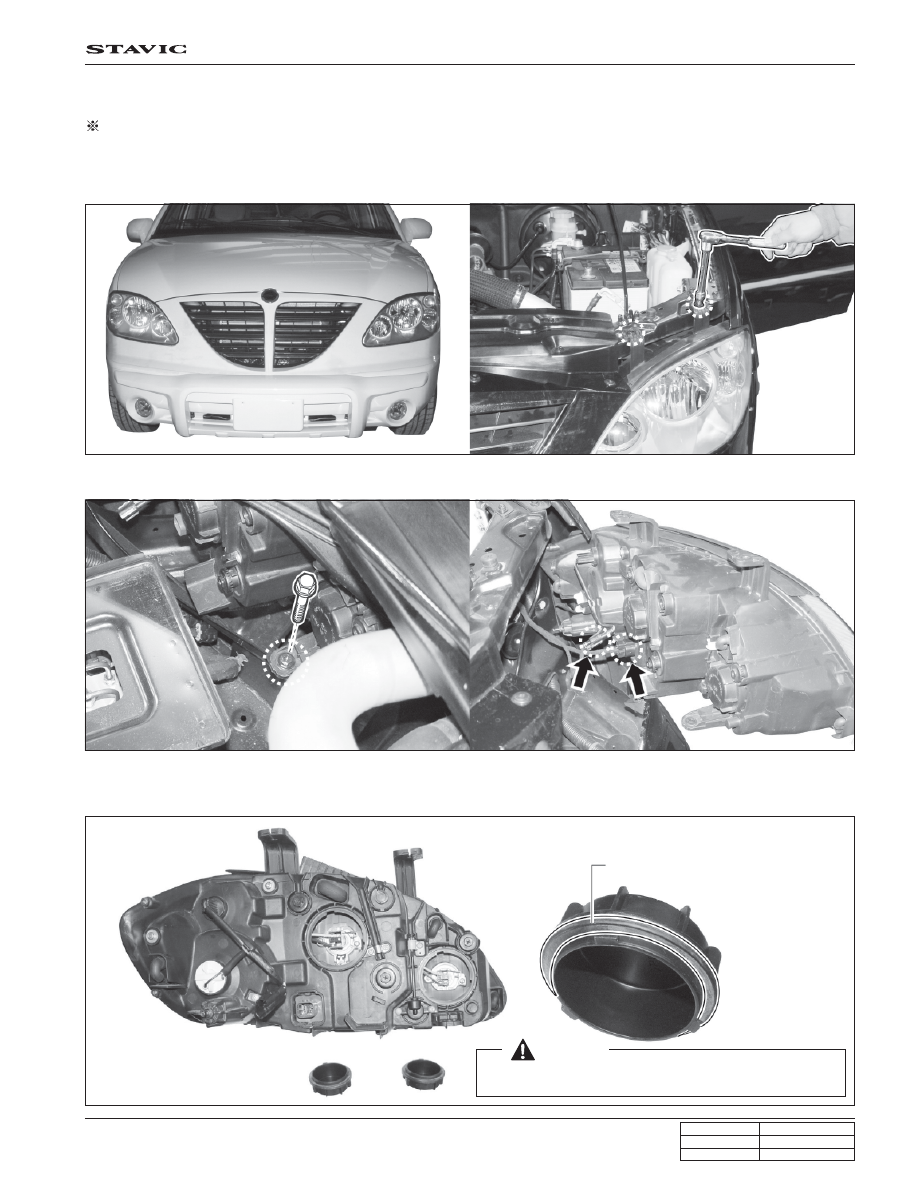

1) Headlamp Assembly

Preceding work: Disconnection of negative battery cable

• The headlamp assembly consists of position lamp, headlamp low beam, headlamp high beam, and front turn signal lamp.

1. Remove two bolts on the lamp housing.

Cover rubber ring

3. Carefully remove the headlamp.

4. Install in the reverse order of removal.

 [Notice]

If the cover rubber ring is worn, replace it with new one.
