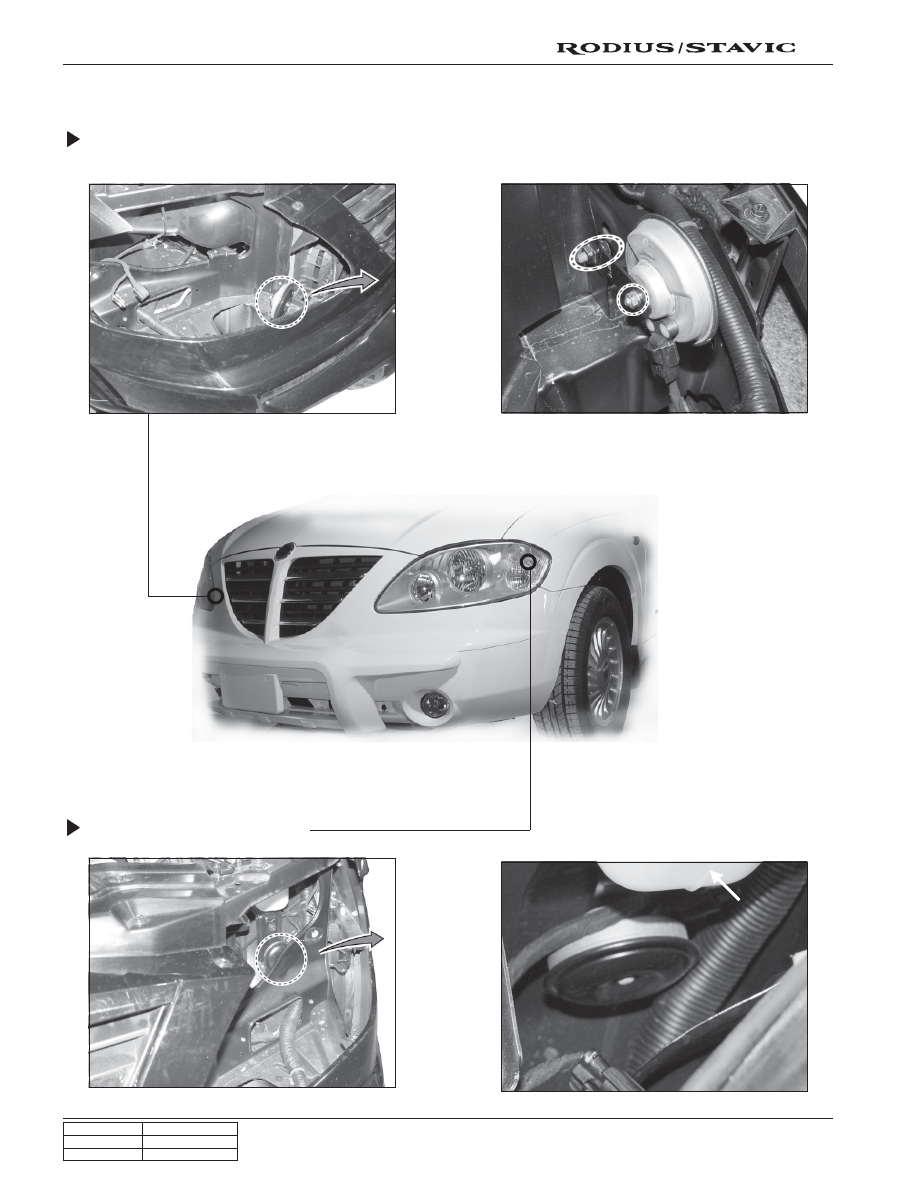

3. HORN AND THEFT DETERRENT HORN

Horn

Theft Deterrent Horn

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

23

2E

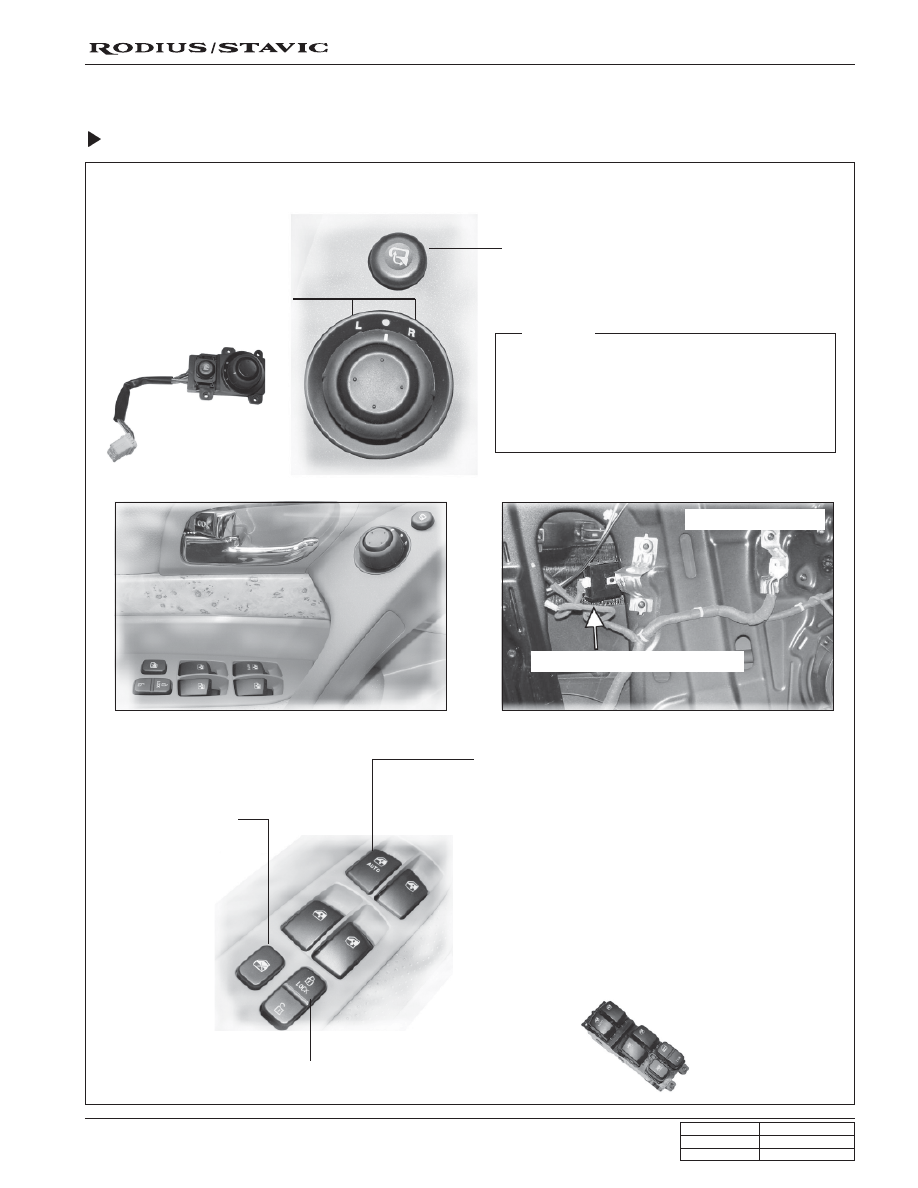

4. SWITCHES ON DOOR TRIM

System Components

Outside rearview mirror folding switch

The mirrors are folded/unfolded when pressing the
switch more than 1 second.

Outside rearview mirror switch

Switches on driver’s door trim

Driver’s door window switch

• When the front of the switch is lightly pressed (stage 1), the

window will be lowered while the switch is pressed. When
pressed to its end (stage 2), the window will open automati-
cally until it is fully opened. The window stops during its
operation when pressing the switch (stage 1) again or pulling
up the switch.

• The other window can be operated only while the appropriate

switch is activated.

Window lock
switch

If this switch is pressed,
all door windows are
operated only by driver’s
door window switches.

Central door locking switch

Time lag of window operation

The operation of power window can be continued for
30 seconds after turning the ignition switch to “OFF”
position.

Mirror selection switch

Outside rearview mirror folding unit

Driver’s door trim panel

 [Note]

The mirrors can be folded/unfolded for 30 seconds
after turning the ignition key to “OFF” position.

Manual folding or unfolding the outside rearview
mirrors may cause a malfunction of the mirror
folding system.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

24

2E

1) Switches on Driver’s Door

* Abbreviations

FLU: Front Left Up

FRU: Front Right Up

RLU: Rear Left Up

RRU: Rear Right Up

Driver’s door window switch

Door lock switch

Window lock switch

Window lock switch

FLD: Front Left Down

FRD: Front Right Down

RLD: Rear Left Down

RRD: Rear Right Down

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

25

2E

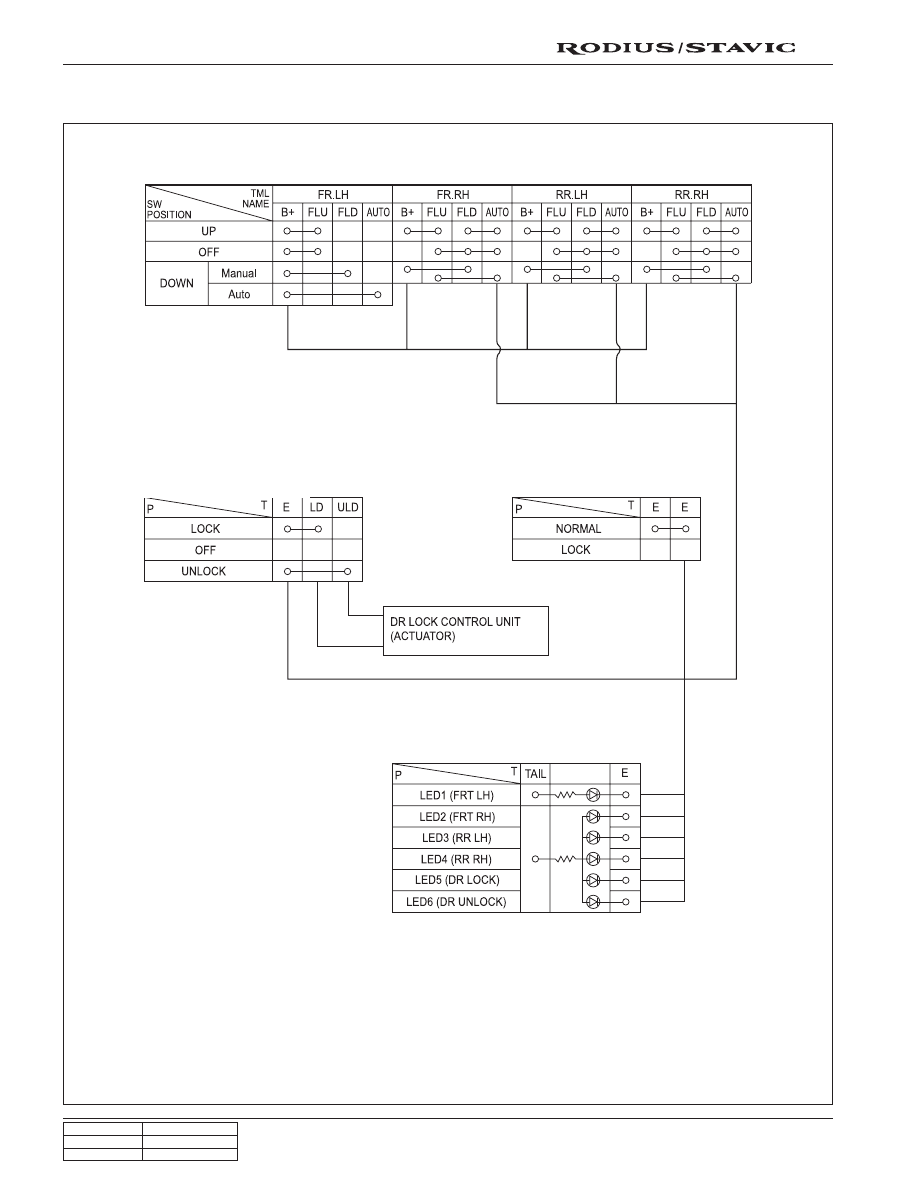

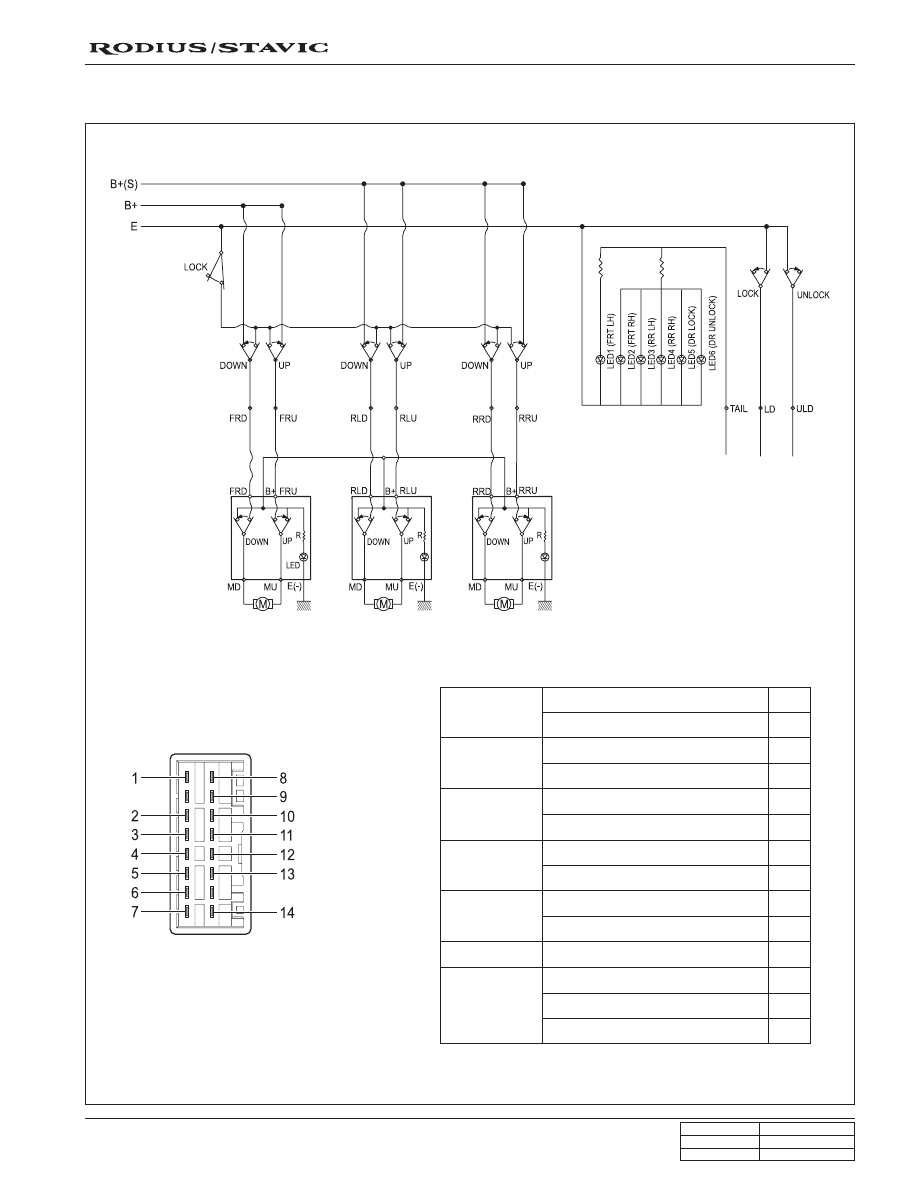

2) Circuit Diagram of Switches on Driver’s Door

Front Left

Front Right

Rear Left

Rear Right

Door Lock

Illumination

Power

Front Left Down (FLD)

Front Left Up (FLU)

Front Right Down (FRD)

Front Right Up (FRU)

Rear Left Down (RLD)

Rear Left Up (RLU)

Rear Right Down (RRD)

Rear Right Up (RRU)

LOCK

UNLOCK

ILL

B+

B+ (S)

E(-)

4

2

5

7

8

11

12

14

10

6

1

3

13

9
