SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 247

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

44

2E

2. Rear Wiper Assembly

Preceding work: Disconnection of negative battery cable, removal of tailgate trim

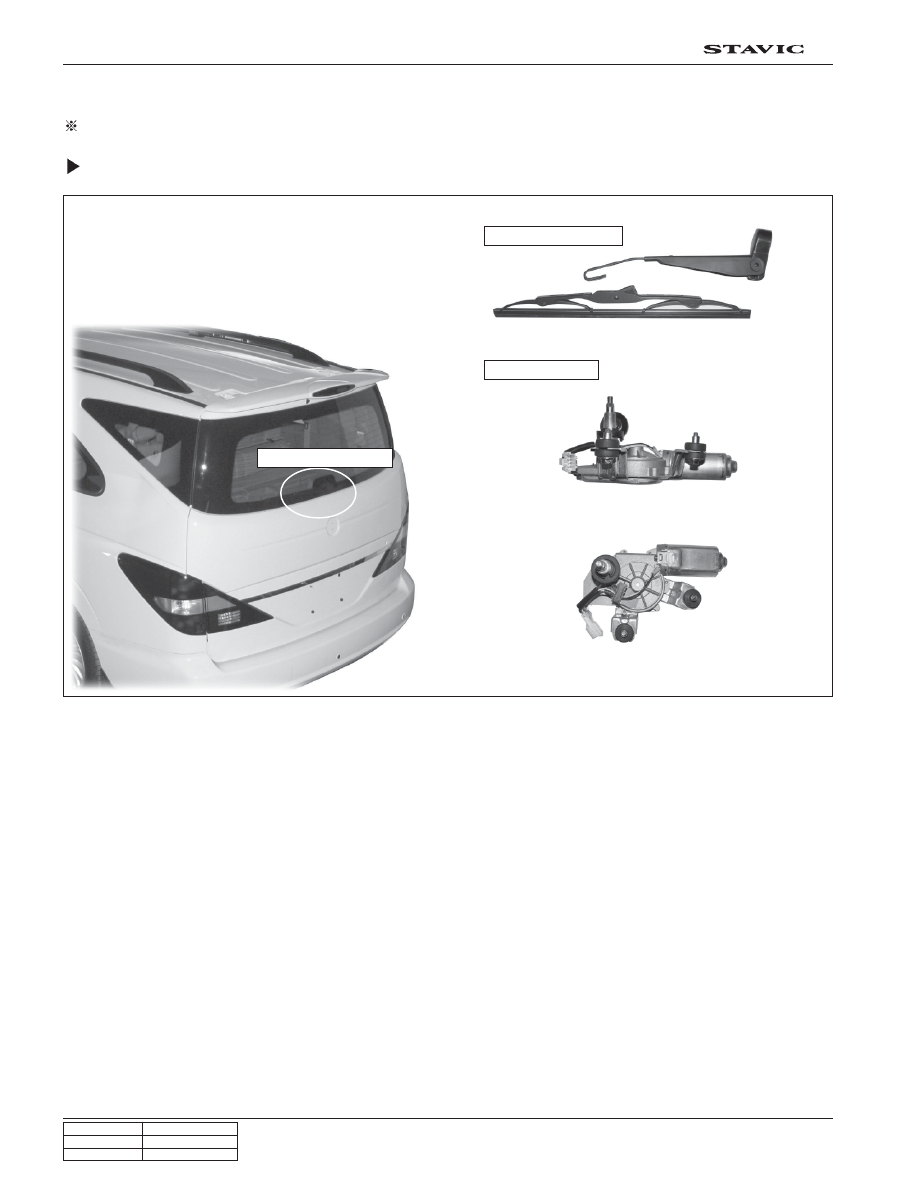

Components Locator

Rear wiper assembly

Wiper blade assembly

Rear wiper motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

STAVIC - 2004.09

45

2E

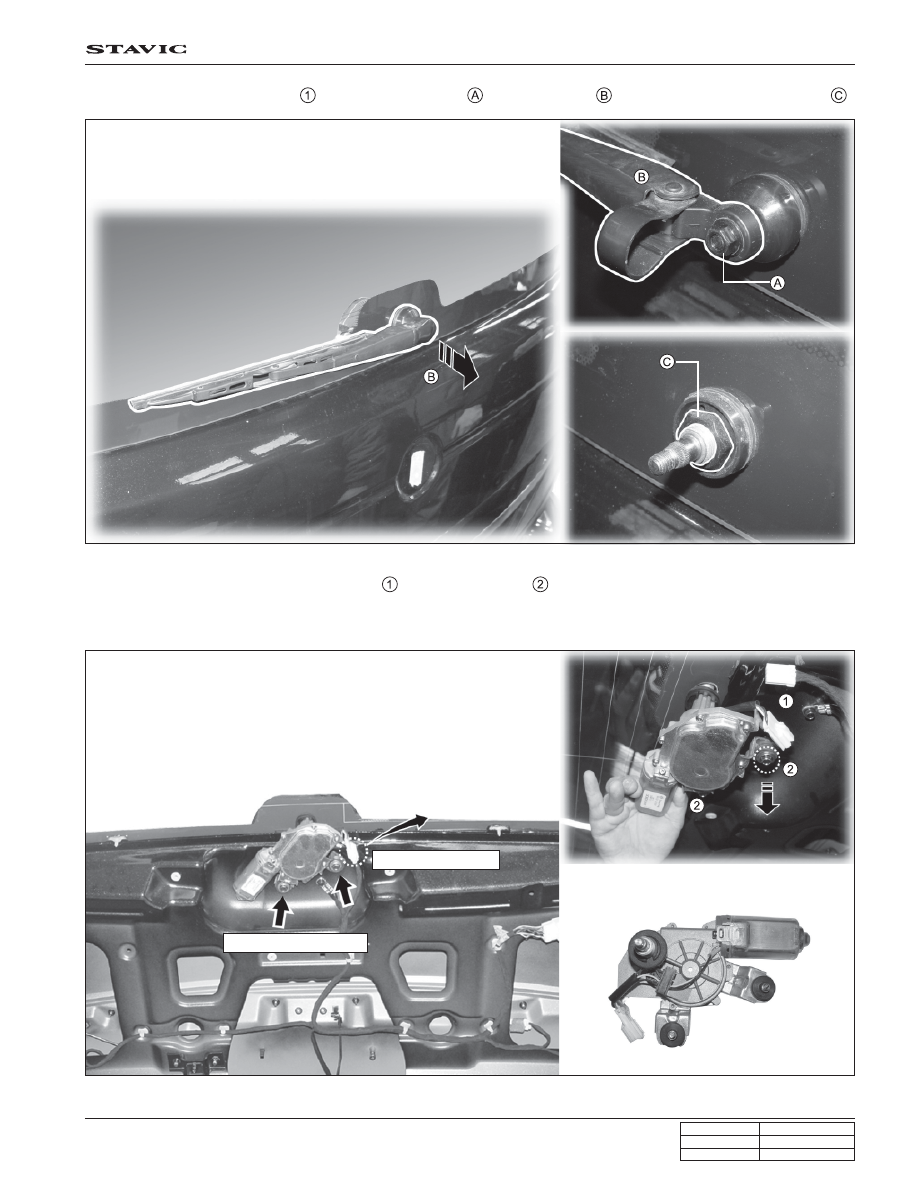

1. Release the wiper arm cap

, remove the wiper nut

and wiper blade

, and unscrew the motor lock nut

.

2. Disconnect the wiper motor connector

, unscrew the bolts

, and remove the wiper motor assembly from

tailgate.

3. Install in the reverse order of removal.

2. Motor mounting bolts

1. Motor connector

MEMO

.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

SWITCH

RODIUS/STAVIC - 2005.07

1

2E

INTERIOR SWITCHES ...................................... 2E-2

SWITCHES ........................................................ 2E-4

1. Center switch .............................................................. 2E-4

4WD SWITCH, REAR WIPER/WASHER SWITCH

......................................................................... 2E-16

1. 4WD switch .............................................................. 2E-16

2. Rear wiper / washer switch ...................................... 2E-17

SWITCHES ON STEERING WHEEL ............... 2E-19

1. Audio remote control switch ..................................... 2E-19

2. Circuit diagram of audio remote control switch ........ 2E-20

3. Horn and theft deterrent horn .................................. 2E-22

4. Switches on door trim ............................................... 2E-23

MULTIFUNCTION SWITCH .............................. 2E-29

1. Multifunction switch .................................................. 2E-29

2. Auto light system ...................................................... 2E-36

WIPER AND WASHER ASSEMBLY ................. 2E-39

1. General .................................................................... 2E-39

2. Removal and Installation of wiper assembly ............ 2E-41

Table of Contents

2E - Switch (2005 ~)
