ELECTRICAL SYSTEM
STAVIC - 2004.09
24
2A
3. Unscrew the nuts and remove the ICM box.

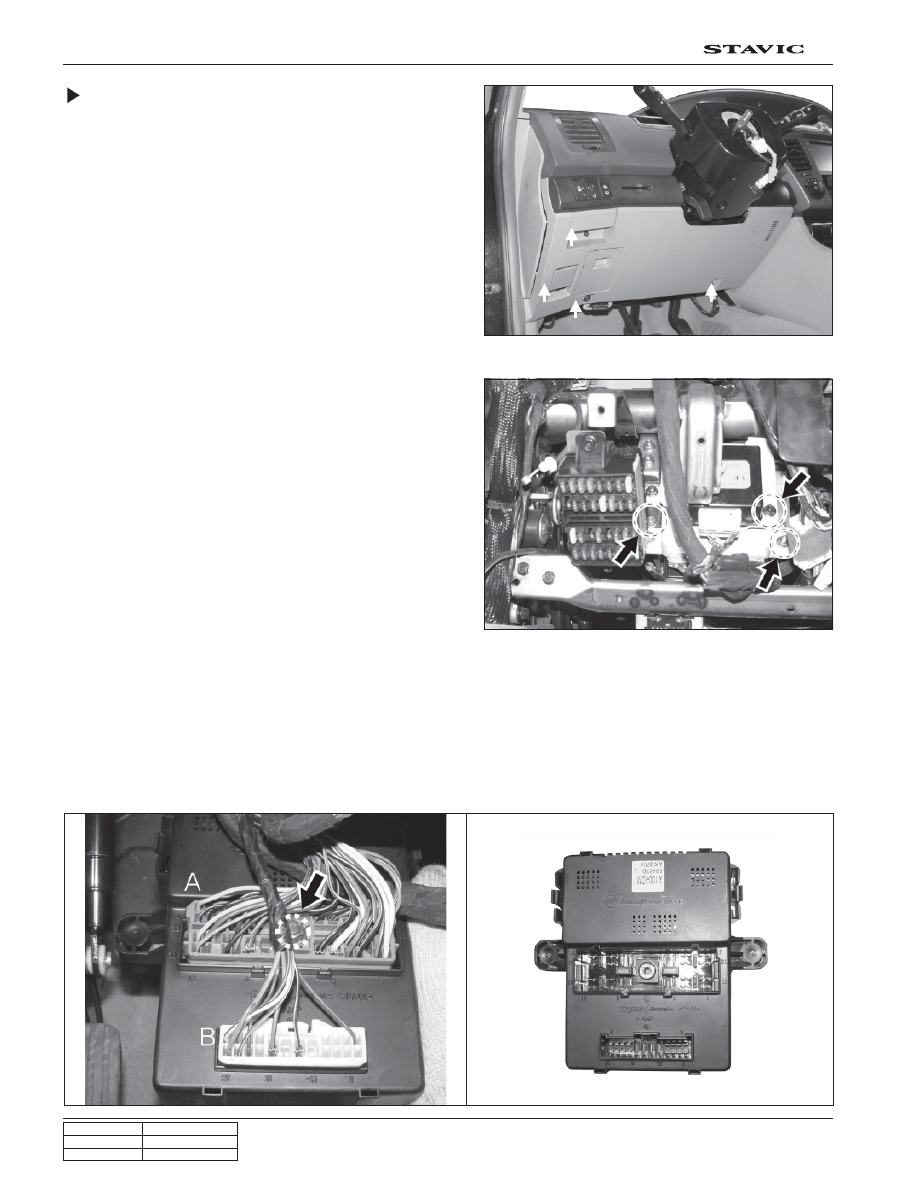

Removal and Installation of ICM Box
1. Disconnect the negative battery cable.
2. Unscrew the screws from driver side instrument panel
undercover and remove the undercover.
4. Unscrew the connector mounting nuts from the back of the ICM box and disconnect the connector A and B.
5. Install in the reverse order of removal.
