DI10-7

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

Sensor Data Check

Preceding Work: Perform the “Entering Diagnosis Pro-
cedures”

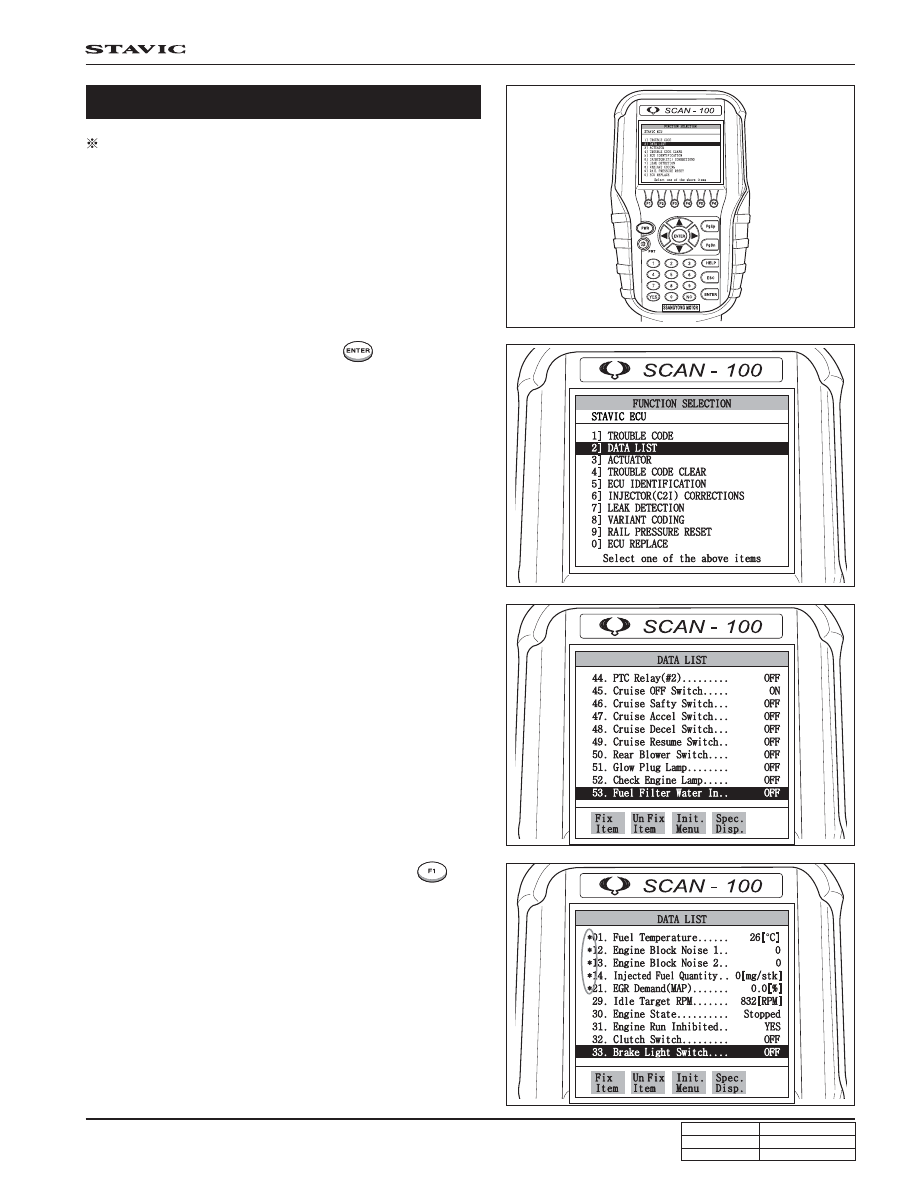

1. Select “2] DATA LIST” and press “

” in “FUNCTION

SELECTION” screen.

2. The screen shows approx. 58 sensor data.

3. Select the items you want to see and press “

” key

to freeze them.

Note

You can freeze up to 5 items (*: selected items).

DI10-8

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

Actuator Check

Preceding Work: Perform the “Entering Diagnosis Pro-
cedures”

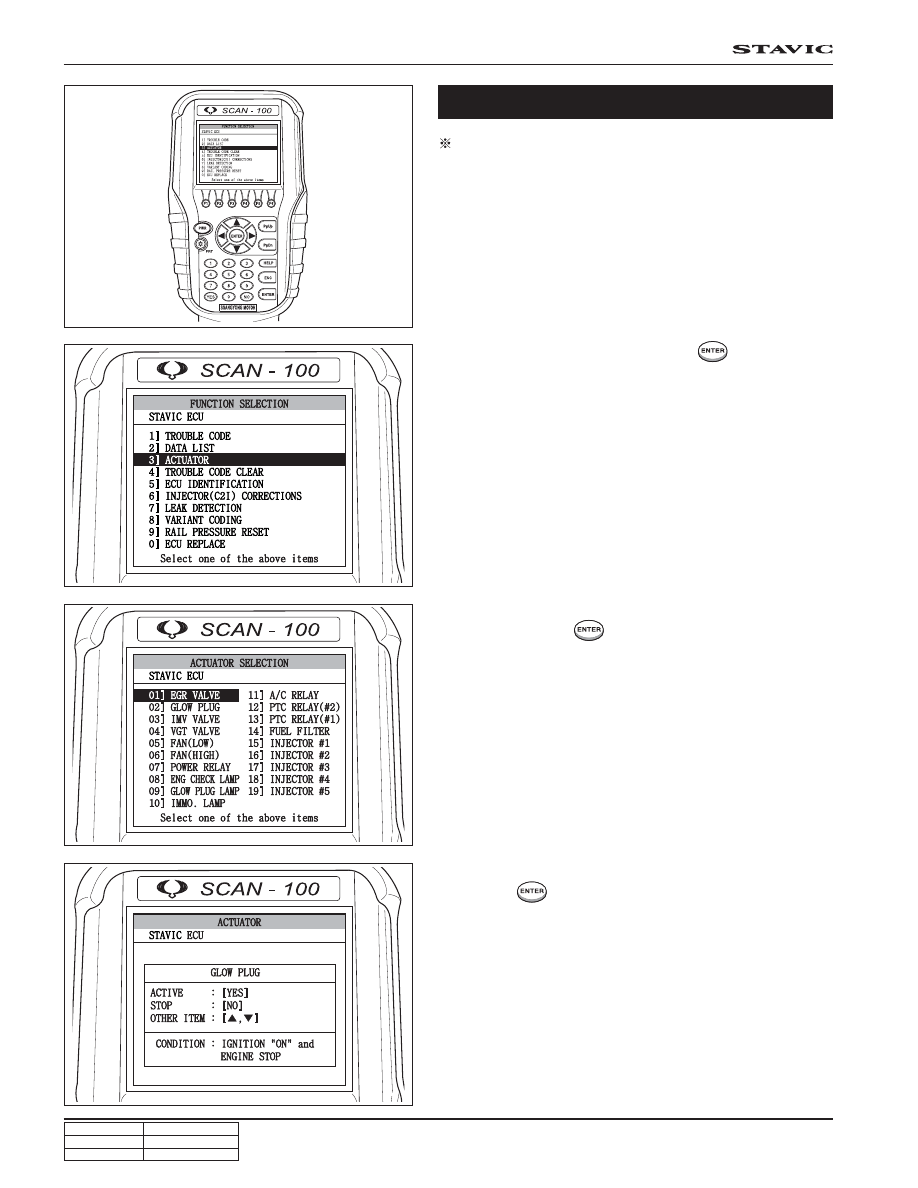

1. Select “3] ACTUATOR” and press “

” in “FUNCTION

SELECTION” screen.

2. The screen shows 19 items. Select the item you want to

see and press “

”.

3. For example, if you select “02] GLOW PLUG” item and

press “

”, the screen as shown in figure is displayed.

DI10-9

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

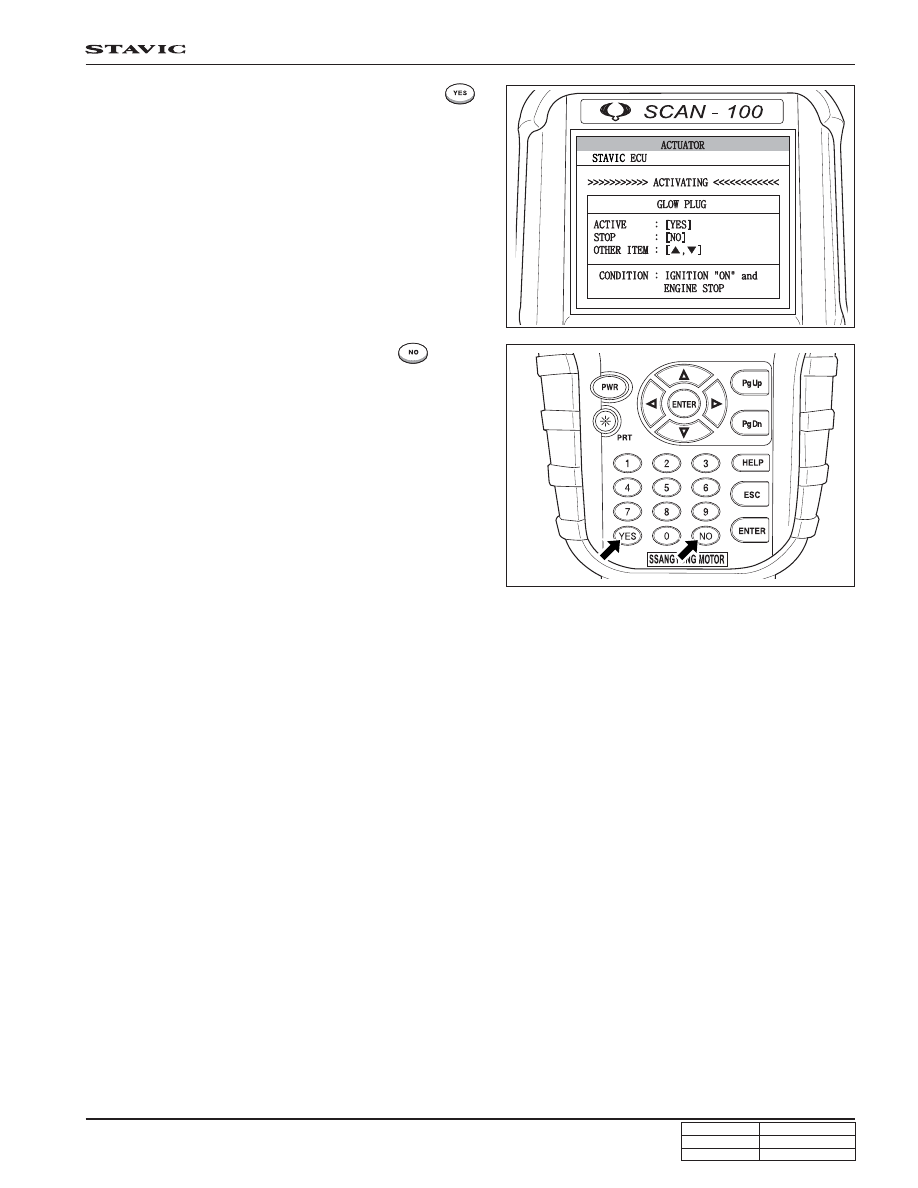

4. If you want to operate the glow plug relay, press “

”

key. The “OPERATING” message appears and the relay
operation alarm sounds.

5. If you want to stop the operation press “

” key in

keyboard.

DI10-10

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.9

Trouble Code Clear

Preceding Work: Perform the “Entering Diagnosis Pro-
cedures”

1. Select “1] TROUBLE CODE” and press “

” in

“FUNCTION SELECTION” screen.

2. The “DIAGNOSTIC TROUBLE CODEs” screen is

displayed and it shows the trouble.

Note

C = Current trouble, H = History trouble

3. Fix the trouble and go back to “1] TROUBLE CODE”

screen and check if the trouble has been changed to “H
(History trouble code)” code.
