SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 149

DI09-8

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

 ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.9

Action

• Replace ignition coil

• Replace spark plug or adjust

clearance

• Resetting valve timing

• Replace spark plug or adjust

clearance

• Replace ignition coil

• Resetting valve timing

• Resetting valve timing

Symptom

Hard engine starting

Cause

• Ignition coil faulty

• Spark plug malfuntion

• Ignition timing faulty (spark plug

light is normal)

• Spark plug malfunction

• Ignition coil faulty

• Ignition timing faulty

• Ignition timing faulty

Unstable engine idling

Enging acceralation malfunction

DI09-9

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.9

3. Alternator

4. Plug connection

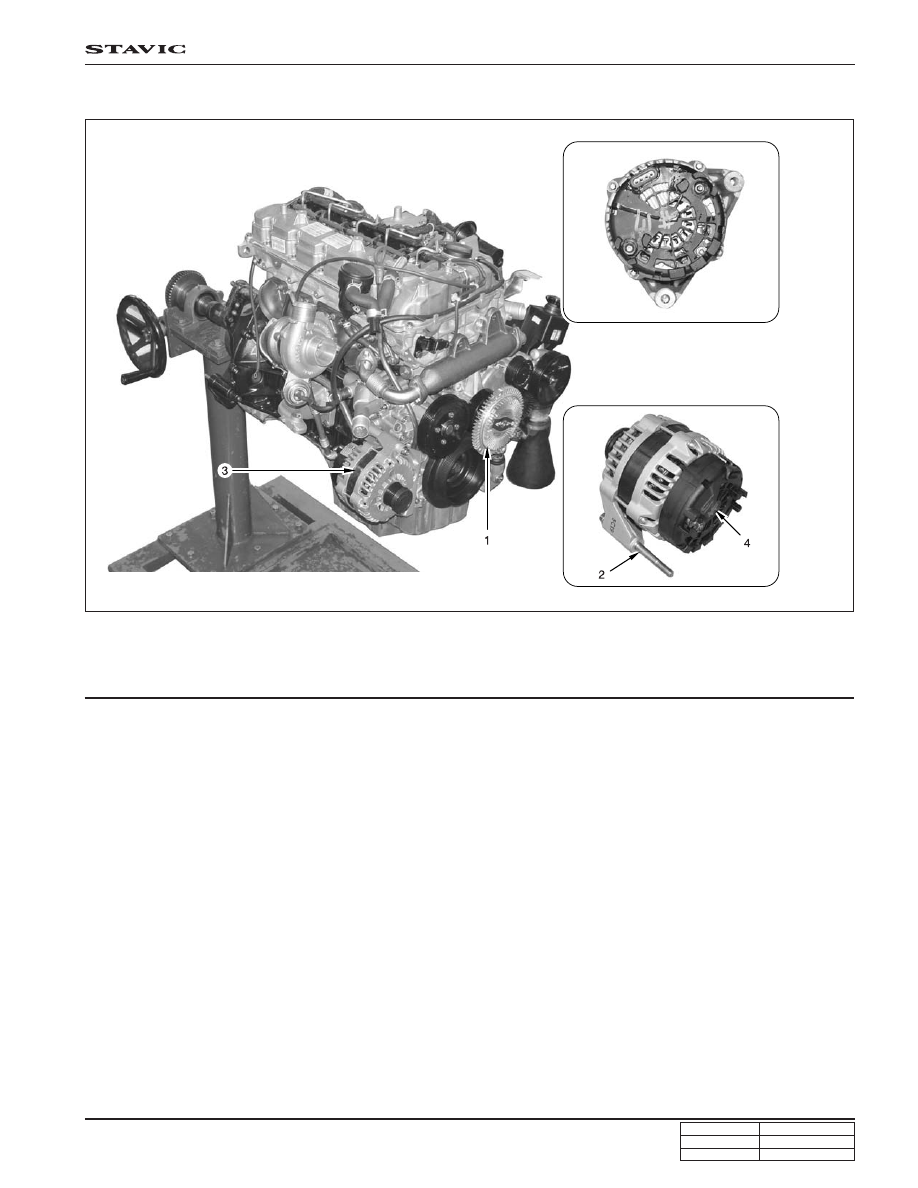

ALTERNATOR

1. Viscous clutch

2. Bolt ............................................................. 45 Nm

DI09-10

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

 ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.9

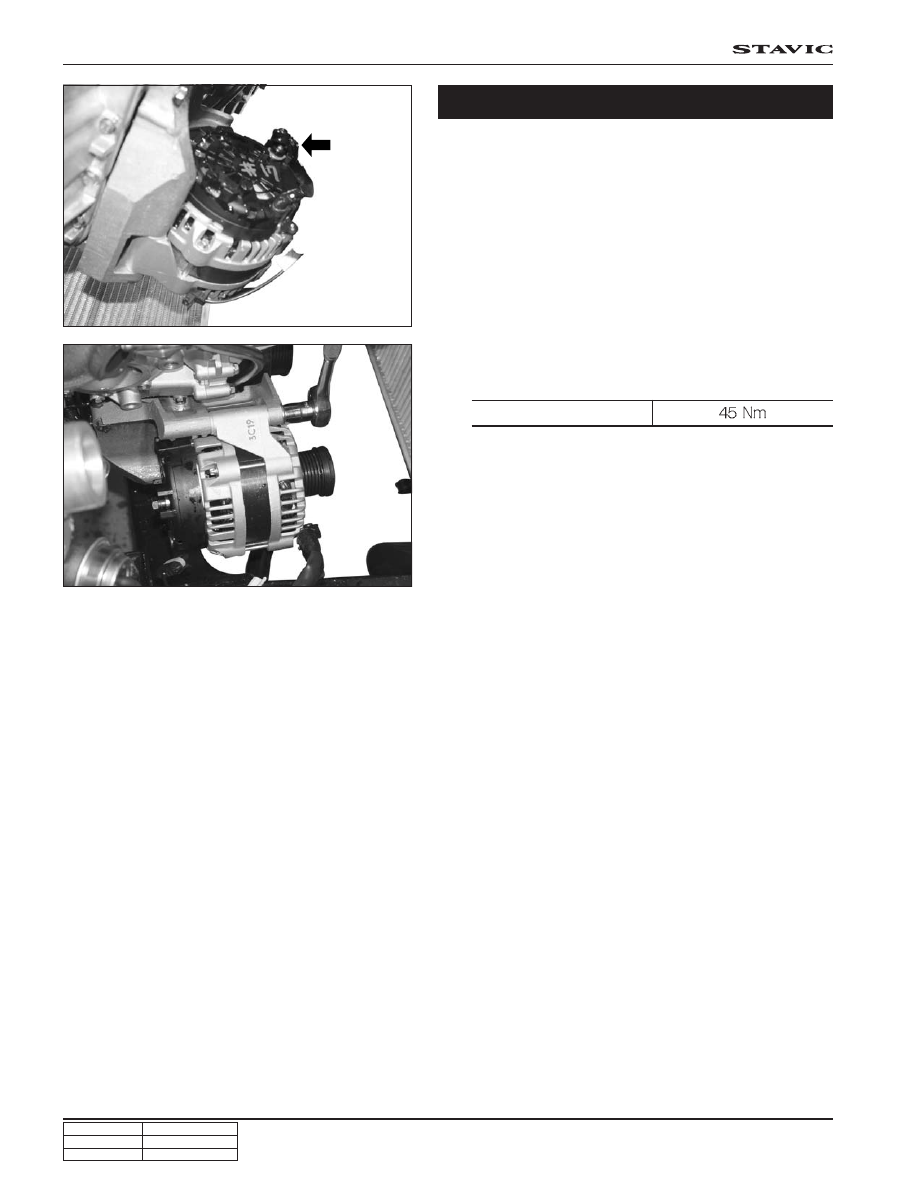

Removal and Installation

1. Disconnect the negative battery cable.

2. Remove the plug connection.

3. Unscrew the bolts and remove the alternator.

Installation Notice

4. Install in the reverse order of removal.

Tightening torque

DI09-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.9

3. Nut .................................................................... 15 Nm

4. Bolt ................................................................... 48 Nm

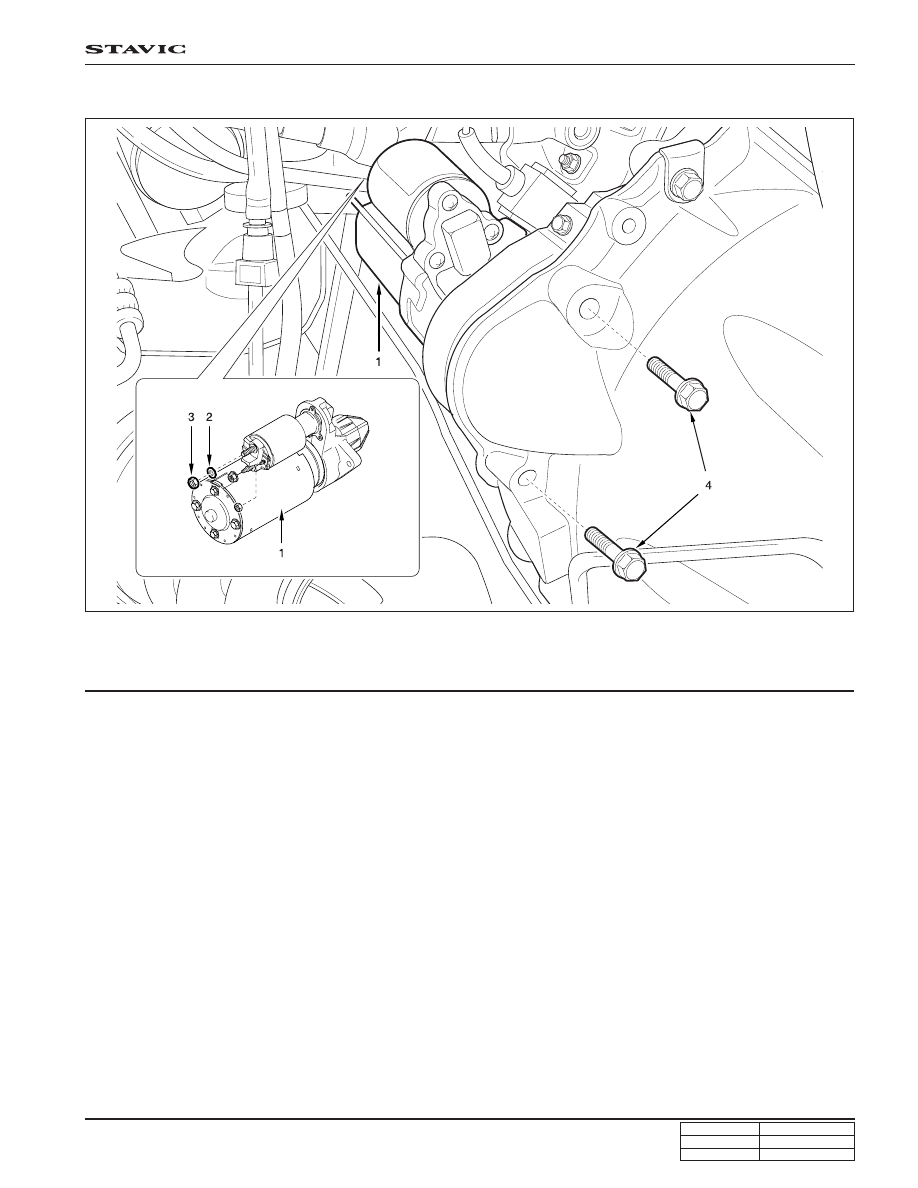

STARTER

1. Starter

2. Washer
