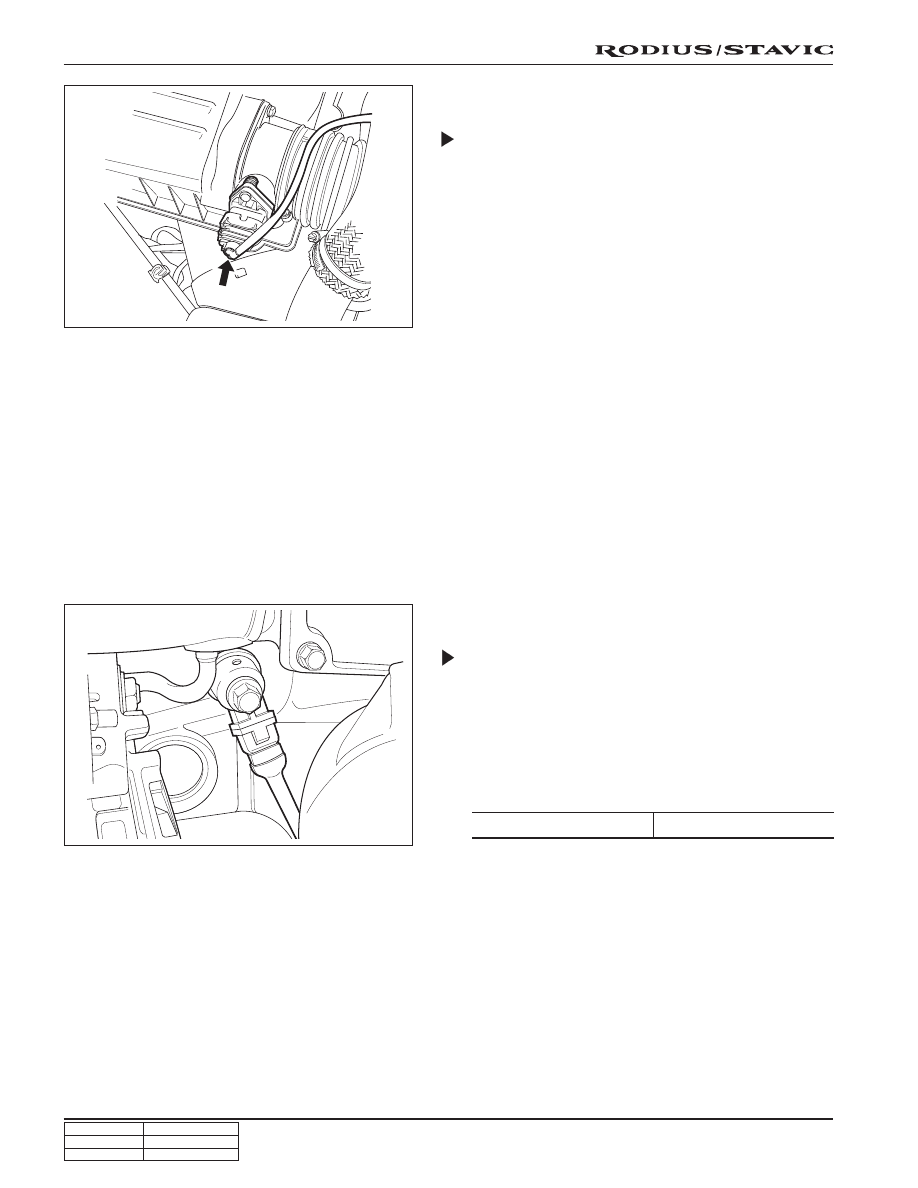

KNOCK SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the knock sensor electrical connector from

the intake manifold bracket.

3. Remove the knock sensor mounting bolt from the knock

sensor installed on the cylinder block.

Installation

HOT FILM AIR MASS (HFM) SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the Hot Film Air Mass (HFM) sensor electrical

connector.

3. Remove the HFM sensor retaining screws.

4. Turn the HFM sensor coupling in the direction shown in

the figure in the left so that it gets separated from the
contact surface.

Notice

Make sure the HFM sensor coupling connects
completely with the contact surface installation.

5. Remove the HFM sensor.

6. Installation should follow the removal procedure in the

reverse order.

4. Remove the knock sensor.

5. Installation should follow the removal procedure in the

reverse order.

Tightening torque

25 Nm (18 lb-ft)

1F-83

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

Important

A special anti-seize compound is used on the oxygen
sensor threads. This compound consists of a liquid
graphite and glass beads. The graphite will burn away,
but the glass beads will remain, making the sensor
easier to remove. New or serviced sensors will al-
ready have the compound applied to the threads. If a
sensor is removed from any engine and is to be rein-
stalled, the threads must have an anti-seize compound
applied before reinstallation.

4. Coat the threads of the oxygen sensor with an anti-seize

compound, if needed.

5. Installation should follow the removal procedure in the

reverse order.

PEDAL POSITION SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the pedal position sensor connector.

3. Unscrew the bolts and nut.

Installation

4. Remove the pedal and sensor assembly.

5. Installation should follow the removal procedure in the

reverse order.

OXYGEN SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

Notice

The oxygen sensor uses a permanently attached
pigtail and connector. This pigtail should not be
removed from the oxygen sensor. Damage or removal
of the pigtail or the connector could affect proper
operation of the oxygen sensor. Do not drop the
oxygen sensor.

2. Disconnect the electrical connector.

3. Carefully remove the oxygen sensor from the exhaust pipe.

Installation

Tightening torque

6 Nm (53 lb-ft)

Tightening torque

55 Nm (41 lb-ft)

1F-84

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

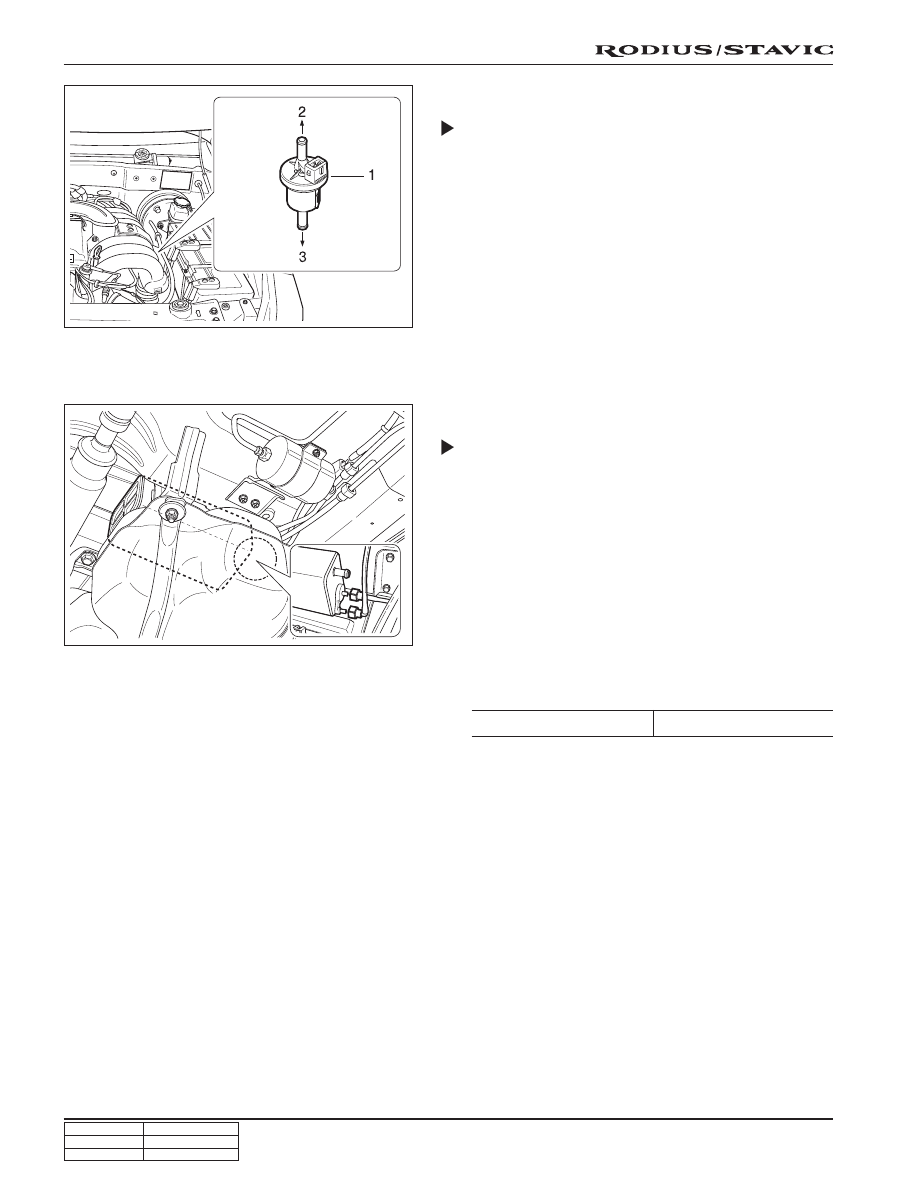

PURGE CONTROL VALVE

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the purge control valve connector.

3. Disconnect the throttle body-to-purge control valve hose

from the purge control valve.

4. Disconnect the canister-to-purge control valve hose from

the purge control valve.

5. Remove the purge control valve.

6. Installation should follow the removal procedure in the

reverse order.

CANISTER

Removal and Installation Procedure

Caution

Canister and vacuum hoses contain fuel vapors. Do
not smoke in the area or permit an open flame.

1. Disconnect the fuel tank-to-canister hose form the

canister.

2. Disconnect the canister-to-purge control valve hose form

the canister.

4. Remove the canister.

5. Installation should follow the removal procedure in the

reverse order.

3. Remove the canister mounting bolts.

Installation

Tightening torque

6 Nm (53 lb-ft)

1F-85

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ENGINE CONTROLS

M162 GSL ENG SM - 2005.7

4. Check the O-ring for damage and replace it if neces sary.

5. Installation should follow the removal procedure in the

reverse order.

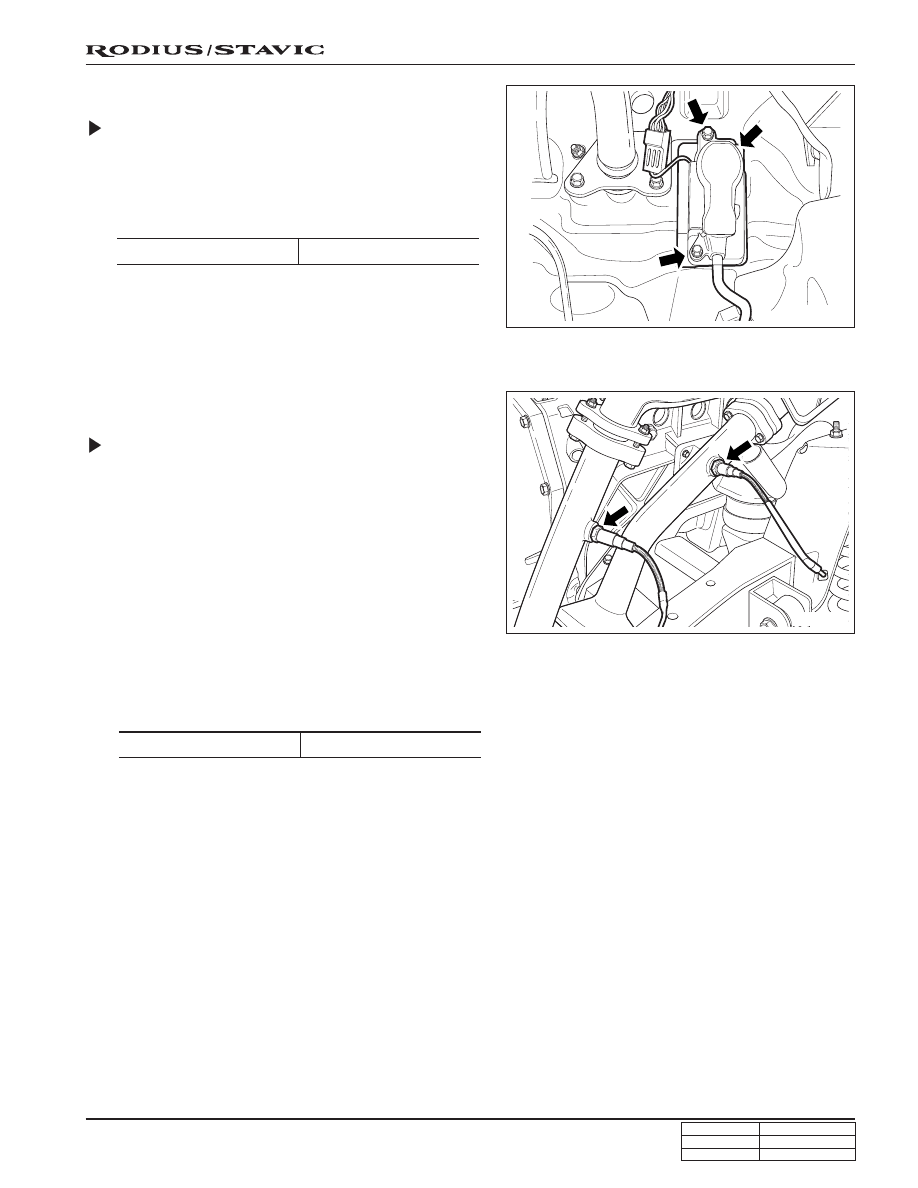

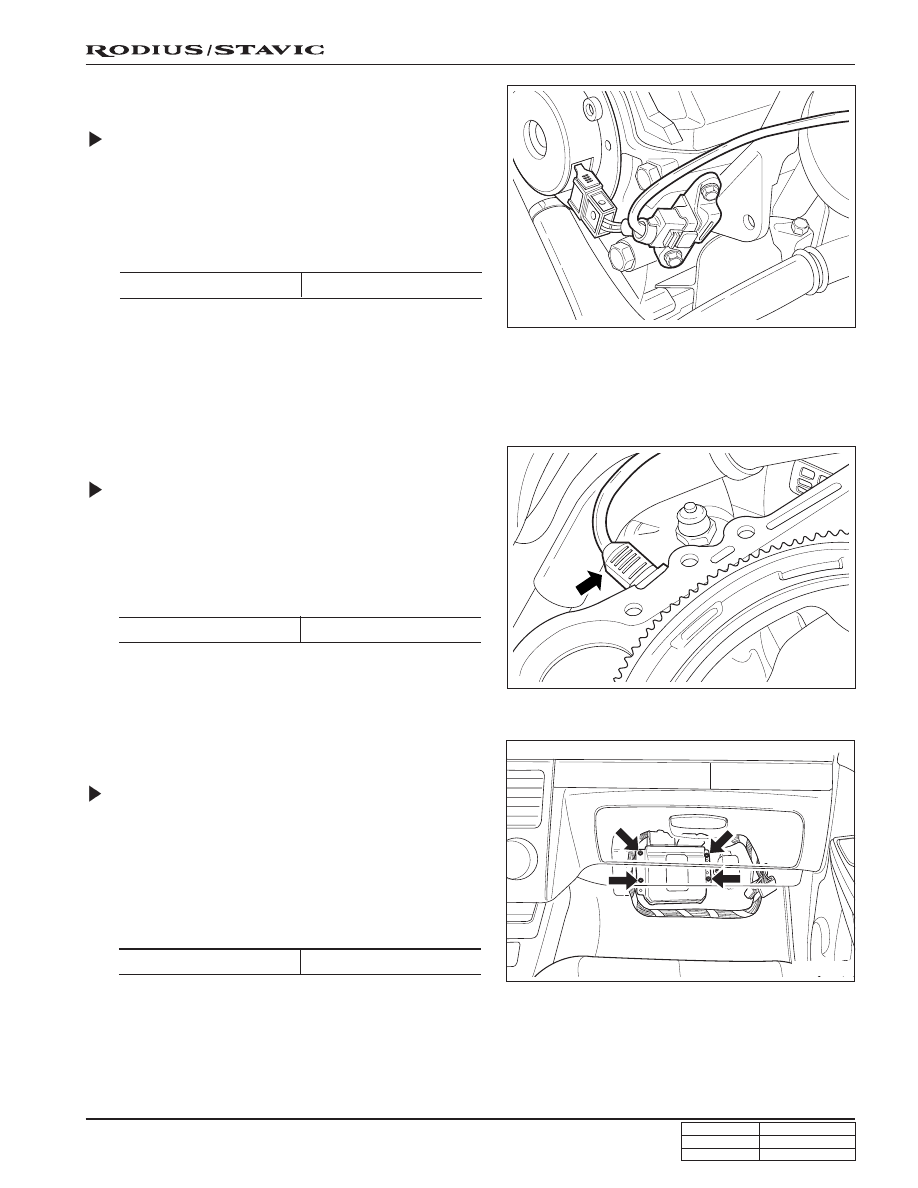

CRANKSHAFT POSITION SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector at the crankshaft

position sensor.

3. Remove the crankshaft position sensor retaining bolt.

Installation

4. Installation should follow the removal procedure in the

reverse order.

ENGINE CONTROL MODULE

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the cowl side trim form passenger side. Refer

to Section 9G, Interior trim.

3. Remove the four securing nuts for the Engine Control

Module (ECM) from the mounting bracket.

Installation

4. Pull out the ECM from the bracket.

5. Disconnect the vehicle side coupling.

6. Installation should follow the removal procedure in the

reverse order.

Tightening torque

25 Nm (18 lb-ft)

Tightening torque

25 Nm (18 lb-ft)

CAMSHAFT POSITION SENSOR

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector from the camshaft

position sensor.

3. Remove the camshaft position sensor retaining bolt.

Installation

Tightening torque

10 Nm (89 lb-ft)
