SsangYong Rodius (2013 year). Manual - part 183

02-3

8810-03

1. SPECIFICATIONS

Description

Item

Specification

Air bag unit

(SDM)

Operating voltage

10.0 V to 16.5 V

Voltage for diagnosis and self-

diagnosis

8.0 V to 16.5 V

Operating temperature

-40℃ ~ 85℃

Storage temperature

-40℃ ~ 90℃

Overvoltage protection

24 V

Ground resistance

100 mΩ or less

Driver/passenger

air bag module

Operating voltage

8.0 V to 16.5 V

Seat air bag module

Operating voltage

10.0 V to 16.5 V

Side impact sensor voltage

8.0 V to 16.5 V

Seat belt pretensioner

Operating voltage

10.0 V to 16.5 V

If you measure the air bag module using a multitester, the air bag module may be deployed,

causing a personal injury.

Never use the multitester to check the air bag module.

02-4

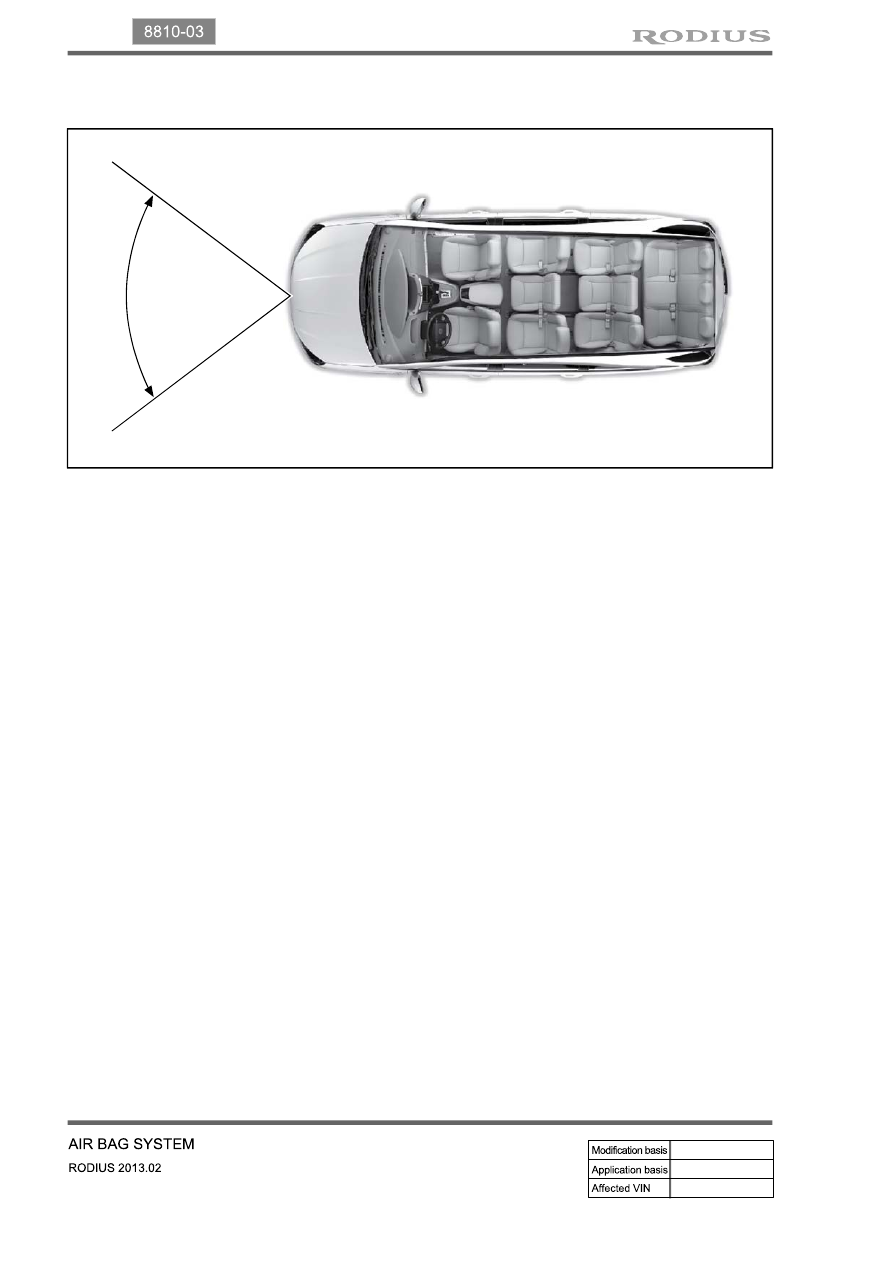

2. OPERATION

1) Air Bag

▶Air bag inflates when:

In response to a severe frontal impact, the driver’s and front passenger’s air bags

deploy at the same time to supplement the seat belts to prevent or reduce any personal

injuries.

-

▶Air bag can inflate when:

Underbody impact from the road surface; impact against the curb at a very high speed;

dropping impact onto the road surface with a large angle

-

▶Air bag does not inflate when:

Rollover, side impact or rear impact

If the severity of impact to the vehicle is not significant and the seat belts are enough to protect

occupants.

-

-

Air bag seldom inflates when:

▶

Oblique impact, rollover

Weak impact in which the sensor is unable to detect (under the inflation requirements)

Impact against narrow objects such as a utility pole or a tree

The vehicle falls into a drainage or a puddle

The front of the vehicle crashes into a high impact point vehicle such as a truck

Impact on the hood by falling stones

The air bag warning light is on
Moderate or severe impact to the middle of the vehicle body’s side structure. In that case,

only the side curtain air bags deploy.

-

-

-

-

-

-

-

-

02-5

8810-03

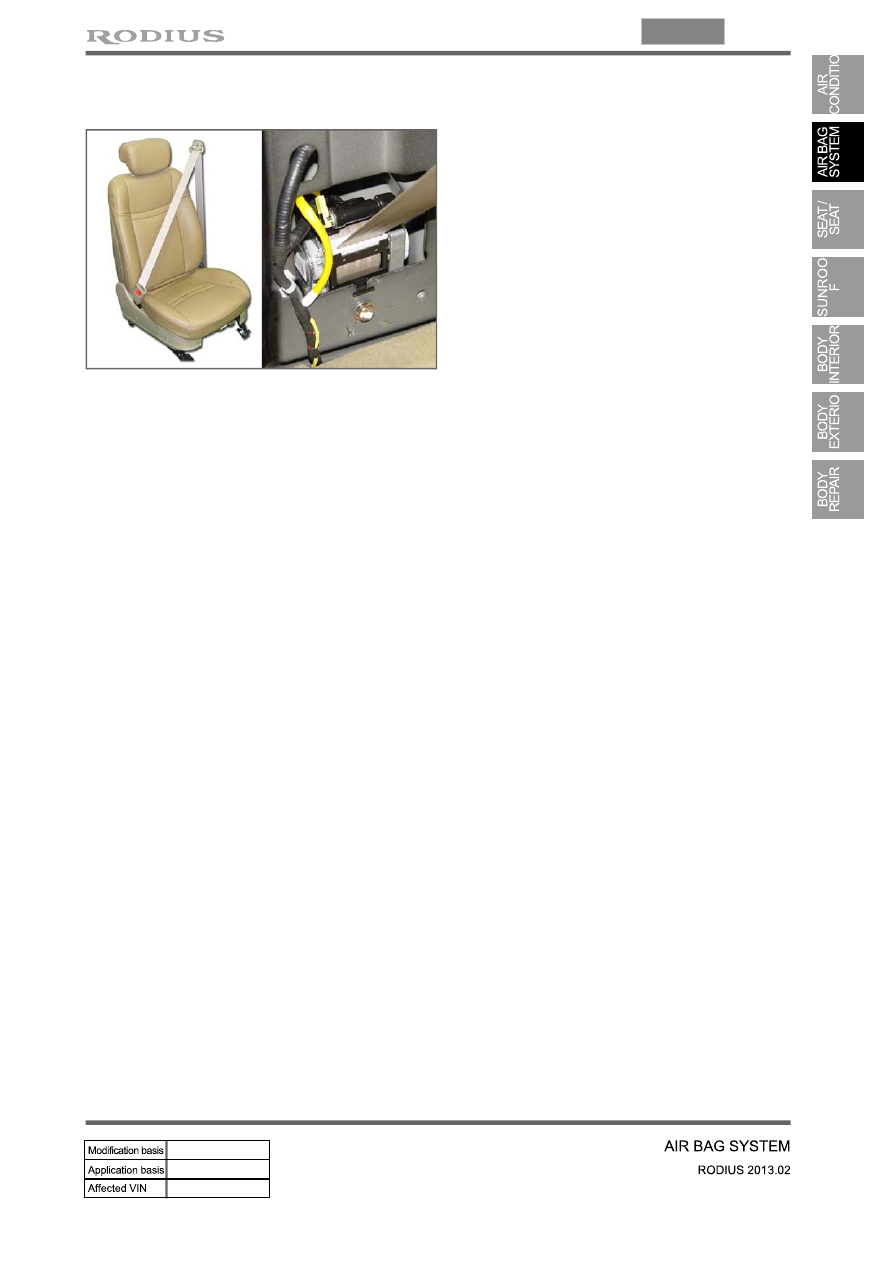

When a severe frontal impact occurs, seat belt

pre-tensioners rewind the seat belts

immediately to restrain the occupants to their

seats. It helps the effective operation of the

seat belts and airbags.

2) Pre-tensioner

3) Warning for Air Bag

Do not diagnose the circuit with a circuit tester. Do not attempt to modify any air bag components

including the steering wheel, air bag mounting area, and harness.

Do not impact any air bag components including the steering wheel, air bag mounting area, and

harness by hand or tools. You may get injured by sudden deployment.

The air bag components will be very hot after deployment. Do not touch them.

Once the air bag system is triggered, the triggered air bag assembly should be removed from the

vehicle and replaced with new one.

The air bag contains explosive materials, so contact Ssangyong Dealer or Ssangyong Authorized

Service Operation when trashing or replacing it.

Incorrect air bag inspection can be dangerous and cause injuries. The air bag system must be

disposed only by Ssangyong Dealer or Ssangyong Authorized Service Operation.

Replace the steering wheel with only Ssangyong genuine part.

When the engine starts, the air bag warning lamp comes on for a system check. It goes out after 3

to 7 seconds when the system is normal. If this warning lamp stays ON, then the system may be

defective. Have the air bag system checked immediately by Ssangyong Dealer or Ssangyong

the seat.

A child restraint system must not be placed on the front seat. The infant or child can be severely

injured by an air bag inflation in case of an accident.

Do not carry your child on your lap while driving. You cannot resist against the impact pressure in an

accident.

The child could be crushed between you and the parts of the vehicle.

Do not place any objects on the air bag inflation location. You may get injured by those objects

during deployment.

Do not attach any objects such as a sticker, scent bottle, or phone holder on the steering wheel pad

and to the dashboard.

-

-

-

-

-

 -

-

-

-

-

-

-

-

 -

02-6

Do not put the seat cover on the front seatbacks. It may interfere with the side air bag inflation.

When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag

inflates, the occupant may get seriously injured.

Do not lean on the door. When the side air bag inflates, the occupant may get seriously injured.

Do not place any objects such as an umbrella or a bag between the side air bag and the door. Do not

place the part of your body near the side air bag. You may obstruct the side air bag or get injured by

the inflation impact.

Do not slam the front doors. It may lead to an unintended inflation of the side air bag.

Do not move your seat too close to the steering wheel or dashboard. If you lower your head, the air

bag can hit your head during inflation and can cause severe injury or even death.

Hold only the outer rim of the steering so that the air bag can inflate without any hindrances.

Do not place your face or chest near the steering wheel and dashboard. Also, do not allow anyone to

place their hands, leg or face on the dashboard. The air bag cannot work properly.

Do not hold and operate the steering wheel by crossing your arms. You could get seriously injured

when the air bag deploys.

When the air bag inflates, it makes a loud noise and smoke. However, the smoke is a non-toxic

nitrogen gas.

When the air bag is deployed, non-toxic gas will come out. This gas may cause skin, eyes or nose

irritation.

Wash it out with cold and clean water and consult the doctor if irritation continues.

When any repairs are needed for the steering wheel, or when an accident occurred without the air

bag deployment, have the air bag system checked by Ssangyong Dealer or Ssangyong Authorized

Service Operation.

The windshield glass may be broken when the passenger's air bag is deployed.

The air bag deployment can cause abrasion on your hands and face.

-

 -

 -

-

-

-

 -

 -

-

-

-

-

-

-

-

 -

4) Major Replacement Parts after Air Bag Deployment

In Case Of Front Air Bag Deployment

▶

Instrument panel, deployed air bag module, air bag unit, seat belt pre-tensioner, wirings (including

connectors), damaged trim and components

In Case Of Curtain Air Bag Deployment

▶

Deployed side bag, air bag unit, side air bag sensor, wirings (including connectors), damaged trim and

seat components
