AQS & ambient temperature

sensor

1. OVERVIEW

The climate system controls the temperature and air quality inside the vehicle by providing the

heating/cooling and preventing the hazardous gas from entering to keep indoor air fresh.

2. LAYOUT

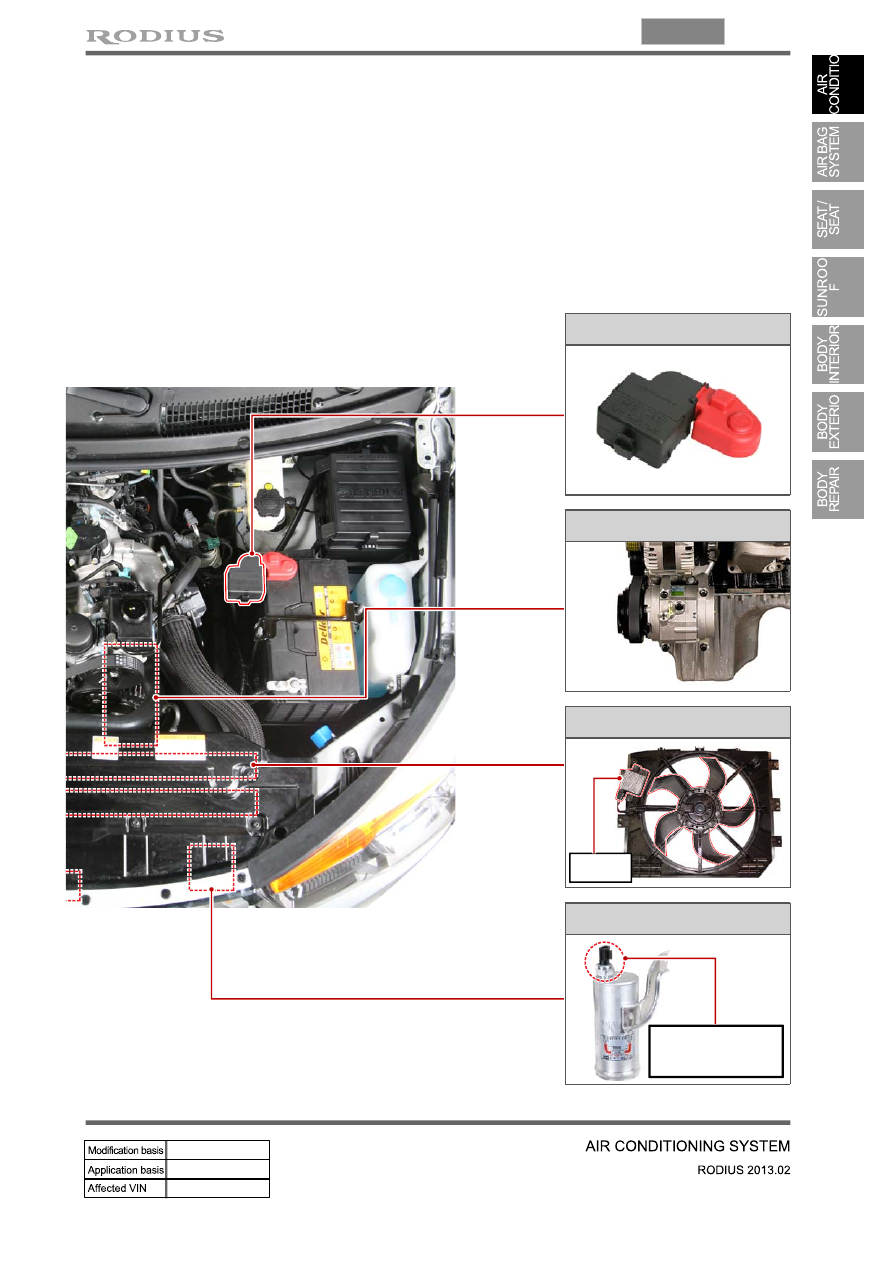

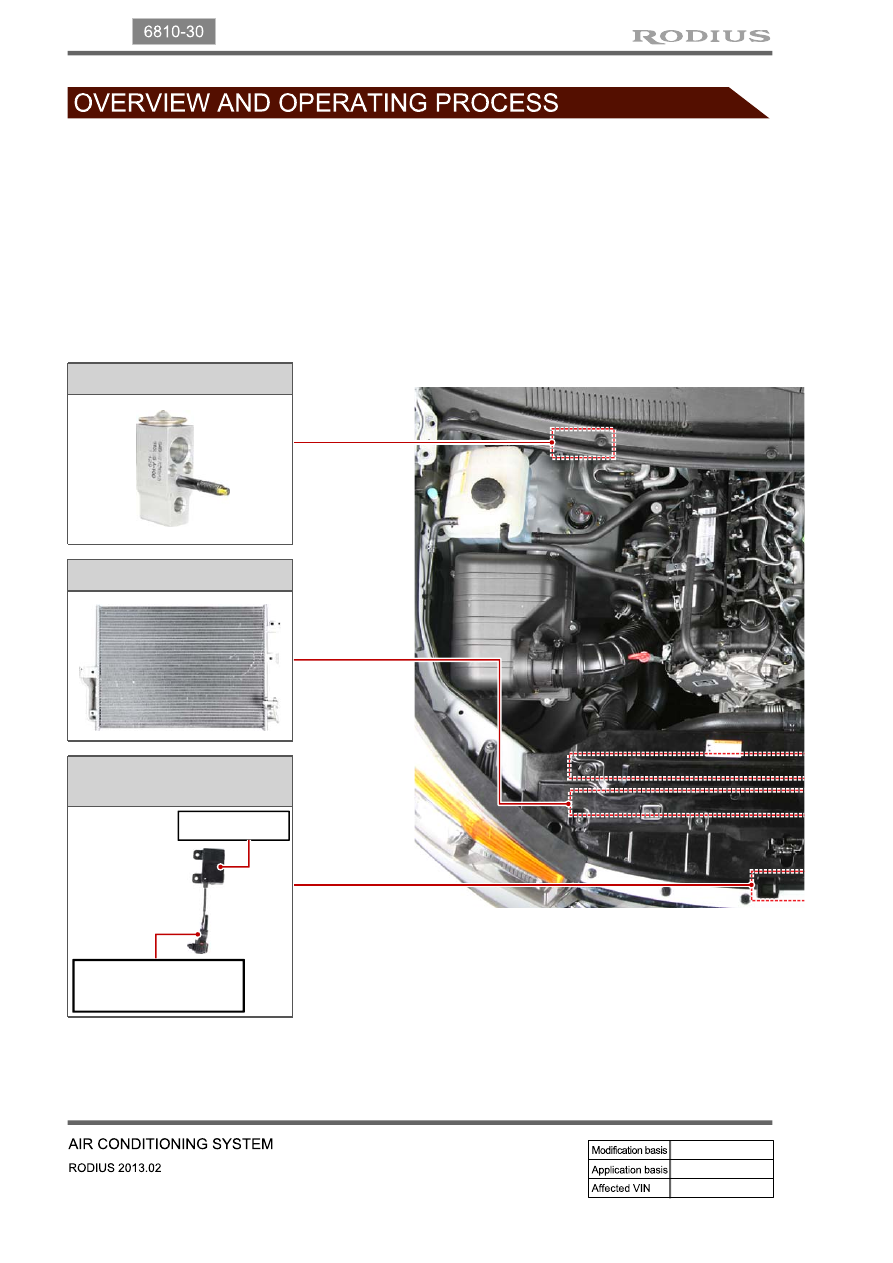

1) External Climate System

Front expansion valve

Condenser

AQS sensor

Ambient temperature

sensor

01-7

6810-30

PWM electronic fan

A/C compressor

Receiver drier

PTC box

PWM

Refrigerant

pressure sensor

01-8

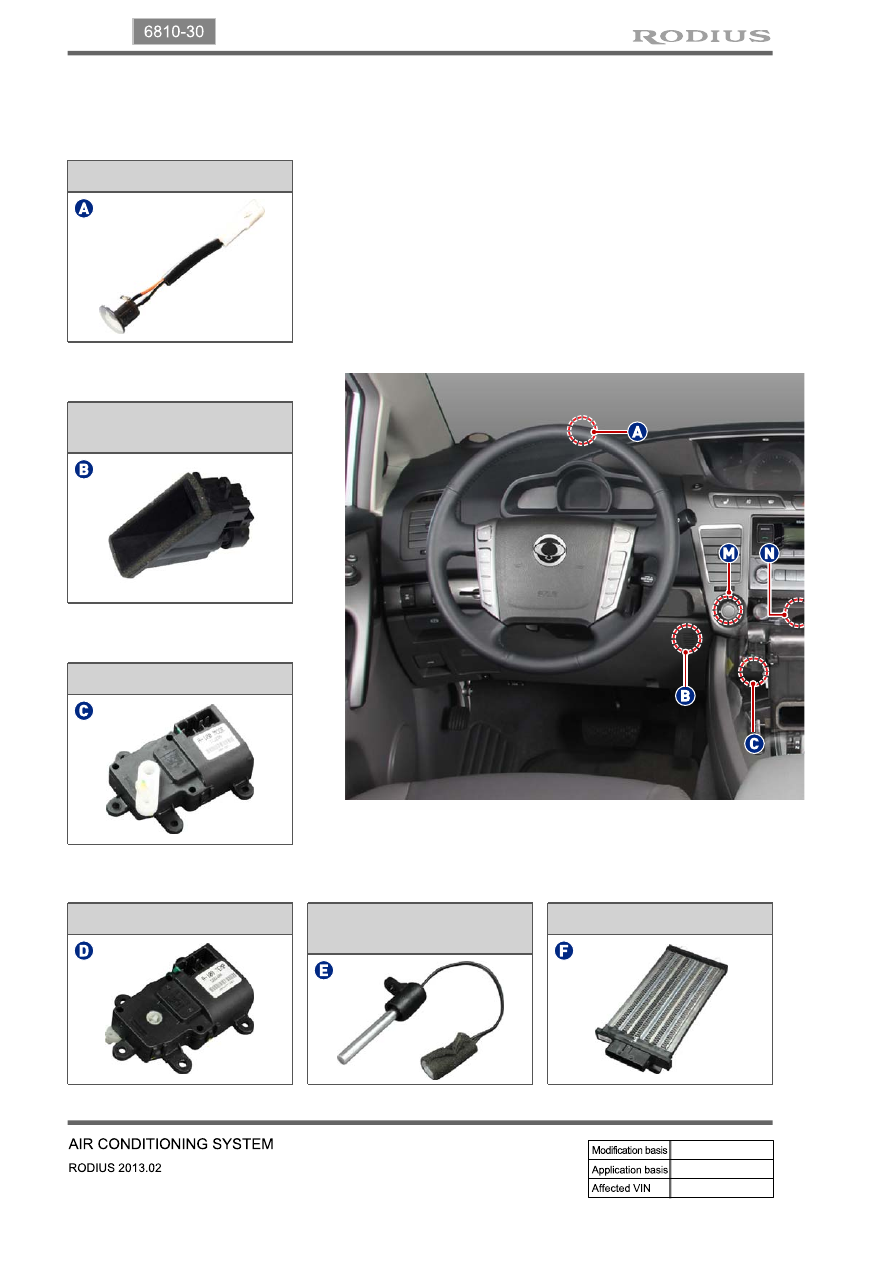

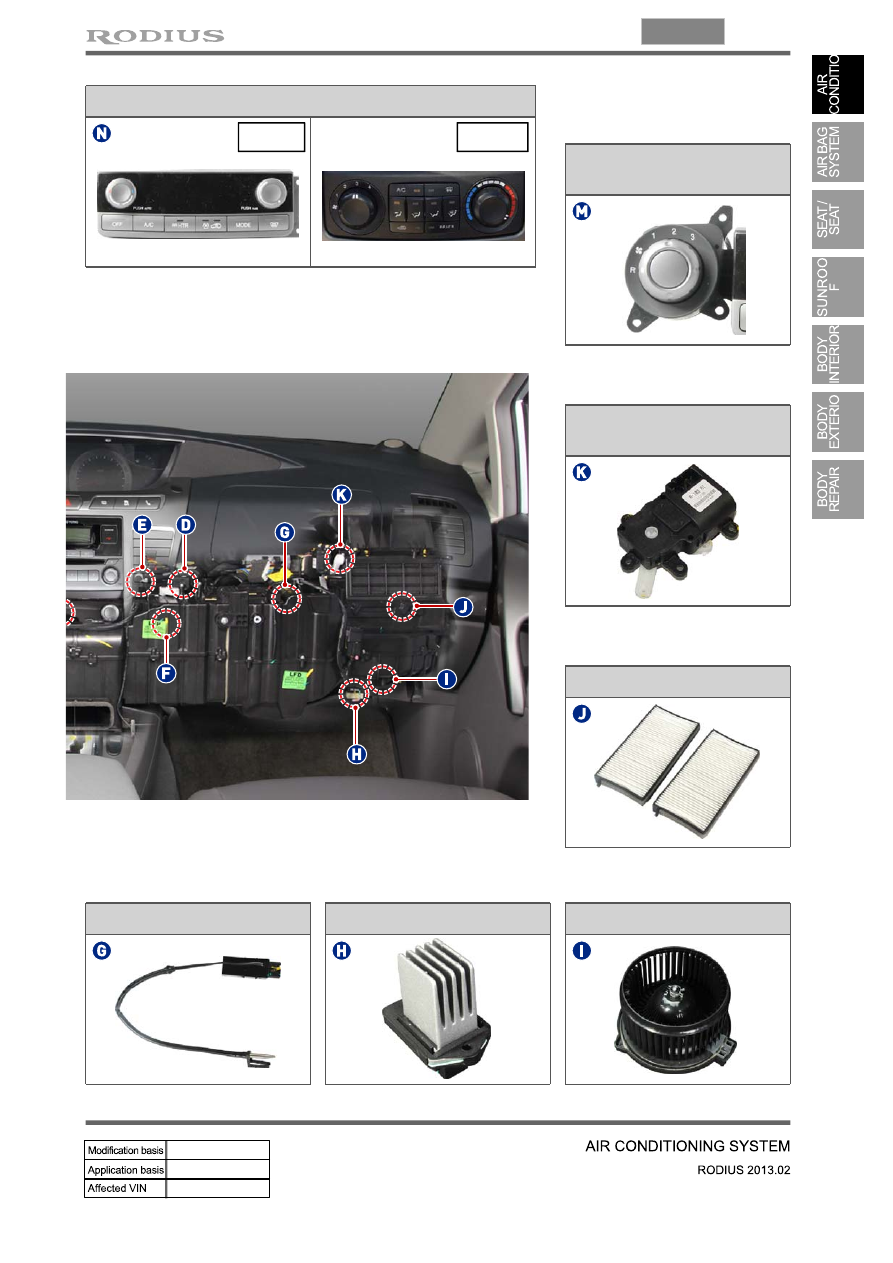

2) Internal Climate System

Front climate system

▶

Front mode actuator

Interior temperature/

humidity sensor

Sun sensor

Air mix door actuator

Duct temperature sensor

PTC heater

01-9

6810-30

A/C controller

Rear blower switch

(front)

Air source mode

actuator

A/C filter

Thermo AMP

Front power transistor

Front blower motor

Manual

FATC
