SsangYong Rodius (2013 year). Manual - part 171





10-10

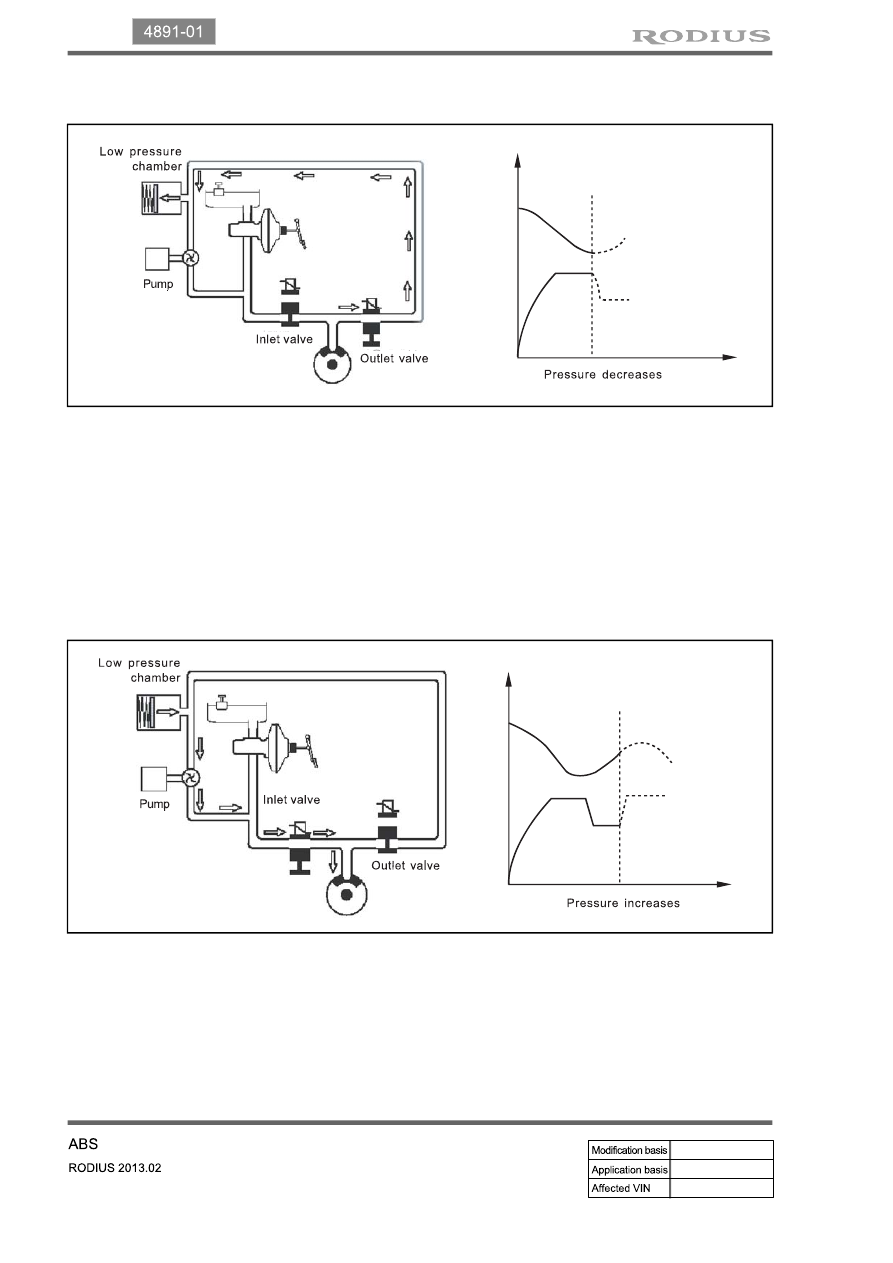

▶Pressure Decreases in the Circuit when ABS is Operating

Even when the hydraulic pressure on each circuit is stable, the wheel can be locked as the wheel

speed decreases. This is when the ABS ECU detects the wheel speed and the vehicle speed and

gives the optimized braking without locking the wheels. In order to prevent from hydraulic pressure

increases, the inlet valve is closed and the outlet valve is opened. Also, the oil is sent to the low

pressure changer and the wheel speed increases again. The ABS ECU operates the pump to circulate

the oil in the low pressure chamber to the master cylinder. This may make the driver to feel the brake

pedal vibration and some noises.

▶Pressure Increases in the Circuit when ABS is Operating

As the wheel speed increases, the inlet valve opens and the wheel’s pressure increases due to

the master cylinder pressure. The oil in the low pressure chamber circulates to the wheel by the pump

and the wheel speed decreases as the hydraulic pressure at wheel increases. This operation

continues repetitively until there are no signs that the ECU is locking the wheels. When the ABS

hydraulic pressure control takes place, there may be some vibration and noises at the brake pedal.

10-11

4891-01

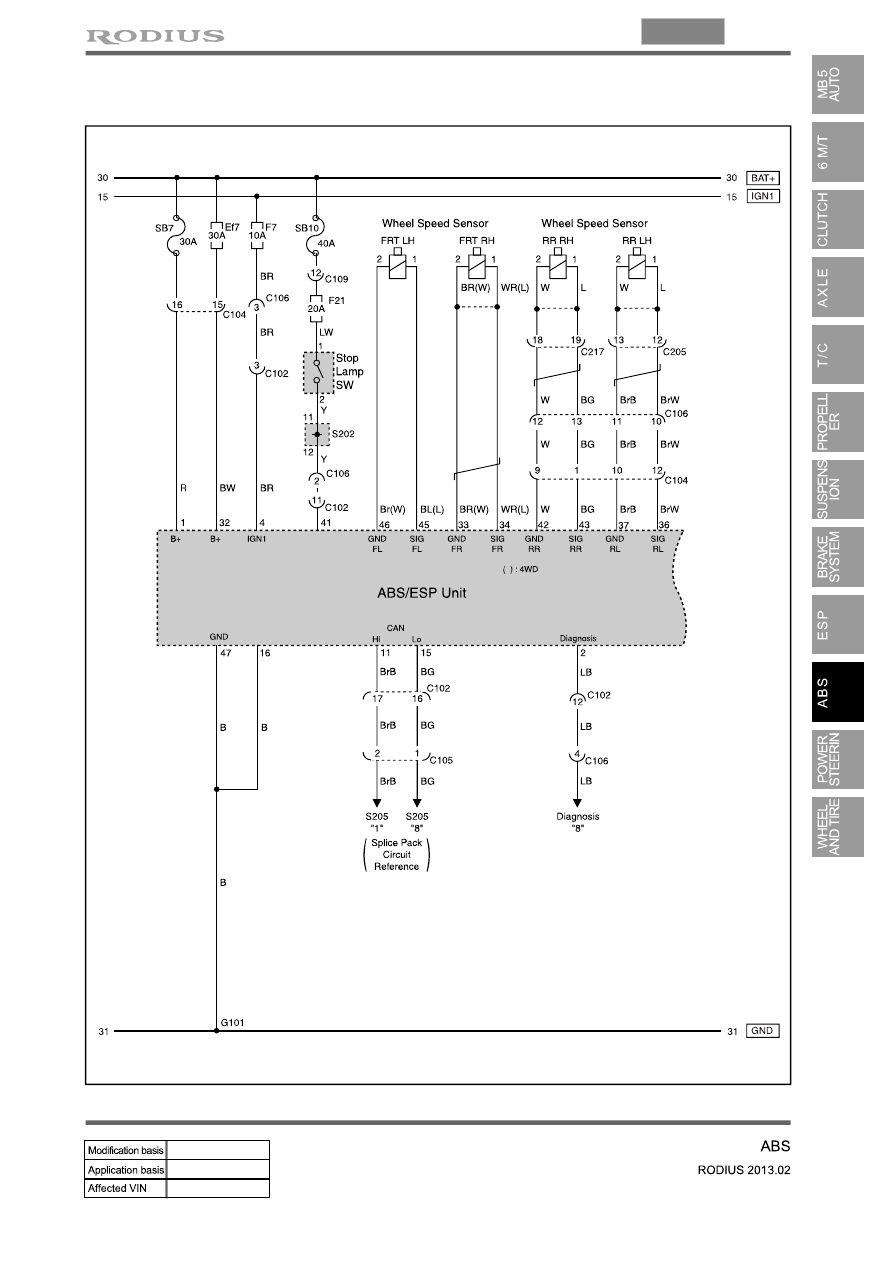

3) Circuit Diagram

11-3

4610-00

1. SPECIFICATIONS

Description

Specification

Steering wheel

Type

4-spoke type

Outer diameter (mm)

390

Steering gear box

Type

Rack and pinion type

Steering angle

Inner

36.4°

Outer

31.5°

Steering oil pump

Type

Vane type

Maximum pressure (kgf/cm2)

93.3 ~ 100.4

Pulley size (mm)

Ø115

Operating temperature

-40℃ ~ 150℃

Steering oil

Type

S-PSF3

Capacity (L)

approx. 1.1

Lower shaft

Type

Universal joint

Angle(°)

38°

Configuration

Universal joint(top/bottom)

rubber coupling

Minimum turning radius (m)

6.09

Steering column shaft

Tilting angle

±2°

Steering wheel heating
indicator

Power consumption

Below 95 W

Rated voltage

13.5 ± 0.1 V

Usable voltage

9~16 V

Low voltage

7.5 ± 0.5 V

High voltage

18.0 ± 0.5 V

Rated voltage

Max. 12.4 A

Memory

Last switch ON/OFF mode

memorized

11-4

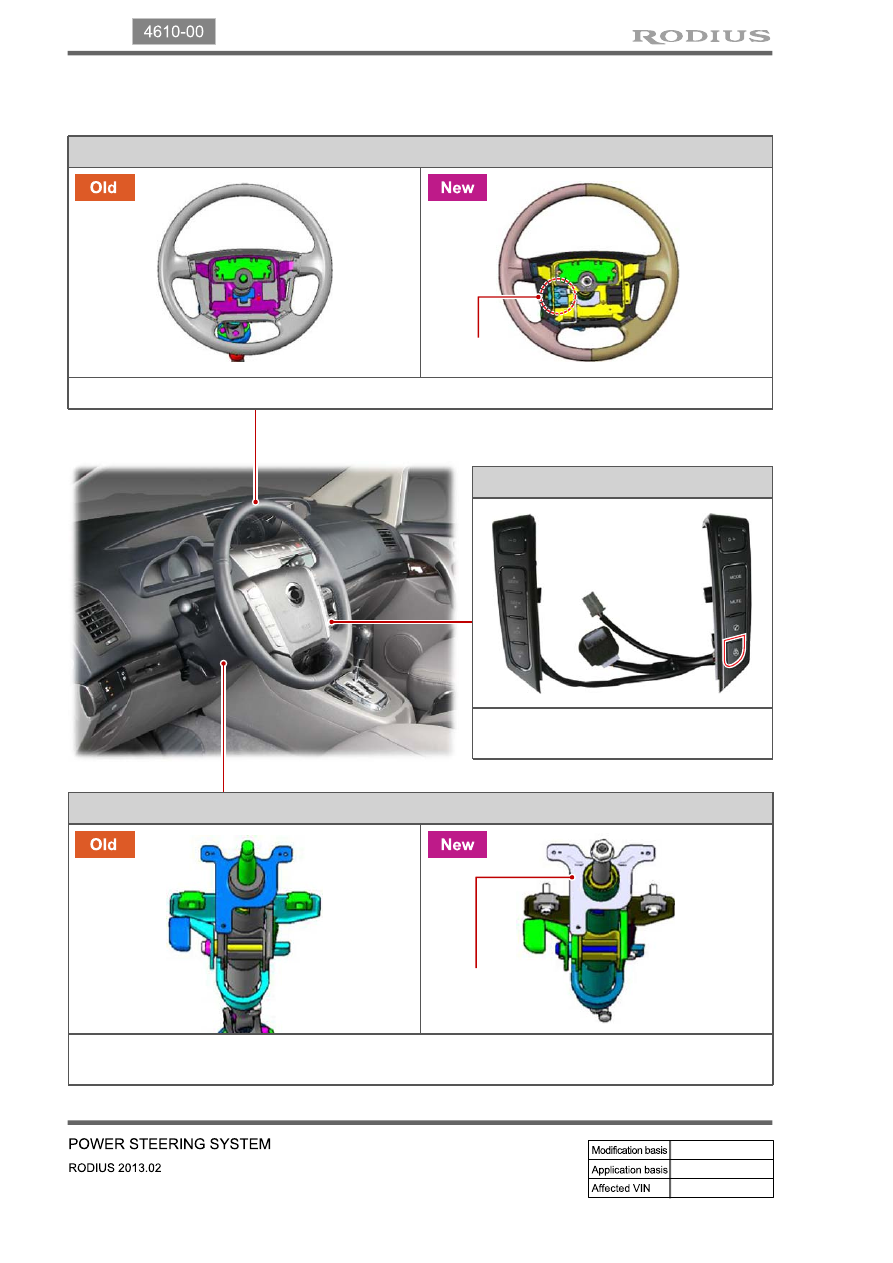

Steering column shaft assembly

Steering column shat assembly mounting bracket changed due to change of multifunction switch

Steering wheel body and heating system

Heating controller added due to newly adopted steering wheel heating system

2. CHANGES IN STEERING SYSTEM

Steering wheel heating switch

Heated wire used in steering wheel switch
(option)

Heating controller

Mounting bracket
