2) Operation of ESP System

(1) Under steering

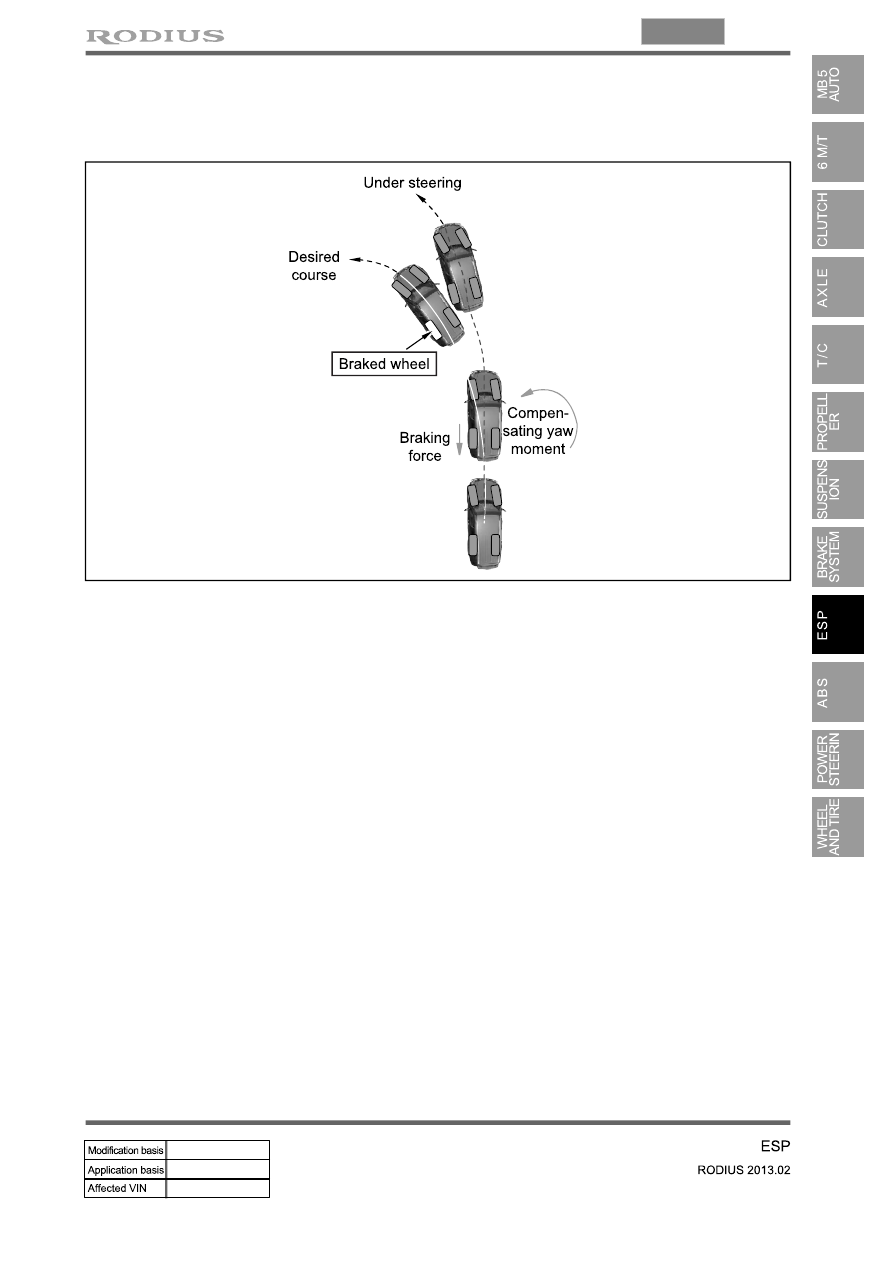

What is understeering?

▶

ESP controls during understeer

▶

Understeer is a term for a condition in which the steering wheel is steered to a certain angle during

driving and the front tires slip toward the reverse direction of the desired direction. Generally, vehicles

are designed to have understeer. It is because that the vehicle can return back to inside of cornering

line when the steering wheel is steered toward the inside even when the front wheels are slipped

outward.

As the centrifugal force increases, the tires can easily lose the traction and the vehicle tends to slip

outward when the curve angle gets bigger and the speed increases.

The ESP system recognizes the directional angle with the steering wheel angle sensor and senses the

slipping route that occurs reversely against the vehicle cornering direction during understeer with the

yaw rate sensor and lateral sensor. Then, the ESP system applies the braking force to the rear inner

wheel to compensate the yaw moment value. In this way, the vehicle does not lose its driving direction

and the driver can steer the vehicle as intended.

09-14

(2) Over steering

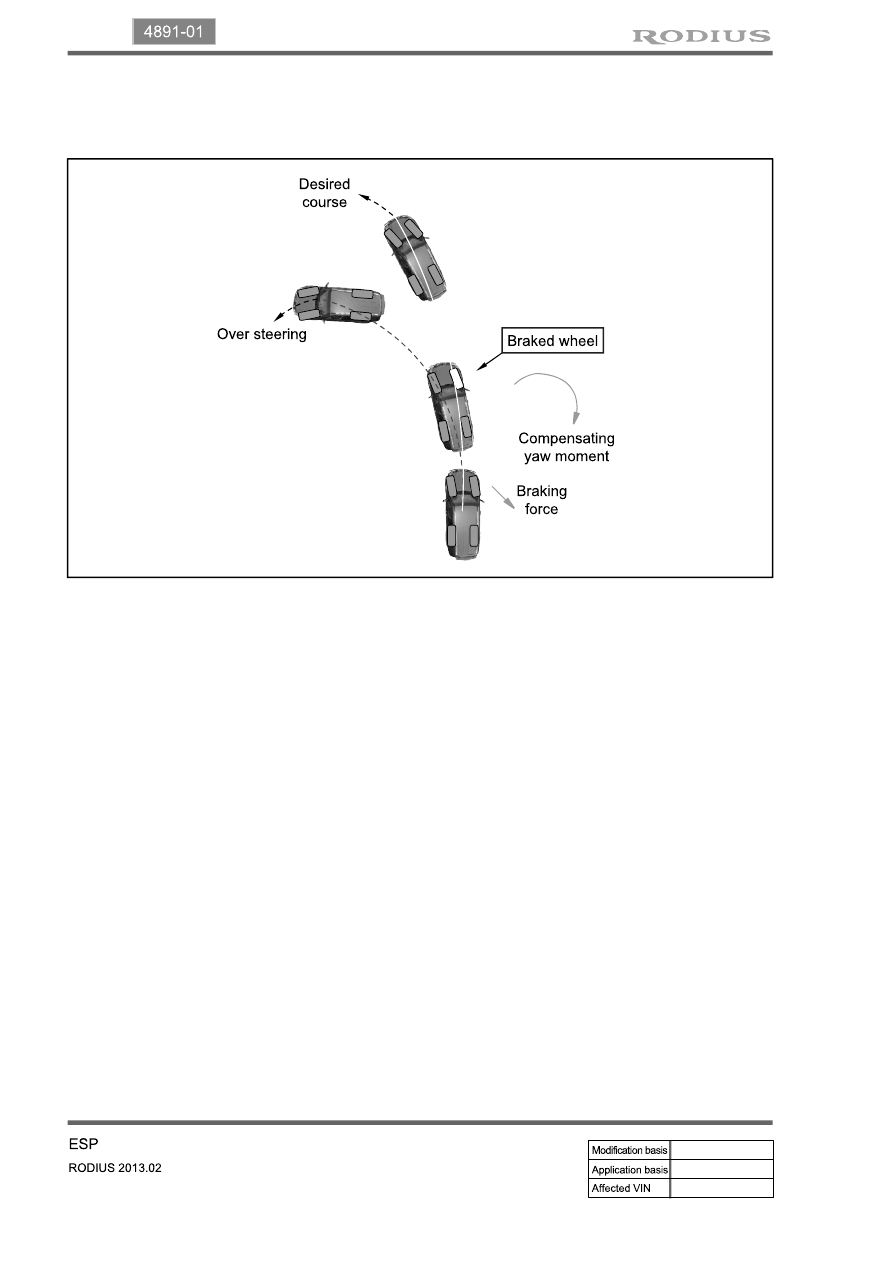

What is oversteering?

▶

ESP controls during oversteer

▶

Oversteer is a term of a condition in which the steering wheel is steered to a certain angle during

driving and the rear tires slip outward losing traction.

Compared to understeering vehicles, it is hard to control the vehicle during cornering and the vehicle

can spin due to rear wheel moment when the rear tires lose traction and the vehicle speed increases.

The ESP system recognizes the directional angle with the steering wheel angle sensor and senses the

slipping route that occurs towards the vehicle cornering direction during oversteer with the yaw rate

sensor and lateral sensor. Then the ESP system applies the braking force to the front outer wheel to

compensate the yaw moment value. In this way, the vehicle does not lose its driving direction and the

driver can steer the vehicle as intended.

09-15

4891-01

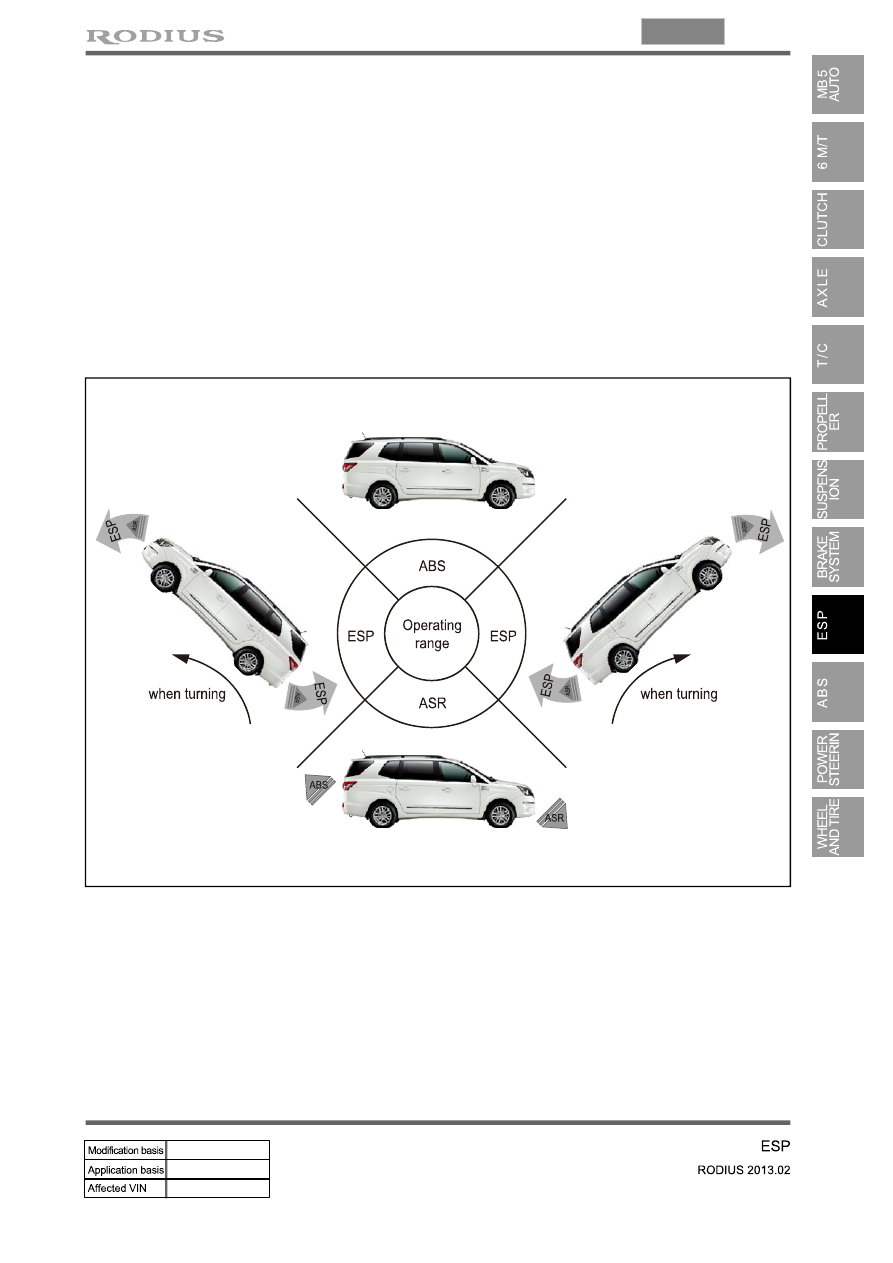

(3) ESP Control

The ESP (Electronic Stability Program) has been developed to help a driver avoid danger of losing

control of the vehicle stability due to understeer or oversteer during cornering. The yaw rate sensor,

lateral sensor and longitudinal sensor in the sensor cluster and the steering wheel angle sensor under

the steering column detect the vehicle conditions when the inner or outer wheels are spinning during

oversteer, understeer or cornering. The ESP ECU controls against oversteer or understeer during

cornering by controlling the vehicle stability using input values from these sensors and applying the

braking force to the corresponding wheels independently. The system also controls the engine power

right before the wheel spin synchronized to decelerate the vehicle automatically in order to maintain the

vehicle stable during cornering.

09-16

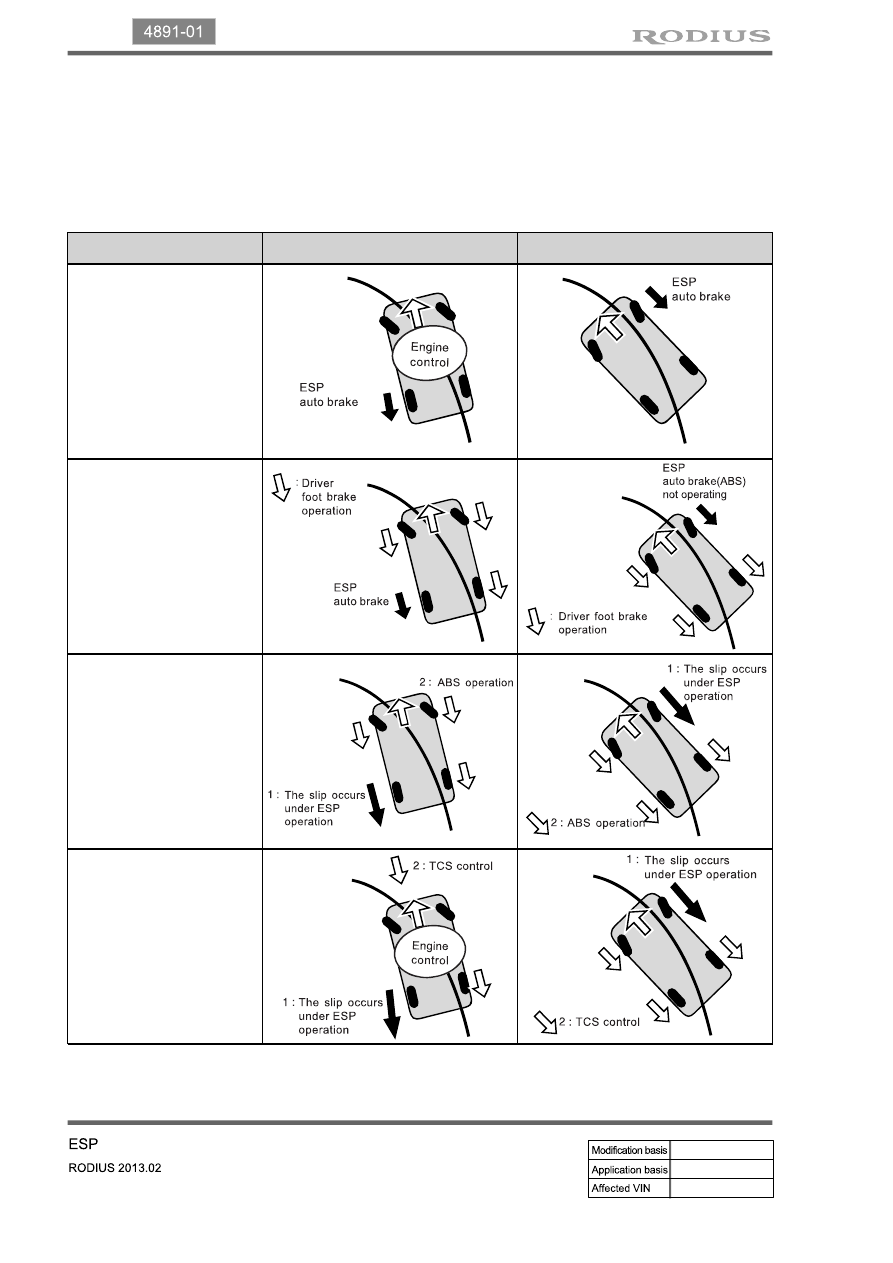

(4) Vehicle Control During Cornering

The figure below shows the vehicle controls by the ESP system under various situations such as when

the brake pedal is depressed or not depressed during cornering, when the ABS is operating and when

braking without the ABS. It also includes the vehicle conditions when the TCS, a part of the ESP

system, is operating.

Item

Understeer control

Oversteer control

Only ESP in

operation

No braking by

driver

ESP

+

Normal braking

(no ABS operation)

ESP

+

ABS brake

ESP + TCS
