02-19

3170-01

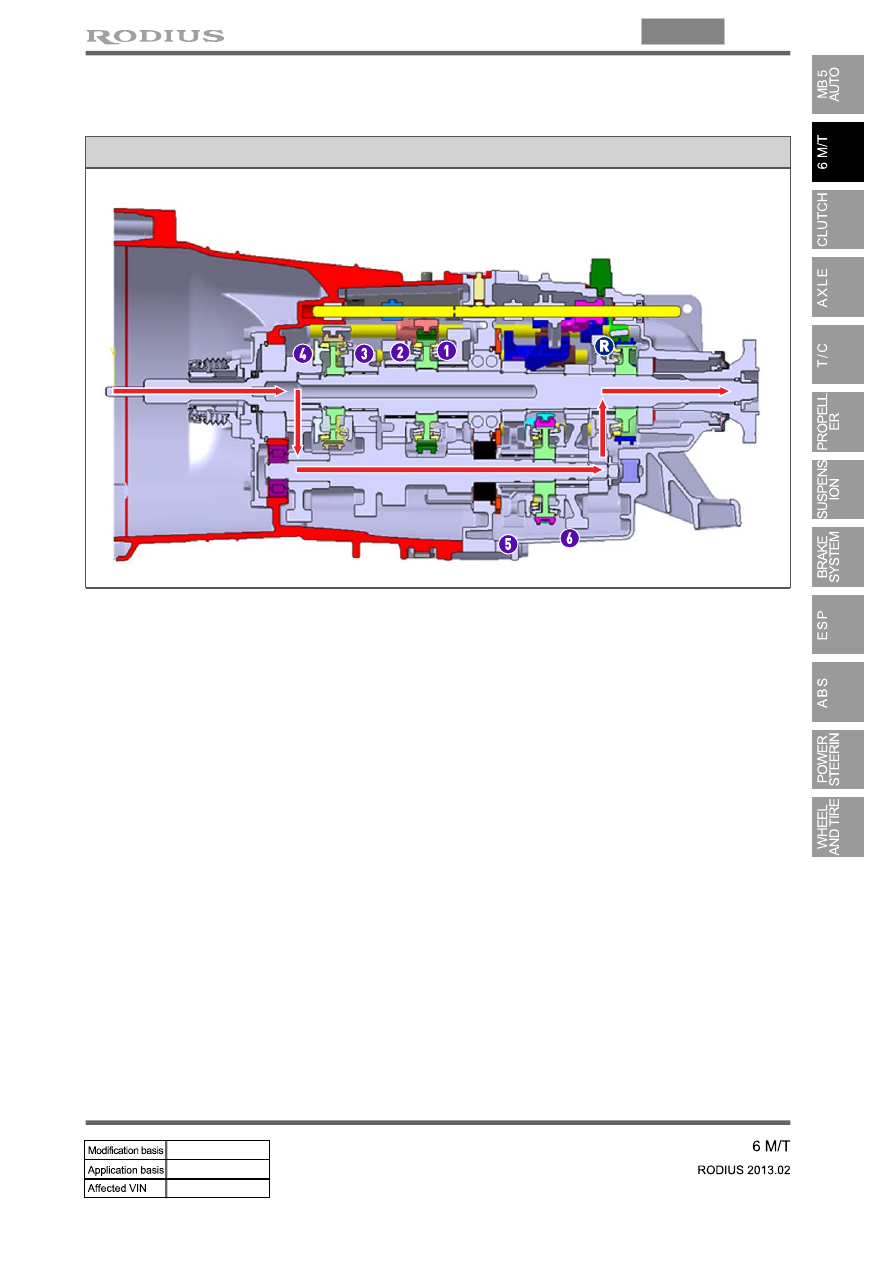

Reverse gear

02-20

Lug arrangement

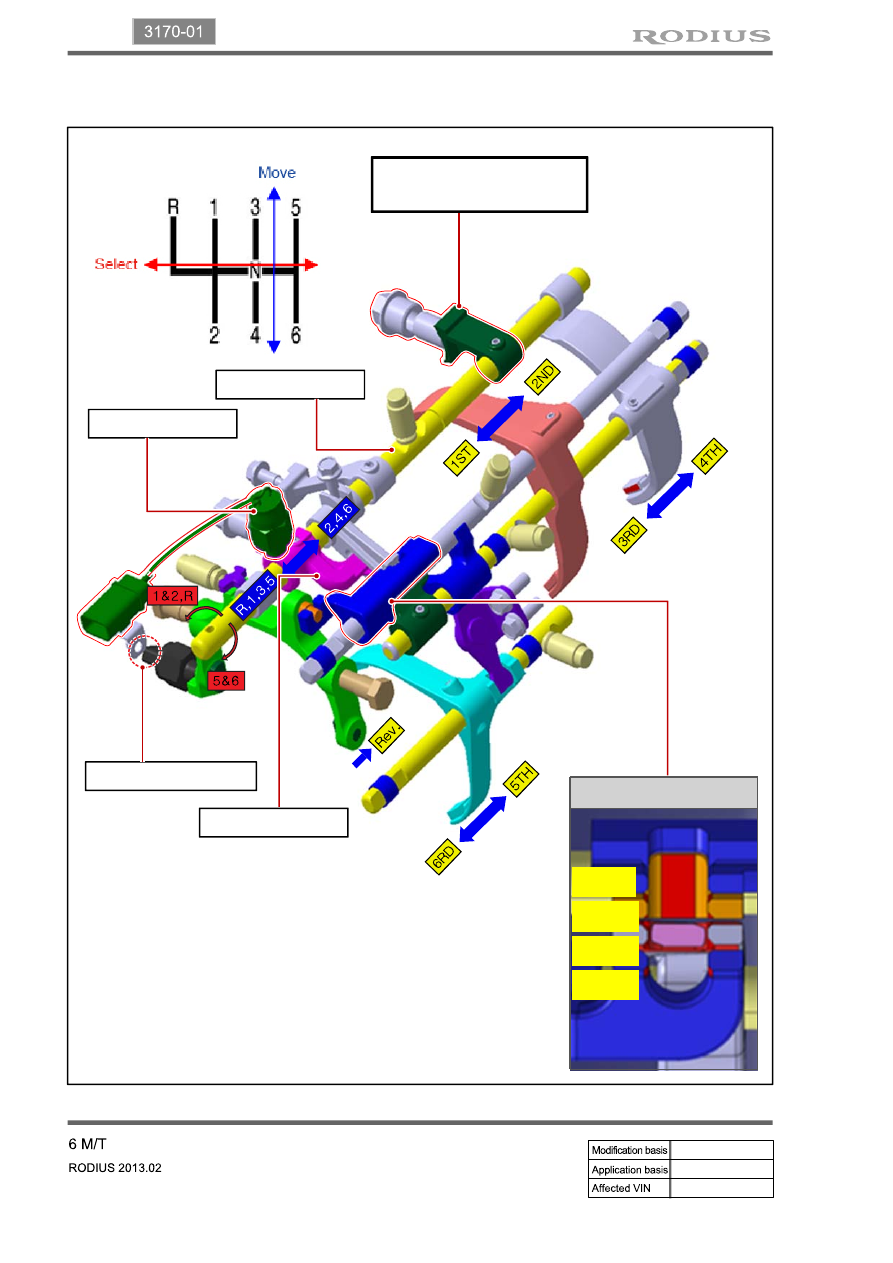

3. SHIFTING MECHANISM

High-Force mechanism for

reverse gear shift

3rd/4th

1st/2nd

R

5th/6th

Neutral switch

Backup lamp switch

Control shaft

Control finger

03-3

3010-00

1. SPECIFICATION

Description

Specification

Operating type

Hydraulic type

Clutch pedal

Type

Suspended type

Max. operating travel

150 ± 3 mm

Pedal height

95.2 ± 3 mm

Pedal free play

5 ~ 15 mm

Clutch disc

Type

Dry type single diaphragm

Diameter of facing

Outer: Ø250 mm

Inner: Ø160 mm

Numbers of disc

2

Thickness of disc

Free: 8.7 ± 0.3 mm

When loaded: 8.0 ± 0.2 mm

Setting load of clutch cover assembly

At least 7,800 N

Clutch master
cylinder

Operating travel

33.0 mm

Inner diameter

Ø 15.87

Concentric slave
cylinder

Maximum operating travel

Max. 20 mm

Operating pressure

Max. 2,200 N

Clutch fluid

Type

DOT 4

Capacity

As required

03-4

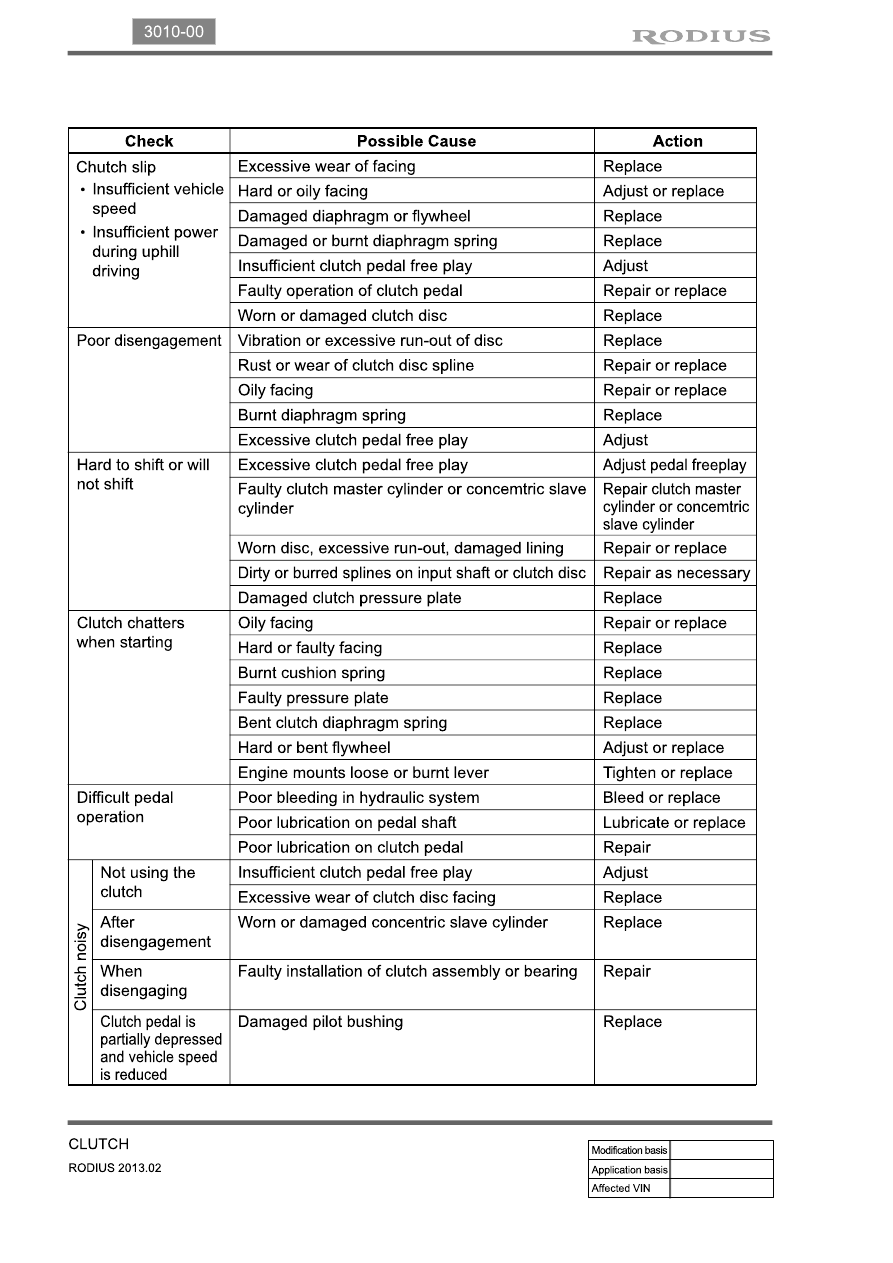

2. TROUBLESHOOTING
