SsangYong Rodius (2013 year). Manual - part 118





02-40

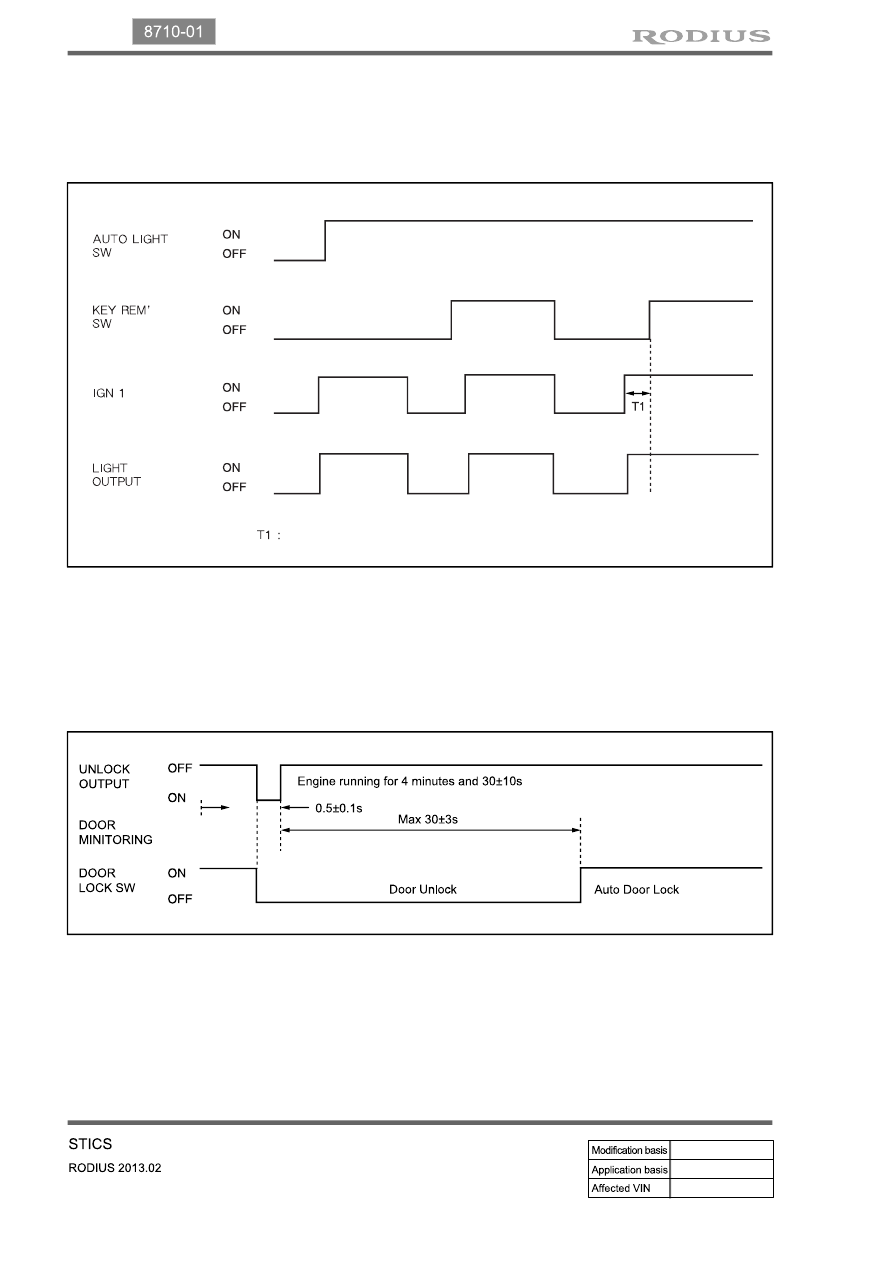

(3) Auto Light Function

The lights automatically come on and off according to the ambient brightness when the
multifunction light switch is in “AUTO” position while the ignition key is in “ON” position.

1.

(4) Auto Door Lock

The doors are locked and the theft deterrent mode is activated again if any of doors is not opened

after unlocking them with a REKES key.

Sends the message in 5 seconds after locking the doors automatically.

1.

2.

02-41

8710-01

3. CIRCUIT DIAGRAM

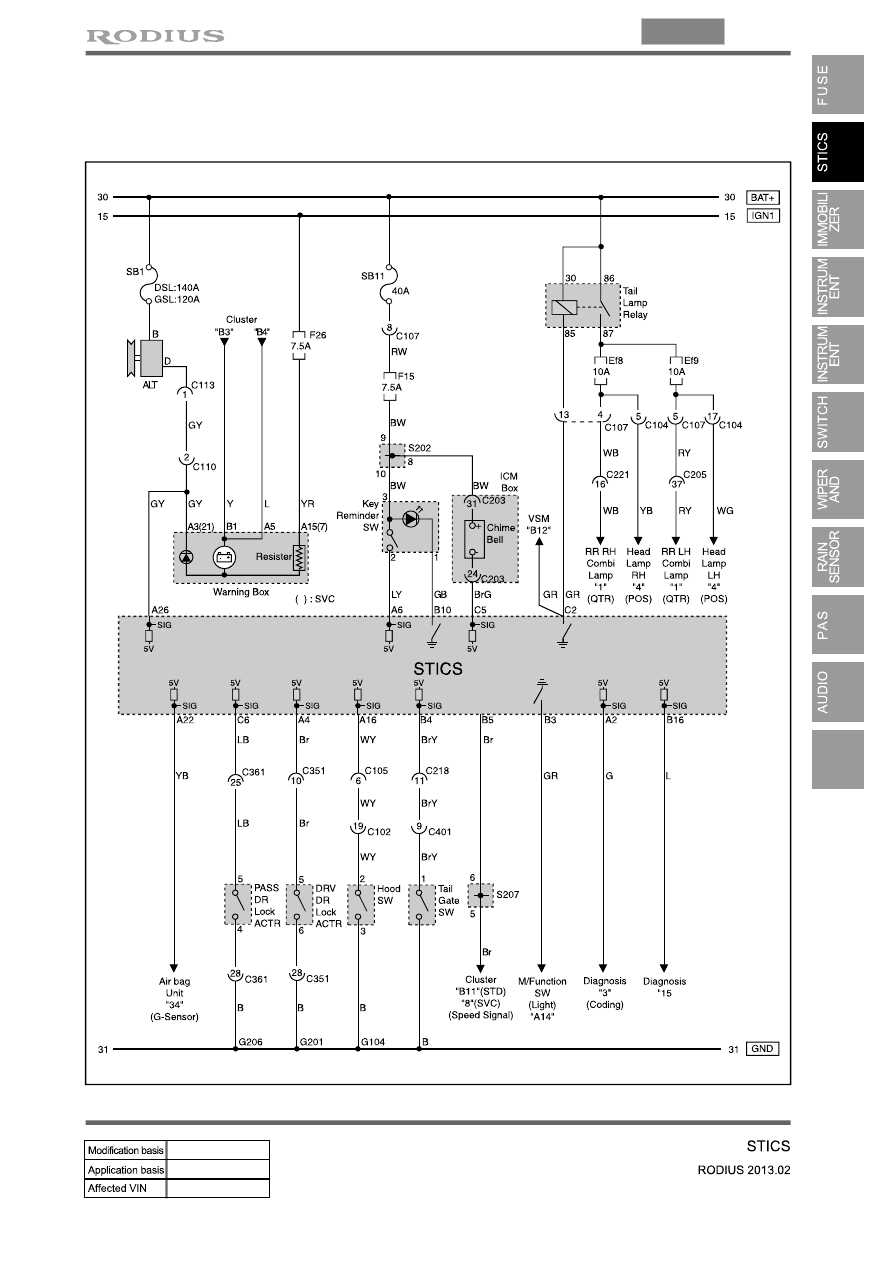

▶ Tail lamp, key reminder SW, chime bell

02-42

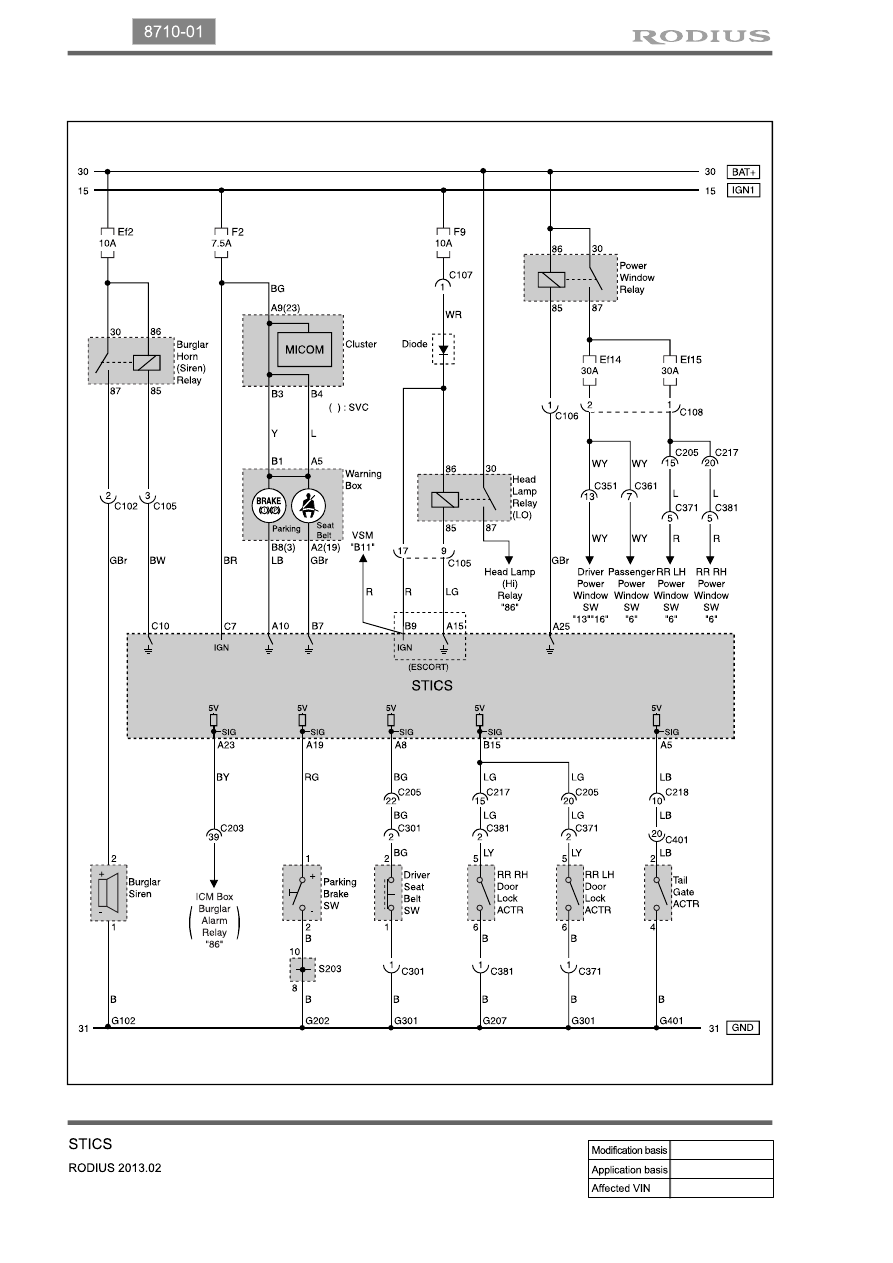

▶ Power window, warning lamp(brake, s/belt)

02-43

8710-01

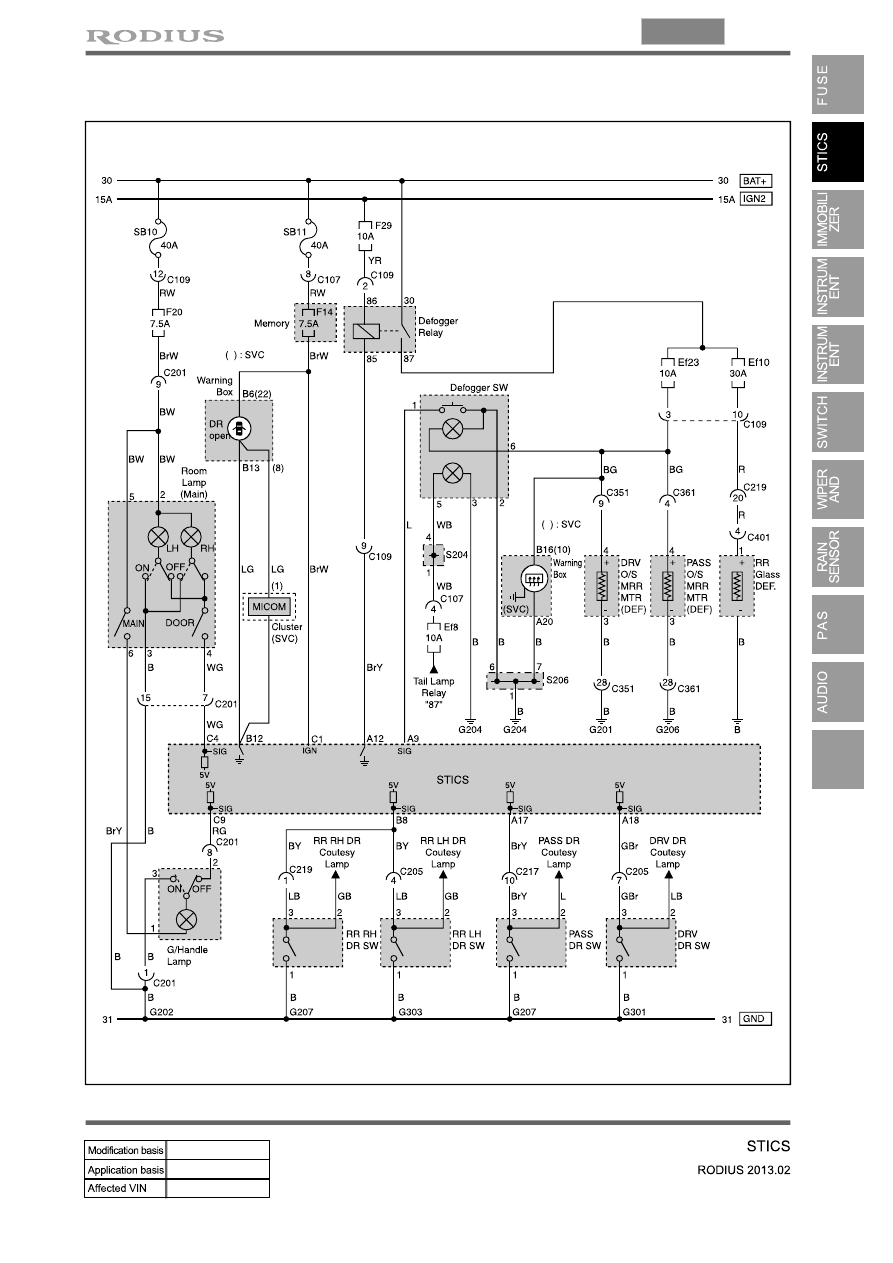

▶ Door SW, lamp(door courtesy, g/handle), door open warning lamp, defogger
