01-6

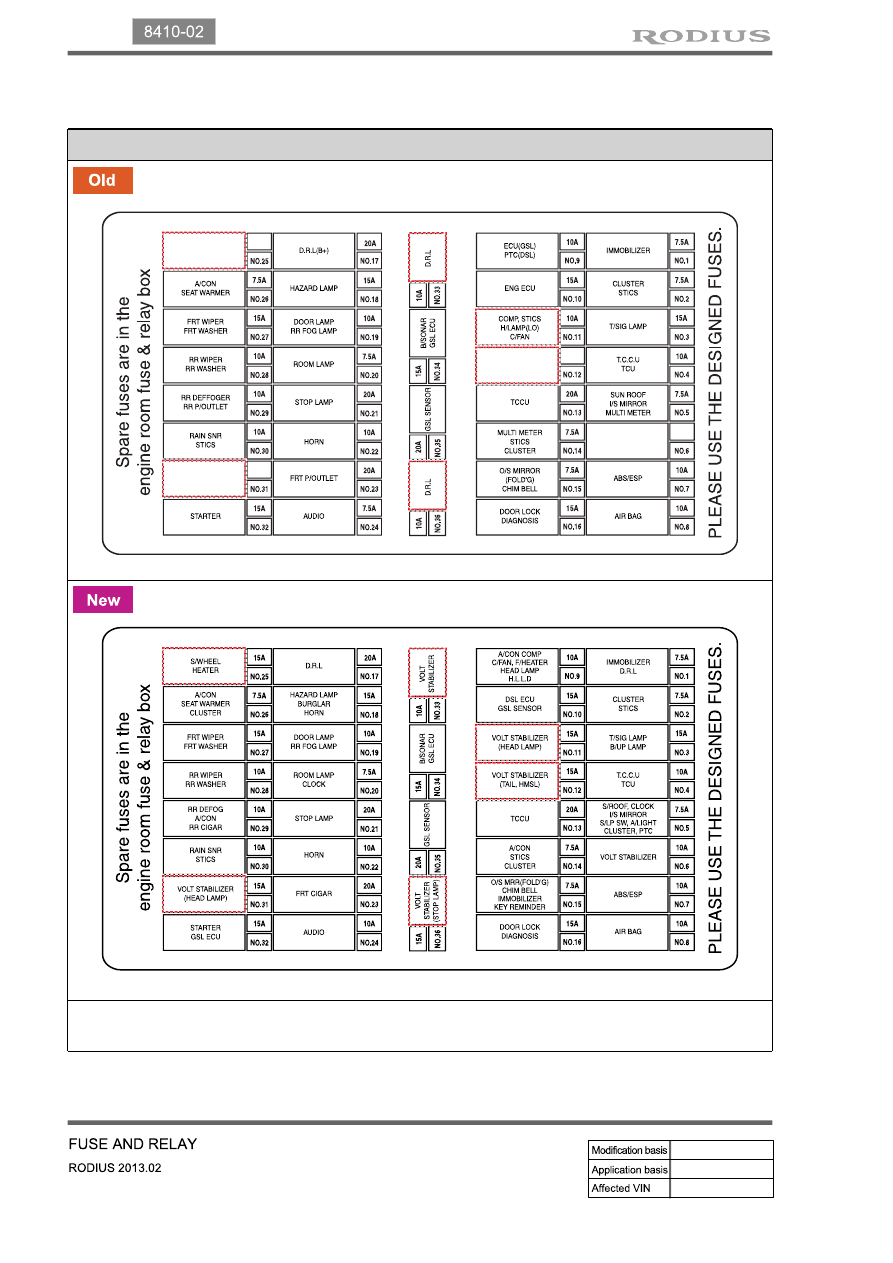

3. MAJOR CHANGES

Interior fuse and relay box

- Heated steering wheel added
- Voltage stabilizer module added

01-7

8410-02

1. OVERVIEW

The fuse and relay boxes consist of four boxes: Fuse & relay box, in engine room and Fuse and relay

box in left side of instrument panel.

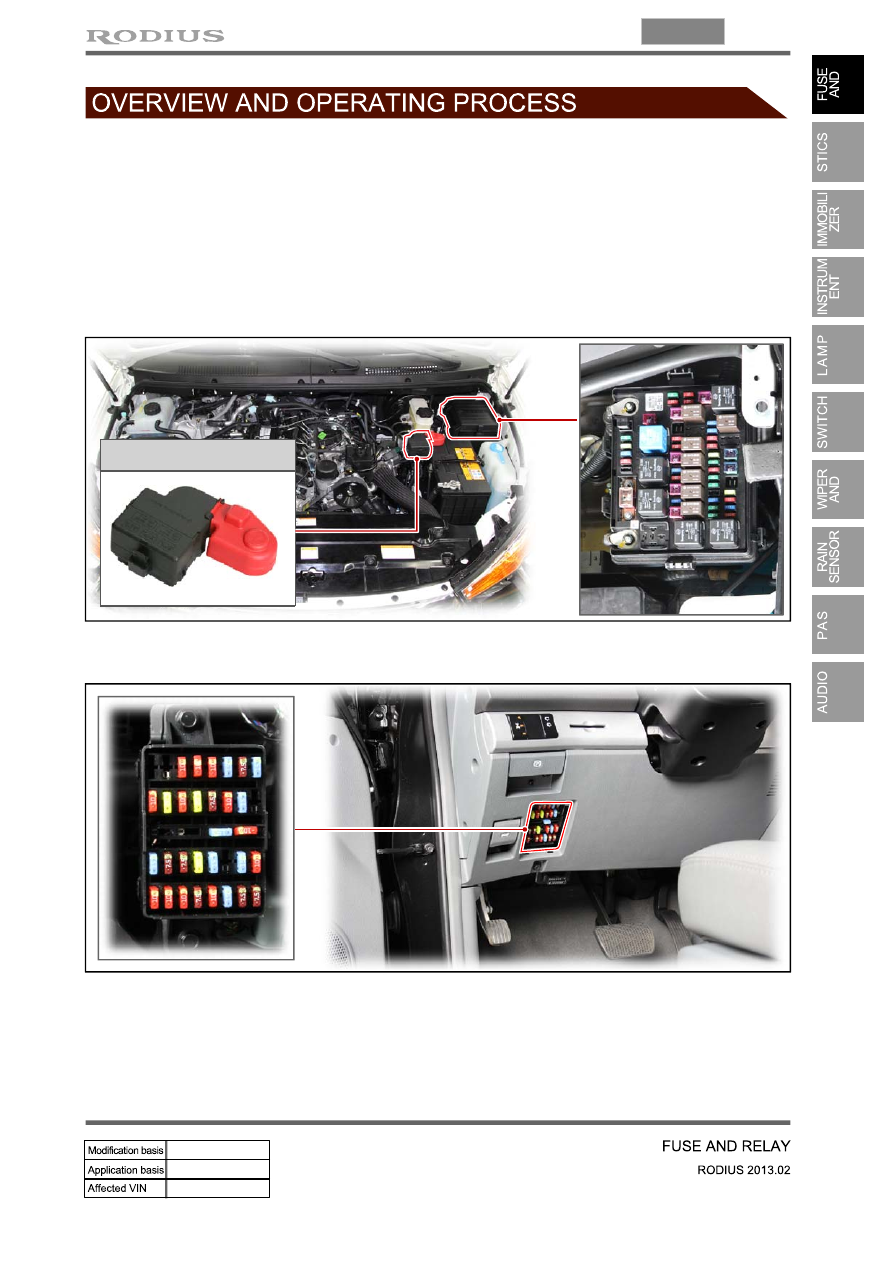

2. LOCATION

▶Engine Room Fuse and Relay Box

▶Interior Fuse and Relay Box

PTC Box Assembly

01-8

3. CIRCUIT DIAGRAM

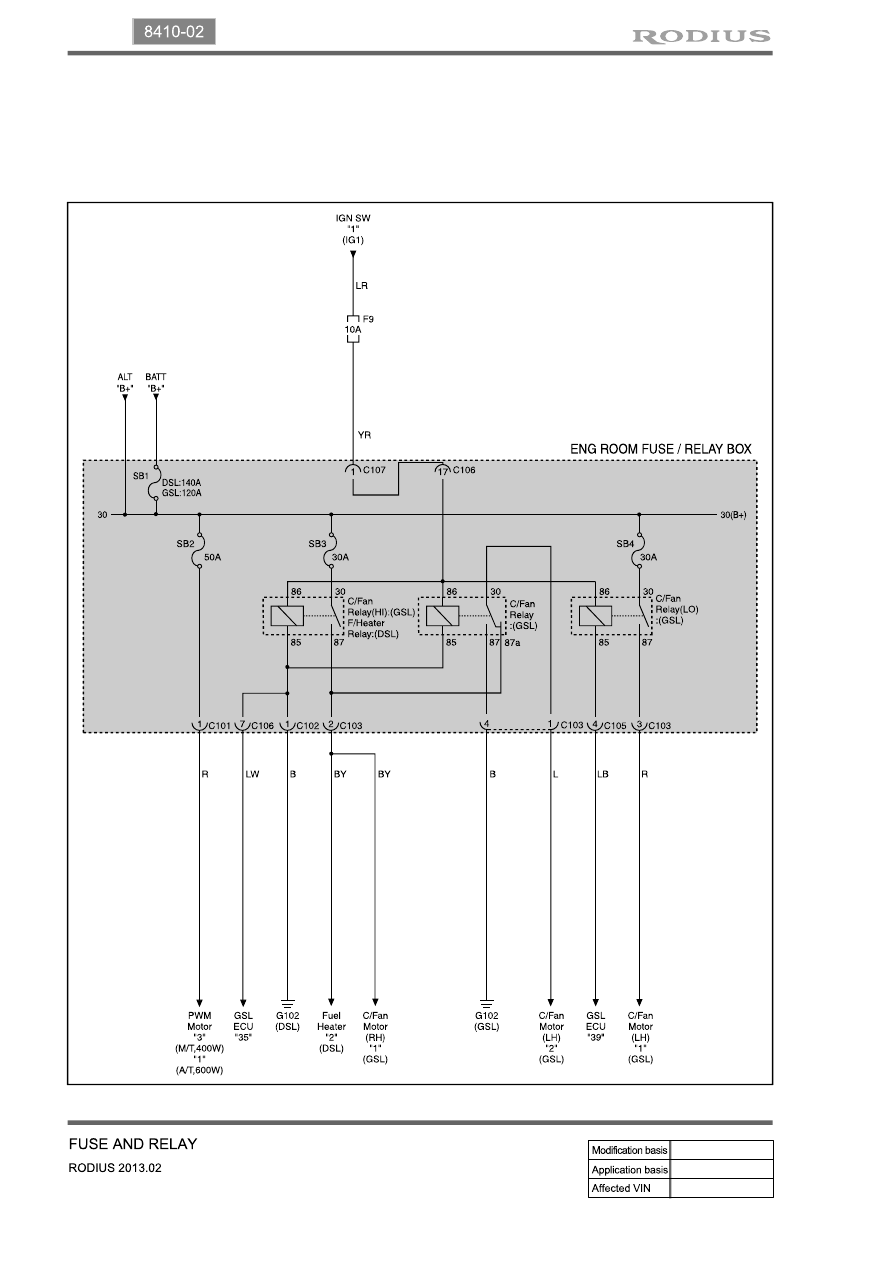

▶SB1~SB4, C/FAN (HI,LO) REALY, F/HEATER RELAY

1) Engine Room Fuse and Relay Box

01-9

8410-02

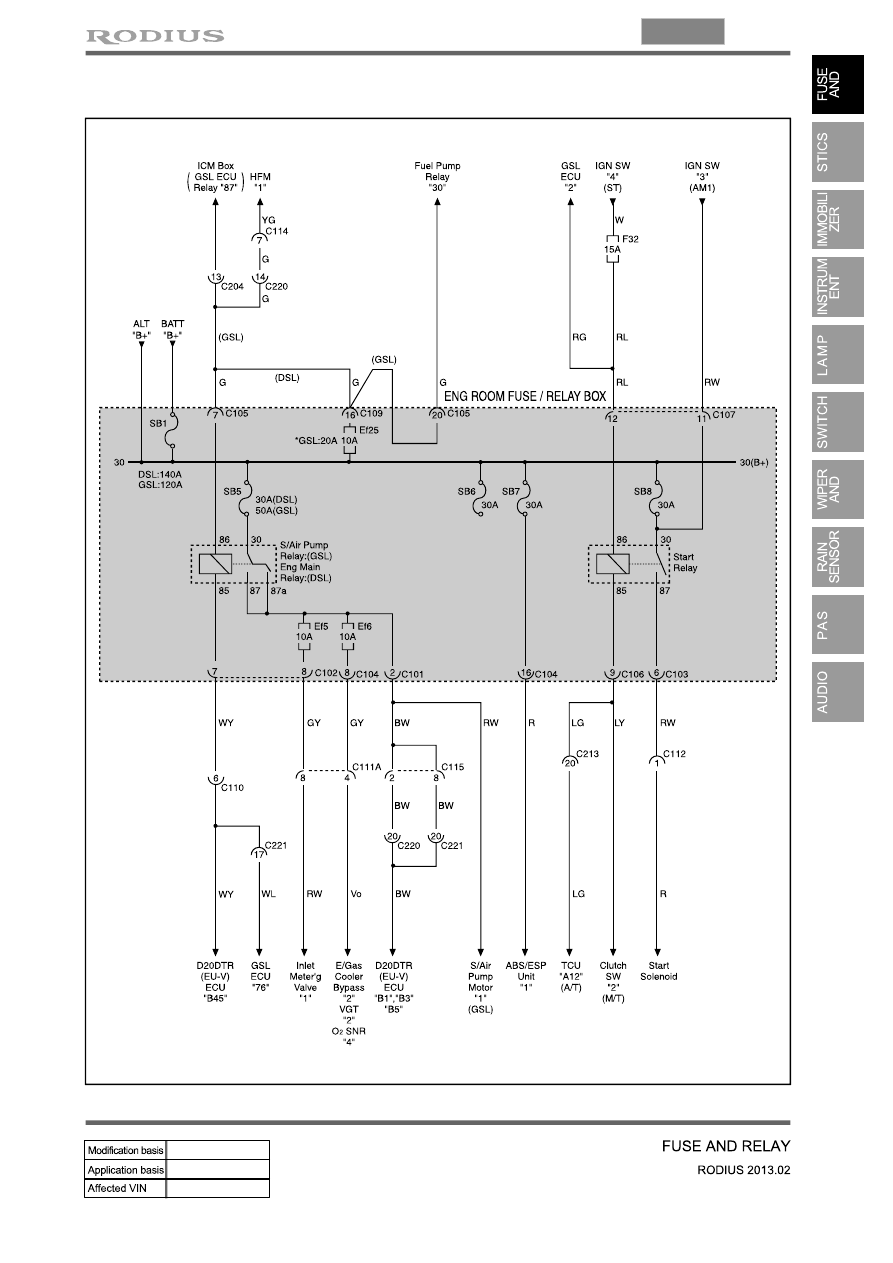

▶SB5~SB8, Ef5, Ef6, 2ND A/PUMP RELAY, ENG MAIN RELAY, START RELAY
