15-19

0000-00

F. Pilot Flow Control

The pilot flow represents the amount of fuel injected into the cylinder during the pilot injection. This

amount is determined according to the engine speed and the total flow.

A first correction is made according to the air and water temperature.

This correction allows the pilot flow to be adapted to the operating temperature of the engine. When

the engine is warm, the ignition time decreases because the end-of-compression temperature is

higher. The pilot flow can therefore be reduced because there is obviously less combustion noise

when the engine is warm.

A second correction is made according to the atmospheric pressure.

-

-

During starting, the pilot flow is determined on the basis of the engine speed and the coolant

temperature.

G. Cylinder Balancing Strategy

Balancing of the point to point flows

▶

The pulse of each injector is corrected according to the difference in instantaneous speed measured

between 2 successive injectors.

The instantaneous speeds on two successive injections are first calculated.

The difference between these two instantaneous speeds is then calculated.

Finally, the time to be added to the main injection pulse for the different injectors is determined.

For each injector, this time is calculated according to the initial offset of the injector and the

instantaneous speed difference.

Detection of an injector which has stuck closed

▶

The cylinder balancing strategy also allows the detection of an injector which has stuck closed. The

difference in instantaneous speed between 2 successive injections then exceeds a predefined

threshold. In this case, a fault is signaled by the system.

15-20

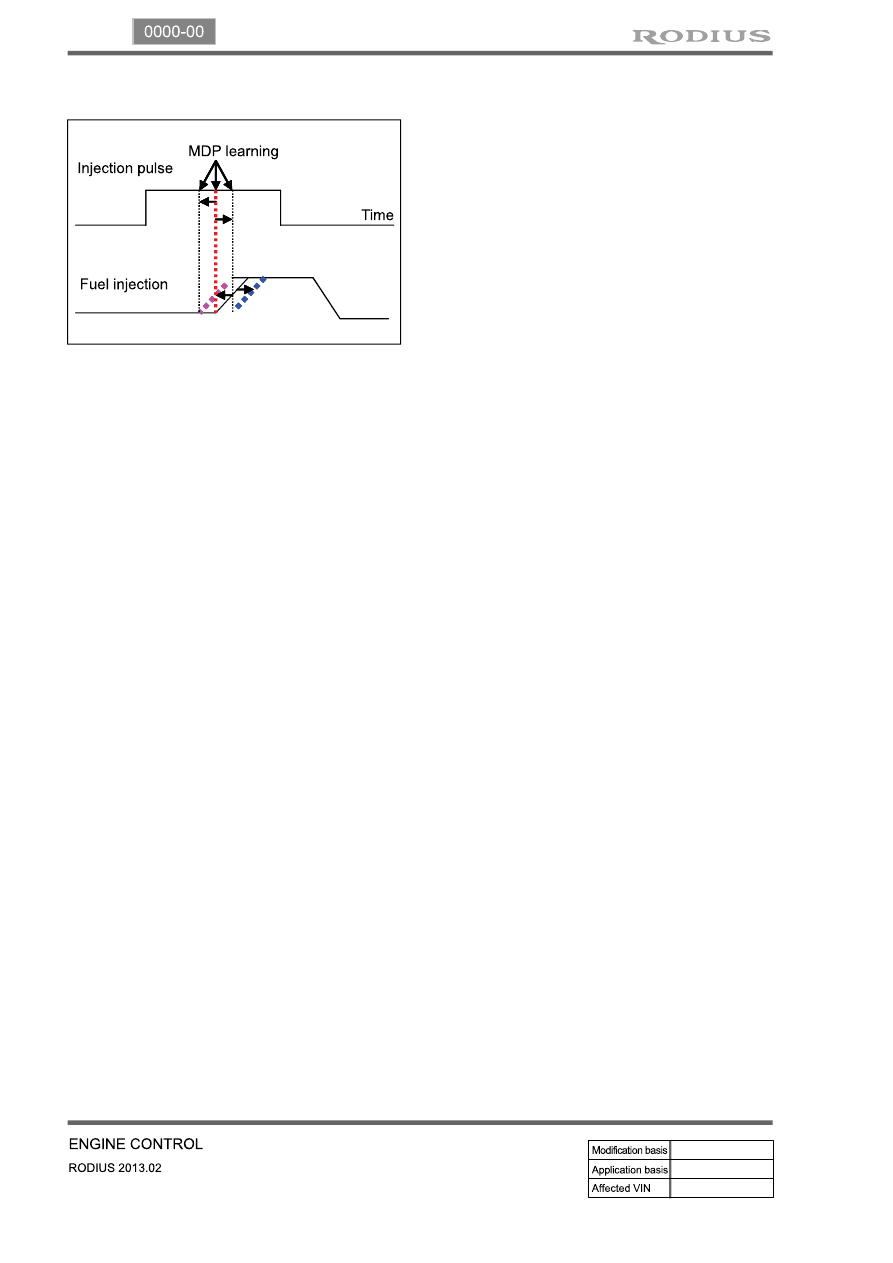

MDP (Minimum Drive Pulse ) refers to the

minimum power supply pulse for injection which

the injector can perform. It is possible to control

the fuel volume for each injector accurately

through correct learning for the MDP value. The

basic process of MDP learning is that the pulse

slightly higher than MDP is supplied and then (b)

the vibration generated from the cylinder is

detected. The knock sensor detects the

vibration from the engine after a small volume of

fuel is injected. And the time interval between

the points of injection and vibration is measured

so that MDP can be learned. MDP learning is

helpful to prevent engine vibration, high

emission and power reduction through

performing calibration for the old injectors.

During MDP learning, a little vibration and noise

can be occur for a while. This is because the

fuel pressure is increased instantaneously and

the exact injection value is not input, so that the

exact engine vibration timing can be detected.

(6) MDP Learning Control

A. MDP Learning

When the pulse value that the injector starts injection is measured, it is called minimum drive pulse

(MDP). Through MDP controls, can correct pilot injections effectively. Pilot injection volume is very

small, 1 to 2 mm/str, so precise control of the injector can be difficult if it gets old. So there needs MDP

learning to control the very small volume precisely through learning according to getting older injectors.

Control the fuel injection volume precisely by MDP learning even for the old injector.

ECU corrects the pilot injection effectively by MDP control.

MDP learning is performed by the signal from knock sensor.

-

-

-

The system measures the pulse at initial injection to reduce the engine vibration.

B. Purpose of MDP learning

15-21

0000-00

C. Learning Conditions

Idle MDP learning

Drive MDP learning

Coolant temperature

over 60℃

over 60℃

Vehicle speed

Idling

over 50km/h (over 5 seconds)

Engine rpm

2,000 to 2,500 rpm

Fuel temperature

0 < Fuel temperature < 80℃

Learning

2 times for each cylinder (every 5

seconds)

2 times for each cylinder

(every 5 seconds)

If MDP learning is not properly performed, engine vibration and injection could be occurred.

MDP learning should be performed after replacing ECU, reprogramming and replacing injector.

-

-

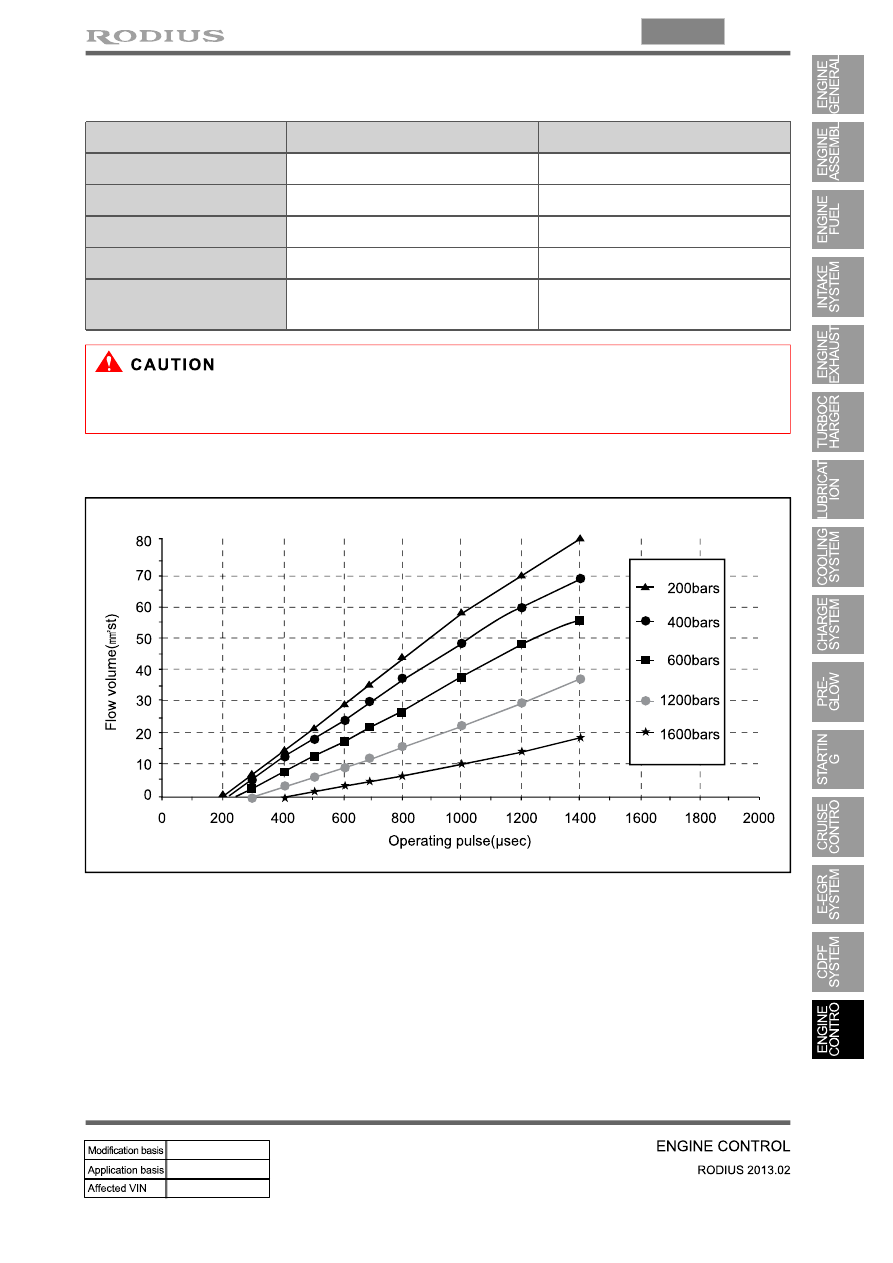

D. Injector characteristic curve for rail pressure

The fuel injection curve is also called injection characteristic curve as shown above. The amount of

injected fuel is proportional to the square root of injection period and rail pressure.

15-22

(7) Knocking Control

A. Resetting the pilot injection

The knocking control is used to reset the pilot injection flow in closed loop for each injector. This

method allows the correction of any injector deviations over a period of time. The principle of use of the

knocking control is based on the detection of the combustion noises.

The sensor is positioned in such a way as to receive the maximum signal for all the cylinders. The raw

signals from the knock sensor are processed to obtain a variable which quantifies the intensity of the

combustion. This variable, known as the ratio, consists of the ratio between the intensity of the

background noise and the combustion noise.

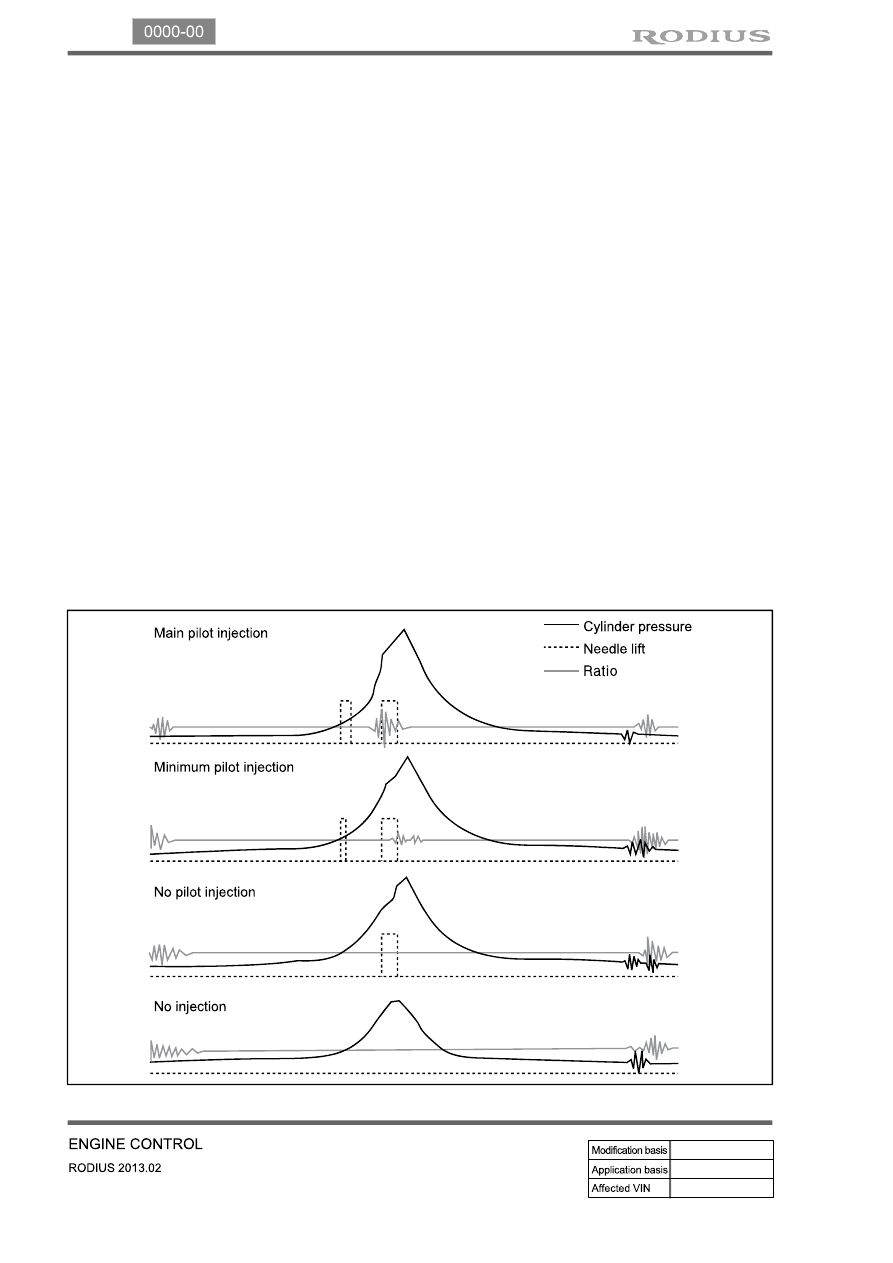

A first window is used to establish the background noise level of the knocking control signal for

each cylinder. This window must therefore be positioned at a moment when there cannot be any

combustion.

The second window is used to measure the intensity of the pilot combustion. Its position is such

that only the combustion noises produced by the pilot injection are measured . It is therefore

placed just before the main injection.

1.

2.

The knock sensor does not allow any evaluation of the quantity injected. However, the pulse value will

be measured when the injector starts injection and this pulse value is called the MDP (Minimum Drive

Pulse). On the basis of this information, it is possible to efficiently correct the pilot flows. The pilot

injection resetting principle therefore consists of determining the MDP, in other words the pulse

corresponding to the start of the increase in value of the ratio (increase of vibration due to fuel

combustion).
