10-8

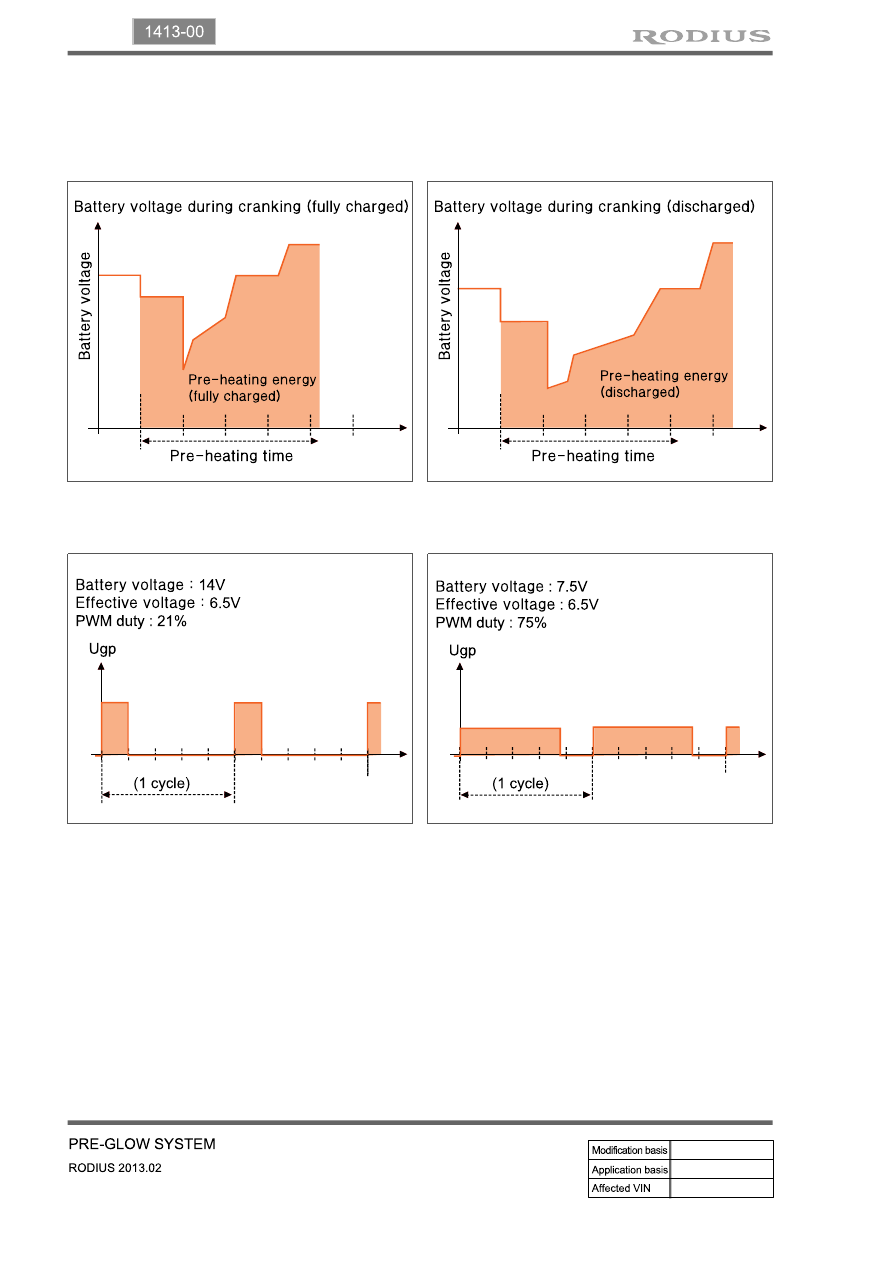

(2) Pre-heating time control based on battery voltage

GCU monitors the battery voltage. If it is low, GCU extends the pre-heating time.

GCU monitors the energy to glow plugs (the amount of pre-heating energy is always same).

-

-

GCU monitors the battery voltage. If it is low, GCU extends the pre-heating time to get enough

energy.

-

GCU monitors the battery voltage. If it is low, GCU increases PWM duty..

-

10-9

1413-00

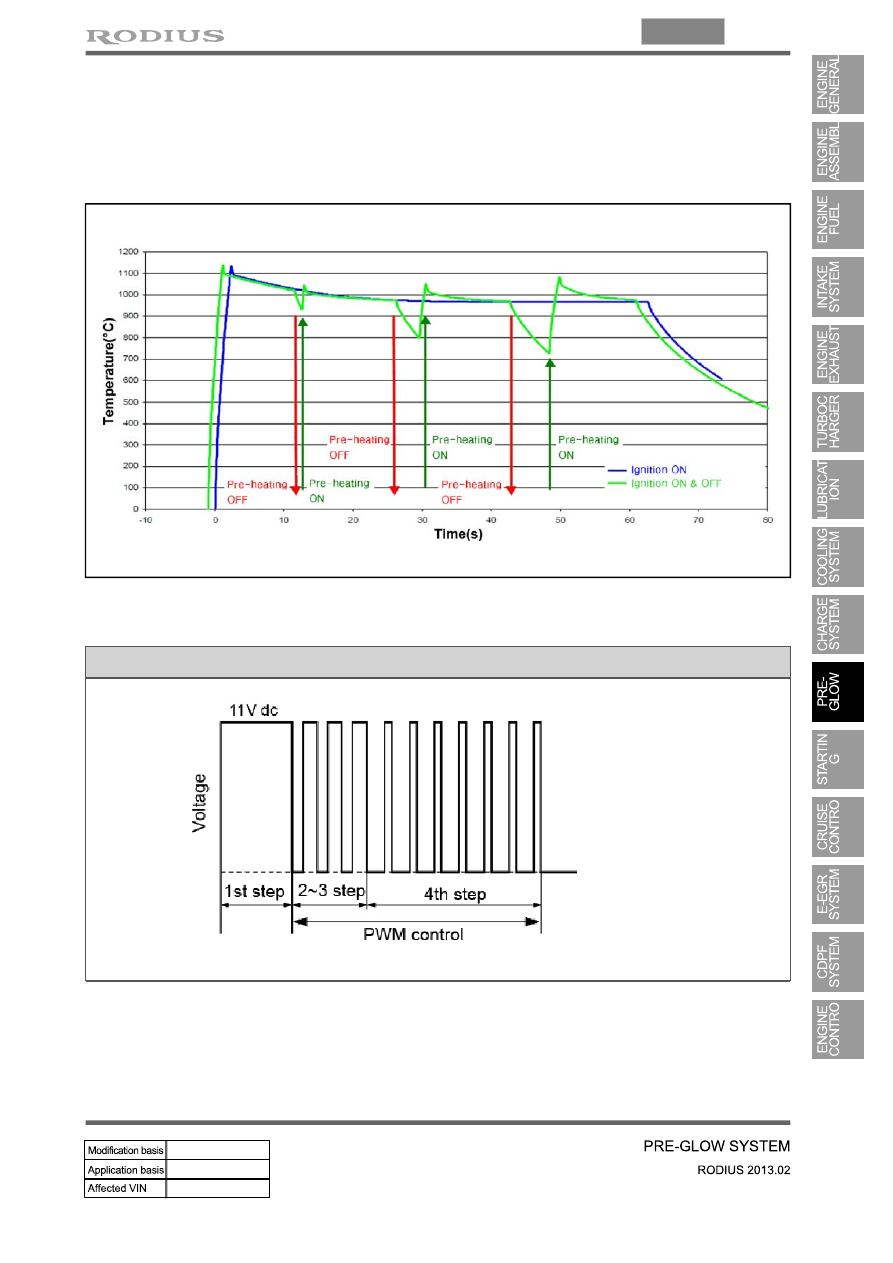

(3) Power control

GCU PWM control

This describes the voltage supplying types to glow plugs.

-

GCU estimates the temperature of glow plug for pre-heating. To avoid the power loss and overheat,

GCU supplies the lowest power for getting target temperature when turning ON the ignition from

OFF.

-

(4) Operation

Frequency: 20~33Hz

PWM control duty ratio

- 1st step: 100%

- 2~3 step: 35%

- 4th step: 23%

10-10

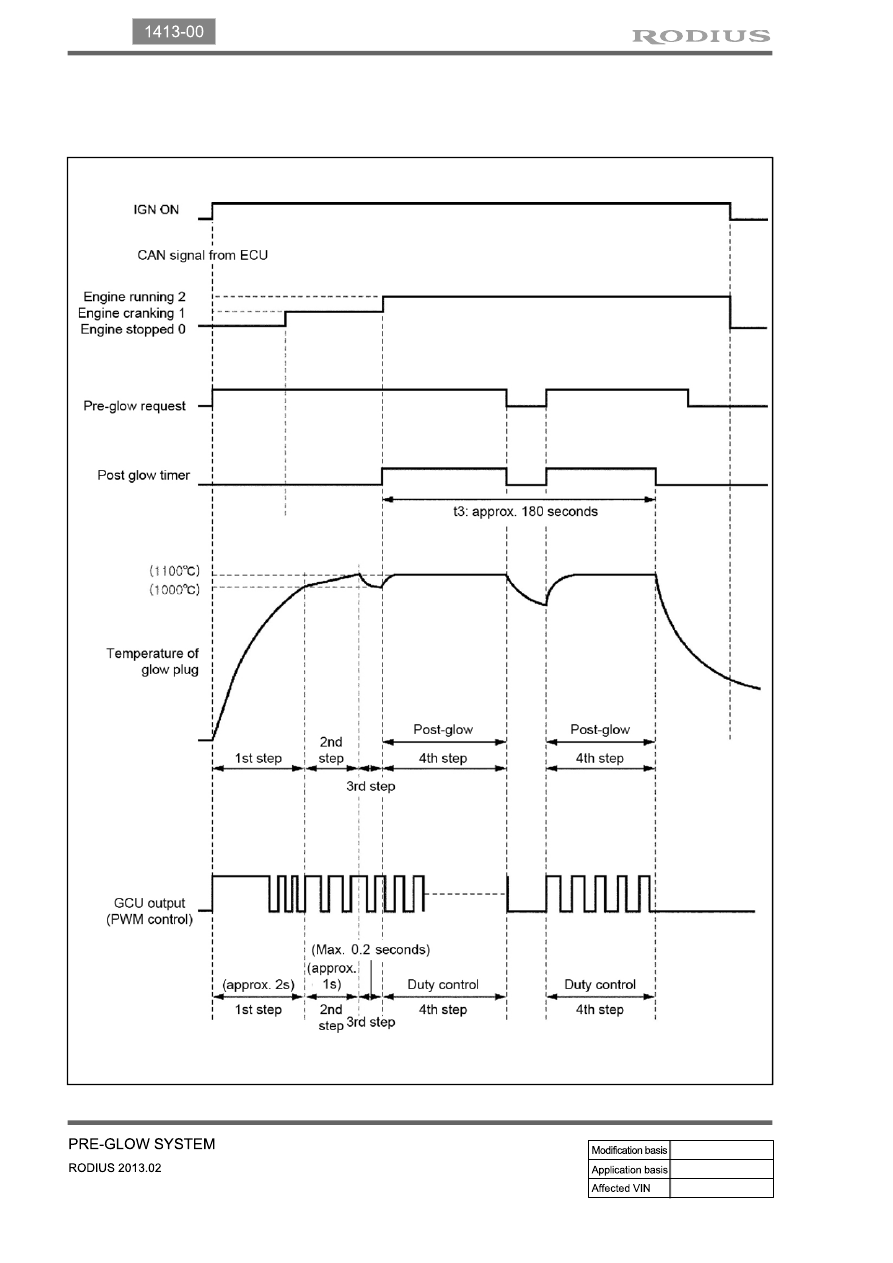

(5) Pre-glow and Post-glow

This shows the pre-glow and post-glow step as a chart.

11-3

1461-01

1. SPECIFICATION

Description

Specification

Capacity

12V 2.3kW

Engagement

Meshed type

Rotating direction

Clockwise

Pinion gear manufacturing

Cooled forging

Solenoid operating voltage

Max. 8 V

Weight

2.5 kg

Bracket manufacturing

Aluminum die casting
