1. SPECIFICATION

Alternator

Crankshaft pulley : Alternator pulley

1 : 2.94

Normal output (idling/2200 rpm)

70/140A

Regulator voltage

14.6 V

Brush

Length

12.5mm

Wear limit

7mm

Battery

Type

MF

Capacity

90 AH

Unit

Description

Specification

09-4

2. INSPECTION

1) Alternator Output Test

Item

How to check

DTC set value / Action

Output

current

B terminal

current

Rotor

coil

resistance

D terminal

voltage

Disconnect the cable connected to the B

terminal on the alternator. Connect one

end of the ammeter to the B terminal and

the other end to the cable connected to

the B terminal.

Measure the maximum output value.

(Maintain the engine speed between

2,500 and 3,000 rpm.)

(Turn the headlamp and all the electrical

switches on.)

1.

2.

Pass: If the measured current is 45

A or higher.

Fail: If the measured current is less

than 45 A.

Check the current of the B

terminal.

-

-

-

Move the gear selector lever to the neutral

position.

Maintain the engine speed at 2,500 rpm

with the vehicle unloaded.

(Turn all the electrical switches off.)

1.

2.

Open circuit: If the measured

current is 5 A or higher.

-

Disconnect the negative cable from the

battery.

Remove the B terminal and turn off the

ignition switch.

Measure the resistance between the L and

F terminals with an ohmmeter.

1.

2.

3.

Pass: If the measured resistance is
between 3 and 6 Ω.

Faulty rotor coil or slip ring: If the

measured resistance is less than 3
Ω or greater than 6 Ω.

-

-

Connect the B terminal wiring.

Measure the voltage with the engine

running.

1.

2.

Specification: 12.5 V to 14.5 V

Faulty IC regulator or field coil: If

the measured voltage is 14.5 V or

higher.

-

-

Disconnect the negative battery cable.

Connect the negative cable again after connecting the ammeter.

-

-

09-5

1451-01

2) Troubleshooting for Alternator

Item

Cause

Action

Overcharged

battery

Defective alternator voltage regulator

Replace the alternator

Defective voltage detection wiring

Replace the alternator

Defective voltage detection wiring

Repair or replace

Discharged battery

Loose alternator drive belt

Adjust the belt tension or replace

Poor connection of related circuit or

open circuit

Retighten the loose connection or

repair open circuit

Defective alternator voltage regulator

Replace the alternator

Terminated battery

Replace the battery

Defective ground

Repair

Charge warning

lamp does not

come on when

turning on ignition

switch with engine

stopped

Defective alternator voltage regulator

Replace the alternator

Open circuit in charge warning lamp,

fuse or wiring

Replace or repair the charge

warning lamp or fuse

Defective ignition switch

Replace the ignition switch

Defective ground of alternator circuit

Repair

Charge warning

lamp is not turned

off after starting

engine

Defective alternator voltage regulator

Replace the alternator

Corroded or worn battery cable

Repair or replace the battery cable

Loose alternator drive bel

Replace the batteryAdjust the belt

tension or replace the belt

Defective wiring harness

Repair or replace

Warning lamp does

not go off even

after starting the

engine

Corrosion or damage of

battery cable

Repair or replace the

battery cable

Loose alternator drive belt

Adjust the belt tension or

replace the belt

Defective wiring harness

Repair or replace

Overcharged

battery

Defective voltage regulator of alternator

Replace the alternator

Defective voltage detecting wiring

Repair or replace

09-6

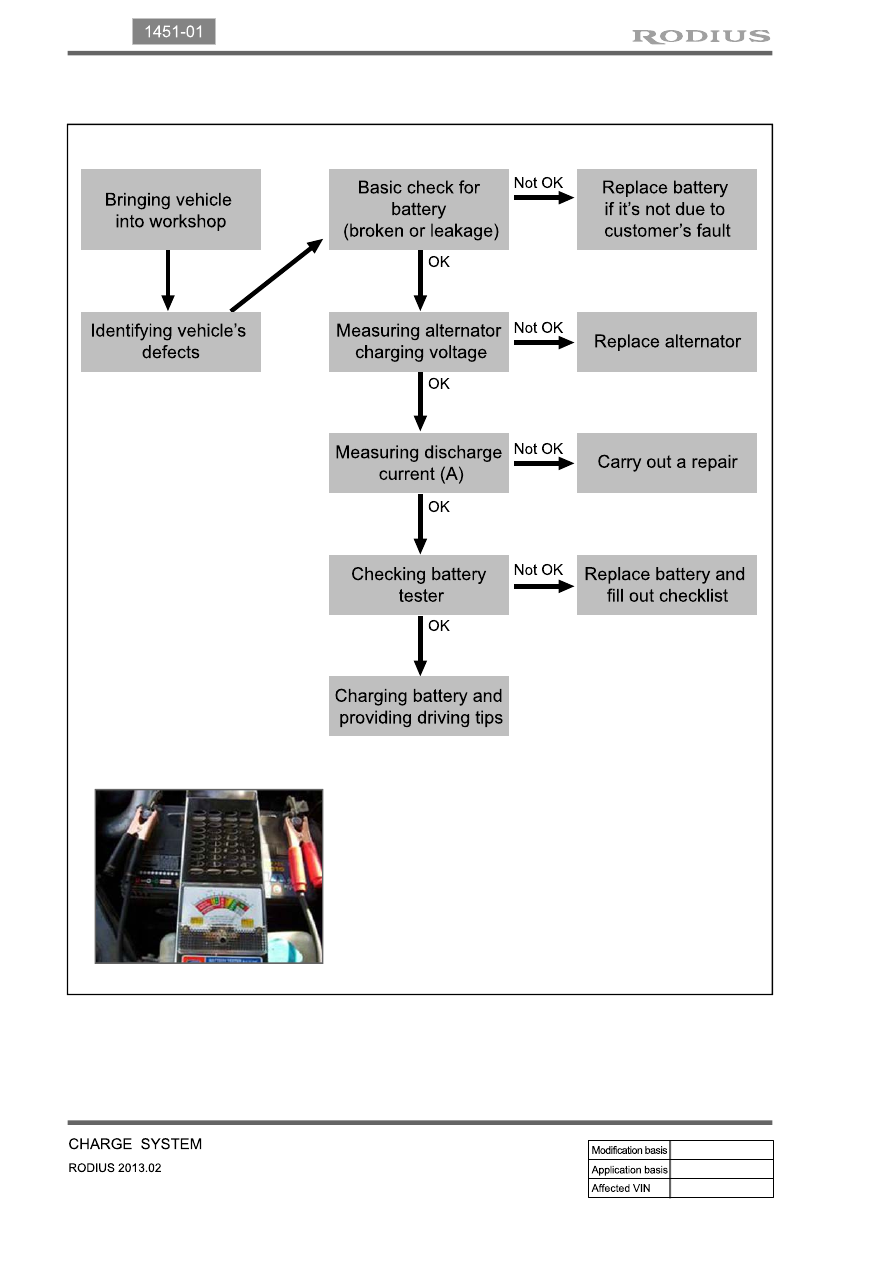

3) Checking Battery
