05-3

1729-01

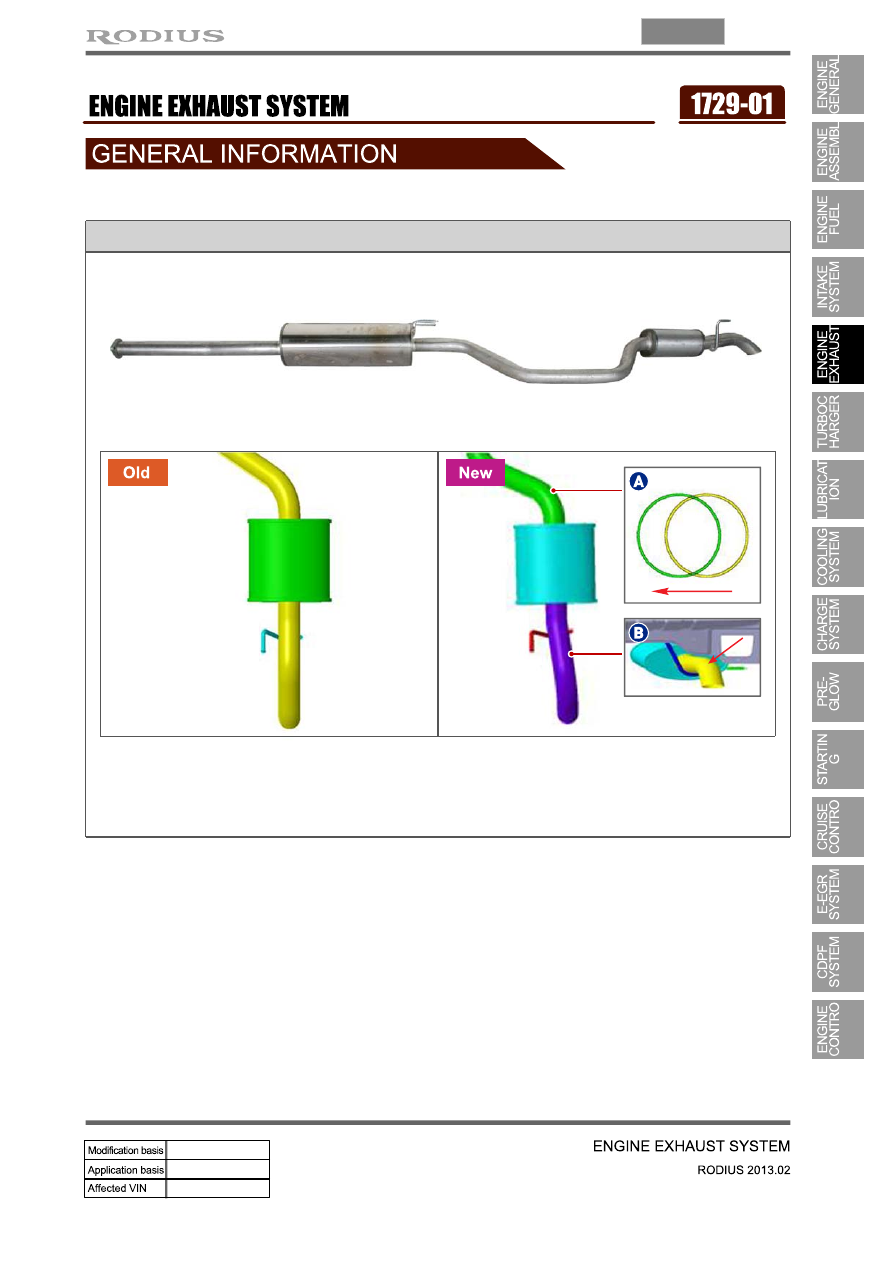

Muffler Assembly

1. MAJOR CHANGES

Muffler assembly parts (A, B) changed due to change of rear subframe

(A) Connecting pipe between muffler and tail silencer: moved by 20 mm

(B) Gap between tail silencer pipe and body: changed from 16 mm to 25 mm

-

05-4

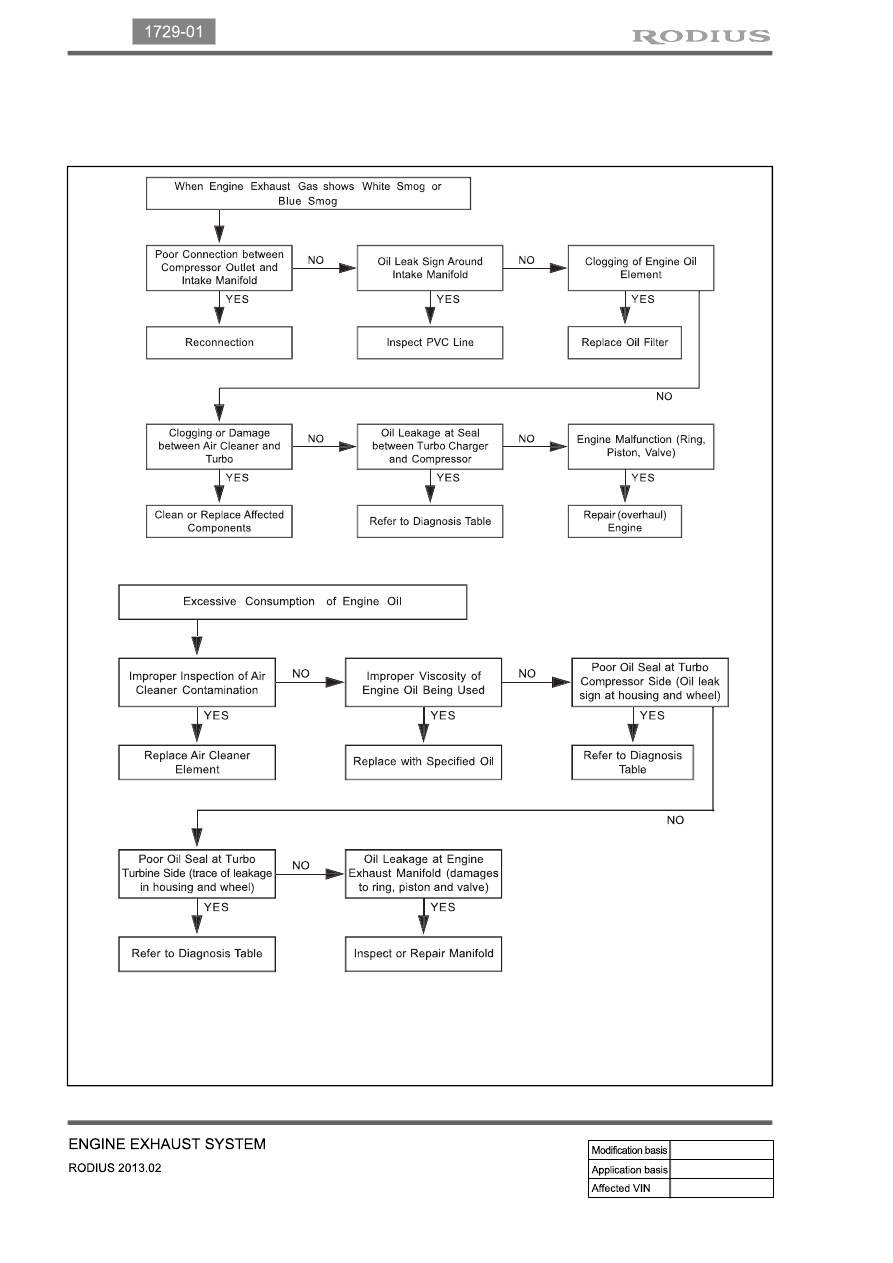

2. TROUBLESHOOTING

1) Work Flow

05-5

1729-01

3. CAUTIONS

Do not park the vehicle on flammable materials, such as grass, leaves and carpet.

Do not touch the catalyst or the exhaust gas ignition system when the engine is running.

If a misfire occurs in the combustion chamber or the emission of pollutant exceeds the specified

level, the catalyst can be damaged.

When servicing or replacing components of the exhaust system, makes sure that the components

are positioned at regular intervals from all other parts of the under body.

Be careful not to damage the exhaust system when lifting the vehicle from its side.

All components and body parts of the engine exhaust system should be inspected for crack,

damage, air hole, part loss and incorrect mounting location. Also check for any deformation which

can result in exhaust gas drawn into the vehicle.

Make sure that the exhaust pipe is cooled down sufficiently before working on it because it is still hot

right after the engine is stopped.

Wear protective gloves when removing the exhaust pipe.

-

-

-

-

-

-

-

-

05-6

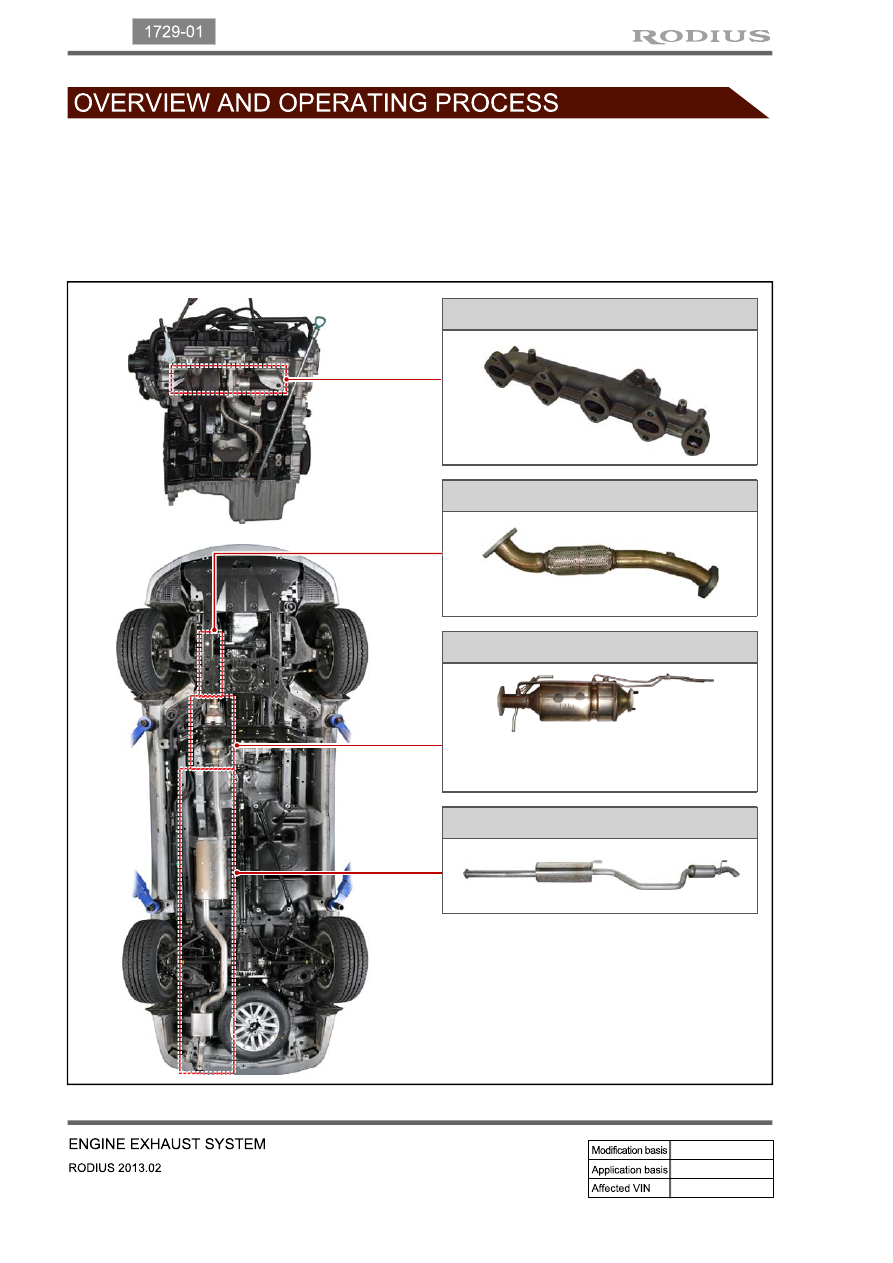

2. LAYOUT

Silencer Assembly

Exhaust manifold assembly

CDPF assembly

1. OVERVIEW

This system purifies the exhaust gas generated by the combustion in the engine to reduce the

pollutants and noise during that arise during combustion.

Exhaust front pipe assembly

For more information, refer to Chapter

"Engine Control".

*
