03-12

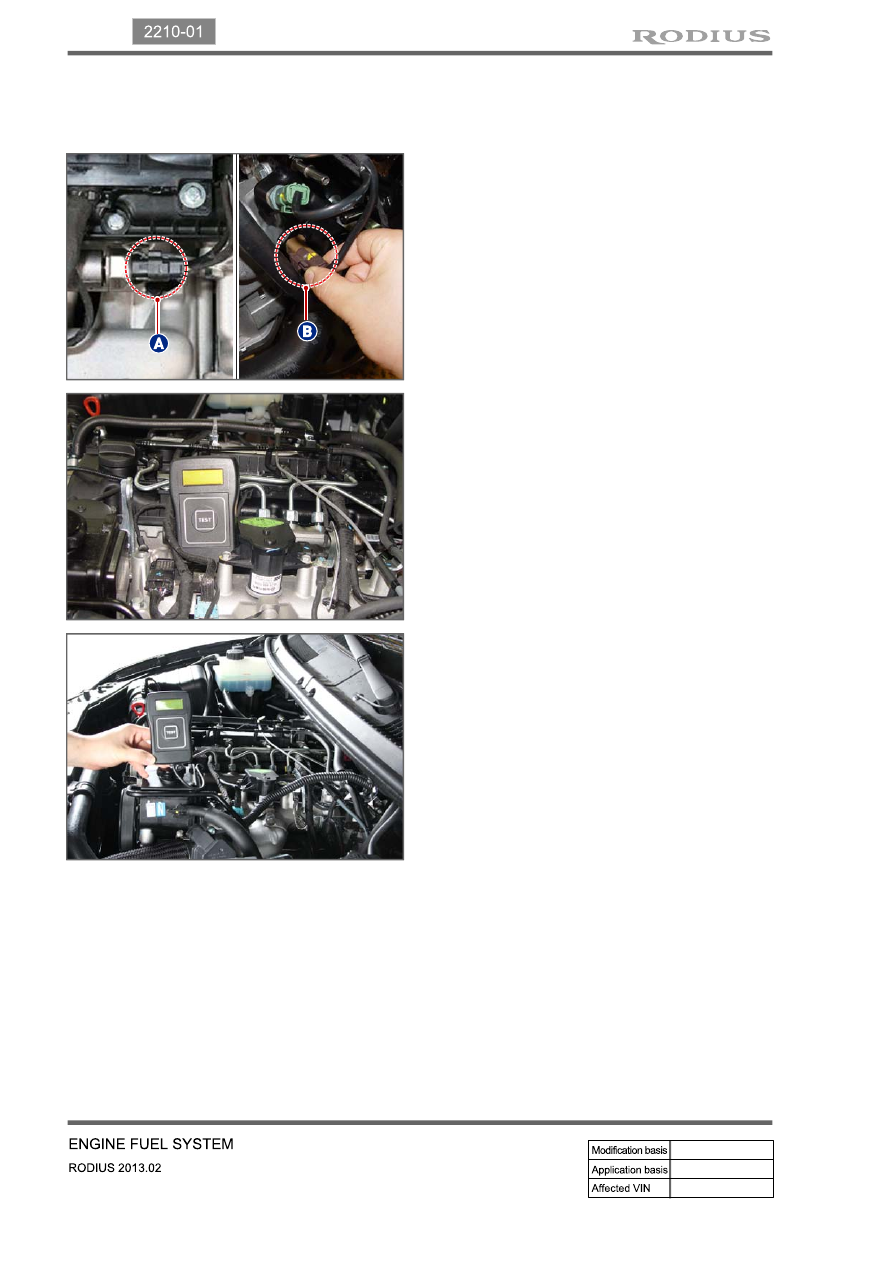

(5) High Pressure System Pressure Test

Fuel rail pressure test

▶

Disconnect the pressure sensor connector

(A) and IMV connector (B) from the fuel rail.

1.

Connect the pressure tester to the fuel rail

pressure sensor connector.

2.

Crank the engine 2 times for 5 seconds.

3.

Read the highest pressure value displayed

on the tester display.

If the highest pressure value is 1,050 bar

or less, refer to the section "Fuel System

Check Process".

-

-

03-13

2210-01

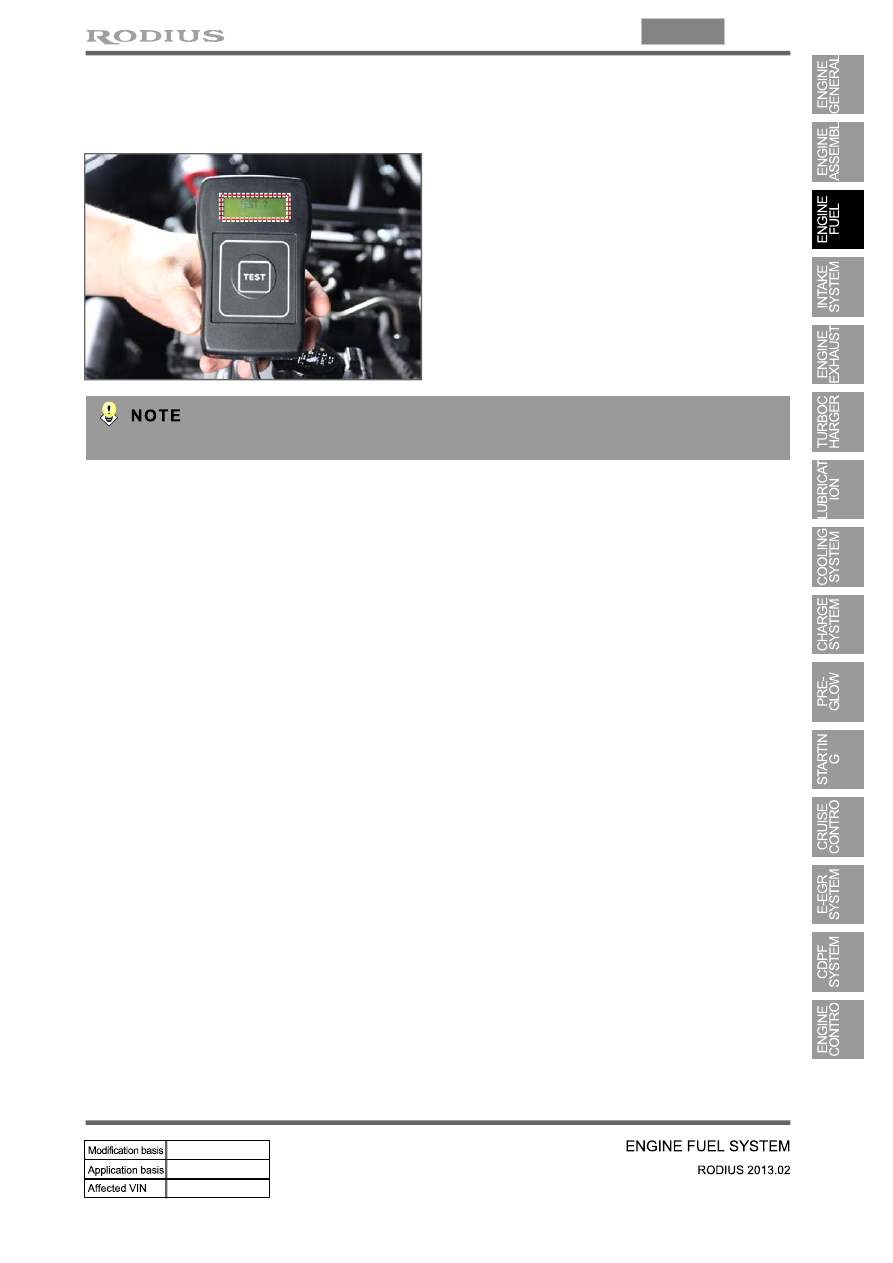

How To Use Pressure Tester

▶

Press the "TEST" button on the tester to

check if the message "TEST?" is displayed.

If the button is pressed again at 4 seconds

after starting engine cranking, the highest

pressure is displayed on the tester.

1.

2.

The fuel rail pressure value can be checked using a diagnostic device.

03-14

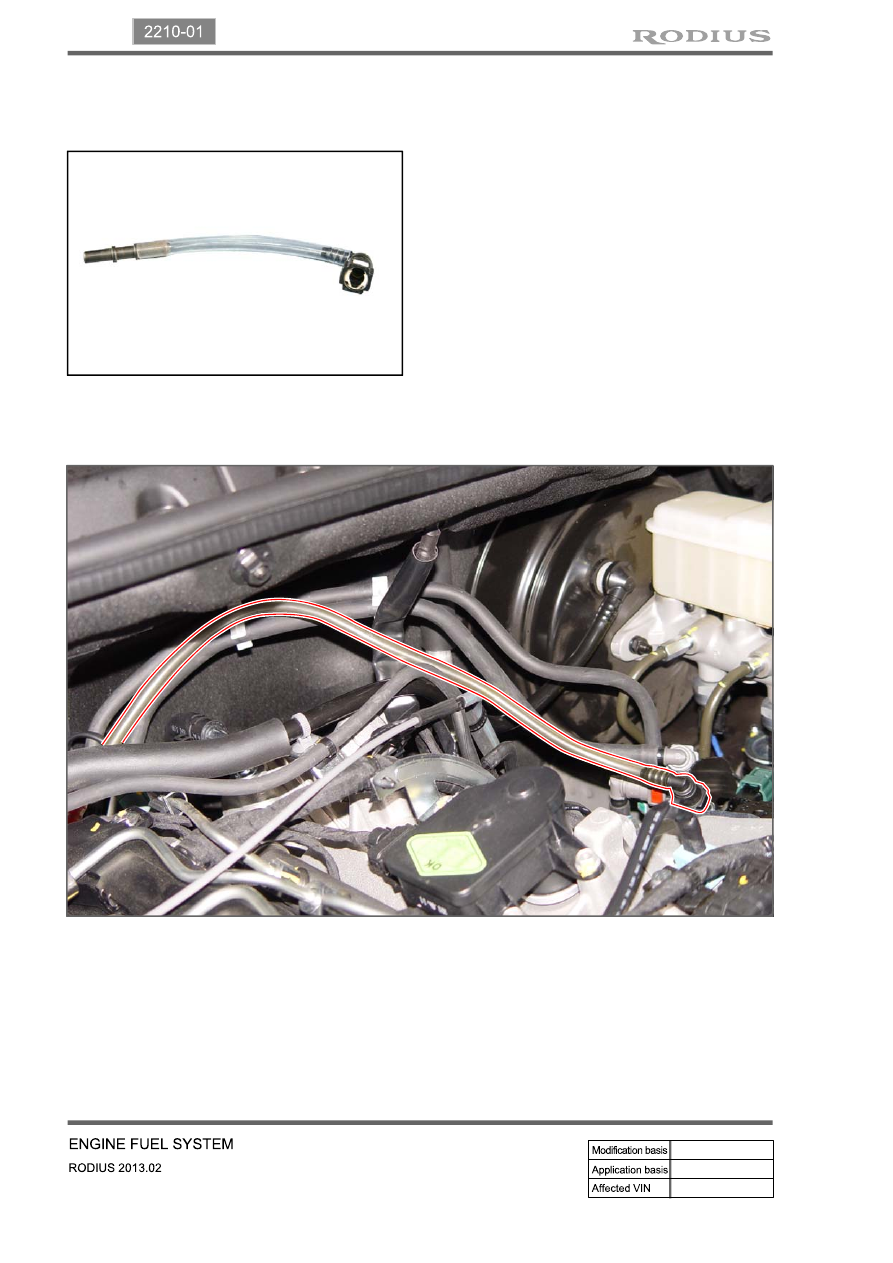

(6) Low Pressure System Pressure Test

Inspection procedure

▶

All wirings/connectors and fuel lines should

be connected and the engine should work

properly.

Prepare a special tool for low pressure test

and clean it thoroughly to prevent foreign

materials from entering.

1.

2.

Disconnect the key connector for fuel filter connection, and connect both connectors to the fuel filter

and hose.

3.

Start the engine and check visually for clogged low pressure fuel system, excessive air or air entry.

If the fuel flow is not sufficient or air is in the fuel, repair the leak area.

4.

5.

03-15

2210-01

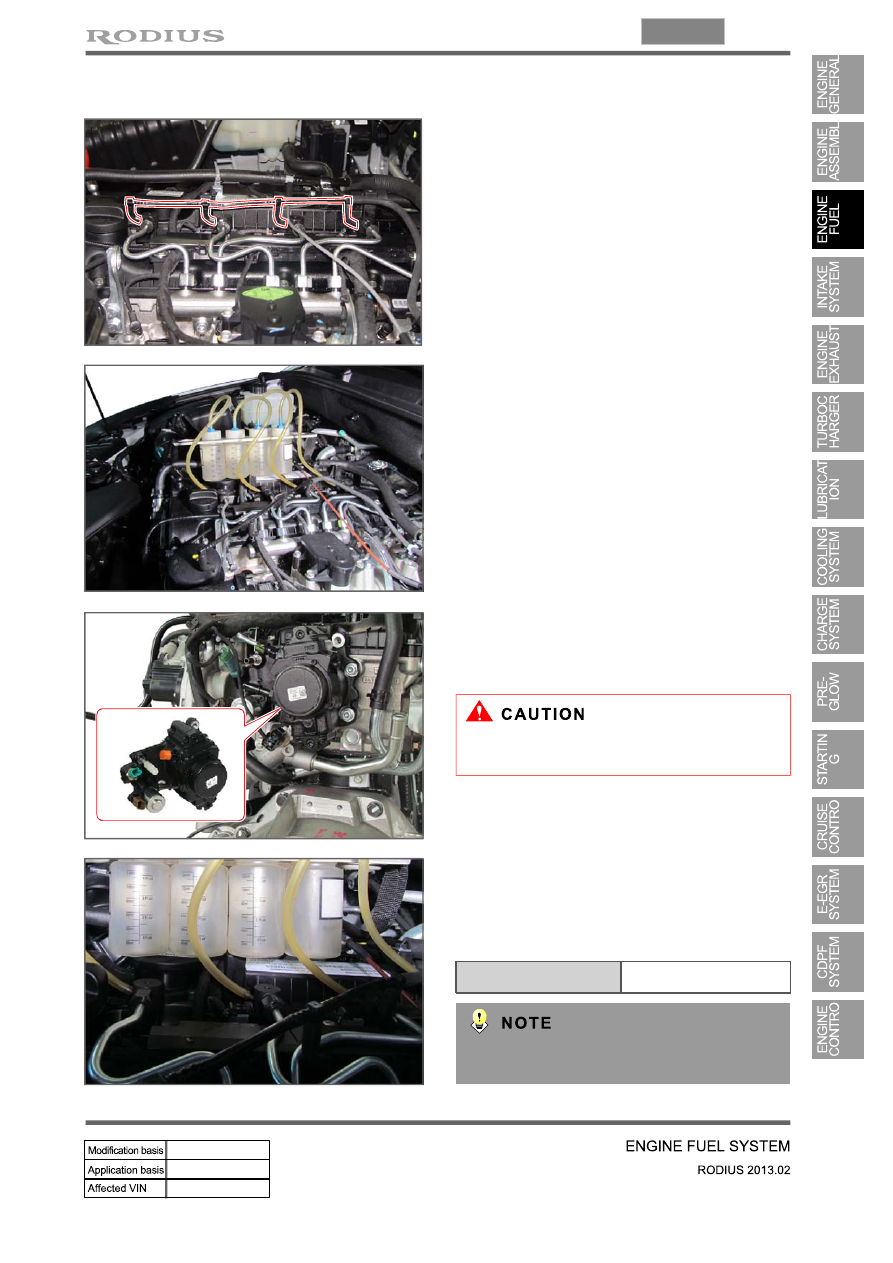

Static test for backleak of injector

▶

Disconnect the injector return hose and cover

the openings with caps shaped screw

(included in the special tool).

1.

Connect the hose of the container for

measuring backleak to the return nipple of the

injector.

(prevent air entry to the low pressure line)

2.

Disconnect the IMV connector of the high

pressure pump and then fuel pressure

sensor connector.

3.

The connector of the injector can be easily

contaminated. Always keep it clean.

Crank the engine 2 times for 5 seconds.

Check the time for flow if injector backleak

and confirm that it is within the specified

range.

4.

5.

If the value is out of the specified range,

replace the injector.

Specification

Below 20 sec.
