16-8

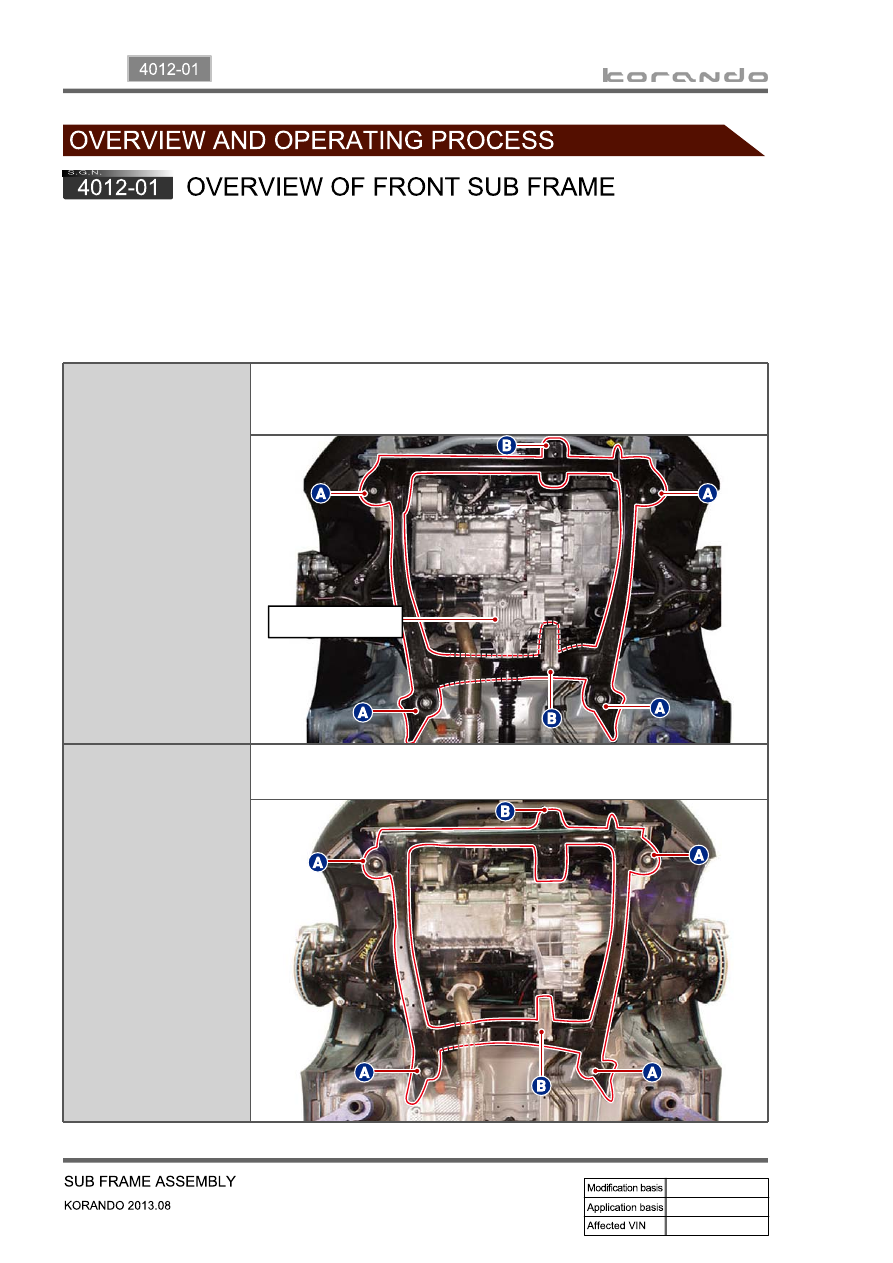

The front sub frame consists of 4 body bush mountings(A) and 2 engine bush mountings(B) which

reduce the vibration from the powertrain and road, and also control the torque. And the two engine bush

mountings consist of an engine mounting which supports the engine powertrain and a transmission

mounting.

The engine side and transmission side mountings are rubber mountings with brackets and insulators

while the body mounting is a rubber bush mounting which is fitted to the frame.

Installation of front sub

frame (4WD)

The installation of the front sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the PTU and the
propeller shaft are installed.

Installation of front sub

frame (2WD)

The installation of the front sub frame is the same for both automatic
transmission and manual transmission.

PTU assembly

16-9

4015-01

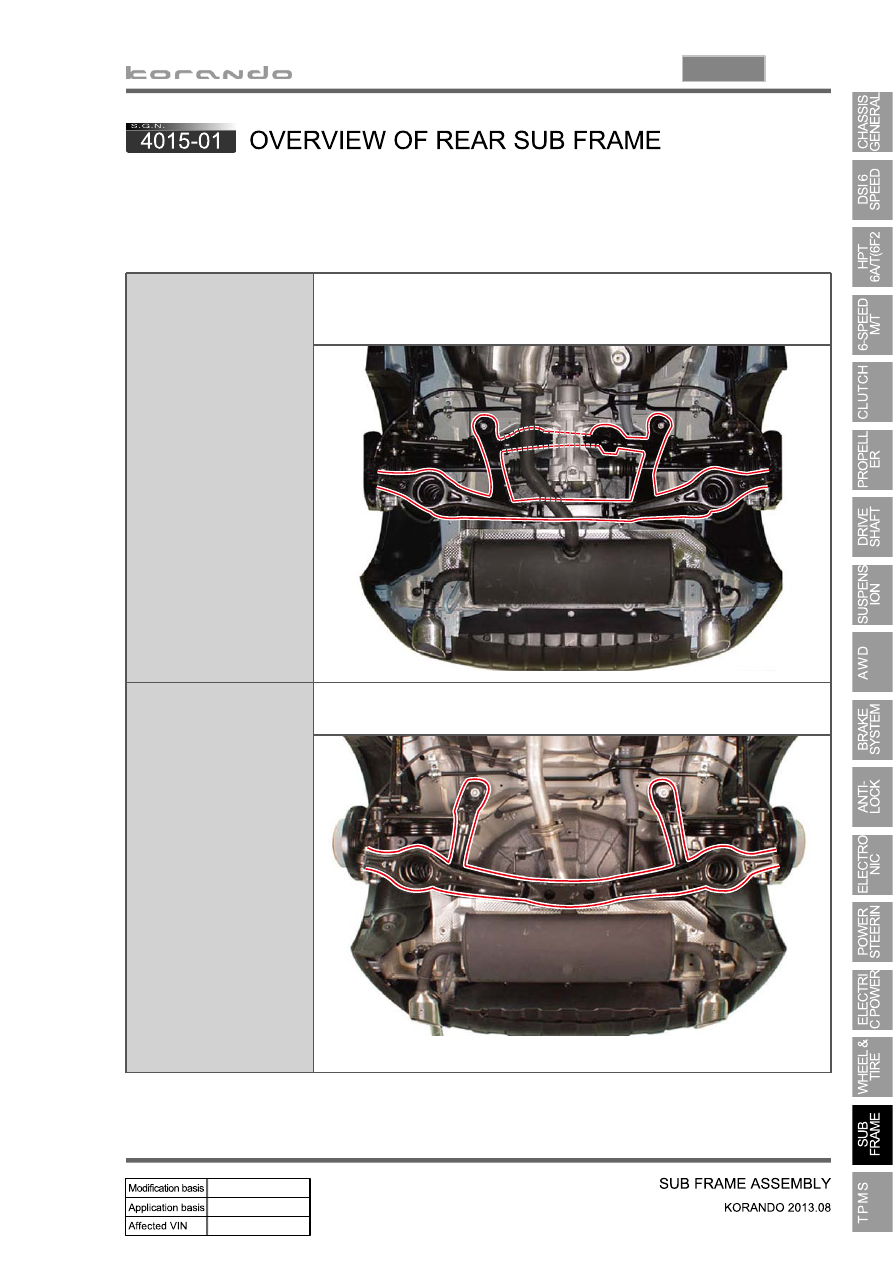

Installation of rear sub

frame (4WD)

The installation of the rear sub frame is the same for both automatic
transmission and manual transmission. For 4WD, the E-coupling, propeller
shaft and rear axle are installed.

Installation of rear sub

frame (2WD)

 The installation of the rear sub frame is the same for both automatic
transmission and manual transmission.

The rear sub frame system consists of body bush mountings and direct mountings which reduce the

vibration transmitted from the powertrain and road to the vehicle body.

For 4WD, it consists of 4 body mountings (bush mountings) and 2 axle mountings (bush mountings) and

for 2WD, it consists of 4 body mountings (direct mountings).

15-3

4190-00

1. SPECIFICATIONS

Unit

Item

Specification

Remarks

TPMS ECU

Voltage range

9 ~ 16 V

-

Active mode

50 mA

-

Coast mode

30 mA

-

Sleep mode

100 uA

-

Bit rate

500 Kbps

-

Modulation type

Amplitude modulation (AM)

-

Frequency

433.92 Mhz

-

Wheel module

Pressure measuring

range

0 ~ 6.375 bar

(0~92.43 psi)

1 bar = about 14.5 psi

Tolerance range of

measured pressure

±5% ( -40℃ ~ -10℃)

±2% ( -10℃ ~ 70℃)

±5% ( 70℃ ~ 100℃)

-

Tolerance range of

measured temperature

±5% ( -40℃ ~ -10℃)

±2% ( -10℃ ~ 70℃)

±5% ( 70℃ ~ 100℃)

-

Temperature

measuring range

-50℃ ~ 205℃

-

Battery life

Lithium battery

(about 3.0~3.2 V),

160,000 km or 10 years

It can be shortened

depending on use

condition.

Tire

Inflation pressure

32 psi

-

15-4

How to use

Torque wrench

To remove and install valve insert

To remove and install valve body

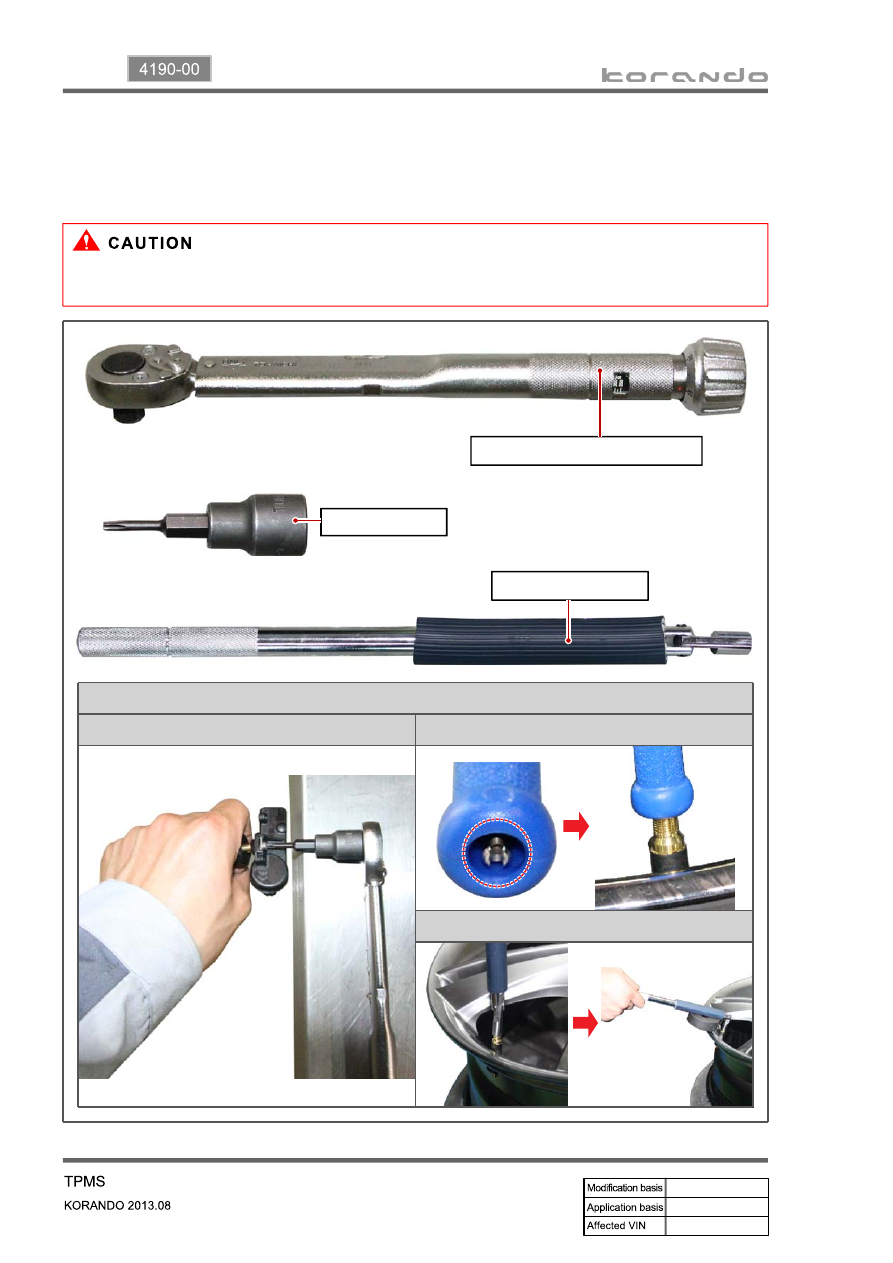

2. SPECIAL TOOL FOR TPMS SYSTEM

The following torque wrench and connecting adapter should be prepared when installing the TPMS

wheel module.

Torque wrench (0.1~5.0 Nm)

E-socket T-10

Tire valve changer

When fitting the wheel module, tighten the mounting bolt to the specified tightening torque (1.4 Nm)

to prevent the wheel module from being damaged due to excessive tightening.
