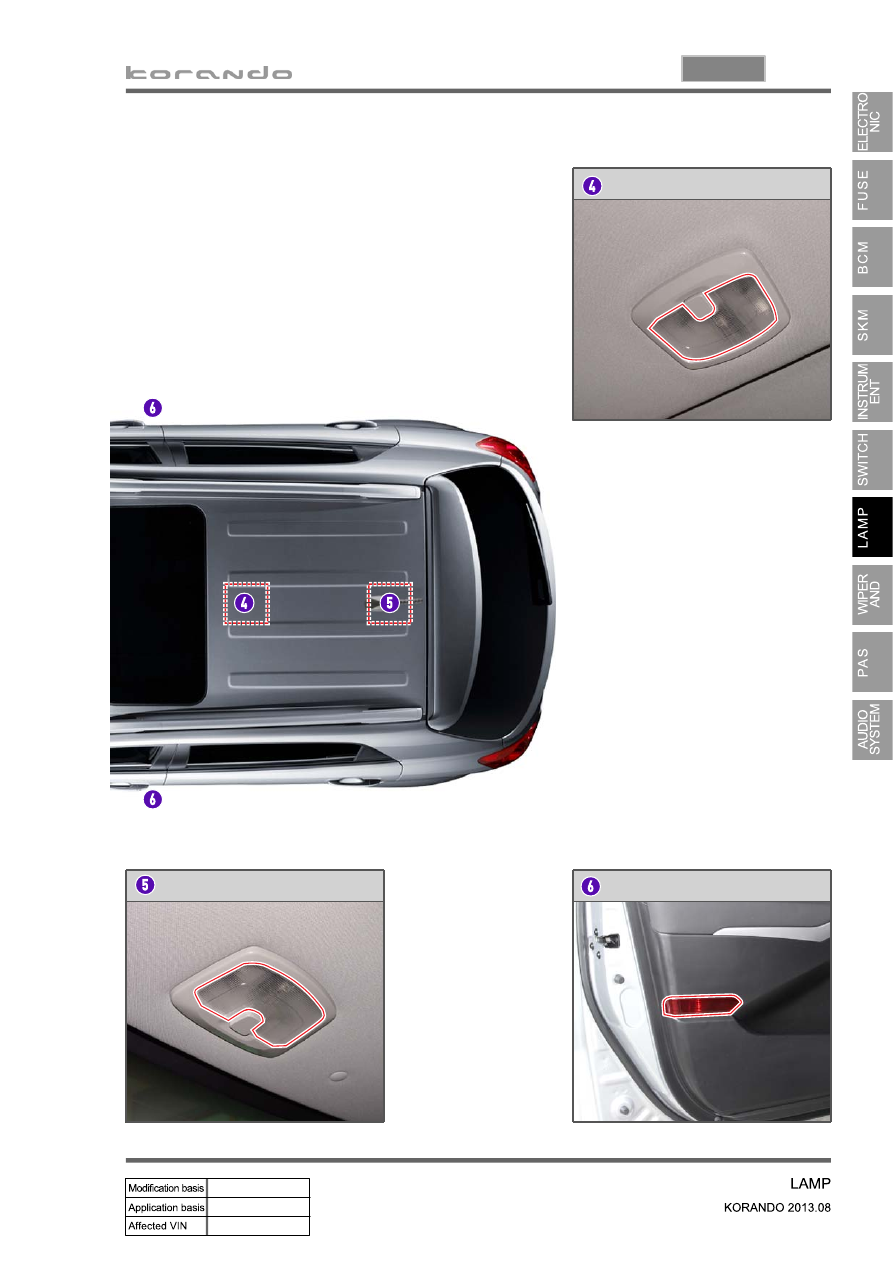

Center room lamp

Luggage lamp

Door courtesy lamp

07-38

Front room lamp

2) Operation

Door coupled operation switch: Comes on
when opening door and goes off when closing
with switch pressed

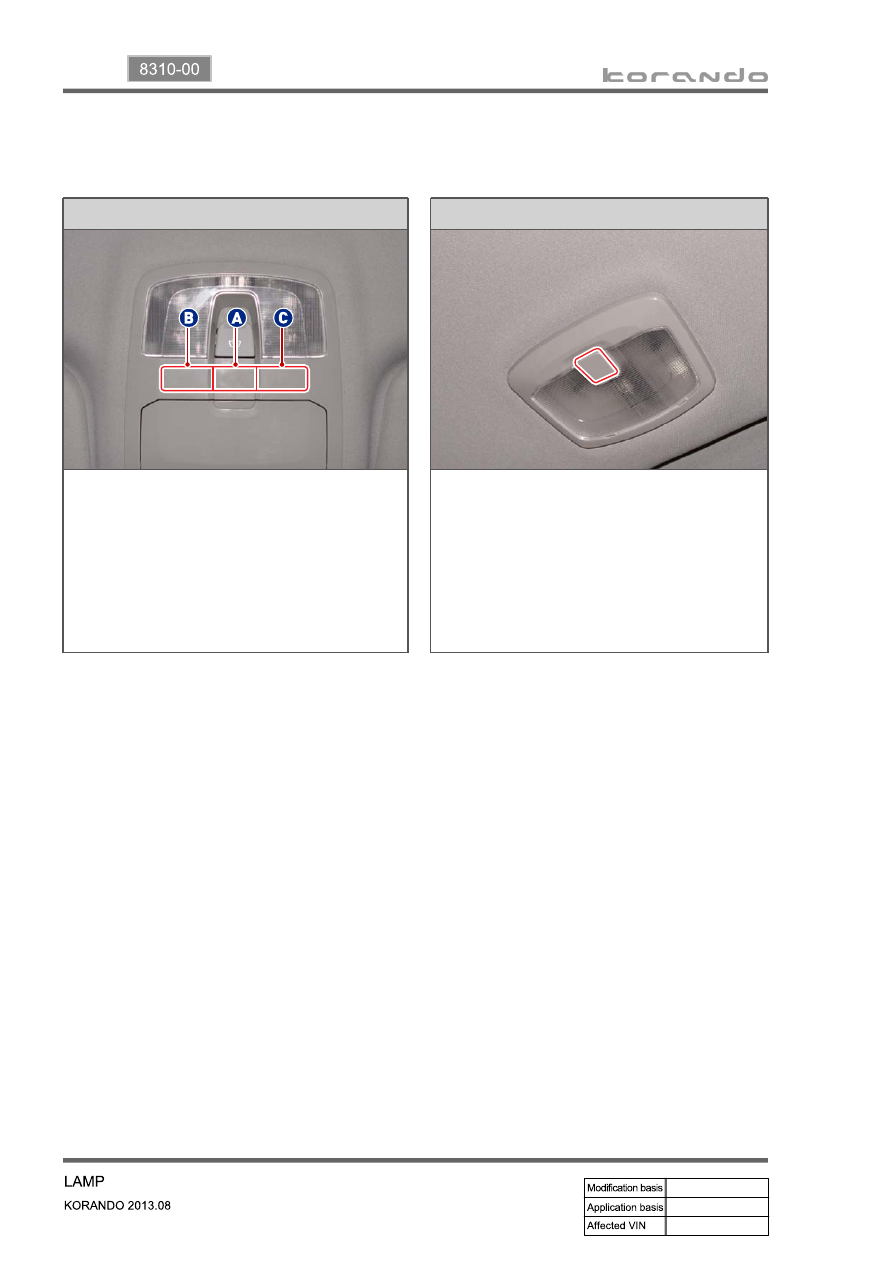

Driver spot lamp switch: Driver front room
lamp comes on when pressing switch
Passenger spot lamp switch: Passenger front
room lamp comes on when pressing switch

A.

B.

C.

Center room lamp

Press switch to turn on center room lamp and
press again to turn off it.
It comes on when opening the door with door
coupled operation switch in the front room lamp
pressed even though the switch is in "OFF"
position.

(1) Front room lamp/Center room lamp

Operating the front room lamp and center room lamp switches illuminates the driver/passenger side

lamps and center room lamp.

Room lamp control by door coupled room lamp operation

▶

If a door except the tailgate is opened after the ignition is turned off, provided that door coupled front

room lamp switch is pressed, the front room lamp and center room lamp are illuminated for 2 sec.

and then fade out for 3 sec.

If a door except the tailgate is opened and then closed while the room lamp is fading out, the room

lamp is illuminated for 2 sec. and then fades out for 3 sec. If the ignition is turned on, the room lamp

goes off immediately.

The front room lamp and center room lamp are illuminated for 30 sec. when the door is unlocked by

the REKES or passive door UNLOCK function with IGN OFF and the ignition key removed. If the

REKES or passive door UNLOCK signal is received again, the room lamps are illuminated for

another 30 sec.

The room lamp goes off immediately when the REKES or passive door LOCK signal is received or

the ignition switch is turned to ON position.

If the room lamp is turned on after the ignition key is removed (door open or room lamp switch is

pressed), it is turned off after 10 minutes by the BCM.

When the door open state is changed or the ignition is turned on after the room lamp has been turned

off automatically, the battery saver feature is reset.

1.

2.

3.

4.

5.

07-39

8310-00

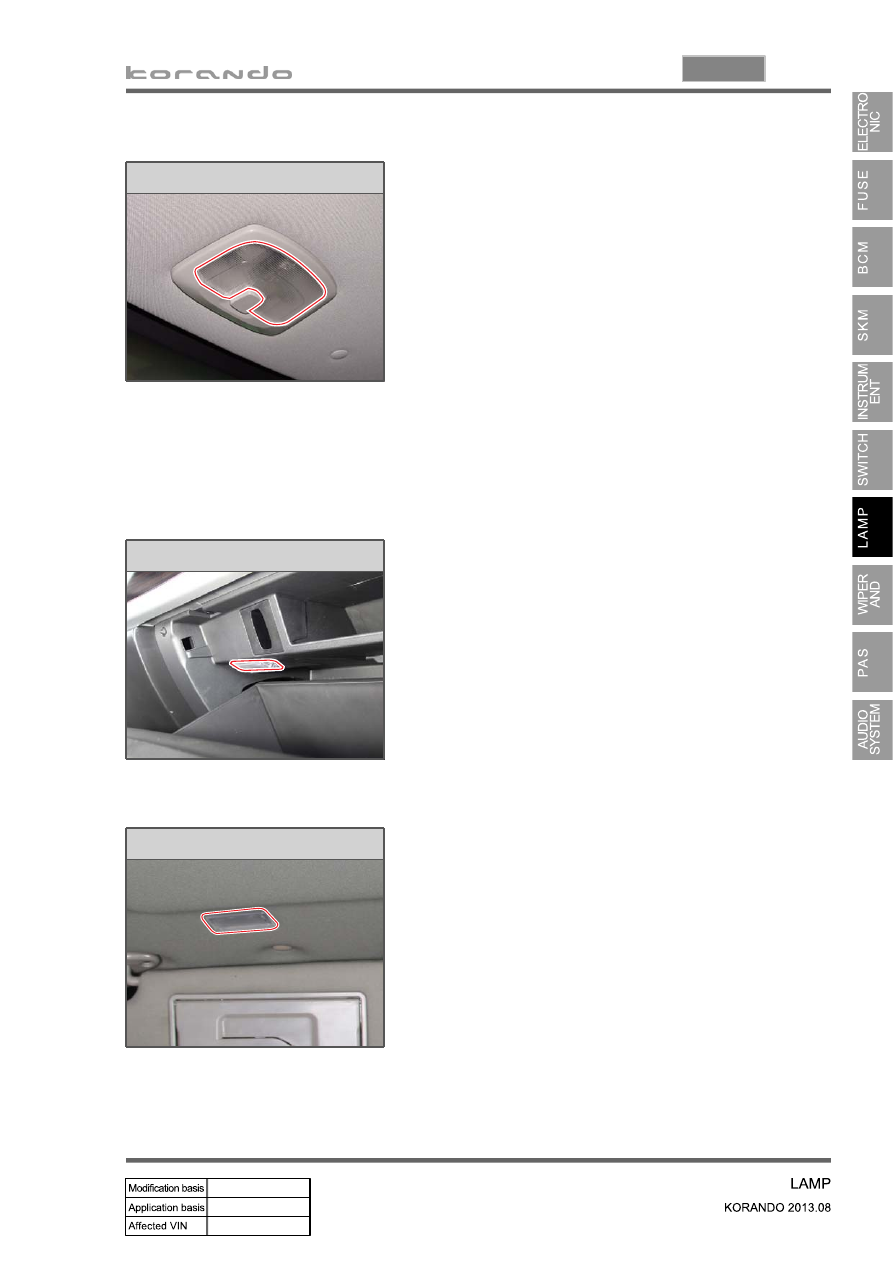

Sun visor lamp

Glove box lamp

(2) Luggage lamp

Luggage lamp

The luggage lamp is turned on when the tailgate is opened

with the switch operated.

This lamp is not controlled by the BCM, unlike the

front/center room lamp.

(3) Glove box lamp

The glove box lamp comes on when the glove box is

opened after the tail lamp is illuminated.

The sun visor lamp comes on when the sun visor vanity

mirror cover is opened.

Luggage lamp control by coupled operation switch when opening/closing tailgate

▶

The luggage lamp comes on when the tailgate is open.

The luggage lamp goes off as soon as the tailgate is closed.

1.

2.

(4) Sun visor lamp

07-40

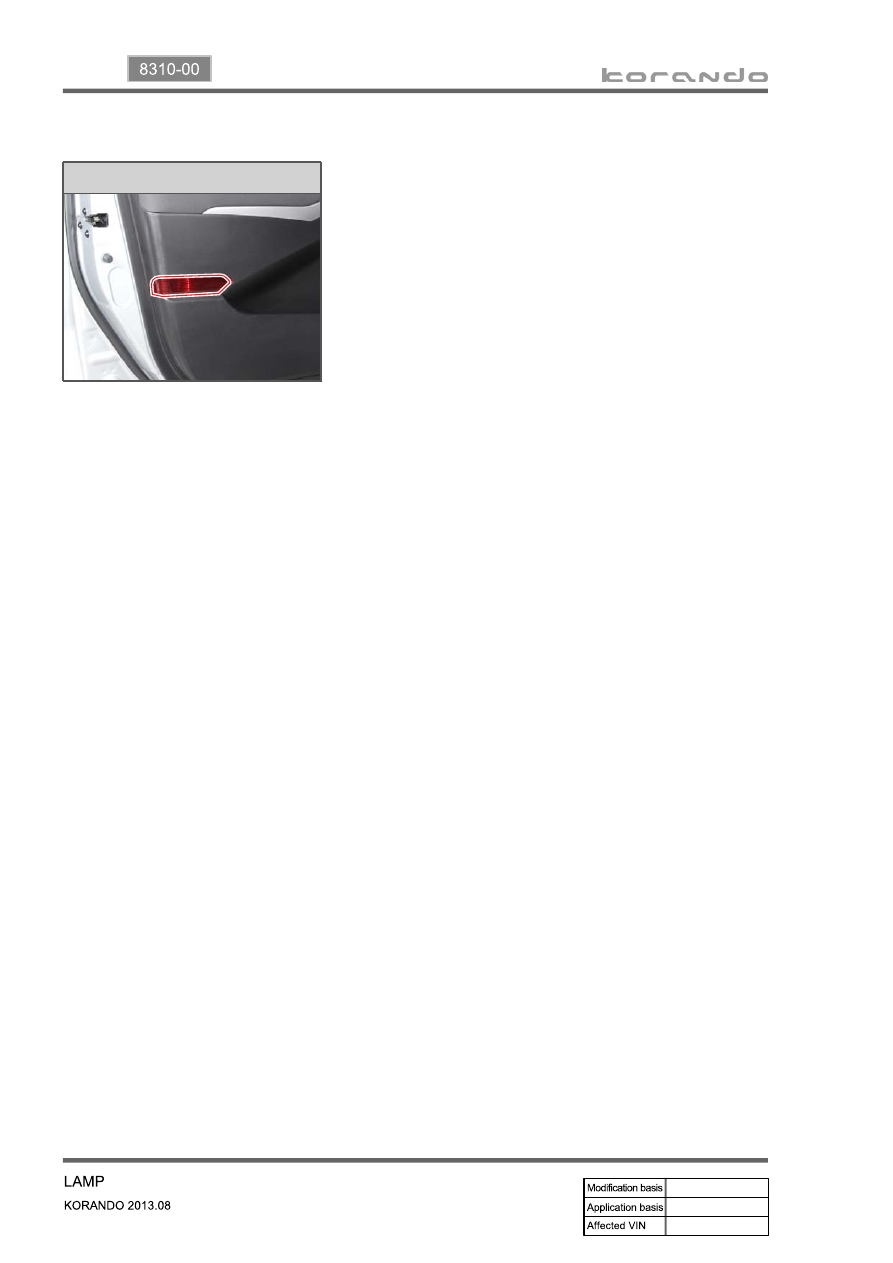

Courtesy lamp

The door courtesy lamp comes on when the driver's door

or passenger's door is opened.

(5) Courtesy lamp
