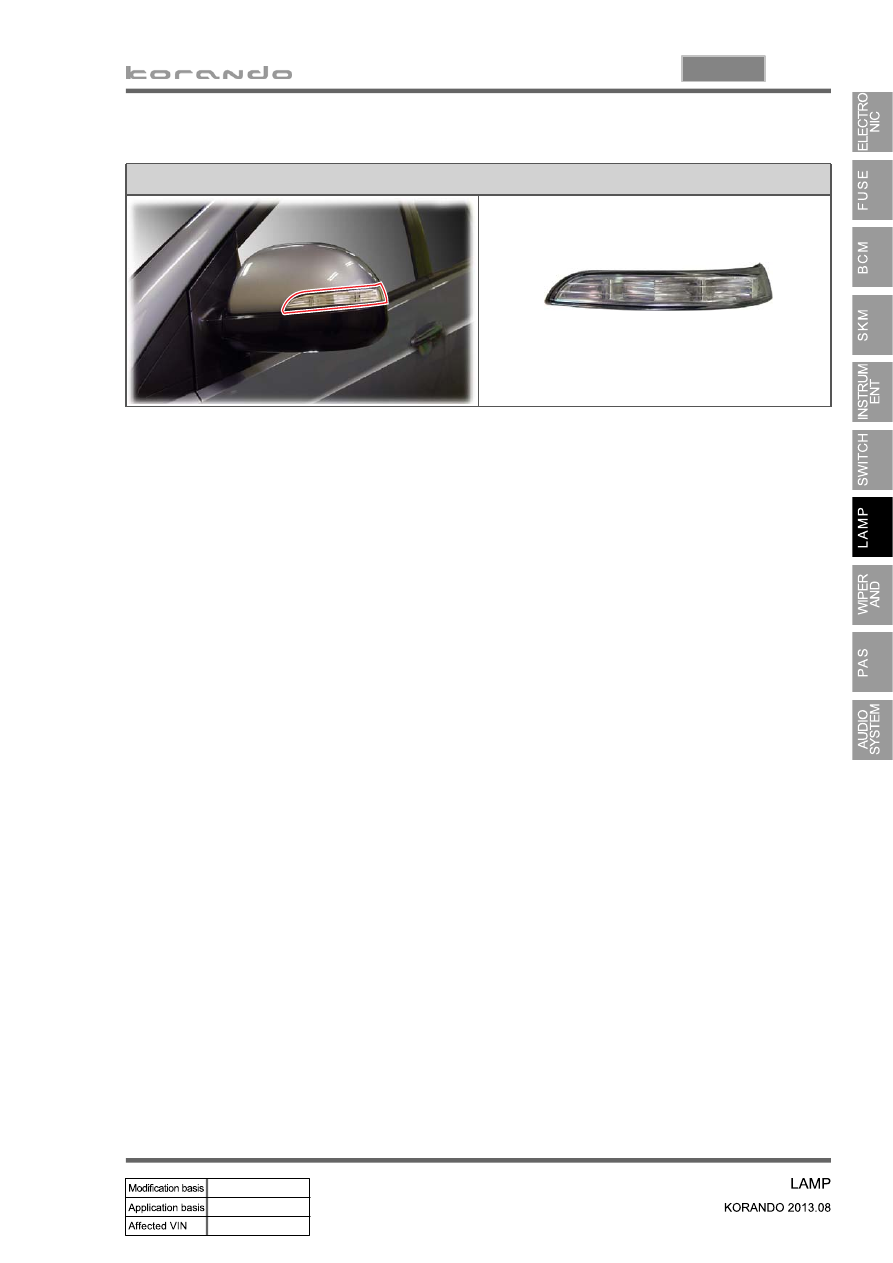

(7) Side repeater lamp

Side repeater lamp

The side repeater lamp is operated by the BCM when the BCM receives a signal from the multifunction

switch.

The BCM cycles the side repeater lamp and buzzer (ON/OFF) 75 times per minute.

The side repeater lamp operates only when IGN1 is ON.

If the side repeater lamp fails while it is illuminated, the BCM cycles the lamp and buzzer 100 times per

minute.

The lamp automatically flashes 3 times when the multifunction switch is turned on. If the switch is turned

off

during this operation, the lamp flashes 3 times and then goes off.

If the switch is turned off and then on during the 3 times of automatic flashing, the lamp flashes 3 more

times.

07-26

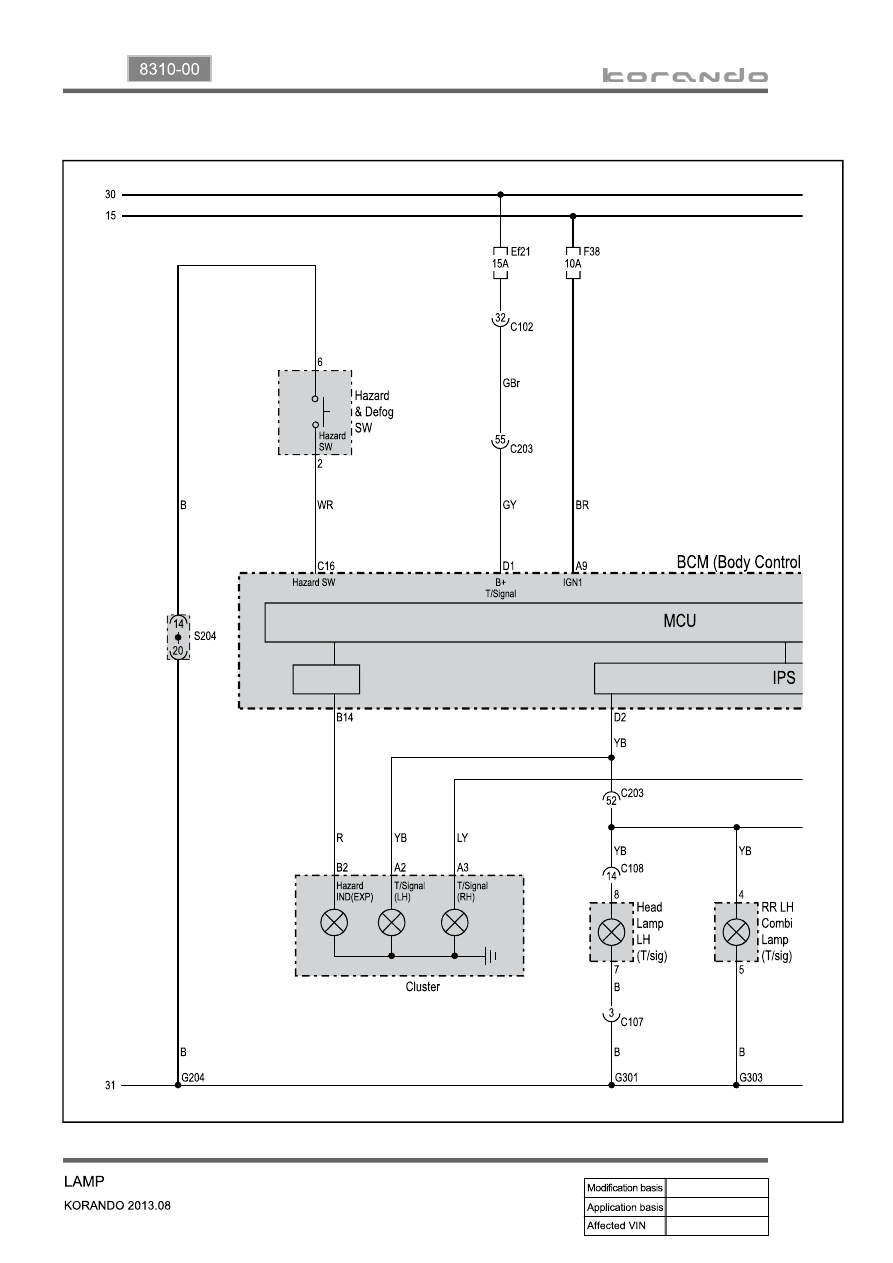

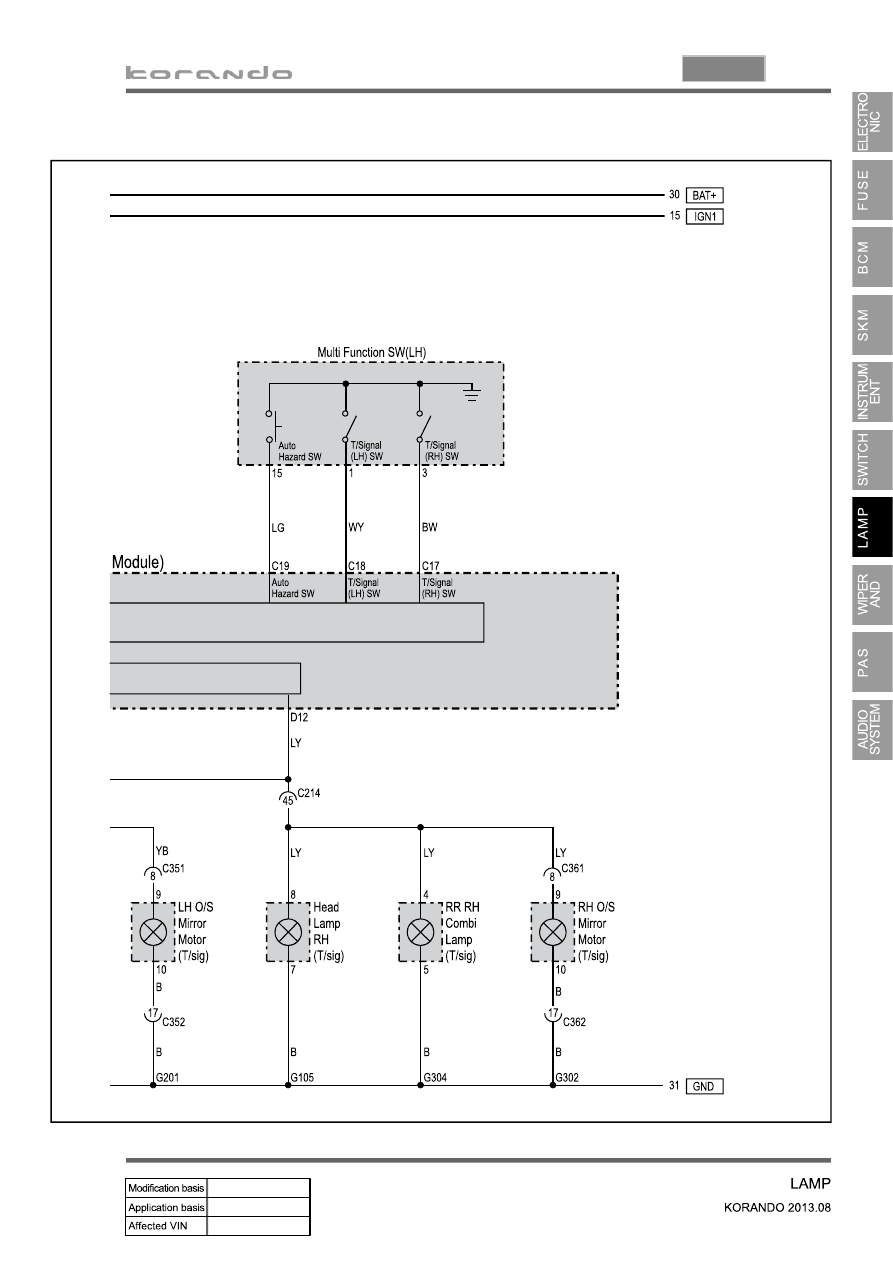

Turn signal lamp circuit diagram

▶

07-27

8310-00

07-28

(8) Stop lamp operation process

Depressing the brake pedal lights on the stop lamps by a signal from the stop lamp switch fitted to the

brake pedal and releasing the brake pedal turns off it.

(9) Backup lamp operation process

When shifting the TGS lever into the "R" position with the ignition switch "ON", the backup lamps come

on. If the lever is placed in other positions, the lamps go off.

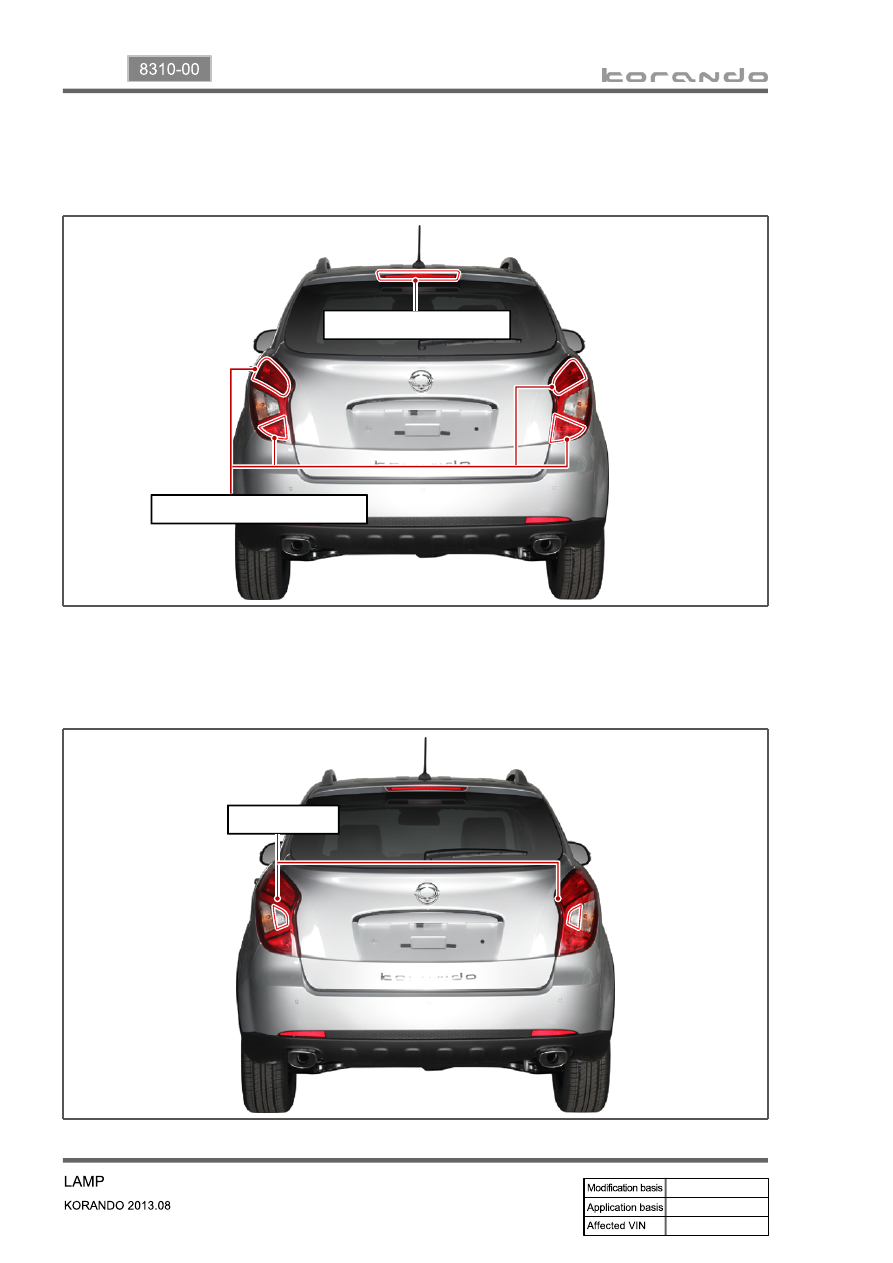

High mounted stop lamp

Rear combination stop lamp

Backup lamp
