2. CONFIGURATION

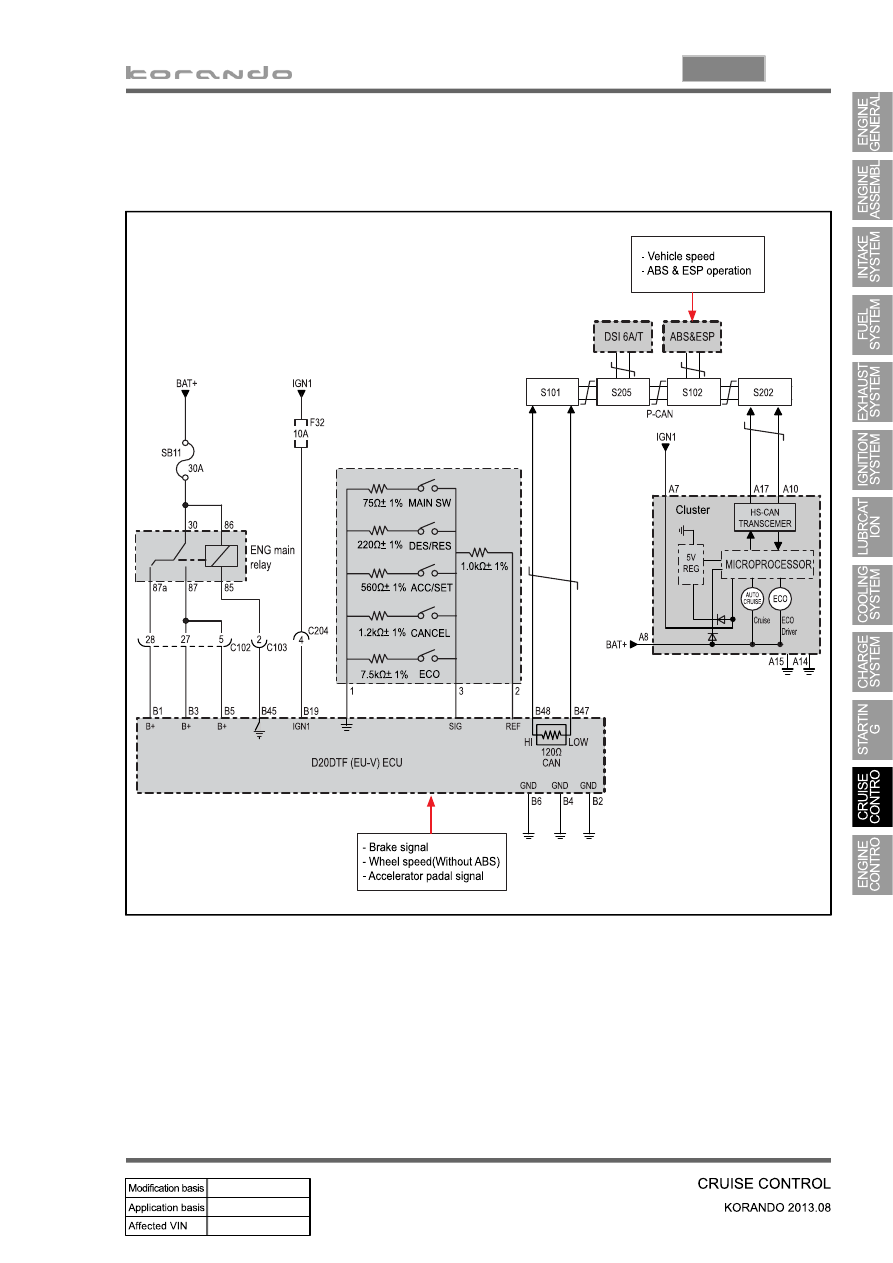

1) Circuit Diagram

The engine ECU detects the operating conditions of cruise control system, and monitors the braking

performance, vehicle speed, road conditions and ESP system operation. If the engine ECU determines

that there are not any problem to drive in cruise control mode, the vehicle can be operated by cruise

switch signals (decelerating, accelerating, cruising).

12-6

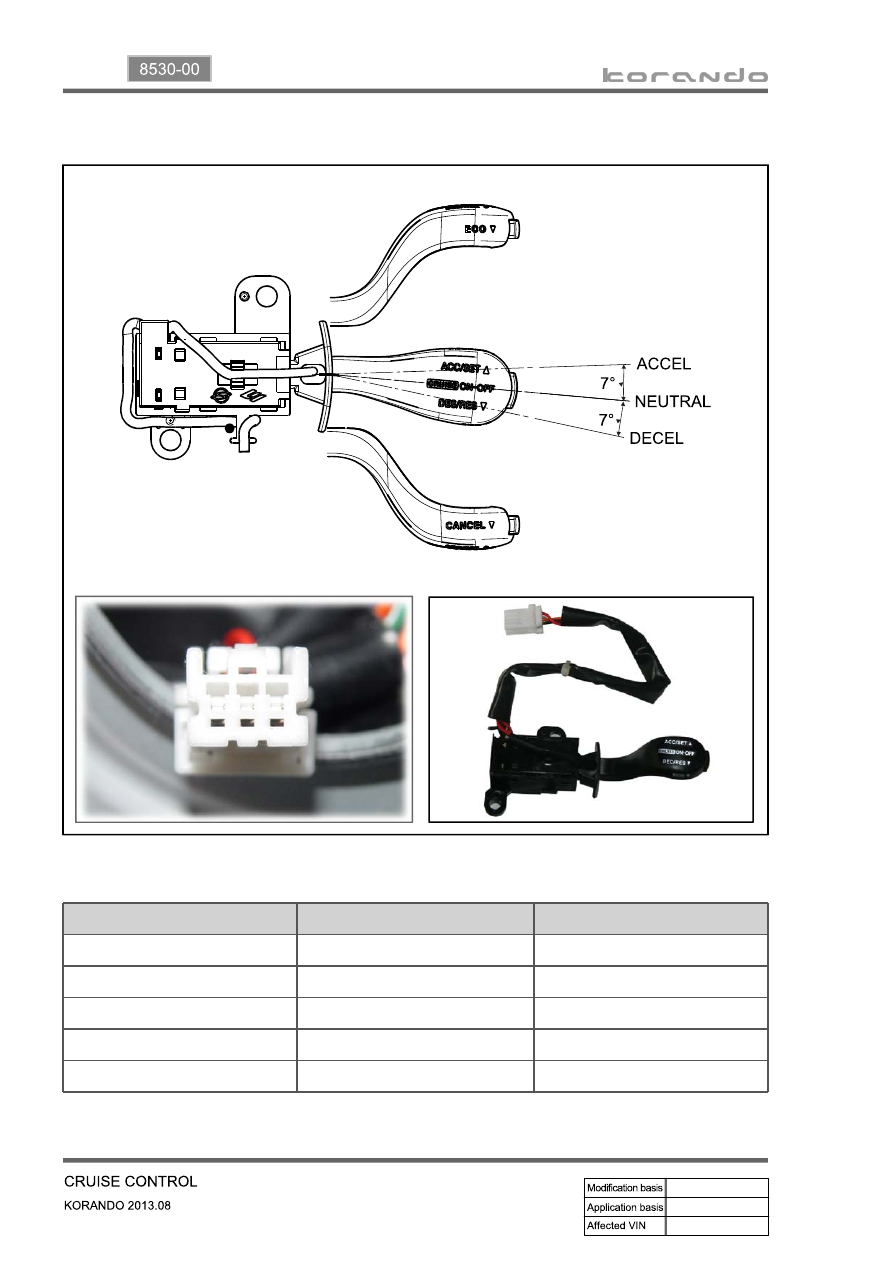

2) Components

Test voltage(VCC 5V)

FUNCTION

KEY VOLUE

REMARK

MAIN

0.15 ~ 0.55V

-

DES/RES

0.7 ~ 1.1V

-

ACC/SET

1.6 ~ 2.0V

-

CANCEL

2.52 ~ 2.92V

-

ECO

4.22 ~ 4.82V

-

12-7

8530-00

3. OPERATION

1) Setting a Desired Speed

To operate the cruise control, accelerate to the desired speed, which must be more than 38 km/h (24

MPH) and less than 150 km/h (90 MPH). In the vehicle equipped with manual transaxle, the gear shift

lever should be in 3rd (GSL: 2nd) or higher gear position.

Diesel engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch of

cruise control lever.

Gasoline engine equipped vehicle: When the desired speed is reached, press CRUISE ON (3) switch

of cruise control lever. The system is readyreadyreadyready to activate the cruise control function. To

activate the cruise control function, push up (1) the ACCEL switch of the cruise control lever.

Now, the vehicle is cruised by this system with the set speed.

And you can set to other vehicle speeds again with above steps after an accelerator pedal intervention

during the cruise control running.

1.

2.

3.

4.

Never use the cruise control system until you get used to it.

Improper use or not fully aware of this function could result in collision and/or personal injuries.

12-8

2) Accelerating with the Cruise Control System

(1) While the cruise control system is running

Push up the ACCEL switch of the cruise control lever and hold it until the desired speed is reached

without an accelerator pedal intervention.

When the desired speed is reached, release the lever.

1.

2.

(2) While the cruise control system is not running

Accelerate using the accelerator pedal over 38 km/h.

Push up the ACCEL switch of the cruise control lever and hold it.

And then release the accelerator pedal slowly.

When the desired speed is reached, release the lever.

1.

2.

3.

4.

(3) Tap-up while the cruise control system is running

Push up the ACCEL switch of the cruise control lever less than 0.5 second per one switching while the

cruise control system is running. This is a tap-up switching.

When you operate a tap-up switching, the vehicle is accelerated by 1.0 km/h over the previous set

speed.

If you want to accelerate to 10 km/h, operate the tap-up switching ten times without accelerating with

the cruise control system.

1.

2.

3.
