15-49

0000-00

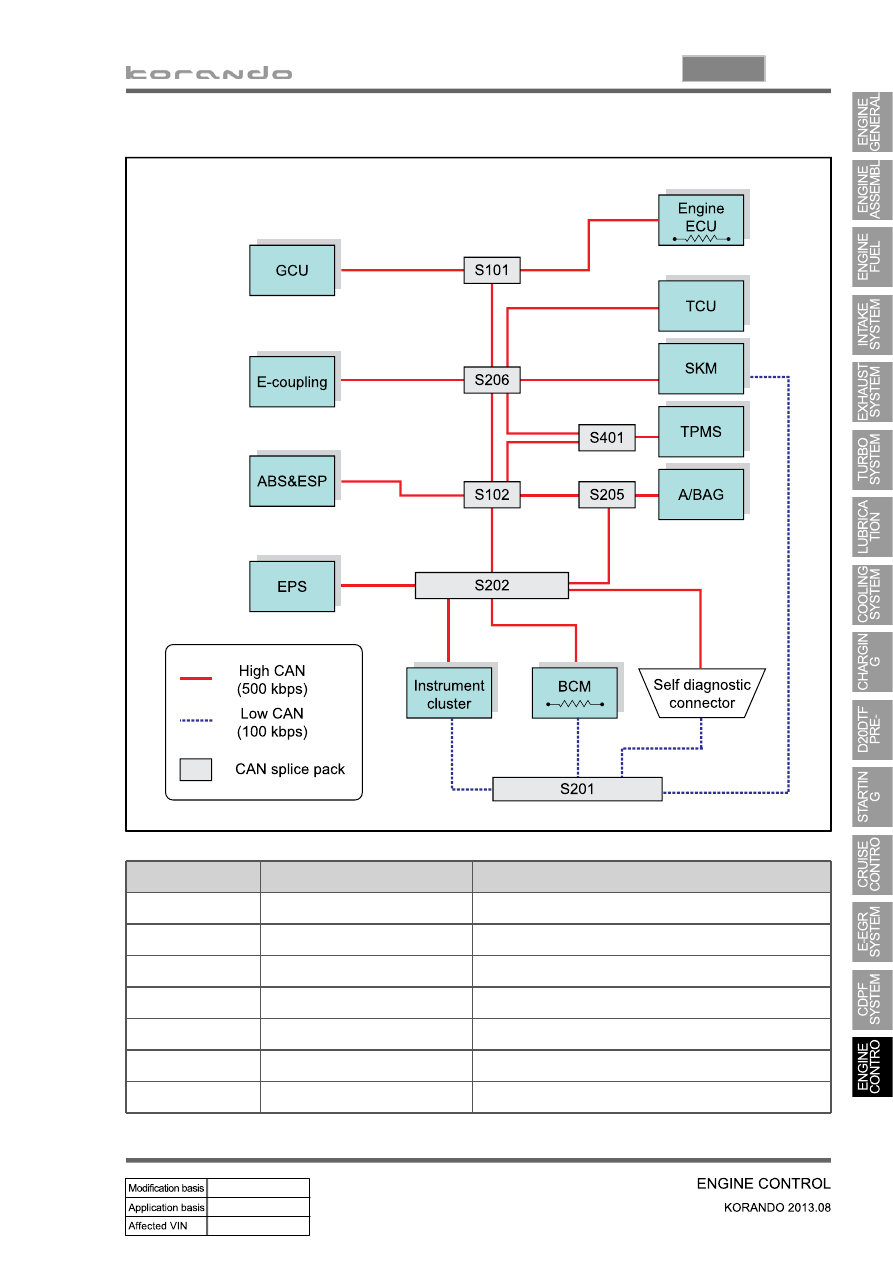

(2) CAN communication flow chart

Splice pack

Wiring harness

Location

S101

W/H Floor(LH)

Glow Control Unit

S102

W/H Floor(RH)

Inside RH Fender

S202

Main wiring

Backside Cluster(LH Cowl Cross Member)

S204

Main wiring

Backside Cluster(Upper ICM Relay Box)

S205

W/H Main

Backside Audio(CTR Cowl Cross Member)

S206

W/H Floor(LH)

Under Driver Seat

S401

W/H Floor(LH)

Beside PAS Unit(Inside LH QTR Trim)

15-50

(3) Input/Output for CAN communication

01-3

0000-00

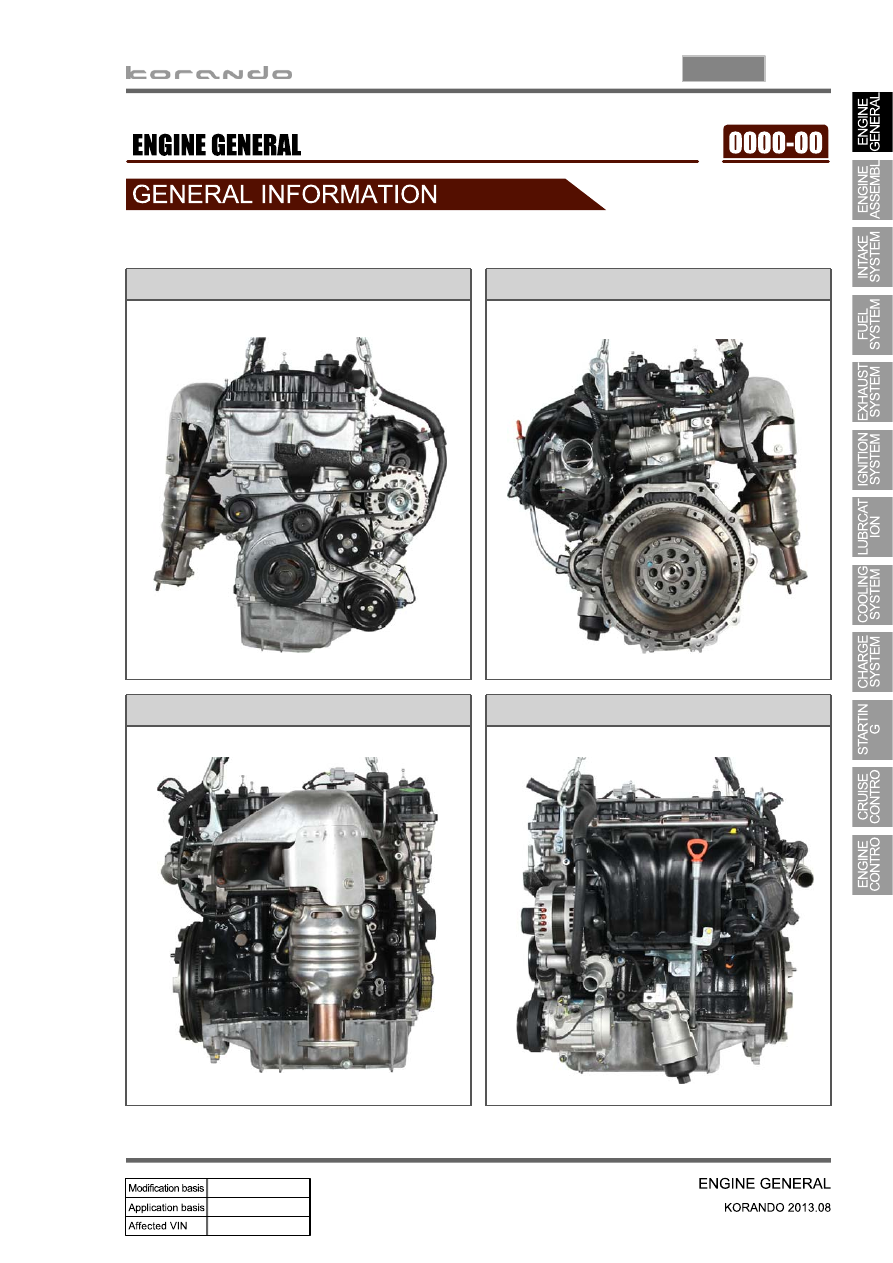

Right side view

Left side view

Rear view

Front view

1. LAYOUT

01-4

Engine mounting bracket

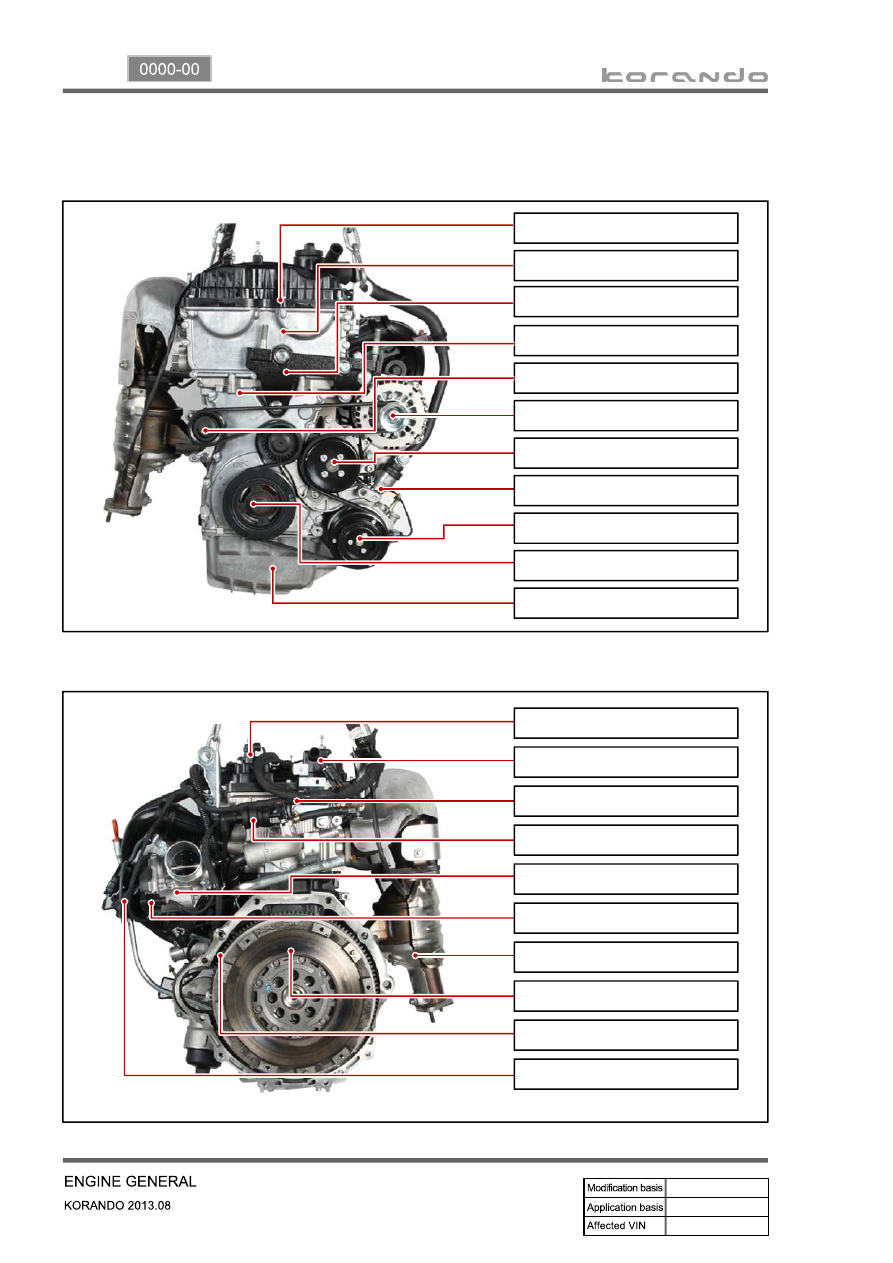

2. MAJOR COMPONENTS

Front View

▶

Cylinder head front cover

Timing gear case cover

EPS idler pulley

Alternator

Water pump pulley

A/C compressor

Crankshaft pulley

Oil pan assembly

Rear View

▶

Camshaft position sensor

Breather nipple

Purge control solenoid valve

Coolant temperature sensor

Electronic throttle body

T-MAP sensor

MCC complete

VIS solenoid valve

Cylinder head cover

Dual mass flywheel

Crankshaft position sensor

Hydraulic tensioner assembly
