2. INSPECTION

1) Alternator Output Test

Item

How to check

DTC set value / Action

Output

current

B terminal

current

Rotor

coil

resistance

L terminal

voltage

Disconnect the cable connected to the B

terminal on the alternator. Connect one end

of the ammeter to the B terminal and the

other end to the cable connected to the B

terminal.

Measure the maximum output value.

(Maintain the engine speed between 2,500

and 3,000 rpm.)

(Turn the headlamp and all the electrical

switches on.)

1.

2.

Pass: If the measured current is 45 A

or higher.

Fail: If the measured current is less

than 45 A.

Check the current of the B terminal.

-

-

-

Move the gear selector lever to the

 neutral position.

Maintain the engine speed at 2,500 rpm

with the vehicle unloaded.

(Turn all the electrical switches off.)

1.

2.

Open circuit: If the measured

current is 5 A or higher.

-

Disconnect the negative cable from the

battery.

Remove the B terminal and turn off the

ignition switch.

Measure the resistance between the L and F

terminals with an ohmmeter.

1.

2.

3.

Pass: If the measured resistance is
between 3 and 6 Ω.

Faulty rotor coil or slip ring: If the

measured resistance is less than 3
Ω or greater than 6 Ω.

-

-

Connect the B terminal wiring.

Measure the voltage with the engine running.

1.

2.

Specification: 12.5 V to 14.5 V

Faulty IC regulator or field coil: If

the measured voltage is 14.5 V or

higher.

-

-

Disconnect the negative battery cable.

Connect the negative cable again after connecting the ammeter.

-

-

09-5

0000-00

2) Troubleshooting for Alternator

Item

Cause

Action

Overcharged battery

Defective alternator voltage regulator

Replace

defective alternator detection wiring

Repair or replace

Discharged battery

Loose alternator drive belt

Adjust the belt tension or replace

Poor connection of related circuit or

open circuit

Retighten the loose connection or

repair open circuit

Defective alternator voltage regulator

Replace

Terminated battery

Replace

Defective ground

Repair

Charge warning lamp

does not come on when

turning on ignition switch

with engine stopped

Defective alternator voltage regulator

Replace

Open circuit in charge warning lamp,

fuse or wiring

Replace or repair the charge

warning lamp or fuse

Defective ignition switch

Replace

Defective ground of alternator circuit

Repair

Charge warning lamp

does not go off after

starting engine

Defective alternator voltage regulator

Replace

Corroded or worn battery cable

Repair or replace

Loose alternator drive belt

Adjust the belt tension or replace the

belt

Defective wiring harness

Repair or replace

09-6

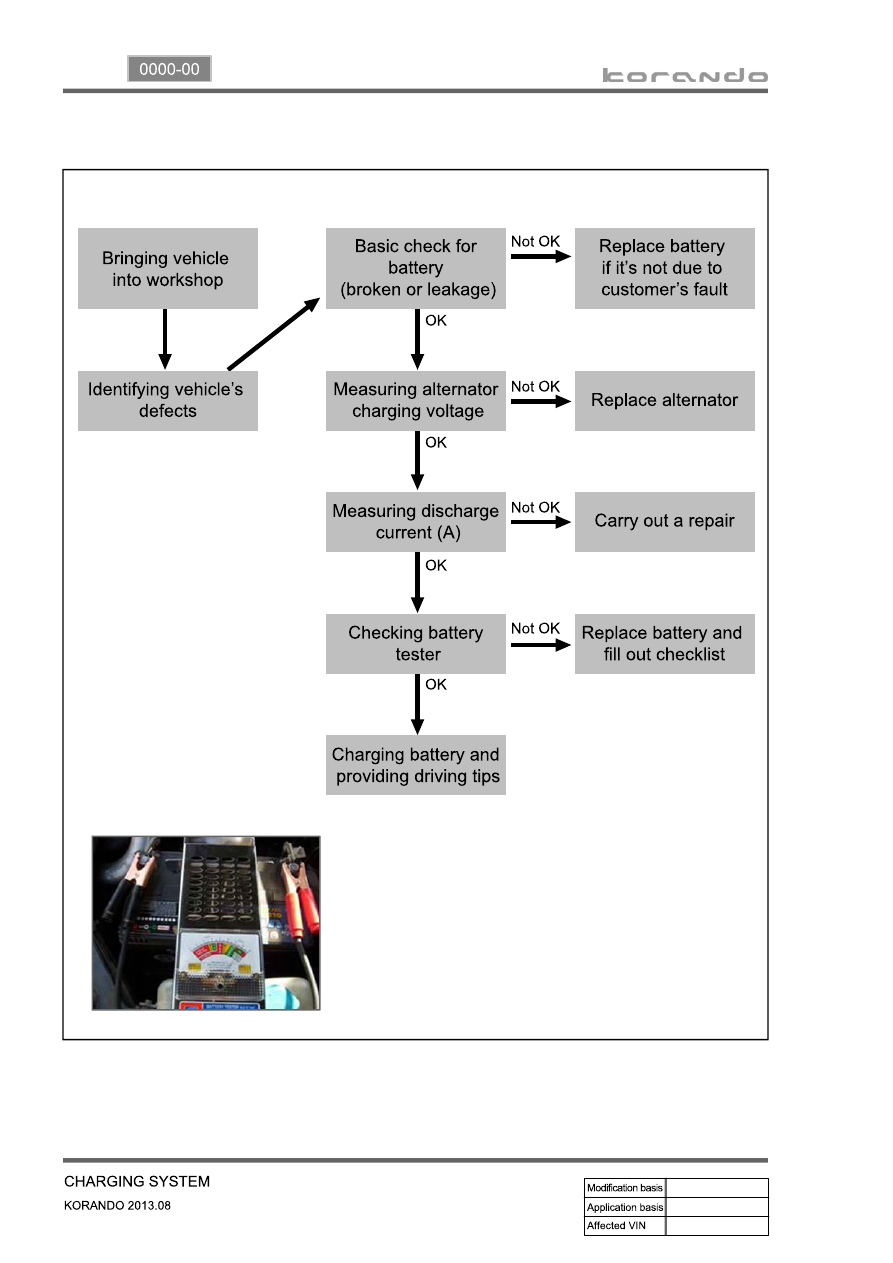

3) Checking Battery

09-7

0000-00

(1) Checking

Using battery tester

▶

PASS (11.0 V or more): Explain to the customer that the battery is reusable.

Need to be charged (9.0 to 11.0 V): Charge the battery with a charger and reinstall it. Explain it to the

customer.

Need to be replaced (9.0 V or more): The battery should be replaced due to overdischarging.

-

-

-

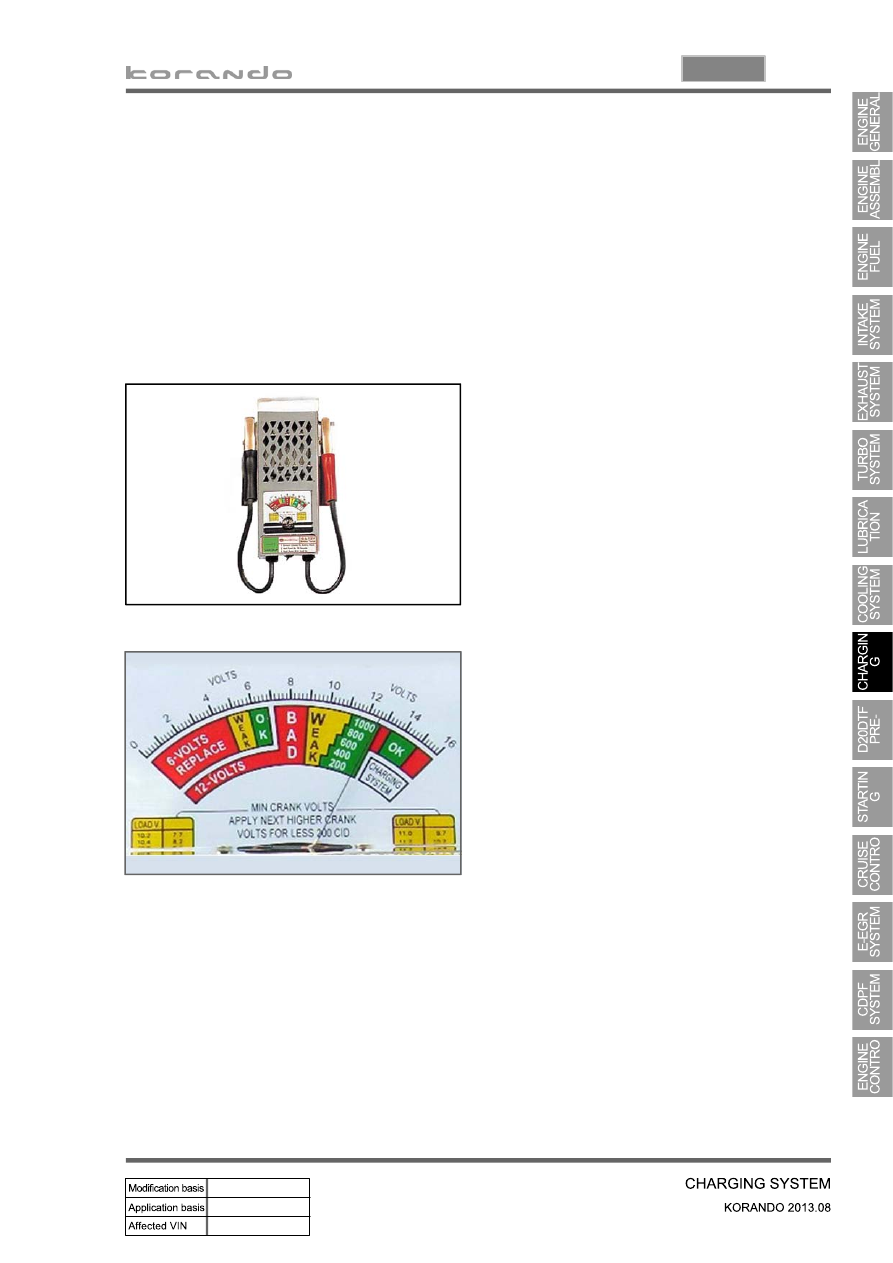

(2) How to use battery tester

How it works and How to use it

▶

Determine battery capacity by fixing current

(load capacity) and time and varying voltage.

Determine battery capacity based on the

amount of voltage drop when discharging a

fixed load capacity (120 A) for 5 seconds.

Connect the tester to the battery and read the

display while applying a load for 5 seconds.

-

-

-

How to read display

▶

Red area (①): overdischarge or faulty

battery
Yellow area (②): Need to be charged

(using a vehicle alternator and a battery

charger)
Green area (③): Normal

Red area on the left-hand side of OK
(④): Impossible to charge with an

alternator
Green area with OK (⑤): Normally

charged
Red area on the right-hand side of OK (⑥

Overcharged by an alternator

-

-

-

-

-

-
