SsangYong Korando III (2010 year). Manual - part 338





05-4

2. CAUTIONS

Do not park the vehicle on flammable materials, such as grass, leaves and carpet.

Do not touch the catalyst or the exhaust gas ignition system when the engine is running.

If a misfire occurs in the combustion chamber or the emission of pollutant exceeds the specified

level, the catalyst can be damaged.

When servicing or replacing components of the exhaust system, makes sure that the components

are positioned at regular intervals from all other parts of the under body.

Be careful not to damage the exhaust system when lifting the vehicle from its side.

All components and body parts of the engine exhaust system should be inspected for crack,

damage, air hole, part loss and incorrect mounting location. Also check for any deformation which

can result in exhaust gas drawn into the vehicle.

Make sure that the exhaust pipe is cooled down sufficiently before working on it because it is still hot

right after the engine is stopped.

Wear protective gloves when removing the exhaust pipe.

-

-

-

-

-

-

-

-

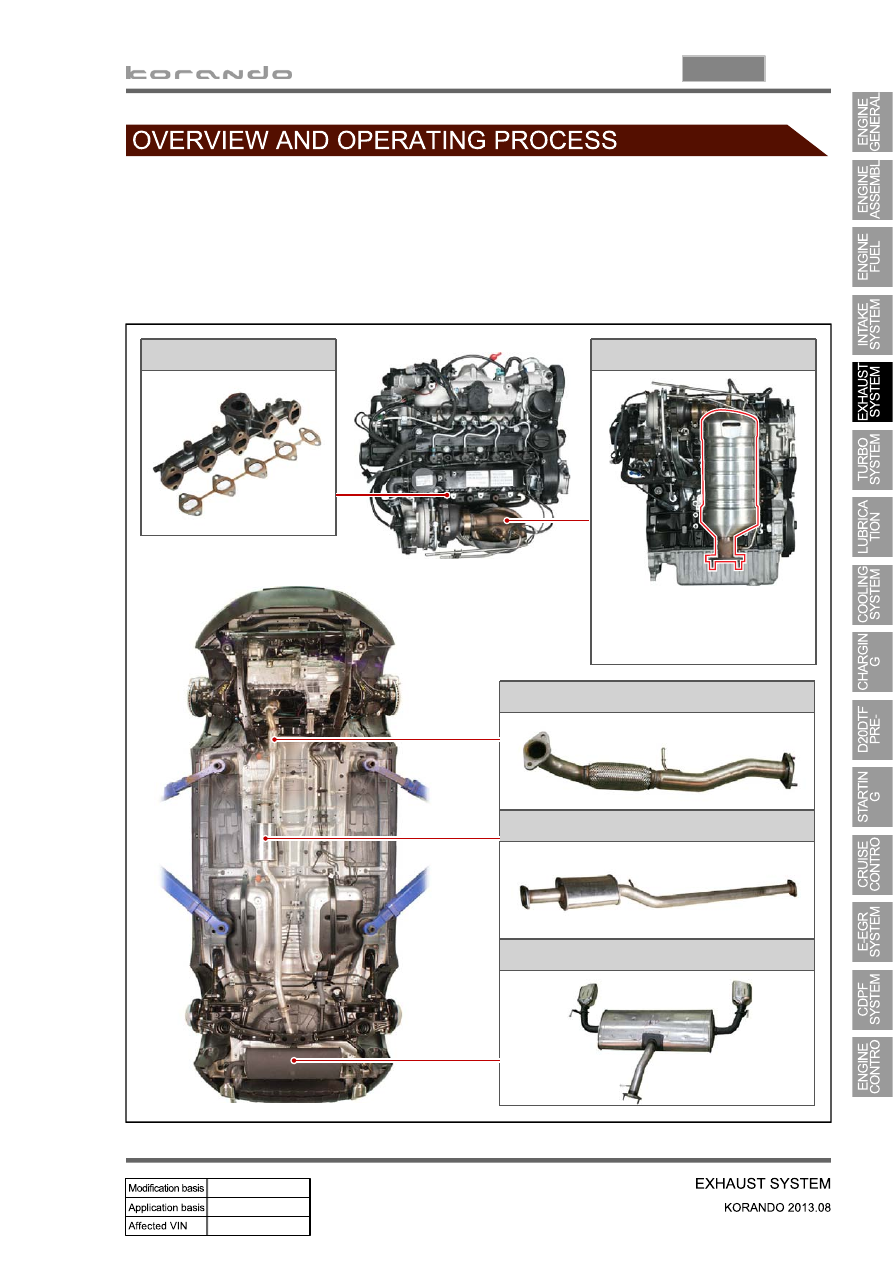

05-5

0000-00

Exhaust manifold

CDPF assembly

   No. 1 exhaust pipe

No. 2 exhaust pipe

No.3 muffler pipe

1. OVERVIEW

This system purifies the exhaust gas generated by the combustion in the engine to reduce the pollutants

and noise during that arise during combustion.

2. COMPONENT

Fore details about the CDPF

assembly, refer to Chapter

"CDPF System".

05-6

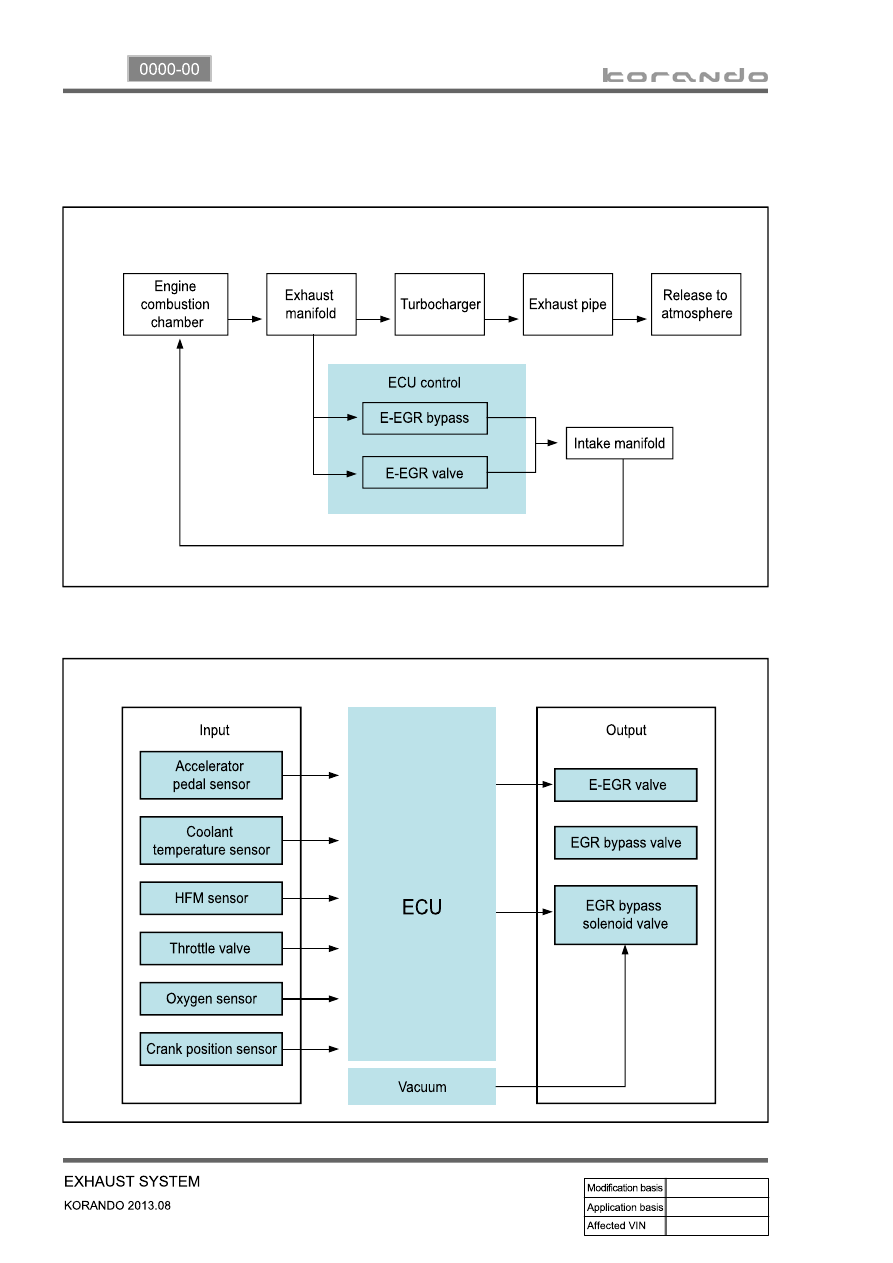

3. OPERATING PROCESS

1) Exhaust Gas Flow

2) Input & Output Devices

06-3

0000-00

1. SPECIFICATION

Component

Item

Specification

Turbocharger

Max. expansion coefficient

5.0

Max. turbine speed

215,000 rpm

Max. temperature of turbine housing

800 ℃

Weight

7.2 kg

E-Actuator

Operation duty cycle

300 Hz
