01-6

2. SPECIFICATION

Description

Diesel 2.0 Engine

 (D20DTF(Low CO2))

General

Overall length (mm)

4,410 (4,500: with trailer hitch)

Overall width (mm)

1,830

Overall height (mm)

1,675

Gross vehicle
weight (kg)

M/T

4WD : 2,065(2,110)
2WD : 1,905(1,920)

Curb vehicle
weight (kg)

M/T

4WD : 1,740(1,785)
2WD : 1,580(1,595)

Fuel

Diesel

Fuel tank capacity (ℓ)

57

Engine

Engine

D20DTF

Number of cylinders/ Compression ratio

4 / 16.5:1

Total displacement (cc)

1,998

Camshaft arrangement

DOHC

Max. power

M/T

149 ps / 4,000 rpm

Max. torque

360 Nm / 1,500~2,800 RPM

Idle speed

750 ± 20 rpm

Cooling system

Water-cooled / forced circulation

Coolant capacity (ℓ)

8.5

Lubrication type

Gear pump, forced circulation

Max. oil capacity (ℓ)

6.0

Turbocharger and cooling type

Turbocharger, water-cooled

01-7

0000-00

Brake

Master cylinder type

Tandem type

Booster type

Vacuum assisted booster type

Brake type

Front wheel

Disc

Rear wheel

Disc

Parking brake

Mechanical type

Suspension

Front suspension

MacPherson + Coil spring

Rear suspension

Multi-link + Coil spring

Air
Conditioner

Refrigerant (capacity)

R-134a(430 ± 30g)

Electrical

Battery type / Capacity (V-AH)

MF / 12 - 90

Starter capacity (V-KW)

12 - 2.3

Alternator capacity (V-A)

14V-140A (EPS), 14V-120A (NPS)

* ( ) option

Description

Diesel 2.0 Engine

(D20DTF(Low CO2))

Manual
Transaxle

Operating type

Floor change type

Gear ratio

1st

3.385

2nd

1.708

3rd

1.033

4th

0.786

5th

0.730

6th

0.595

Reverse

3.747

Transfer Case Model

4WD

Type

Electronic control type

Clutch

Operating type

Hydraulic type

Disc type

Dry single diaphragm type

Power
Steering

Type

Rack and pinion

Steering angle

Inner

39.0°

Outer

31.24°

Rear Axle

Drive shaft type

Independent
suspension

Ball joint type (4WD)

Axle housing type

Build-up type (4WD)

01-8

3. RECOMMENDED FLUIDS AND LUBRICANTS

Descriptions

Capacity

Specifications

Engine Oil

Diesel 2.0

≒ 6.0ℓ

Quality class: Ssangyong genuine engine oil
(Total Quartz INEO ECS 5W 30, SK ZIC SY
5W 30 or oil Approved by MB 229.51 SAE 5W30)

Engine Coolant

Diesel 2.0

≒ 8.5ℓ

Ssangyong genuine coolant
Anti-Freeze: SYC-1025

Manual Transaxle
Fluid

6-speed

≒ 1.6ℓ

Ssangyong genuine oil (HD MTF 75W/85
(SHELL) or HK MTF 75W/85(SK))

Transfer Case  Fluid

4WD

≒ 0.58ℓ

Ssangyong genuine oil
(IDEMITSU LW 80W/90)

Rear Axle Oil

4WD

≒ 0.7ℓ

Ssangyong genuine oil
(SAE 80W/90, API GL-5)

Brake / Clutch Fluid

As required

Ssangyong genuine oil (DOT4)

Power Steering Fluid

≒ 1.0ℓ

Ssangyong genuine oil (ATF DEXRON II)
* TOTAL FLUIDE DA (Extreme cold condition
only)

Use only Ssangyong genuine fluids. Use of non-recommended products could cause damage to

the unit

Keep the specified capacity and service interval.

-

-

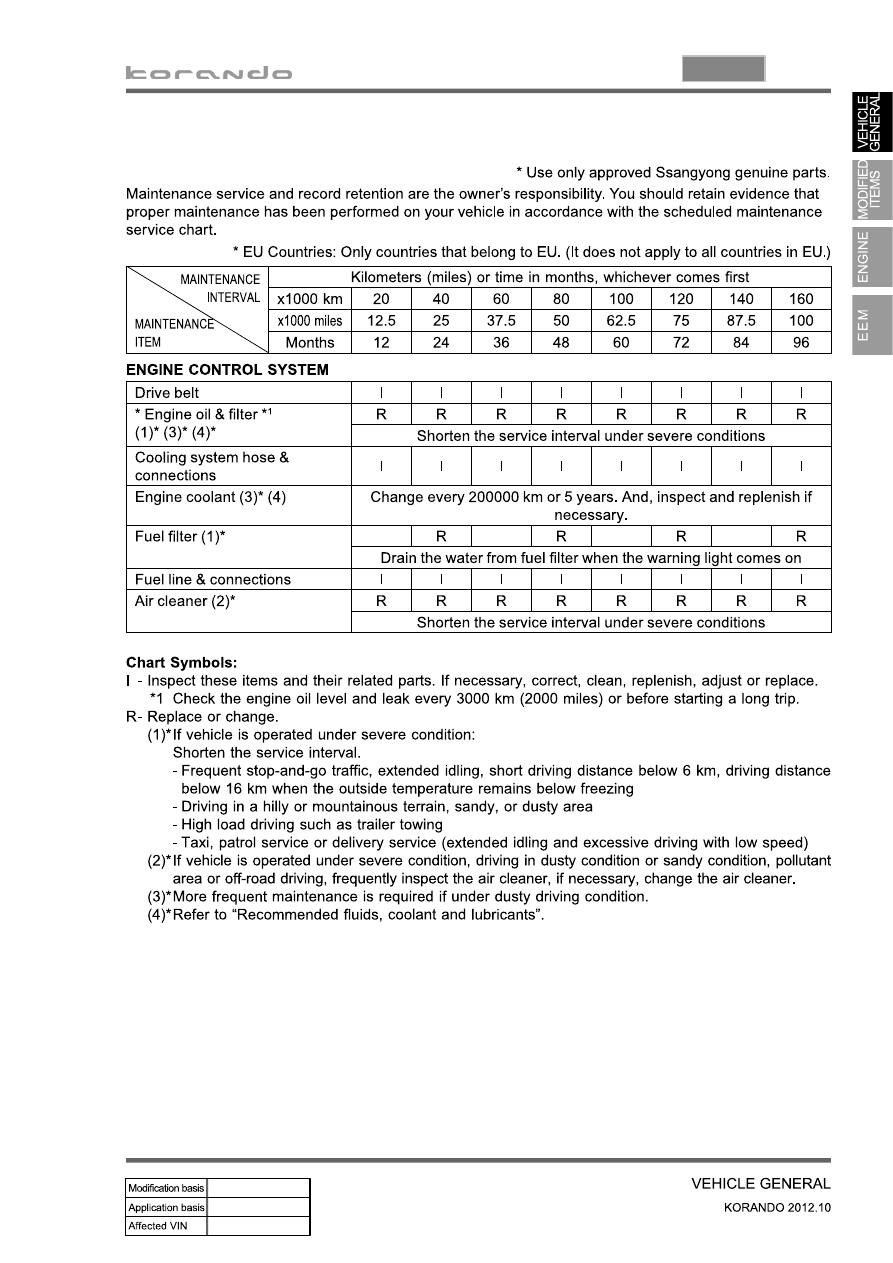

01-9

0000-00

4. SCHEDULED MAINTENANCE SERVICES
