15-5

0000-00

Purge control

solenoid valve

G20DF engine

ECU

Coolant Temp

sensor

Camshaft position

sensor

Crankshaft position

sensor

T-MAP sensor

VIS solenoid valve

Electronic throttle

body

Magnetic trigger

ring

Front oxygen

sensor

15-6

2. SYSTEM OPERATION

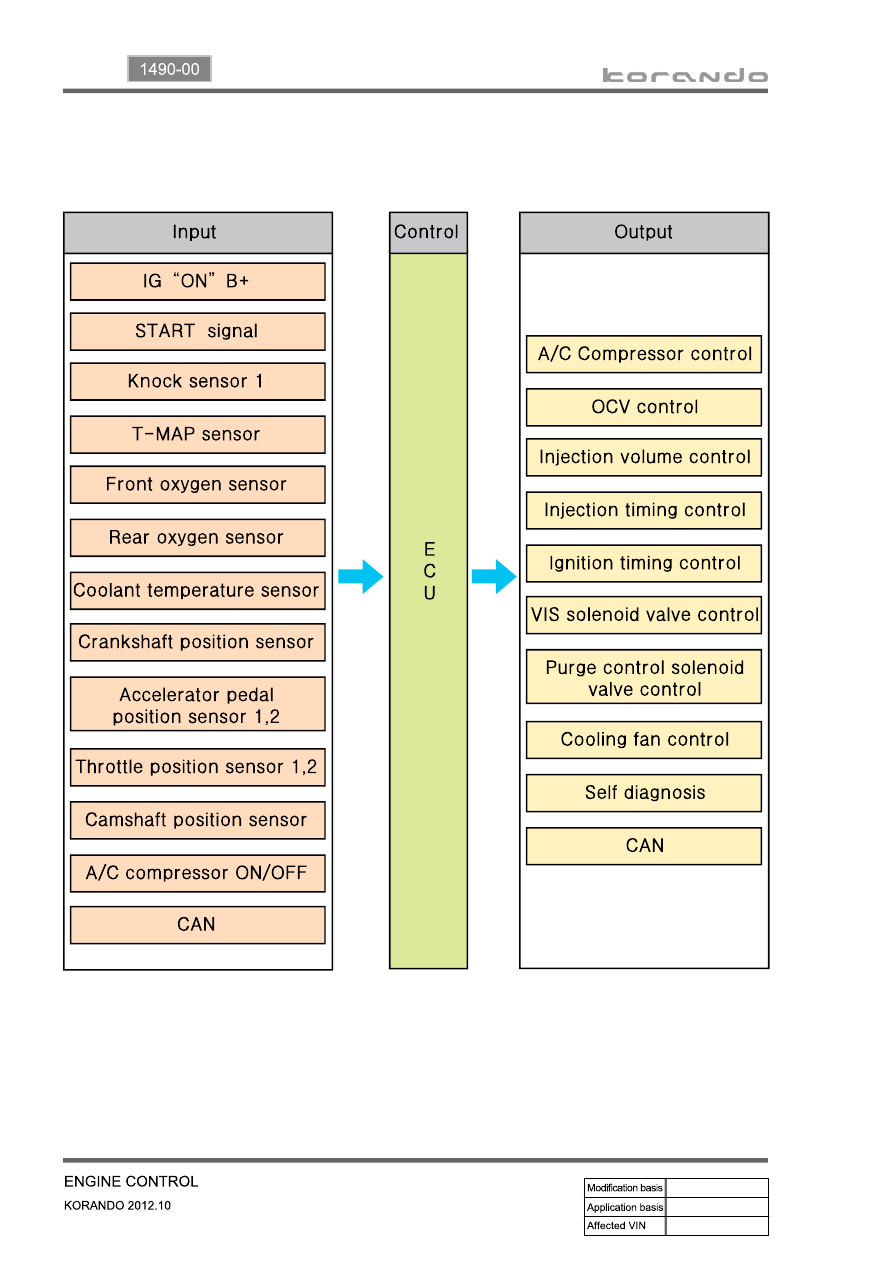

1) Input/Output of ECU

15-7

0000-00

Rear oxygen

sensor

2) Components for ECU Input

Coolant temperature

sensor

Camshaft position

sensor

Crankshaft position

sensor

Front oxygen sensor

Knock sensor

G20DF Engine ECU

Electronic throttle

body

Refrigerant pressure sensor

Clutch pedal signal

Blower switch signal

Brake pedal signal

CAN

ABS & ESP

Instrument cluster

TCU

-

-

-

Oil pressure

switch

Oil pressure warning lamp

T-MAP sensor

15-8

A/C compressor

OCV (Oil Control Valve)

3) Components for ECU Output

Start motor

Injector

VIS solenoid valve

Purge control solenoid

valve

G20DF Engine ECU

Ignition coil

CAN

ABS & ESP unit

BCM

E-coupling unit

EPS

Instrument cluster

SKM

TCU

Diagnostic tool

-

-

-

-

-

-

-

-

Cooling fan

module
