08-15

2112-01

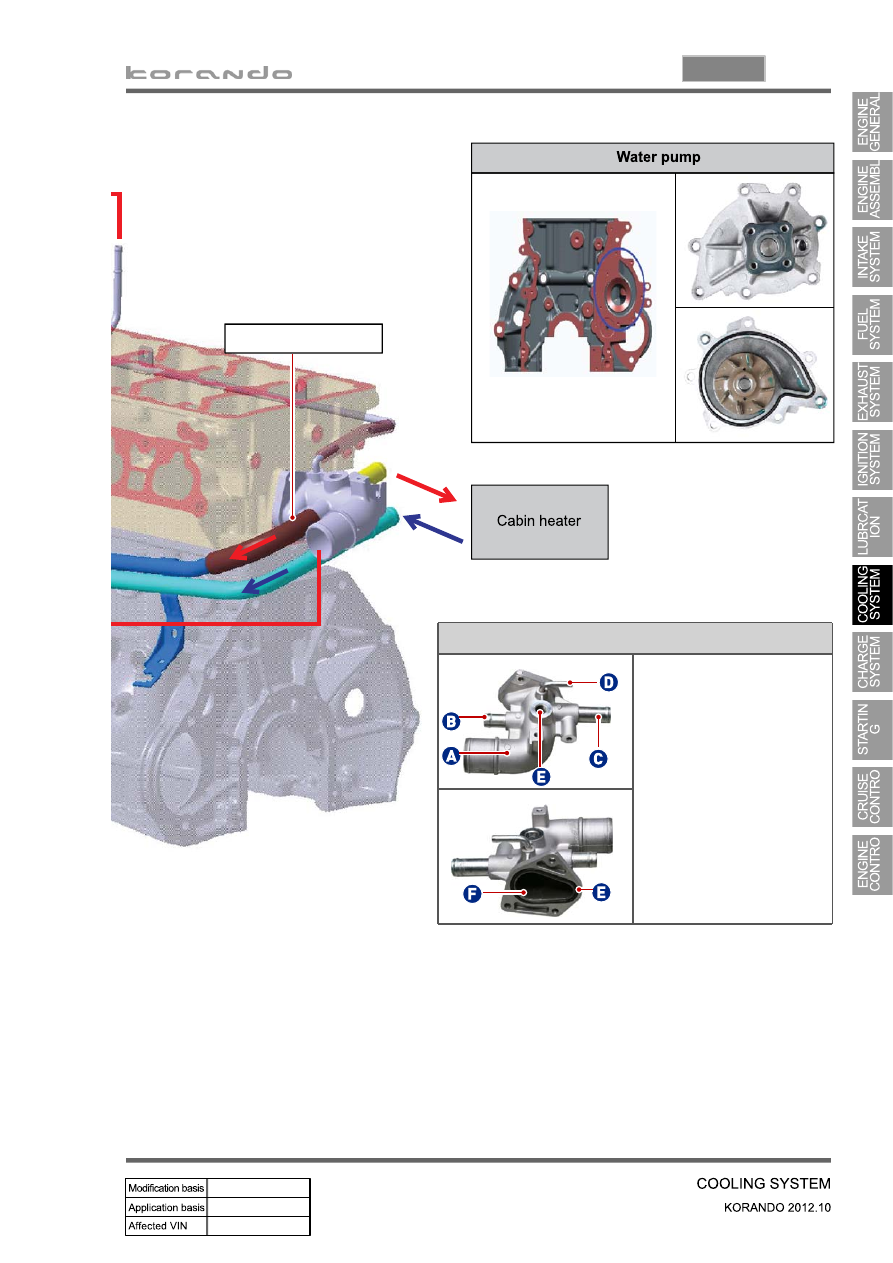

Coolant outlet port

to radiator

to water pump (bypass)

to cabin heater

to coolant reservoir

Coolant temperature

sensor mountinh boss

from cylinder head

Gasket

A:

B:

C:

D:

E:

F:

G:

Coolant outlet port

09-3

1452-01

1. SPECIFICATION

Unit

Description

Specification

Alternator

Type

HPS

EPS

Crankshaft pulley : Alternator pulley

1 : 2.66

Normal output

(idle/2200rpm)

70/140A

←

Regulator voltage

12V

←

Brush

Length

12.5mm

←

Wear limit

7.0mm

←

Battery

Type

MF

←

Capacity

90AH

←

09-4

2. LAYOUT

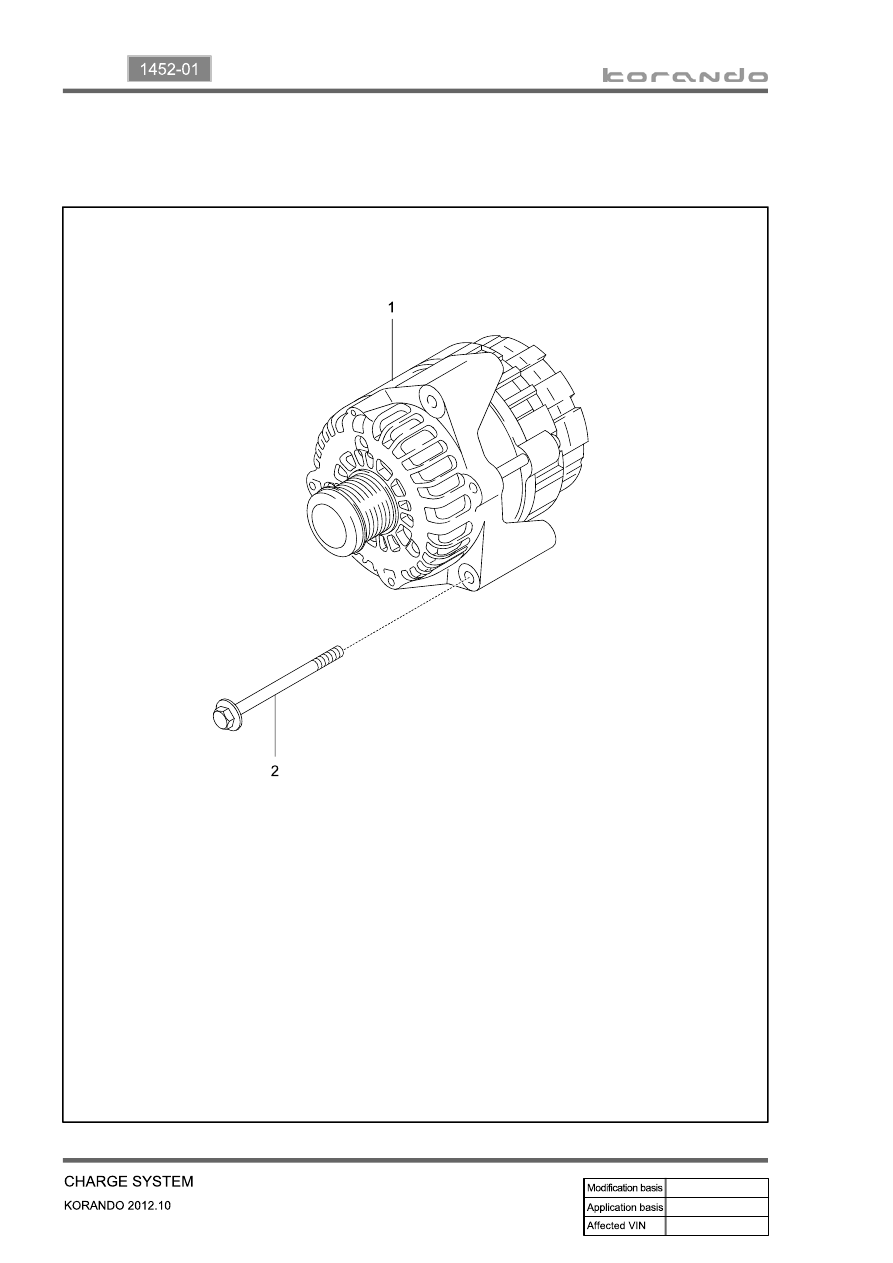

1) Alternator

Alternator assembly

Bolt

1.

2.

09-5

1452-01

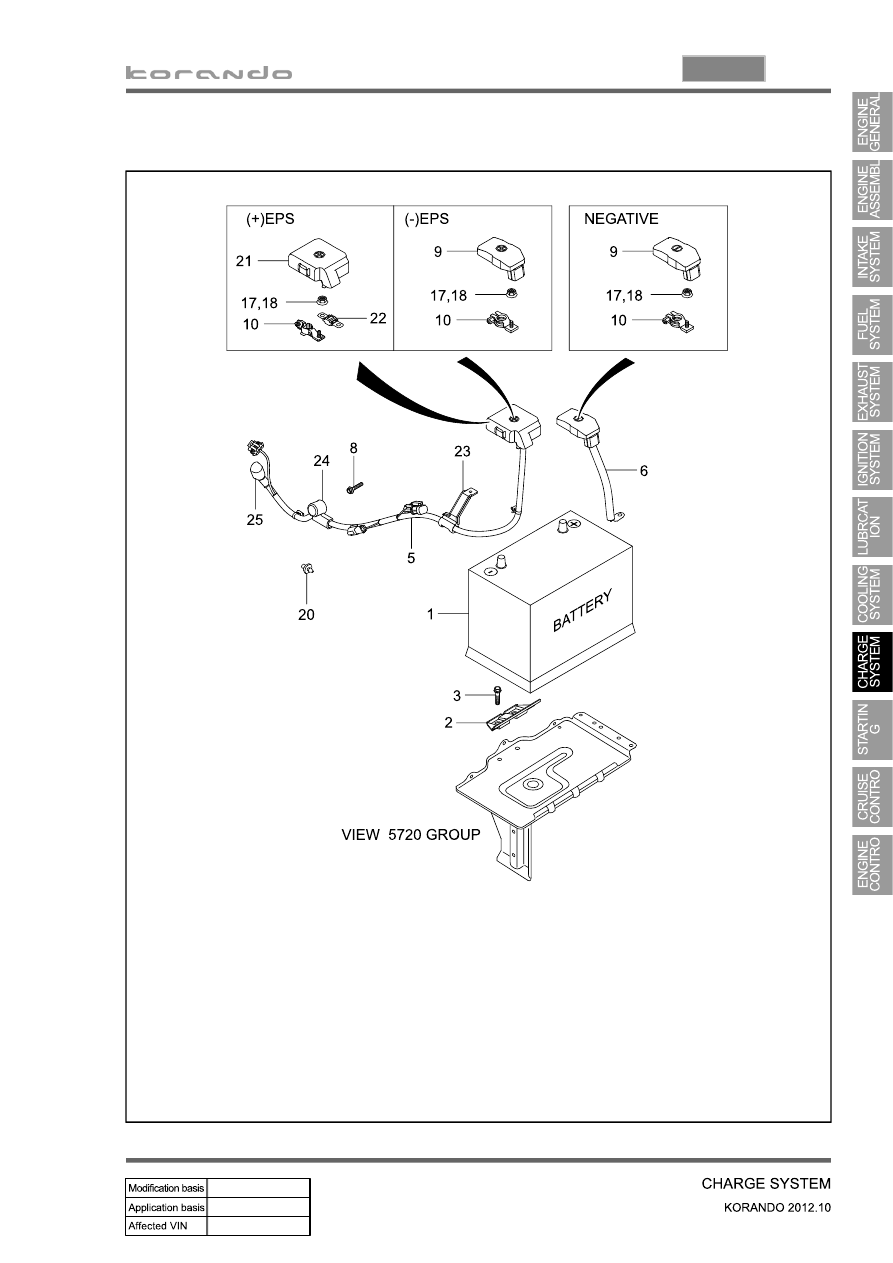

2) Battery

Battery assembly

Clamp - Battery

Bolt

Cable assembly - Cable positive

Cable assembly - Battery ground

Bolt - Earth

Cap - Terminal

Connector - Battery

1.

2.

3.

5.

6.

8.

9.

10.

Nut

Nut

Cab - Earth

Box assembly - Battery sub

Fuse - MID 80A

Clamp - Battery cable

Grommet - Ring terminal

Grommet - Ring terminal

17.

18.

20.

21.

22.

23.

24.

25.
