07-5

1535-01

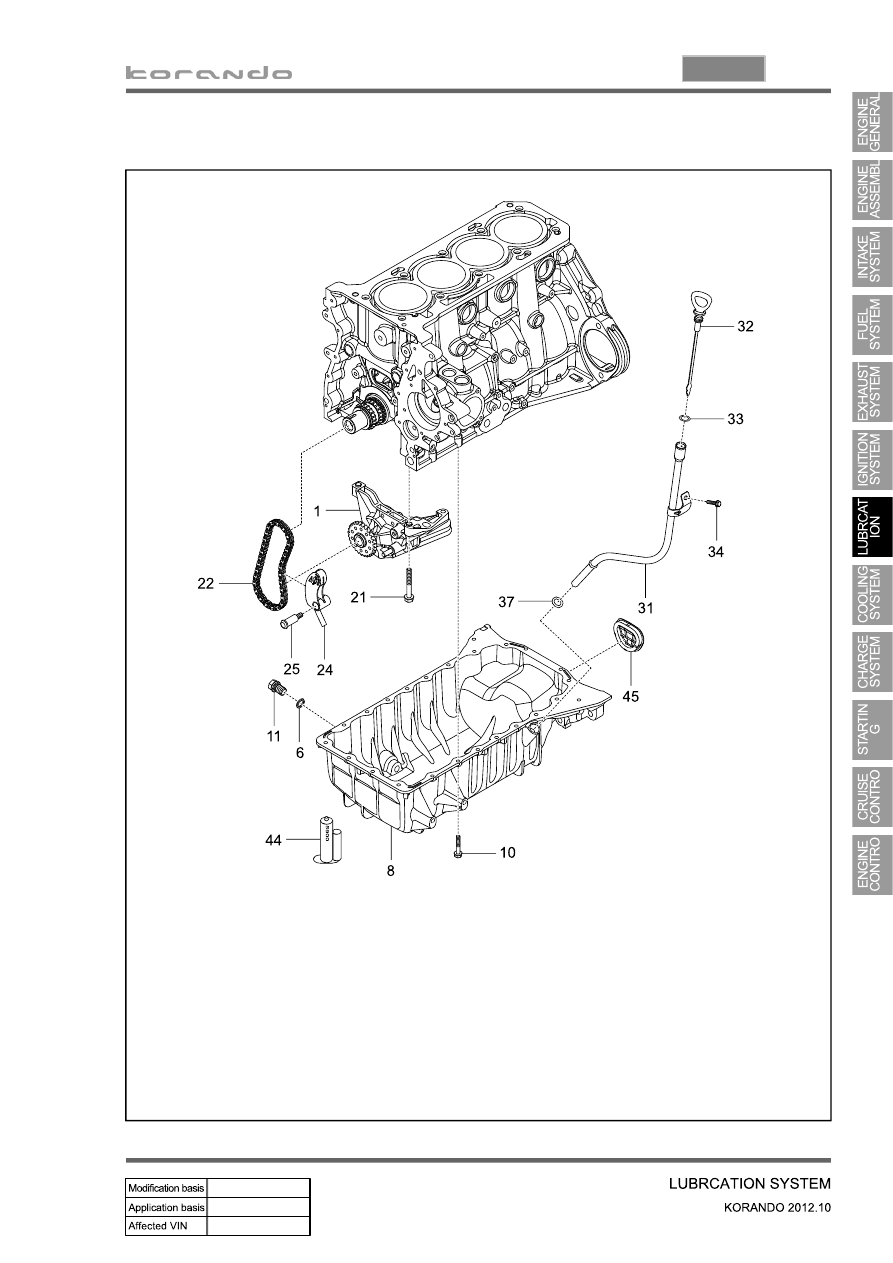

3. LAYOUT

Oil Pump Assy

Seal Ring

Oil Pan

Bolt

Drain Plug

Bolt

Oil Pump Chain

Oil Pump Chain Tensioner Assy

1.

6.

8.

10.

11.

21.

22.

24.

Bolt

Oil Dipstick Tube Assy

Oil Dipstick Gauge Assy

O-Ring

Bolt

O-Ring

Sealant

Dust Cover

25.

31.

32.

33.

34.

37.

44.

45.

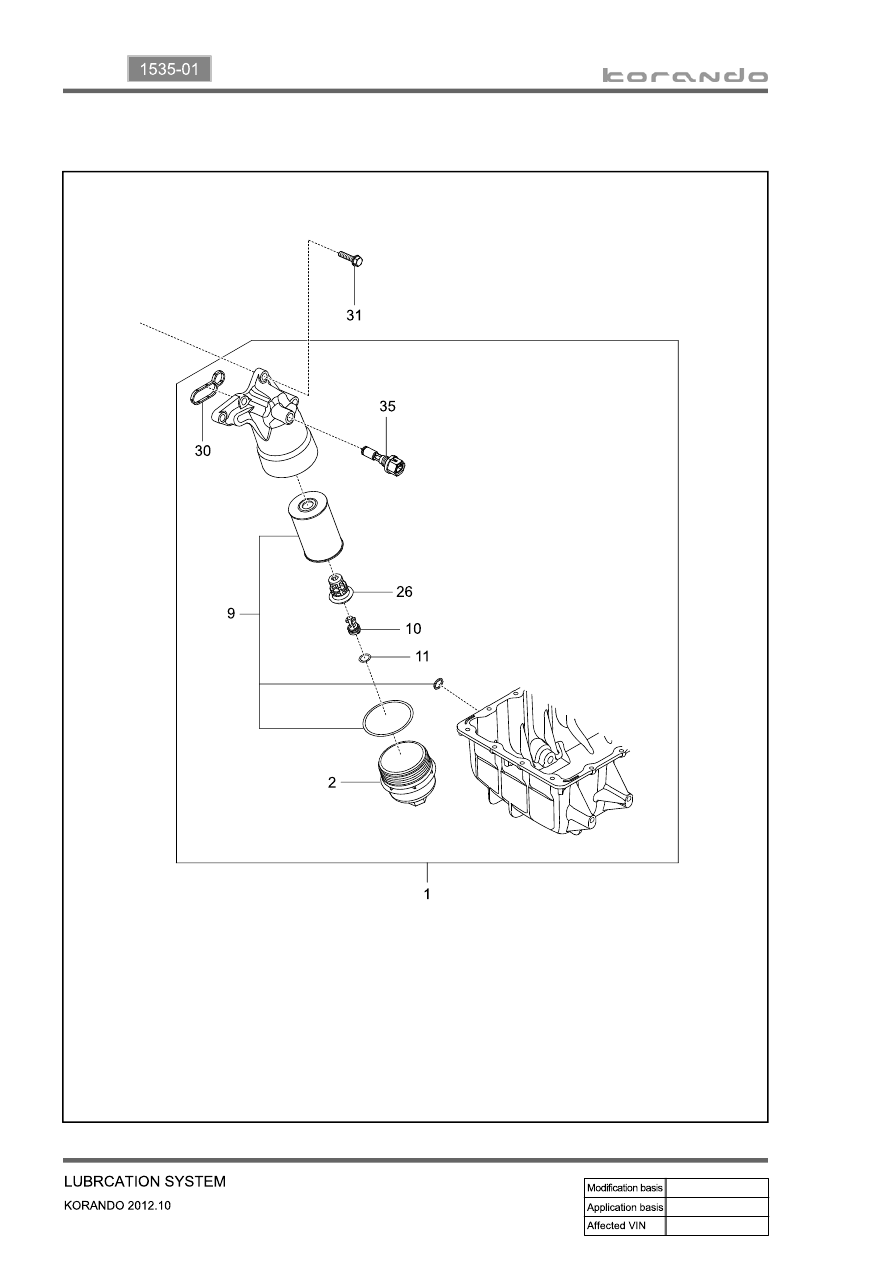

07-6

Oil Filter Assy

Oil Filter Cover

Oil Filter Element Kit

Drain Plug

1.

2.

9.

10.

O-Ring

Oil Filter Bypass Valve Assy

Oil Filter Housing Gasket

Bolt

Oil pressure switch

11.

26.

30.

31.

35.

07-7

1535-01

Oil pressure switch

1. OVERVIEW

The lubrication system supplies oil to each lubrication section to prevent friction and wear and to remove

heat from the friction part. As the engine runs, frictional heat is generated on each lubrication section. If

this condition persists, the bearing can be burned and stuck.

In other words, it creates an oil film on each sliding surface to convert solid friction to liquid friction in

order to minimize wear and prevent temperature increasing on the friction part.

2. COMPONENTS

Engine oil dipstick

Oil jet

Engine oil pan

Oil pump

Oil filter module

07-8

1) Operation Flow

3. OPERATING PROCESS

CVVT

Cam journal

bearing

Main oil gallery

in cylinder block

Oil pressure

switch

Oil filter assembly

Oil supply

Oil pump

Main journal bearing

Chain

tensioner

Oil jet
