15-50

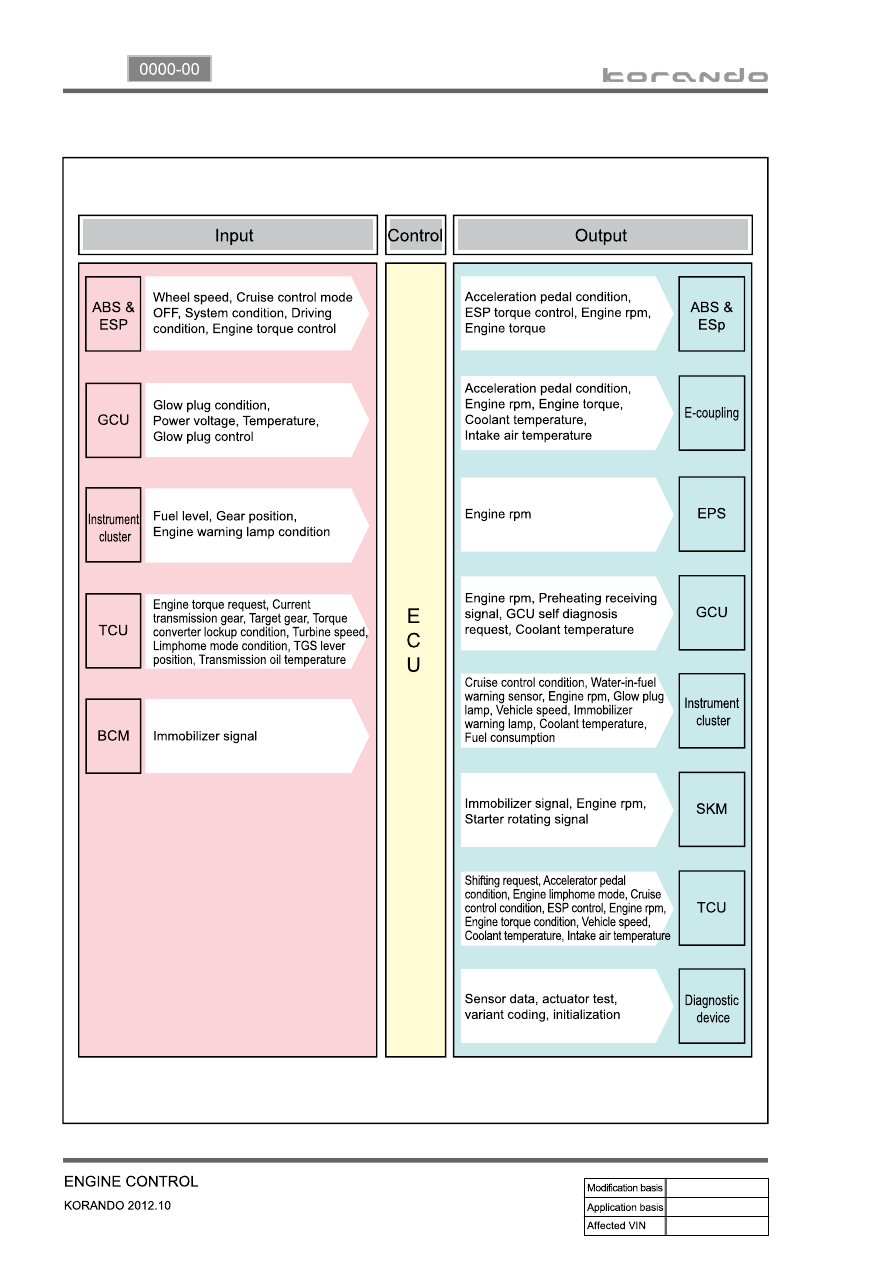

(3) Input/Output for CAN communication

01-3

0000-00

Right side view

Left side view

Rear view

Front view

1. LAYOUT

01-4

Engine mounting bracket

2. MAJOR COMPONENTS

Front View

▶

Cylinder head front cover

Timing gear case cover

EPS idler pulley

Alternator

Water pump pulley

A/C compressor

Crankshaft pulley

Oil pan assembly

Rear View

▶

Camshaft position sensor

Breather nipple

Purge control solenoid valve

Coolant temperature sensor

Electronic throttle body

T-MAP sensor

MCC complete

VIS solenoid valve

Cylinder head cover

Dual mass flywheel

Crankshaft position sensor

Hydraulic tensioner assembly

01-5

0000-00

Right side view

▶

Left side view

▶

Rear oxygen sensor connector

Front oxygen sensor connector

Exhaust manifold

Heat protector

Front oxygen sensor

WCC complete

Crankshaft pulley

Oil pan drain plug

Rear oxygen sensor

Coolant outlet port

Injector assembly

Fuel rail

T-MAP sensor

Purge control solenoid valve

Electronic throttle body

VIS solenoid valve

Oil dipstick gauge

Oil filter assembly

Thermostat assembly

Oil pressure sensor
