15-38

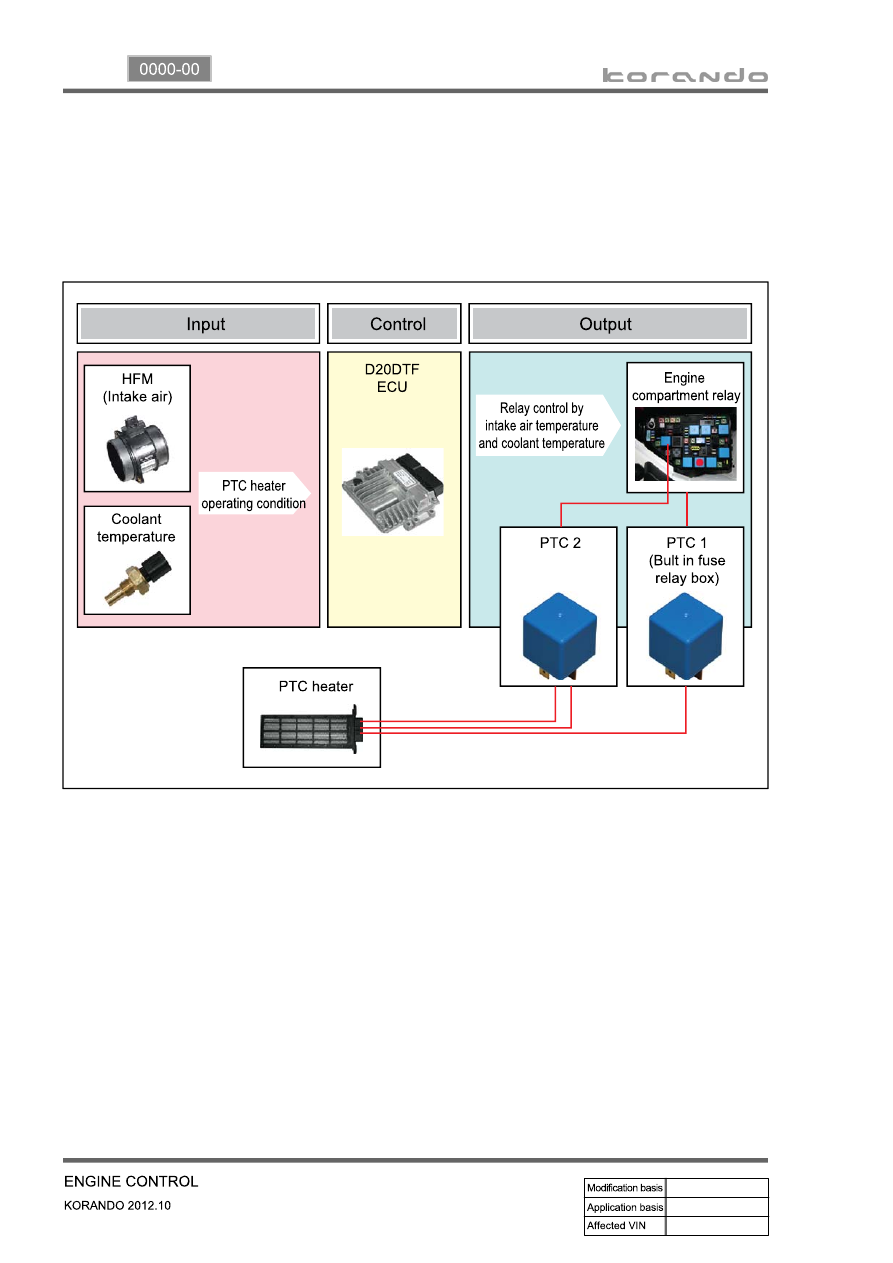

c. Operation process

The ceramic PTC has a feature that the resistance goes up very high at a certain temperature. There

are three circuits in PTC heater. Only one circuit is connected when PTC1 relay is ON, and two circuits

are connected when PTC2 relay is ON.
Operation process: reaches at a certain temperature→high resistance→low current→less heat
radiation→temperature down→high resistance→high current→temperature up

15-39

0000-00

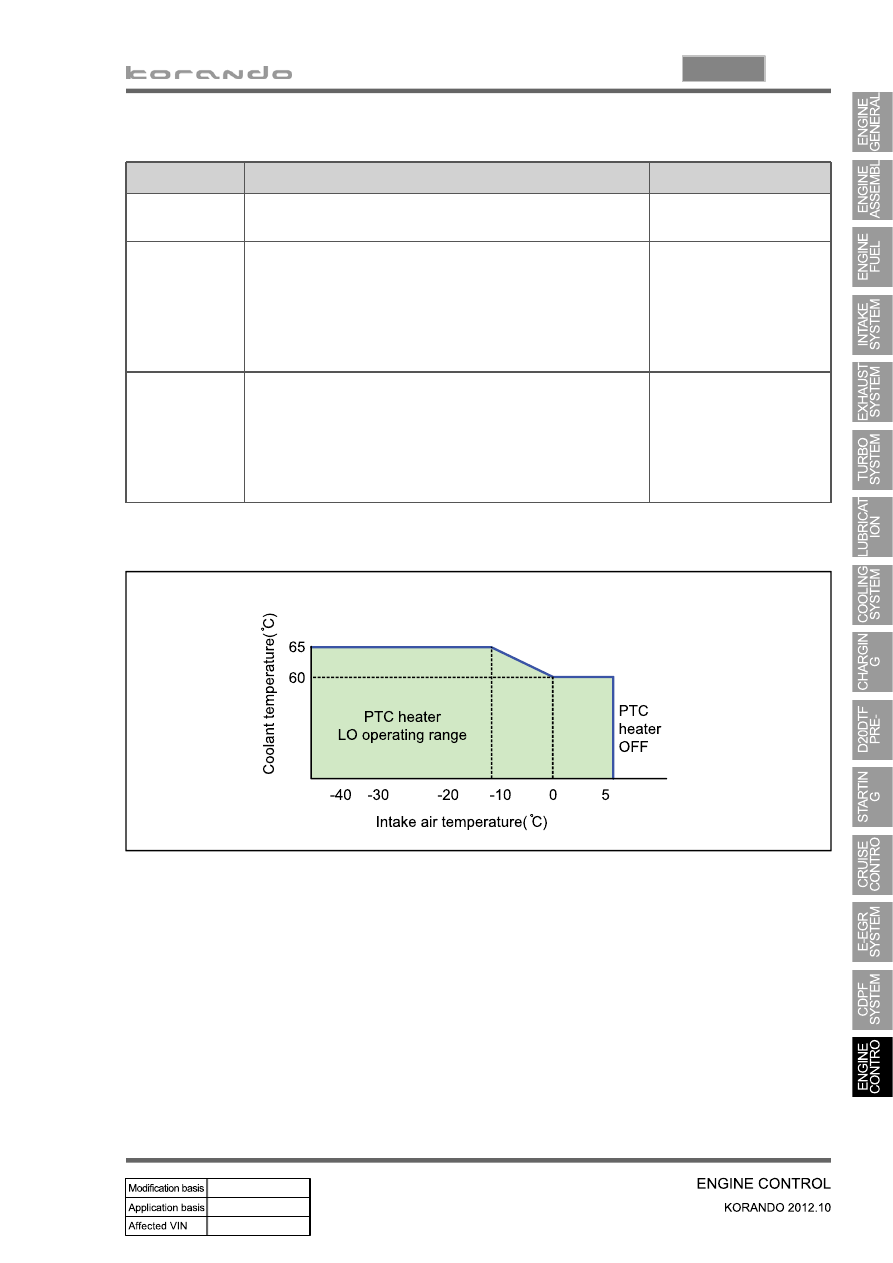

d. Control conditions

Operation

Operating condition

PTC Heater

HI

(PTC2)

- Coolant temperature < 15℃

PTC  HI ON

LO

(PTC1)

- Coolant temperature 15℃ ≤ 65℃, intake air
temperature ≤ -10℃
- Coolant temperature 15℃ < 65 to 60℃, intake air
temperature <-10℃ to 0℃
- Coolant temperature 15℃ ≤ 60℃, intake air
temperature ≤ 0℃ to 5℃

PTC  LO ON

Stop

- A/C blower switch OFF
- Defective ambient air temperature sensor
  (including open or short circuit)
- Engine cranking
- Low battery voltage (below 11V)
- During pre-glow process (glow indicator ON)

Operation diagram for PTC heater LO (step 2)

▶

15-40

Meter cluster

Immobilizer

antenna

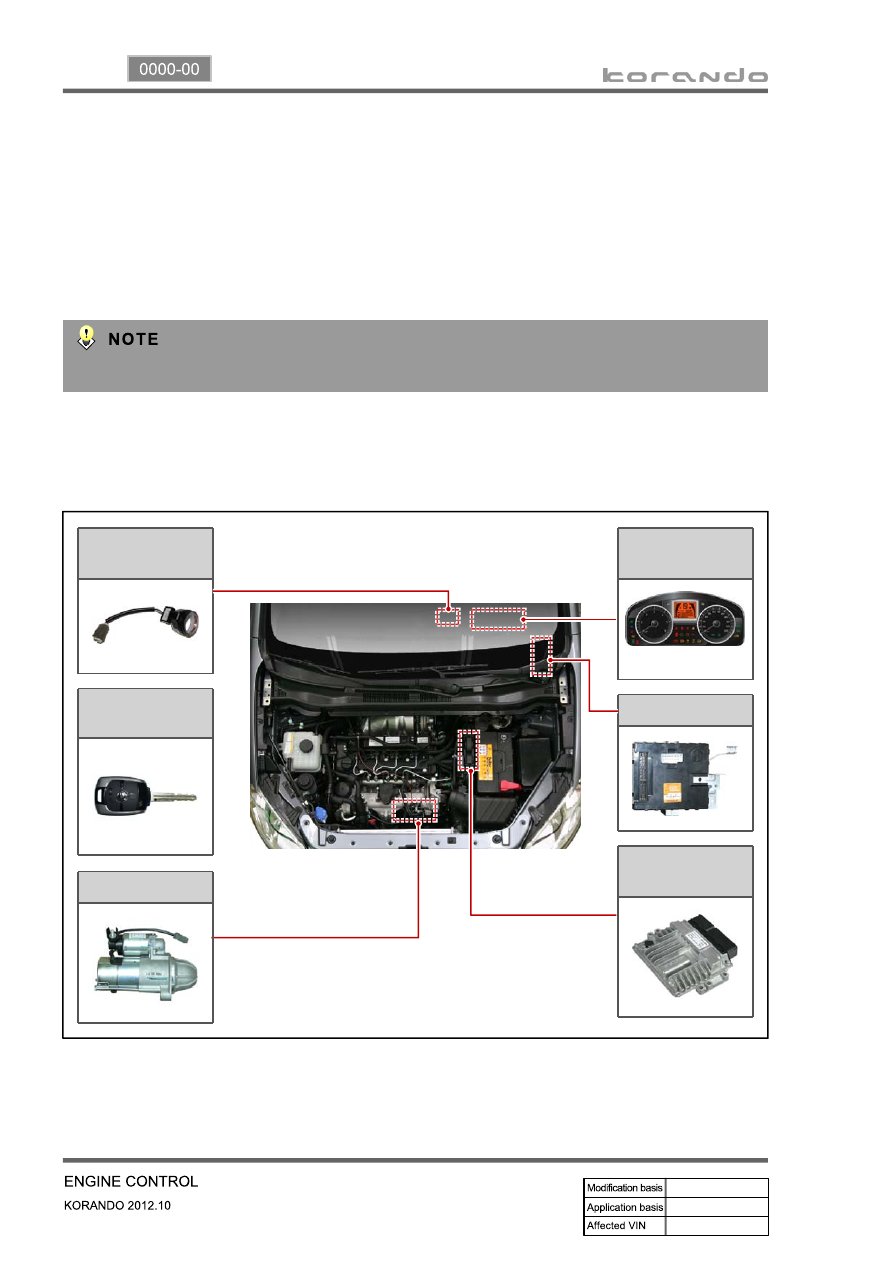

(10) Immobilizer control

a. Overview

The Immobilizer System provides an additional theft deterrent to the vehicle in which it is installed and

prevents it from being started by unauthorized persons. The transponder integrated in the key and the

engine control unit have the same code. When the ignition key with the integrated transponder is turned

to the ON position, the ECU (Engine Control Unit) checks the crypto code of the key and, if correct,

allows the vehicle to start the engine.

For details, refer to Chapter "BCM".

b. Components

Basic components (ignition key system)

▶

Immobilizer key

Start motor

BCM

ECU

D20DTF

15-41

0000-00

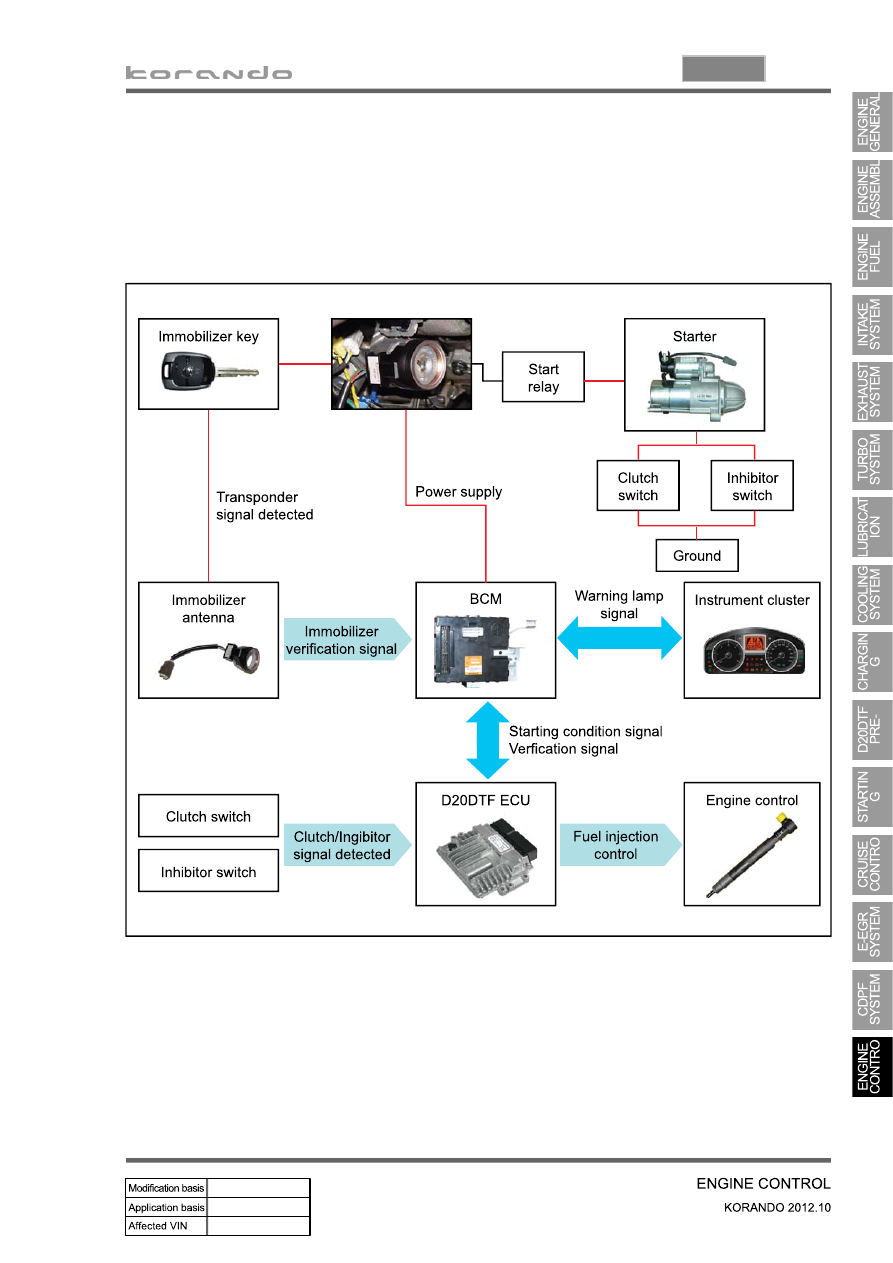

Key approval process

▶

When turning the ignition switch to ON position, the power is supplied to BCM and ECU. ECU

communicate with the immobilizer key to check if it is valid crypto code. If it is valid, ECU start to control

the engine when turning the ignition switch to START position.

The system has 10 seconds of valid time-out period. If the engine does not start in this period, the key

approval process should be done again.
