14-7

1114-00

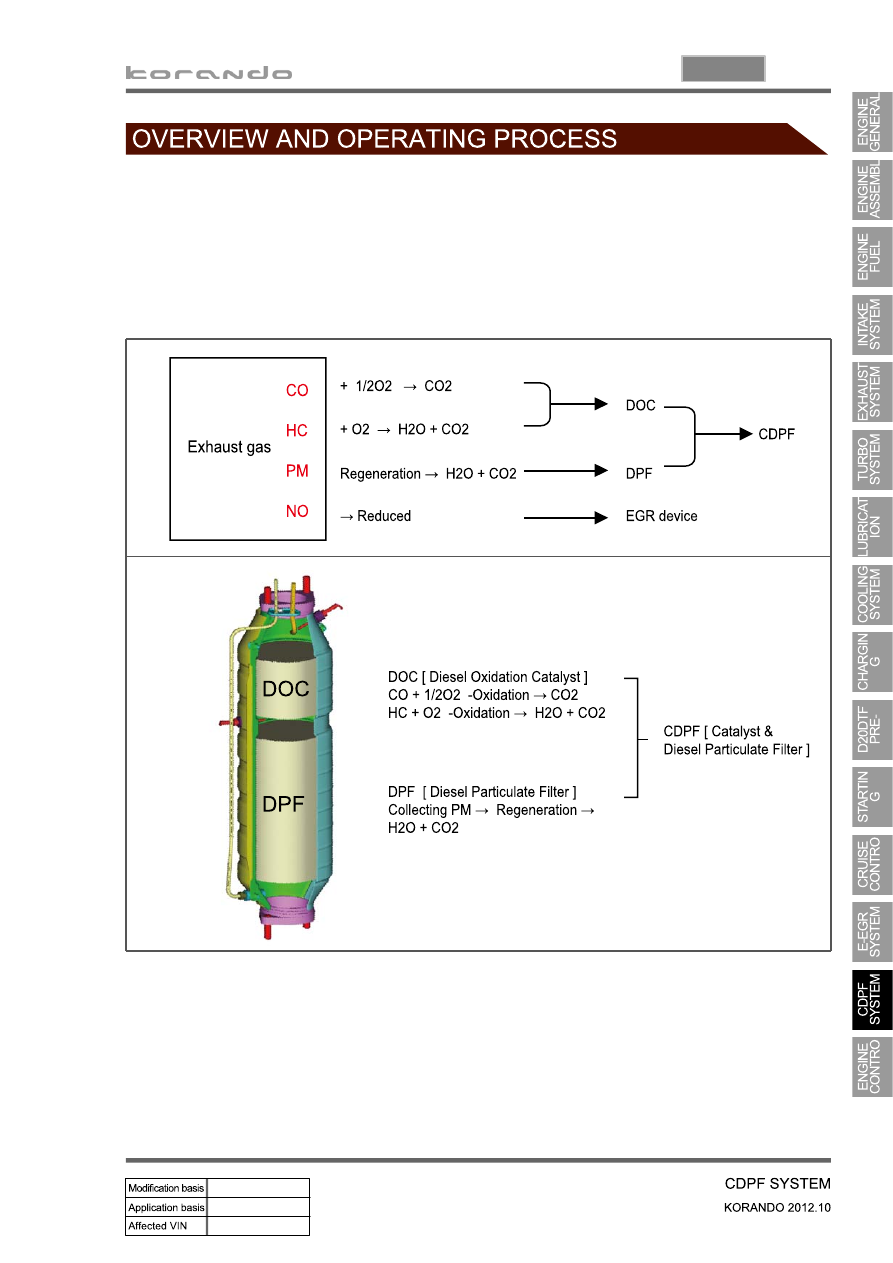

1. OVERVIEW

The DOC (Diesel Oxidation Catalyst) generates CO2 and H2O which are harmless through the

oxidation process of CO and HC. And the DPF (Diesel Particulate Filter) collects PM (Particle Matter)

and is regenerated to reduce the quantity of particulates, HC and CO. But there is a limitation in reducing

the emission of exhaust gas for each system, so the CDPF which combines these two system is

applied.

14-8

Engine ECU (D20DTF)

Post-injection

Differential pressure sensor

Calculates the amount of PM
collected by reading the pressure
difference between before and
after the CDPF.

Electric throttle body

Regulates the rate of air
intake.

CDPF

(DOC + DPF)

Front temperature

sensor

Protects the

turbocharger.

Rear temperature

sensor

Measures the

temperature of fuel

combustion.

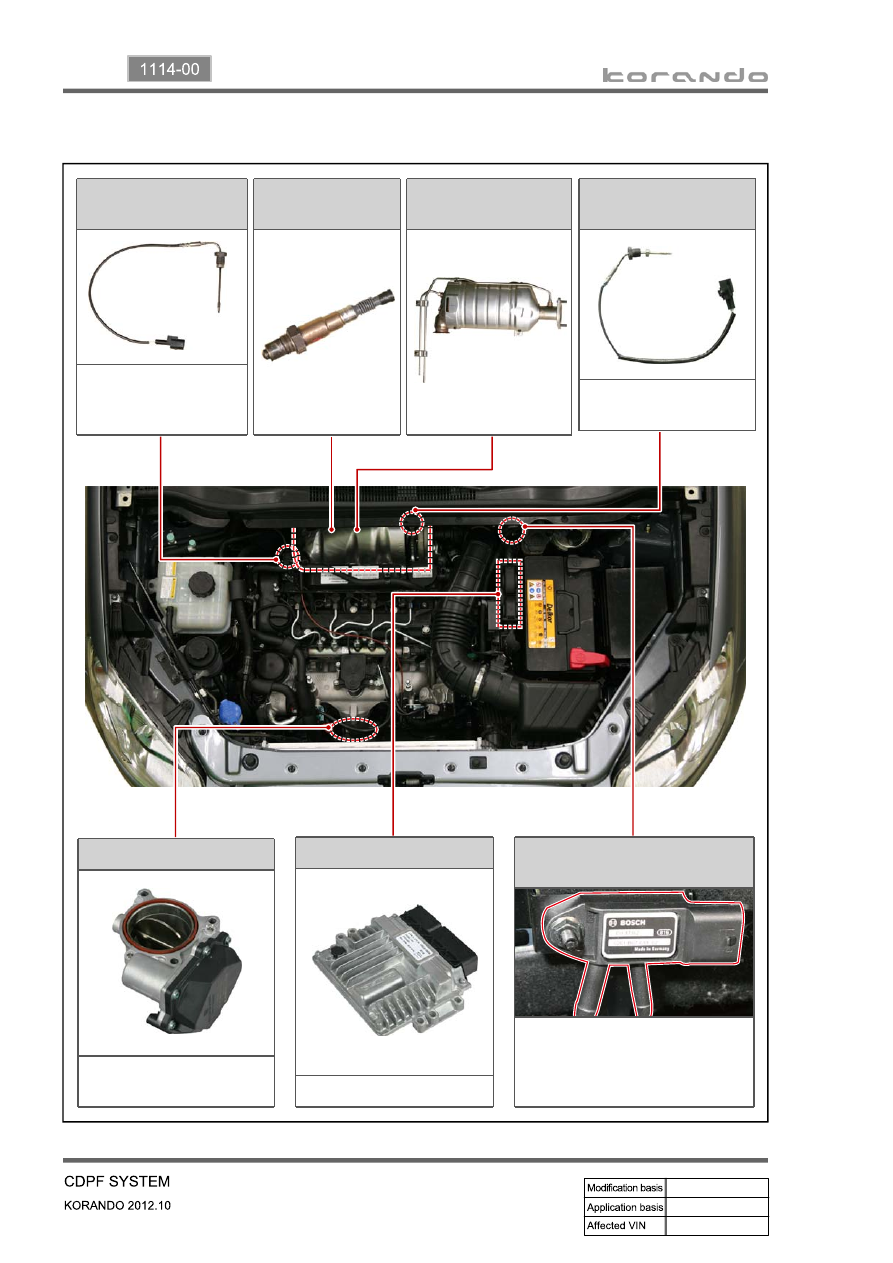

2. COMPONENT

Oxygen sensor

14-9

1114-00

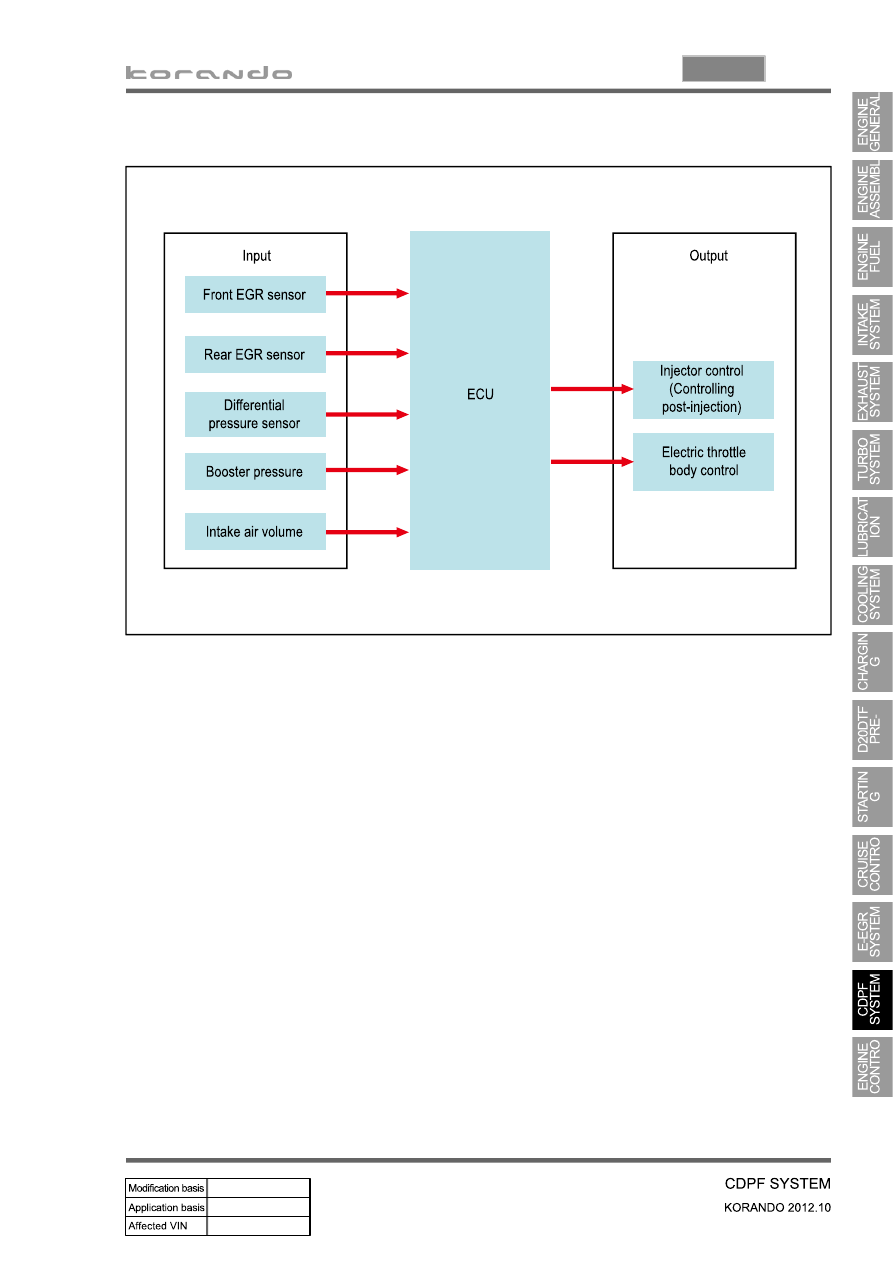

3. INPUT/OUTPUT DEVICES

Front temperature sensor: This sensor is installed at the inlet of DOC and detects whether the DOC

can burn (oxidize) the post-injected fuel or not.

Rear temperature sensor: This sensor is installed at the inlet of DPF and monitors that the
temperature of the exhaust gas is kept at 600℃.

1.

2.

If the temperature exceeds 600℃, the life of CDPF can be reduced. So the amount of fuel

post-injection is decreased.
If the temperature drops under 600℃, the rate of regeneration can be decreased. So the

amount of fuel post-injection is increased.

-

-

Differential pressure sensor: This sensor checks the amount of PM collected by calculating the

pressure difference between before and after the CDPF.

Electric throttle valve: This valve reduces the intake air flow to raise the temperature of the exhaust

gas when the CDPF is operating during idling.

3.

4.

14-10

A DPS (Differential Pressure Sensor) measures the pressure difference between before and after the

CDPF and detects whether the soot is collected in the CDPF or not. If PM is collected in the CDPF (In

this case the pressure difference between before and after the CDPF exceeds the specified value.

Normally, the system sends the signal when the driving distance becomes approx. 600 to 1,200 km), the

temperature of exhaust gas is increased and the post-injection is started for regeneration. The amount of

fuel post-injection is controlled by the exhaust gas temperature measured by the rear temperature
sensor. If the temperature is less than 600℃, the amount of post-injection is increased to

increase the regeneration temperature. Otherwise, the fuel injection amount is decreased or the fuel is

not injected.

When the engine is running with low load, the intake air amount is also controlled as well as fuel injection

amount. This function is used to increaser the combustion temperature by increasing the amount of fuel

post-injection with the lowest air amount within the specified control logic.

4. POST-INJECTION AND AIR MASS CONTROL
