2-10  ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

5)

5)

5)

5)

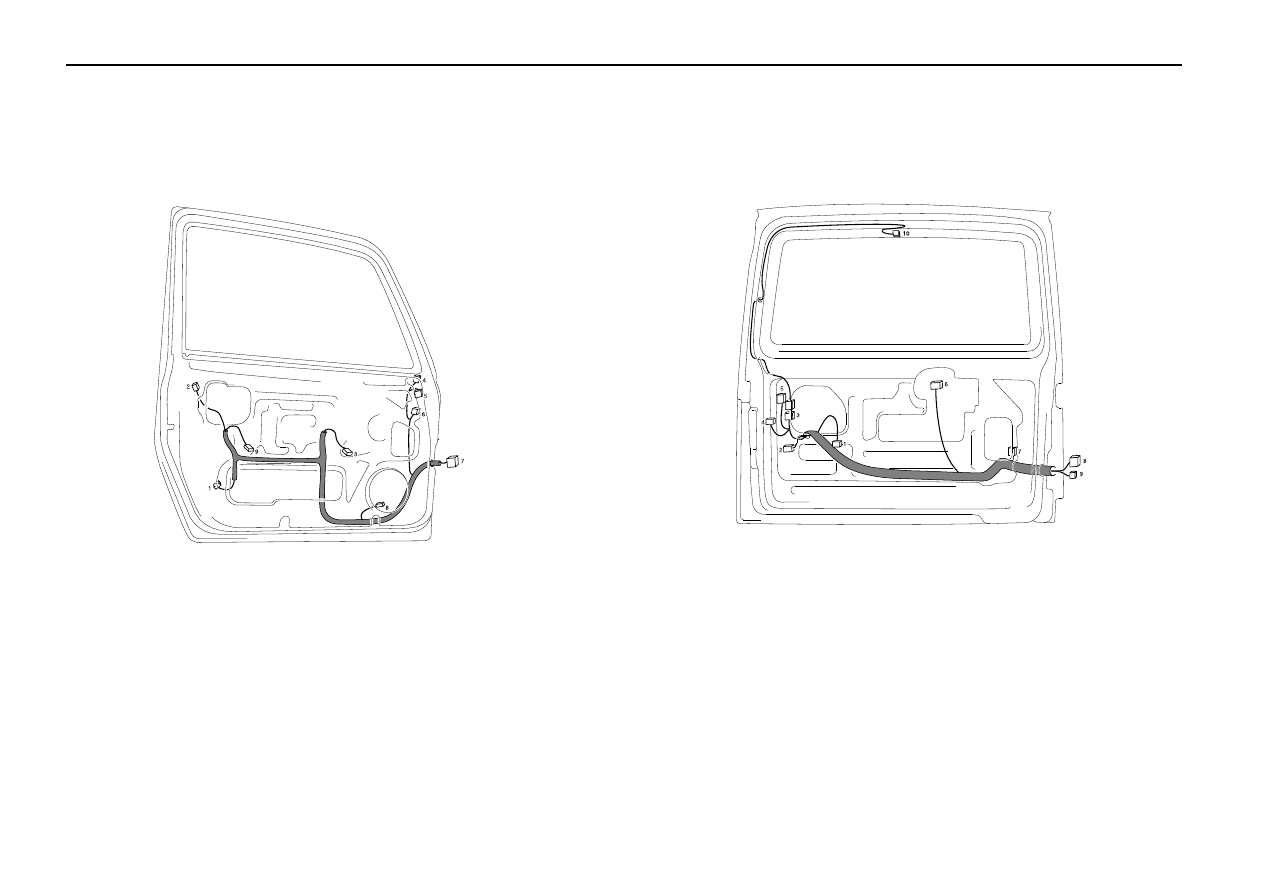

5) W/H DOOR

W/H DOOR

W/H DOOR

W/H DOOR

W/H DOOR

1. Door actuator
2. Door key cylinder switch
3. Power window switch
4. OSRV mirror motor
5. Power window motor
6. C352 (FRONT LH),C362(FRONT RH)
7. C351 (FRONT LH),C361(FRONT RH)
8. Speaker
9. Courtesy lamp

6)

6)

6)

6)

6) W/H TAIL GATE

W/H TAIL GATE

W/H TAIL GATE

W/H TAIL GATE

W/H TAIL GATE

1. Rear washer motor
2. Tail gate door lock actuator
3. C403 (soft top)
4. Tail gate key cylinder sw
5. Rear heated glass
6. Rear wiper motor
7. Rear heated glass
8. C402
9. C401

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS  2-11

  2-11

  2-11

  2-11

  2-11

7)

7)

7)

7)

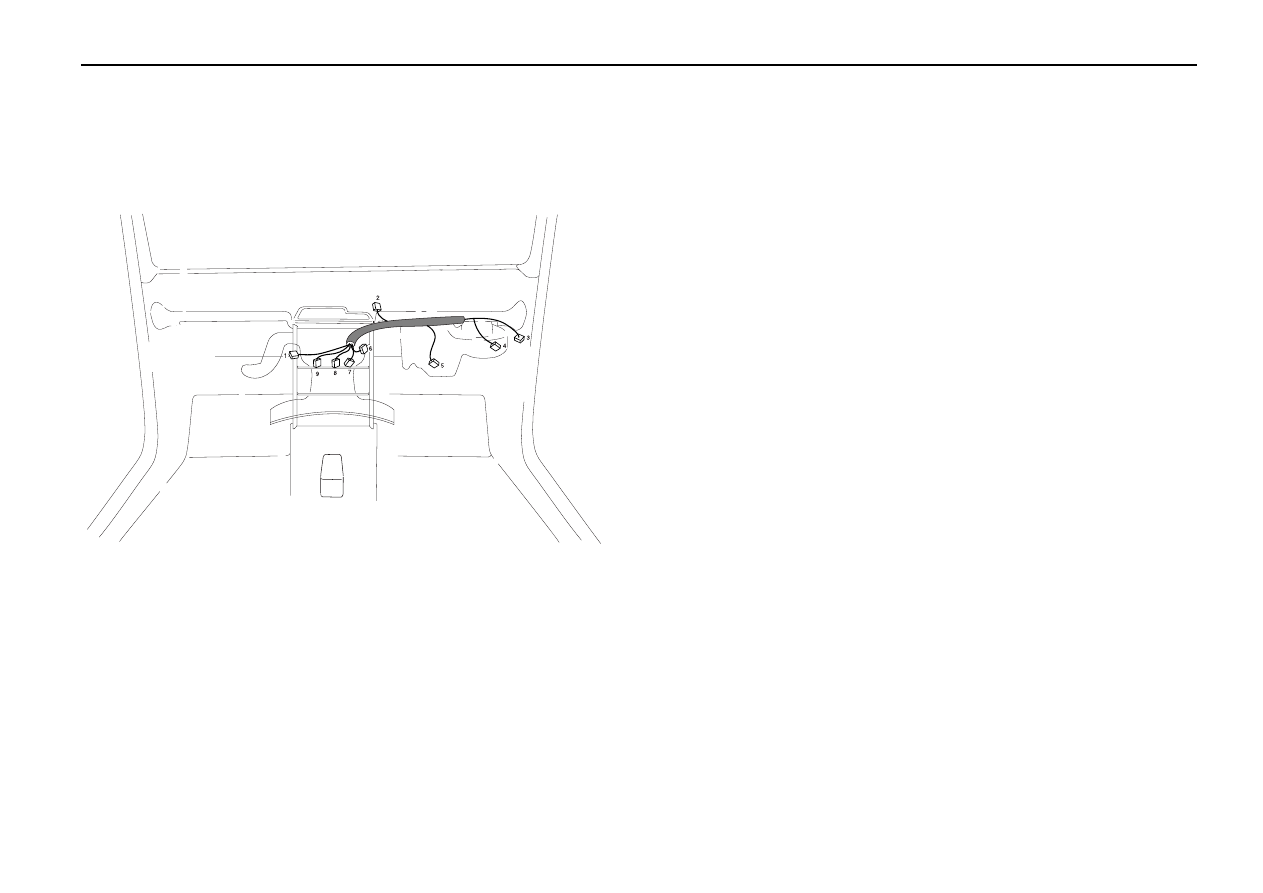

7) W/H AIR-CONDITIONER

W/H AIR-CONDITIONER

W/H AIR-CONDITIONER

W/H AIR-CONDITIONER

W/H AIR-CONDITIONER

1. Mode actuator
2. C204
3. Intake actuator
4. Blower motor
5. Resistor
6. Blower relay
7. A/CON switch
8. Control pannel
9. Blower switch

2-12

2-12

2-12

2-12

2-12  ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

8)

8)

8)

8)

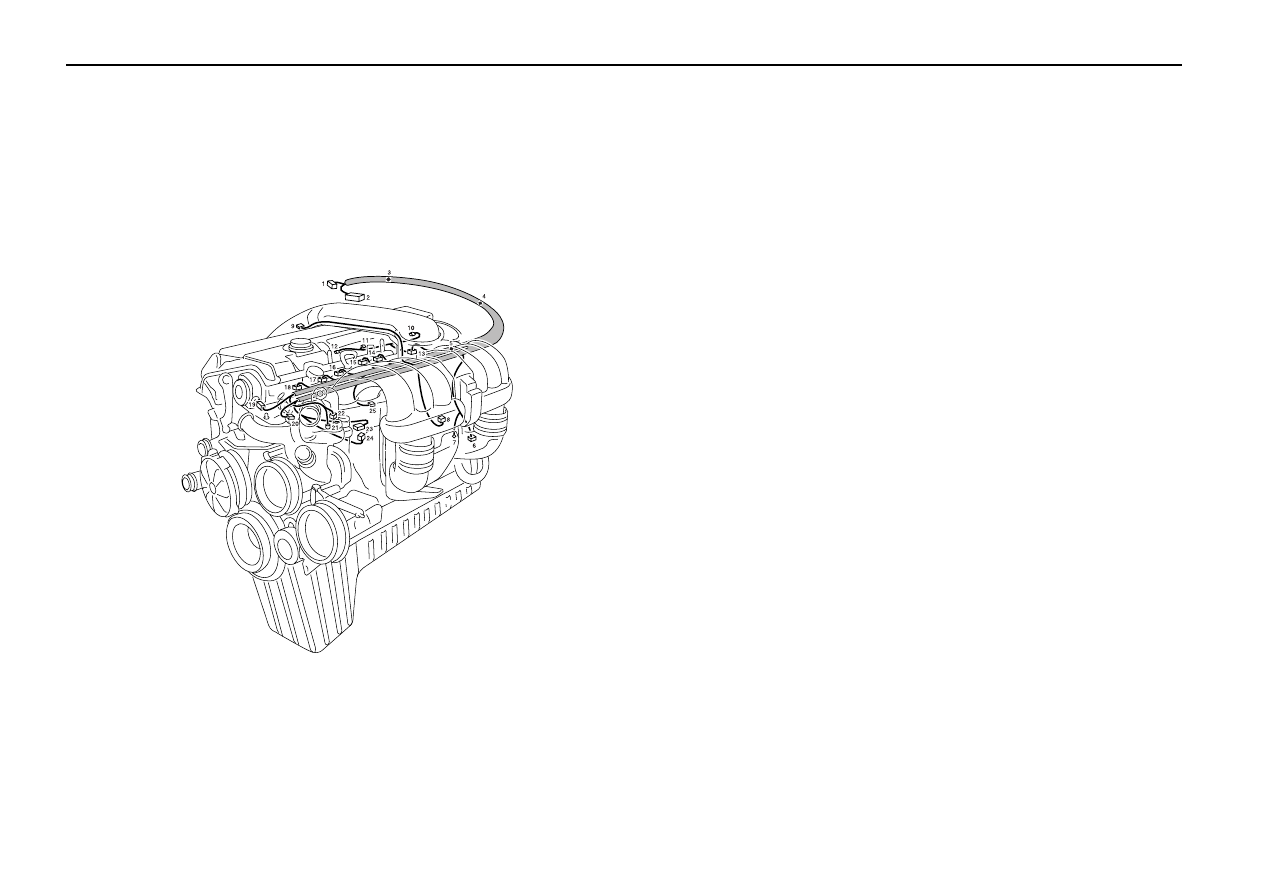

8) W/H ENGINE CONTROL (GASOLINE)

W/H ENGINE CONTROL (GASOLINE)

W/H ENGINE CONTROL (GASOLINE)

W/H ENGINE CONTROL (GASOLINE)

W/H ENGINE CONTROL (GASOLINE)

1. C114
2. C115
3. J106
4. J107
5. J108
6. Crankshaft position sensor
7. Oil pressure switch
8. Knock sensor 2
9. Air flow sensor

10. Ignition coil 3
11. Ignition coil 2
12. Ignition coil 1
13. Injector 6
14. Injector 5
15. Injector 4
16. Injector 3
17. Injector 2
18. Injector 1
19. Camshaft actuator
20. Camshaft position sensor
21. Engine coolant temperature sensor (Gauge)
22. Engine temperature sensor
23. Throttle motor & sensor
24. Knock sensor 1
25. Intake manifold resonance flap

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS  2-13

  2-13

  2-13

  2-13

  2-13

9)

9)

9)

9)

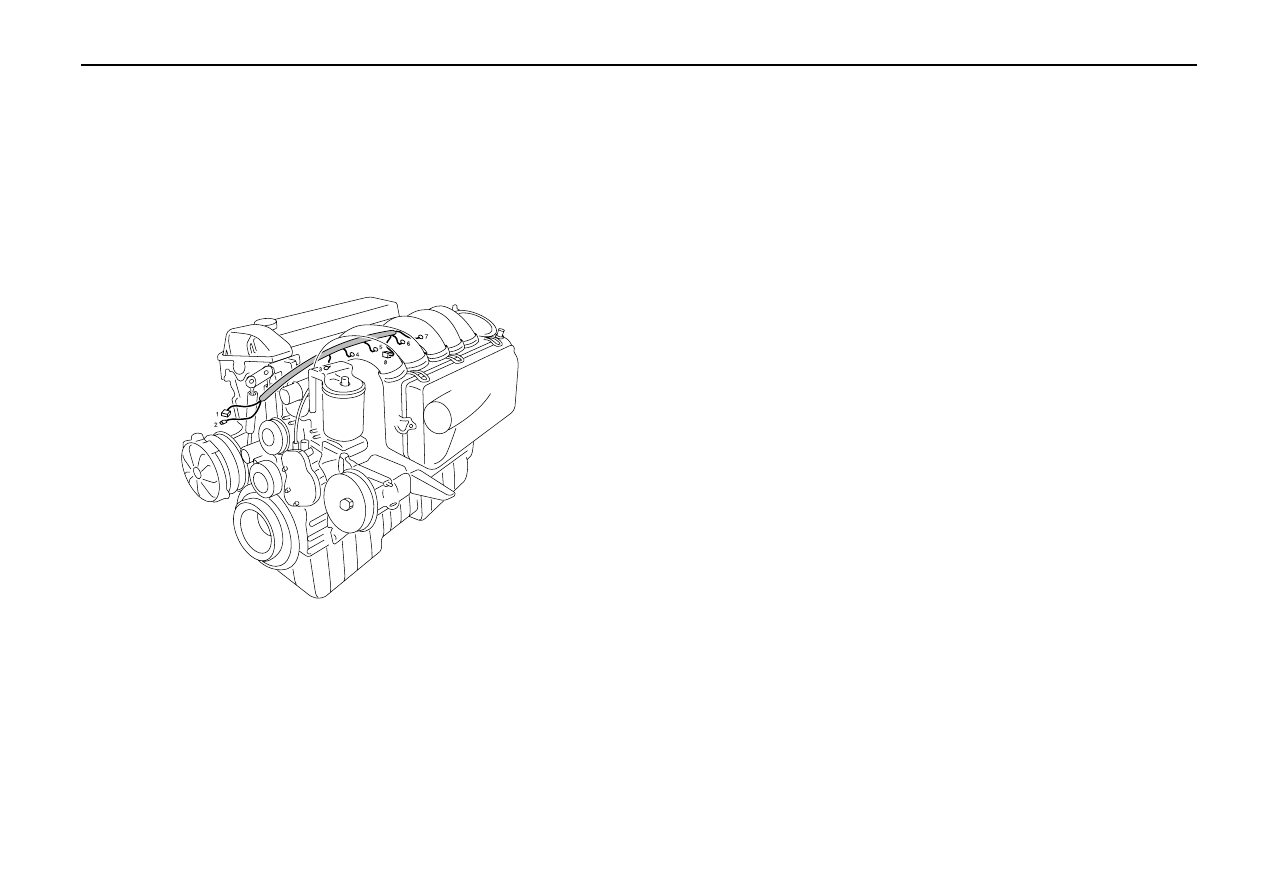

9) W/H PRE-HEATING (DIESEL)

W/H PRE-HEATING (DIESEL)

W/H PRE-HEATING (DIESEL)

W/H PRE-HEATING (DIESEL)

W/H PRE-HEATING (DIESEL)

1. Preheating time control relay
2. C109
3. Glow plug 1
4. Glow plug 2
5. Glow plug 3
6. Glow plug 4
7. Glow plug 5 (662 LA only)
8. Engine coolant temperature sensor (Gauge)
