INTERIOR TRIM  9G-9

SSANGYONG  MY2002

Seat Belt Anchor Bolt

Application

N•m

Lb-Ft

Lb-In

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

45

33

-

SECTION 9H

SEATS

TABLE OF CONTENTS

Components Locator ............................................ 9H-2

Seats ................................................................... 9H-2

Repair Instructions ................................................ 9H-3

On-Vehicle Service Unit Repair ................................ 9H-3

Front Seat ............................................................ 9H-3

Front Seat Cushion .............................................. 9H-3

Front Seatback .................................................... 9H-4

Front Seat Guide Rail ........................................... 9H-4

Front Seat Recliner Lever ..................................... 9H-5

Front Seat Trim .................................................... 9H-5

Head Restraint ..................................................... 9H-5

Walk In Device .................................................... 9H-6

Front Seat Armrest ............................................... 9H-6

Rear Seat Armrest ............................................... 9H-6

Rear Seat ............................................................ 9H-7

50/50 Split Rear Seat Cushion Hinge .................... 9H-7

50/50 Split Rear Seat Cushion Lock Striker ........... 9H-8

Child Seat Anchorage .......................................... 9H-8

Specifications ....................................................... 9H-9

Fastener Tightening Specifications ....................... 9H-9

Schematic and Routing Diagram ...................... 9H-10

Seat Heater ....................................................... 9H-10

SSANGYONG  MY2002

9H-2  SEATS

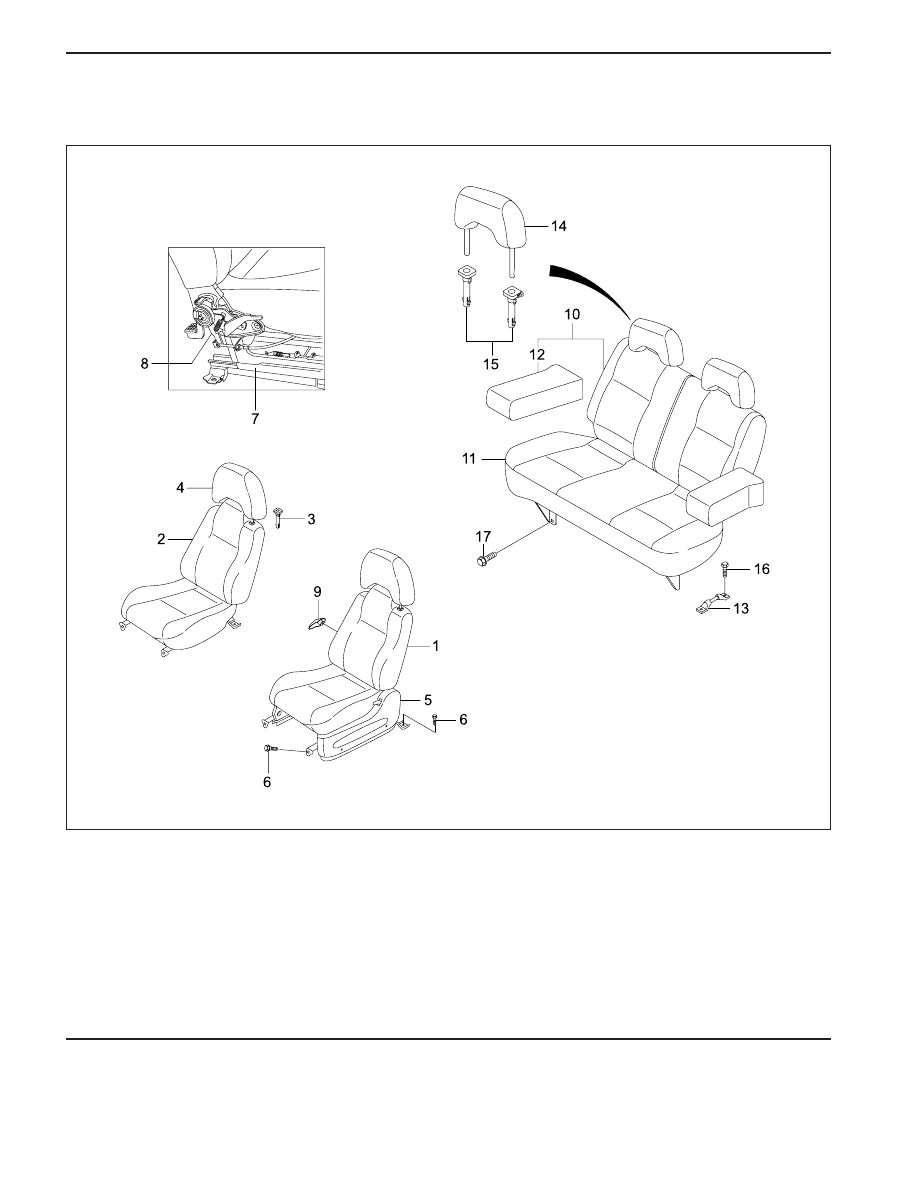

COMPONENTS LOCATOR

SEATS

1 Seat A-FRT
2 Seat A-FRT
3 Head Rest Sleeve A
4 Head Rest A-FRT
5 Shield Cover
6 Bolt-Hex SEMS
7 G/Rail A-FRT
8 Recliner A-FRT
9 Lumber Support-Knob

10 Seat-RR
11 Seat-RR
12 Arm Rest A-RR
13 Striker-RR Seat
14 Head Rest A-RR
15 Head Rest Sleeve A
16 Bolt-Hex SEMS
17 Bolt-Hex SEMS

KAA9H010

SEATS  9H-3

SSANGYONG  MY2002

REPAIR INSTRUCTIONS

KAA9H020

ON-VEHICLE SERVICE

UNIT REPAIR

FRONT SEAT

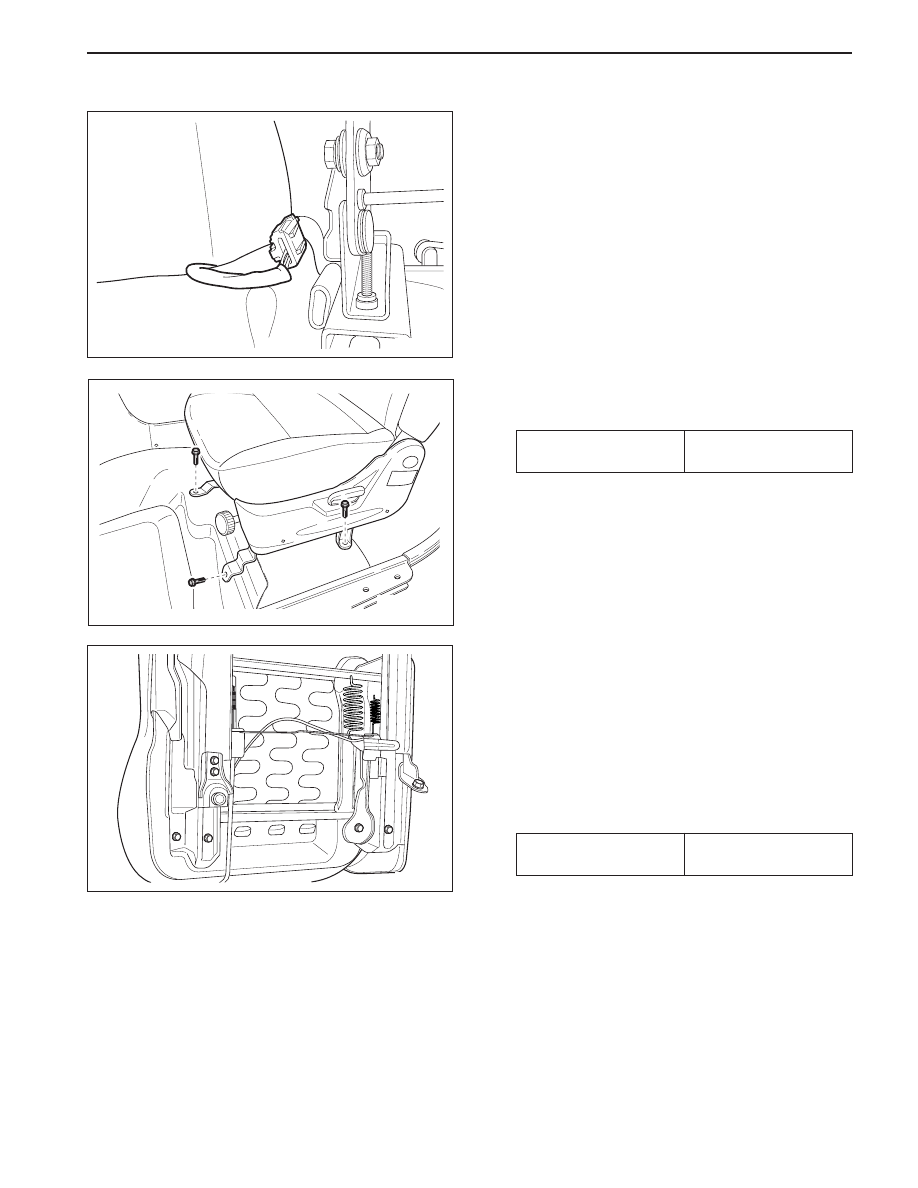

Removal and Installation Procedure

1. Remove the electrical connector from front seat.

KAA9H030

2. Remove the bolts with the front seat.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

3. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

19.6 - 31.4 N•m

 (14.5 - 23.2 lb-ft)

KAA9H060

FRONT SEAT CUSHION

Removal and Installation Procedure

1. Remove the front seat from the vehicle. Refer to

“front seat” in this section.

2. Remove the front seatback. Refer to “Front Seat

back” in this section.

3. Remove the seat cushion bolts.

Installation Notice

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

4. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

16.7 - 25.5 N•m

 (12 - 18 lb-ft)
