MANUAL & SEMIAUTO-HVAC  7C-9

SSANGYONG  MY2002

COMPONENT LOCATOR

VENTILATION

KAA7C010

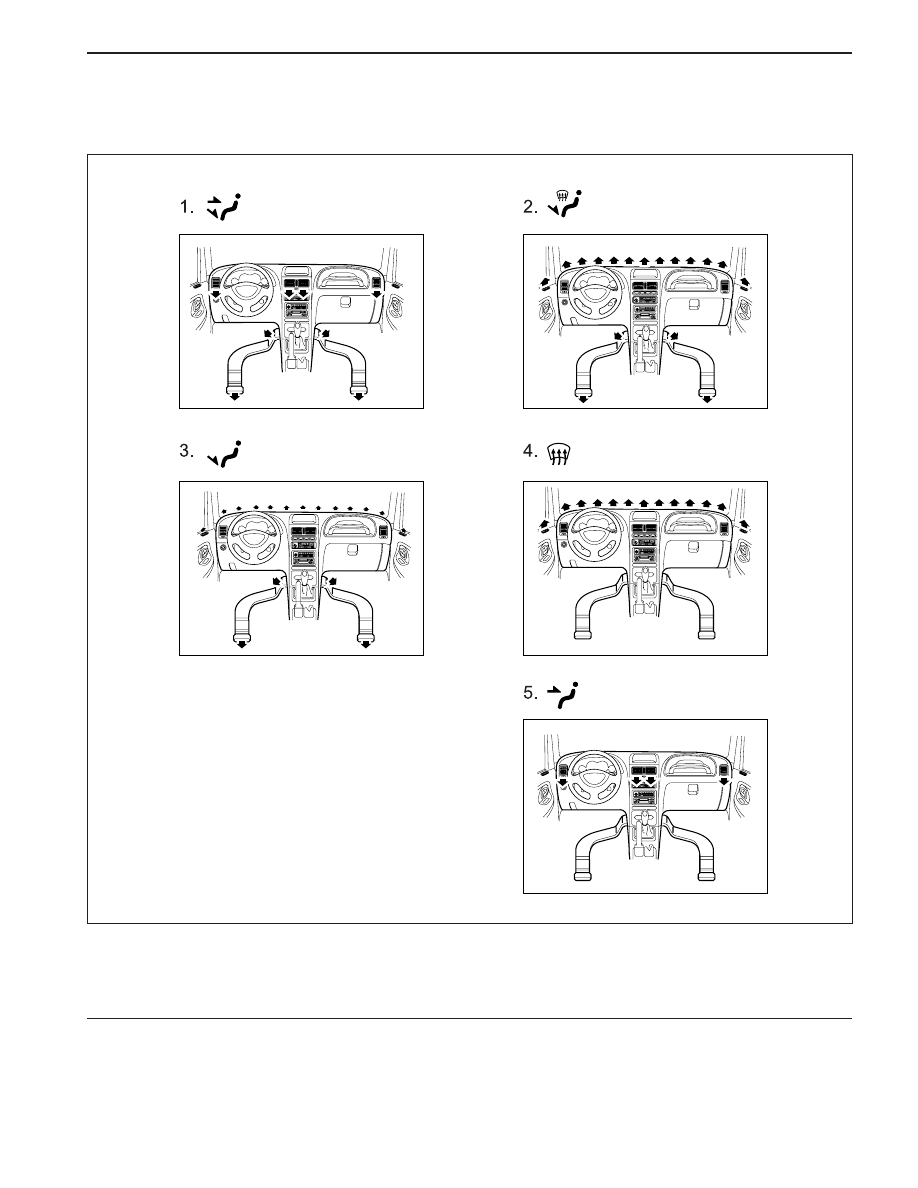

1 Foot / Face
2 Foot / Defroster
3 Foot

4 Defroster
5 Face

SSANGYONG  MY2002

7C-10  MANUAL & SEMIAUTO-HVAC

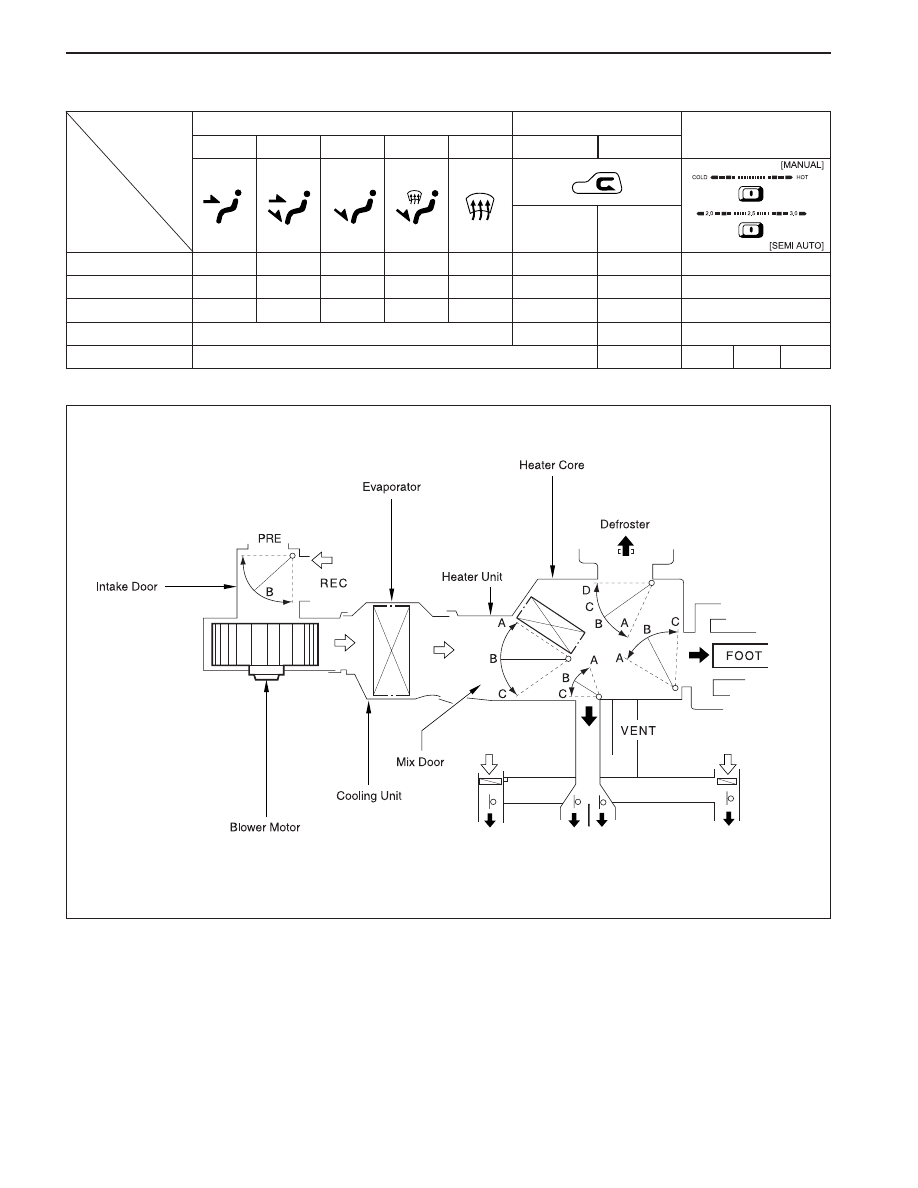

Air Flow

KAA7C020

VENT Door

FOOT Door

DEF Door

INTAKE Door

AIR MIX Door

VENT

A

C

D

B/L

B

B

D

FOOT

C

A

D

D/F

C

B

B

DEF

C

C

A

REC

INDI.

On

-

-

-

A

FRE

INDI.

Off

-

-

-

B

Temperature

Control Lever

Mode Switch

Recirculation Switch

Switch

Door

-

-

-

-

-

-

C

A

B

MANUAL & SEMIAUTO-HVAC  7C-11

SSANGYONG  MY2002

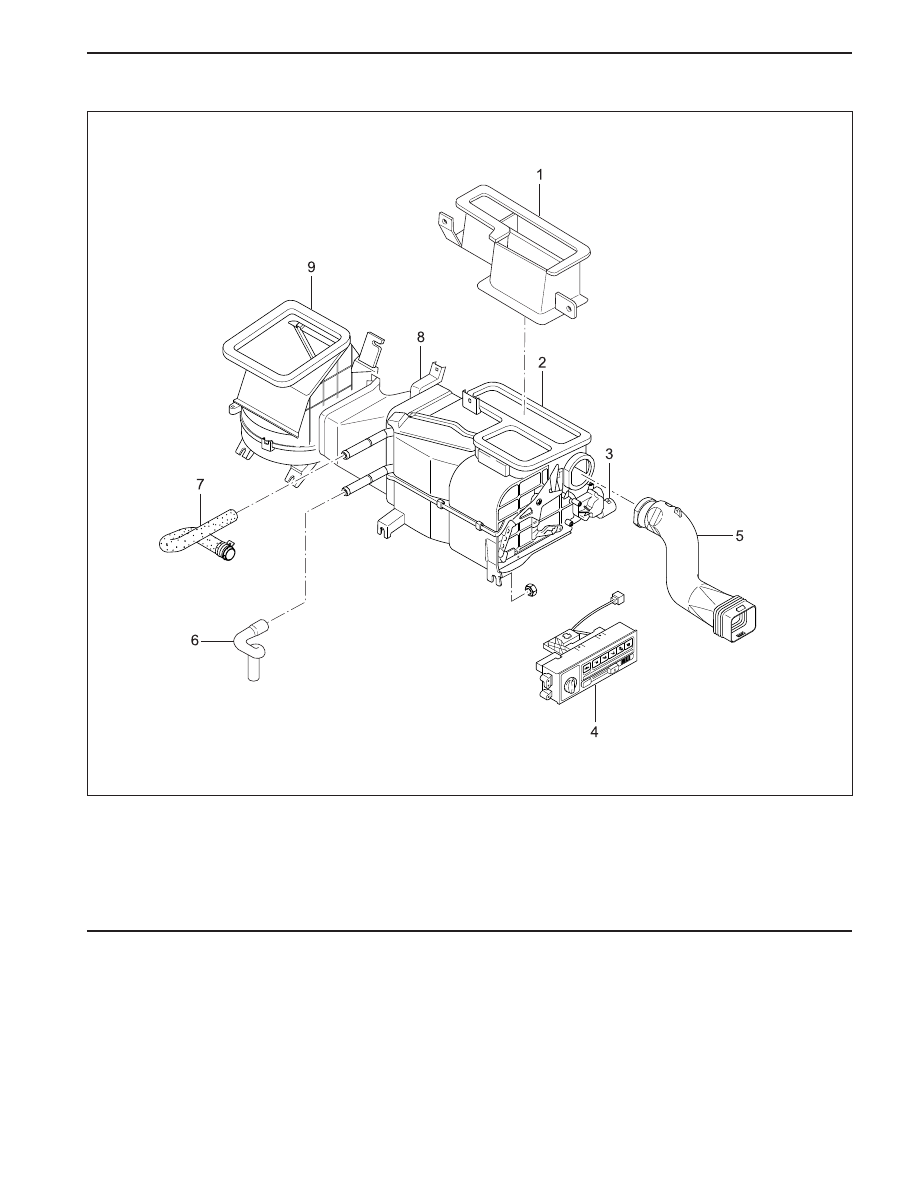

HEATER SYSTEM

1 Heater-to Defrost Duct
2 Heater Unit
3 Mode Actuator Assembly
4 Heater Controller
5 Side Air Vent

6 Coolant Outlet Hose
7 Coolant Inlet Hose
8 Heater-to-Blower Duct
9 Blower Unit

KAA7B450

SSANGYONG  MY2002

7C-12  MANUAL & SEMIAUTO-HVAC

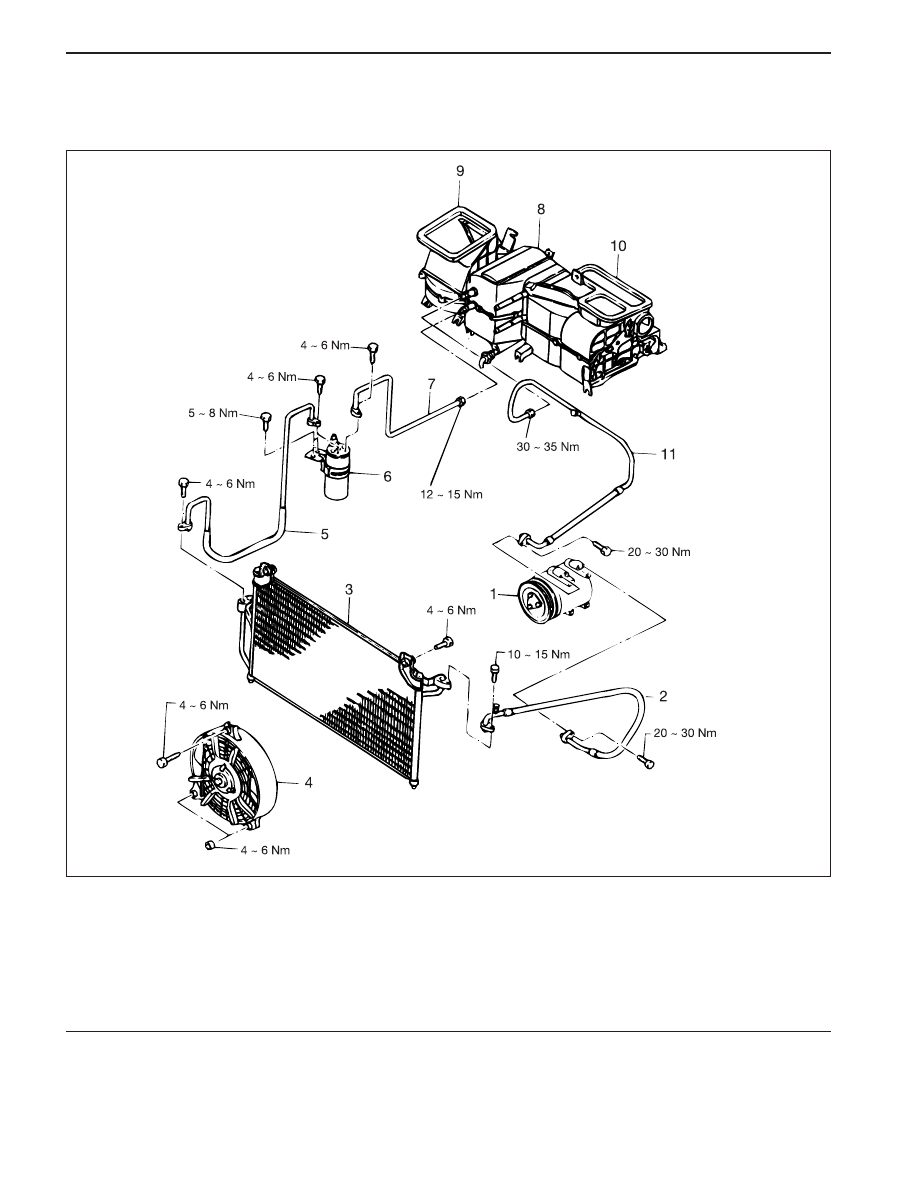

AIR CONDITIONER SYSTEM

DIESEL ENGINE

1 Compressor
2 High Pressure Hose
3 Condenser
4 Condenser Fan
5 Liquid Pipe (A)
6 Reveiver Drier

KAA7C030

7 Liquid (B)
8 Evaporator Assembly
9 Blower Unit

10 Heater Unit
11 Low Pressure Hose
