SsangYong Korando II (1996-2006 year). Manual - part 326





AUTOMATIC TRANSMISSION  5A-207

SSANGYONG  MY2002

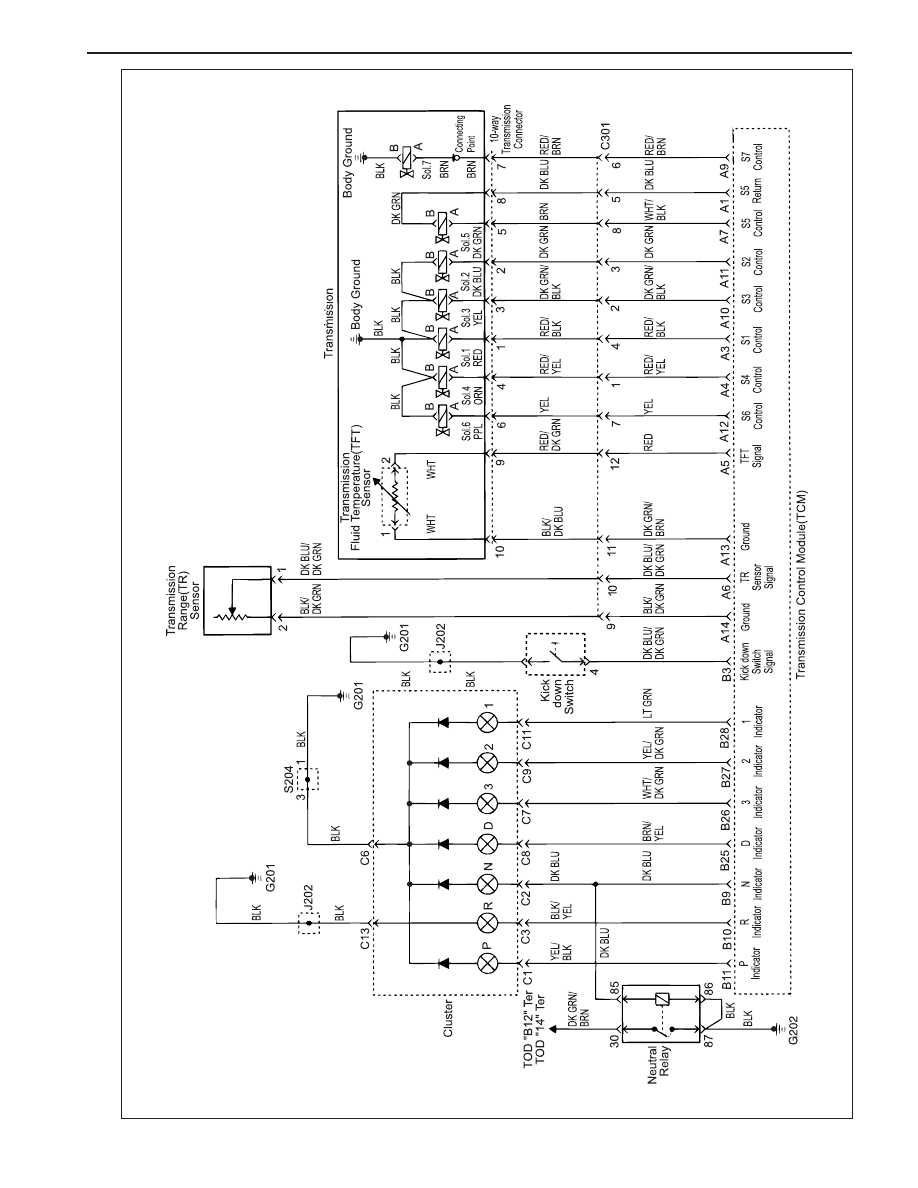

TCM WIRING DIAGRAM (GASOLINE ENGINE - 2 OF 2)

KAA5A020

5A-208  AUTOMATIC TRANSMISSION

SSANGYONG  MY2002

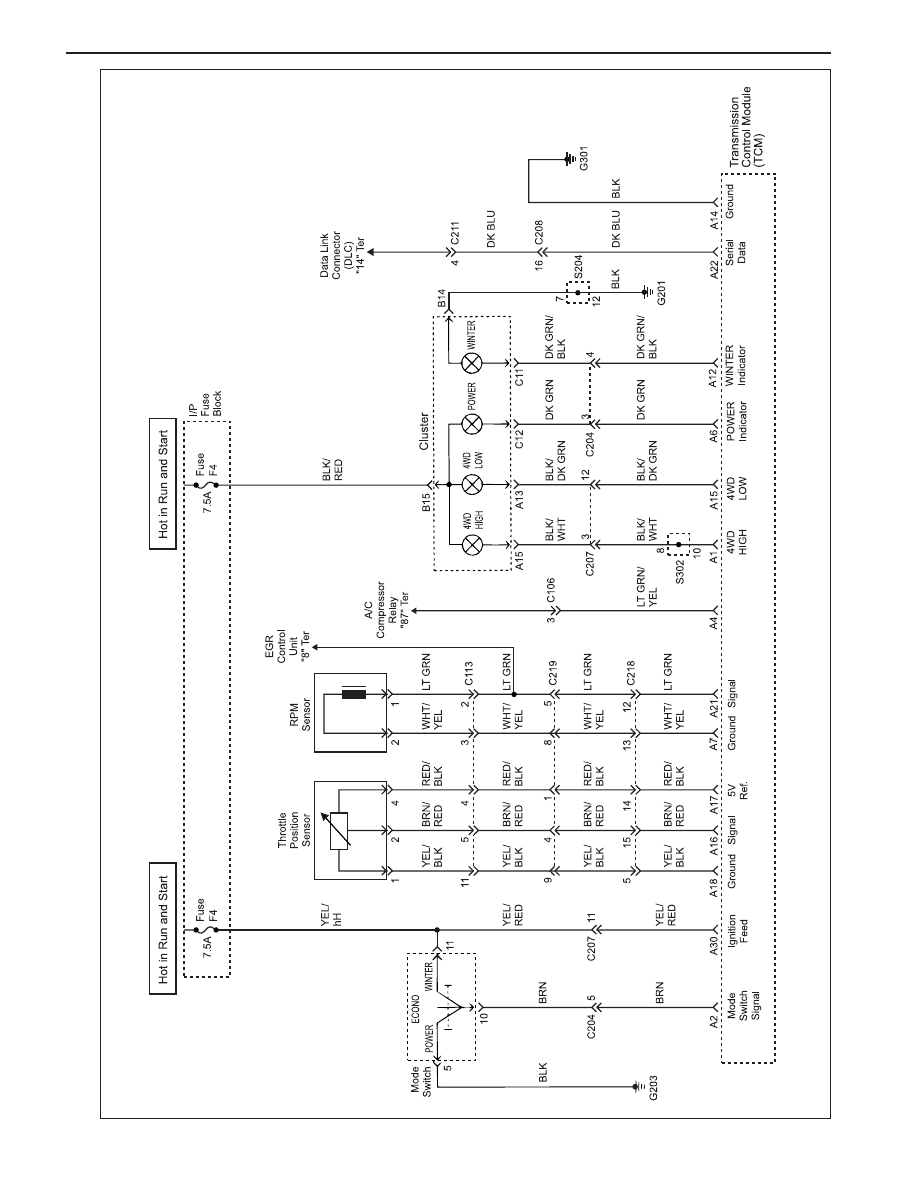

TCM WIRING DIAGRAM (DIESEL ENGINE - 1 OF 2)

YAD5A230

AUTOMATIC TRANSMISSION  5A-209

SSANGYONG  MY2002

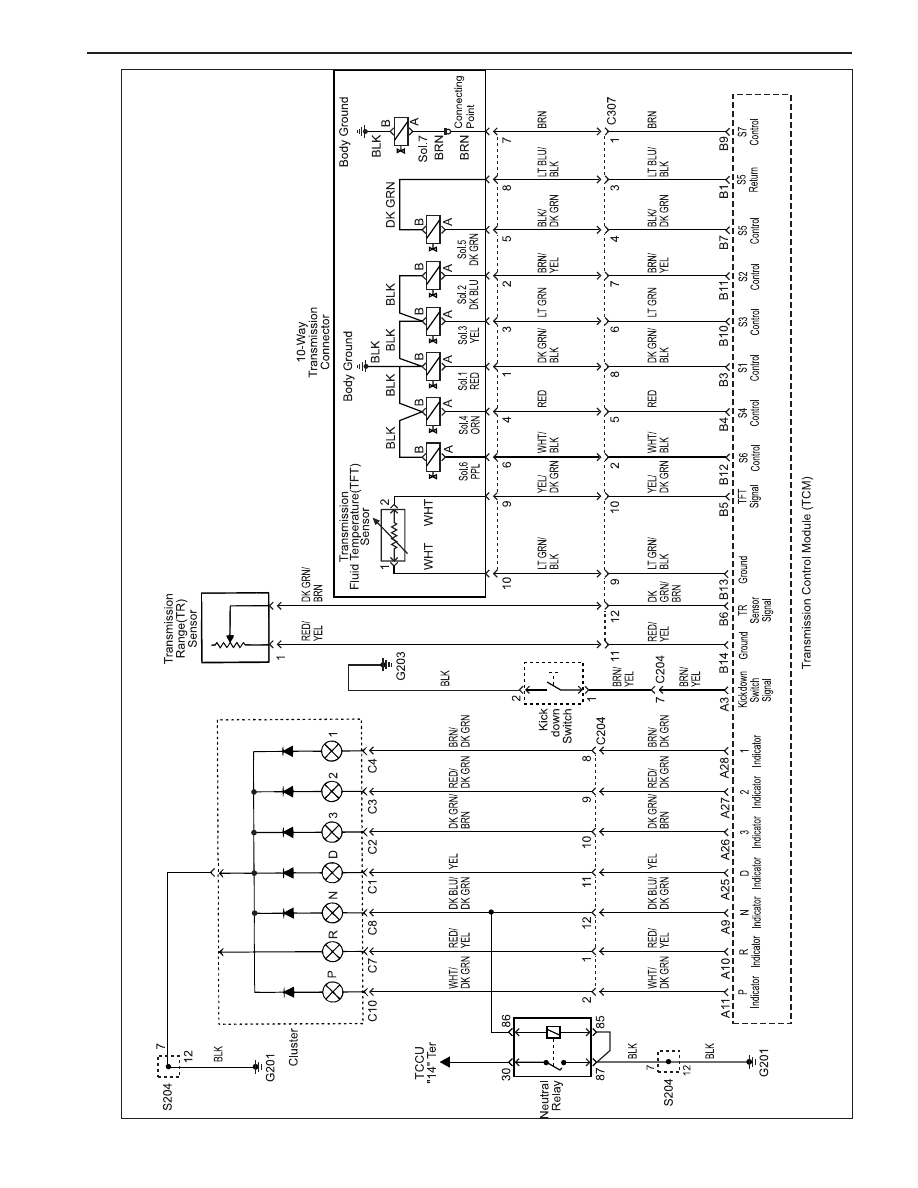

TCM WIRING DIAGRAM (DIESEL ENGINE - 2 OF 2)

YAD5A240

5A-210  AUTOMATIC TRANSMISSION

SSANGYONG  MY2002

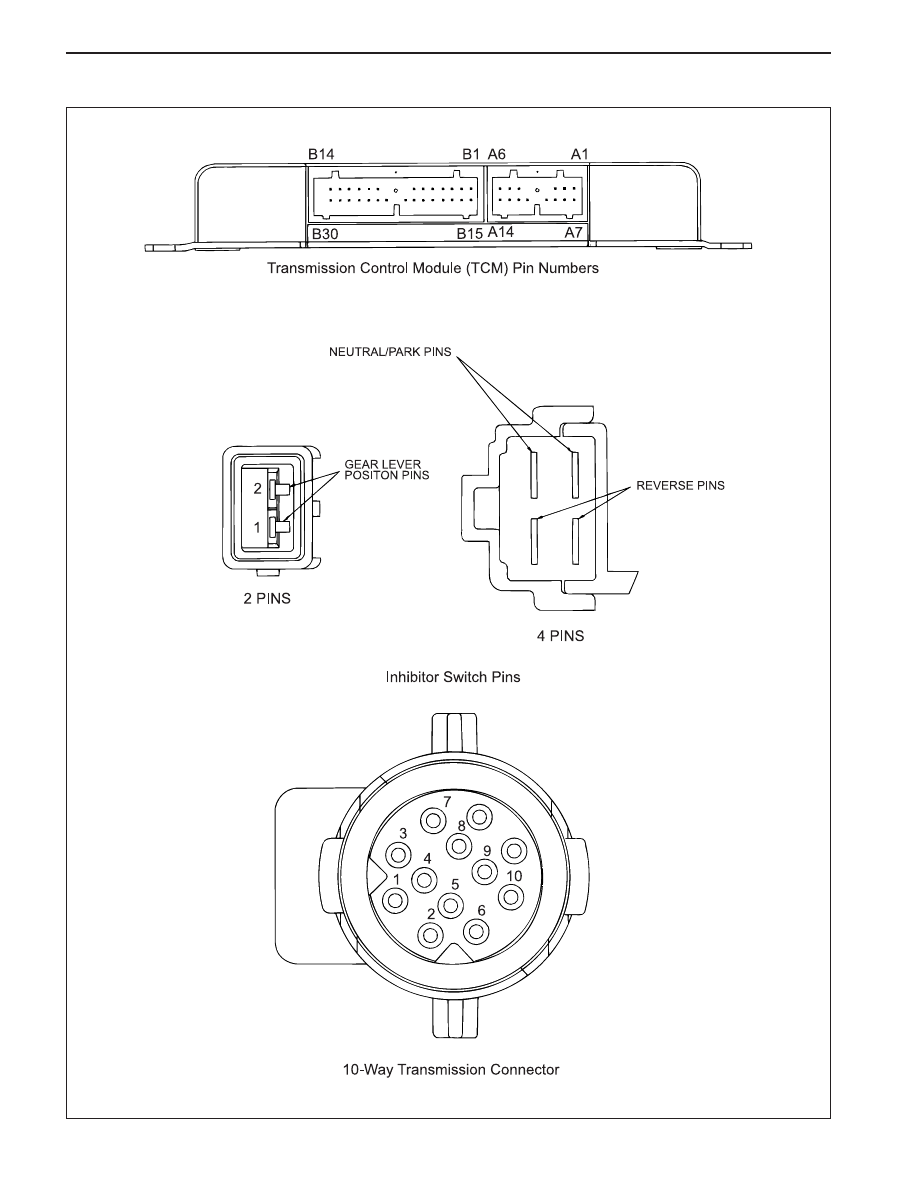

CONNECTOR END VIEW

KAA5A5O0
